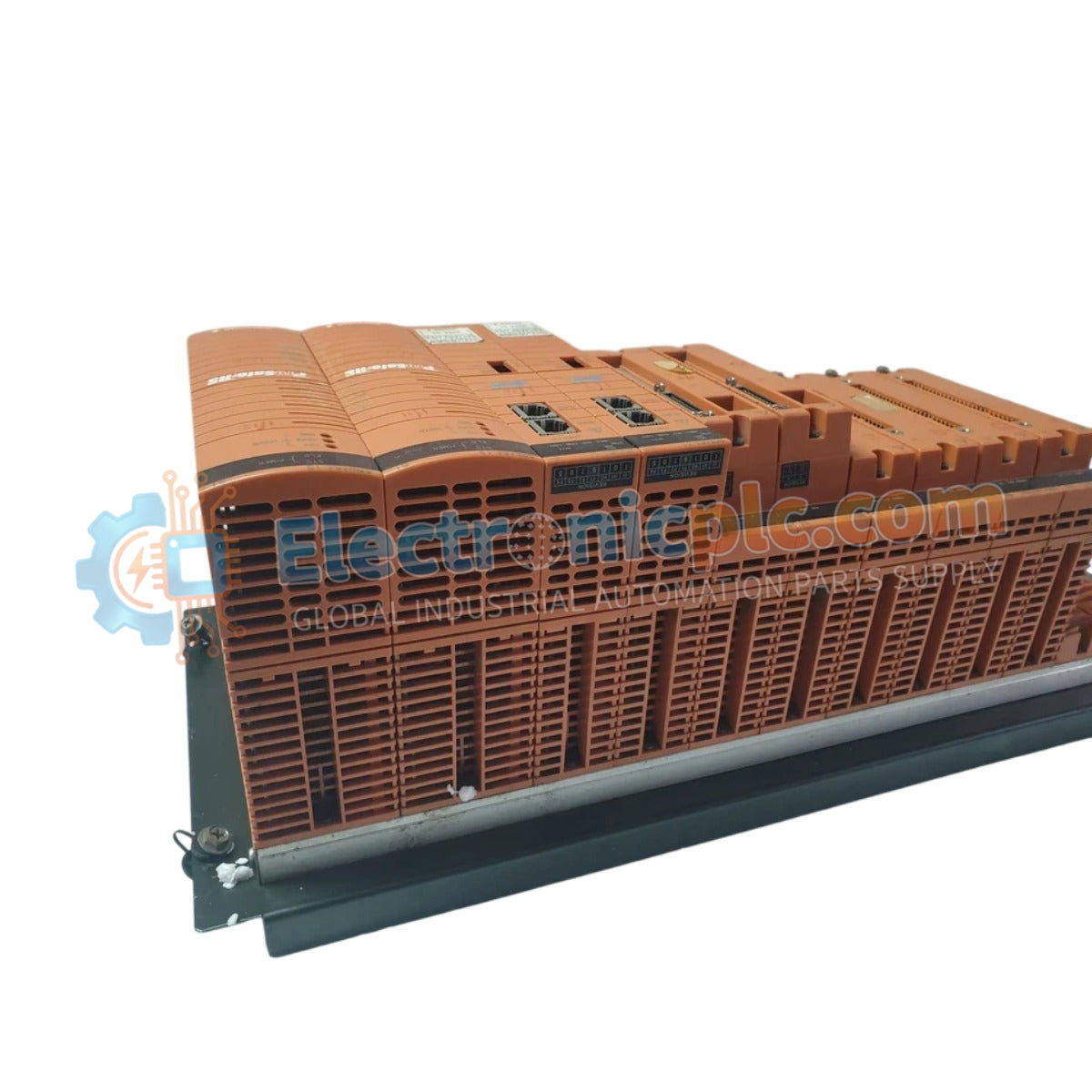

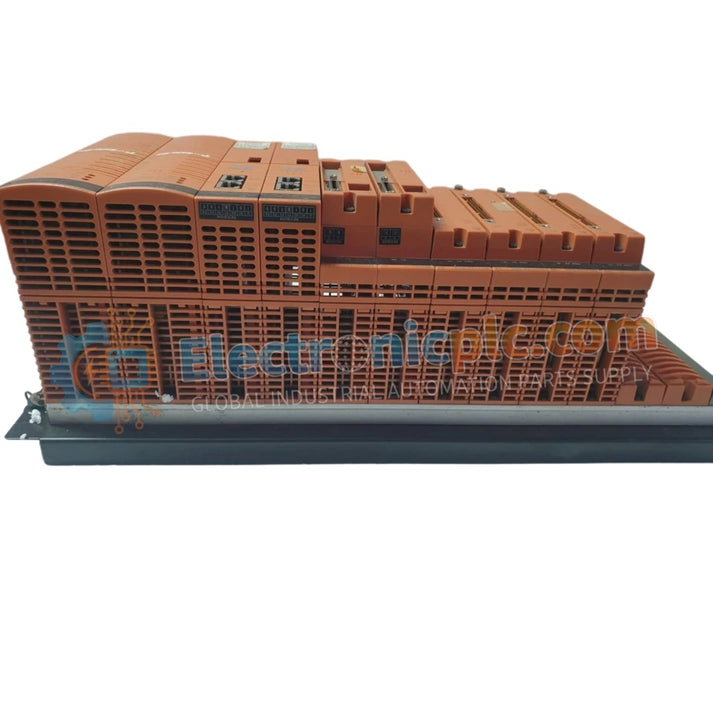

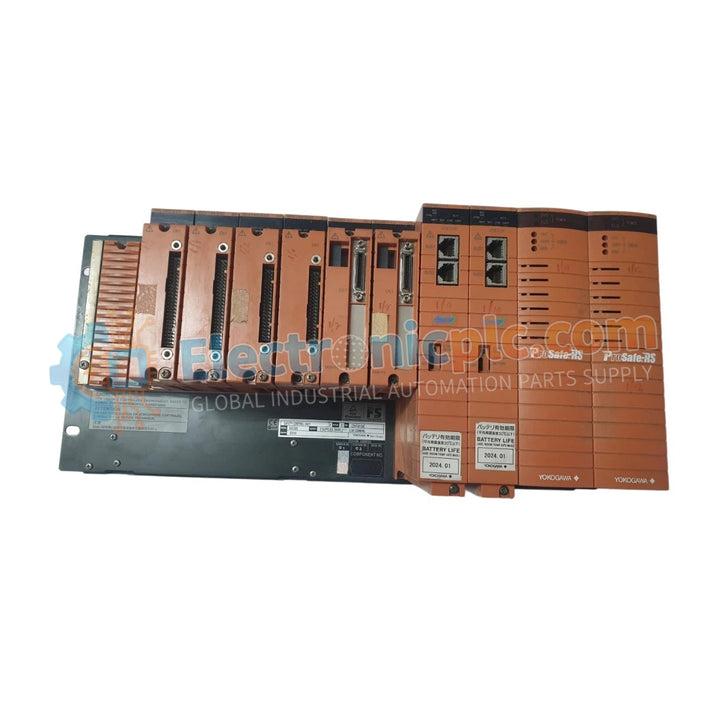

Configured for high-integrity safety logic execution in industrial control networks, the Yokogawa SSC10D-S2111 (SSC10D-S2111 Safety Control Unit) provides direct physical and electrical processing of safety-critical tasks.

Hardware Specifications

Process Control Connectivity and Integration

The SSC10D-S2111 functions within DCS environments requiring stringent safety control. The unit architecture utilizes specialized internal bus protocols to maintain communication deterministic timing for safety logic processing. The system supports 4-20 mA HART loop protocol integration when interfaced with compliant I/O, facilitating standardized diagnostic and process variable data exchange. To ensure system-wide stability, the unit features channel-to-channel isolation mechanisms that mitigate the risk of cross-channel electrical interference, ensuring that safety-critical inputs remain shielded from potential DCS noise or transient voltage events on the process loop.

Frequently Asked Questions

Q: Can the non-rechargeable battery be replaced while the controller is powered?

A: Yes, the battery unit is designed for field replacement to maintain memory protection. Ensure adherence to local hazardous area regulations regarding battery handling during replacement to avoid short circuits.

Q: What is the impact of removing the optional fan unit on the operating range?

A: Removing the fan unit reduces the effective heat dissipation capacity of the controller, which may necessitate lowering the maximum ambient operating temperature below +55 deg C to prevent thermal throttling or hardware faults.

Field Installation Guidelines

1. Mount the controller securely into the rack using the eight M5 screws provided, ensuring the unit is flush against the backplane to provide adequate thermal grounding.
2. Verify that the power supply voltage (100-120 V AC, 200-240 V AC, or 24 V DC) matches the source output before termination.
3. Utilize shielded twisted-pair cabling for all signal inputs to minimize electromagnetic interference (EMI) and maintain the integrity of the 4-20 mA loops.
4. Ensure all signal cable shields are grounded at a single, common electrical point within the cabinet to prevent ground loops.
5. Confirm that ventilation clearances are maintained around the module; if operating at the high end of the temperature range, ensure the optional fan unit is installed and verified for operational airflow.
