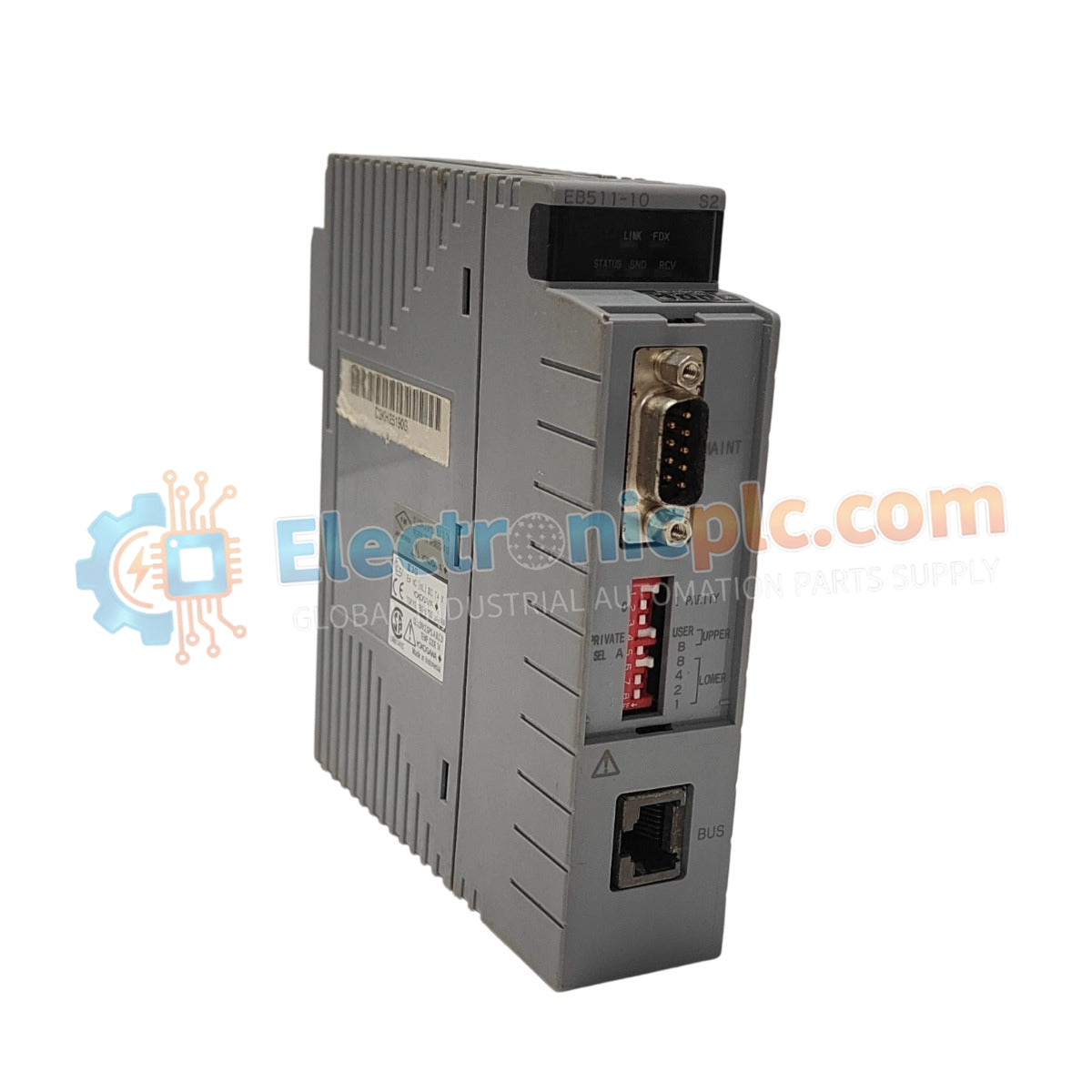

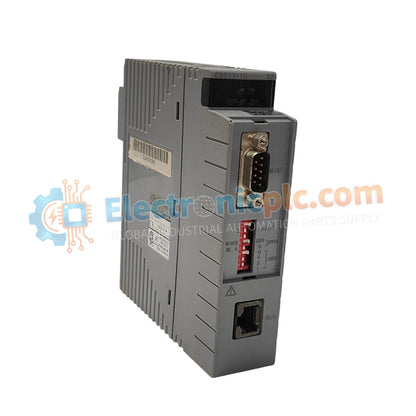

Configured for high-speed data exchange in CENTUM CS and CENTUM VP control networks, the Yokogawa EB511-10 (EB511-10 Bus Interface Module) provides direct physical and electrical execution for ER Bus communication...

24 people are viewing this right now

Availability: In stock

SKU: EB511-10
Vendor: Yokogawa
Category: Bus Interface Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Configured for high-speed data exchange in CENTUM CS and CENTUM VP control networks, the Yokogawa EB511-10 (EB511-10 Bus Interface Module) provides direct physical and electrical execution for ER Bus communication between the DCS and integrated field devices.

Hardware Specifications

Parameter Specification
Model EB511-10
Brand Yokogawa
Origin Japan
Weight 0.3 kg
Dimensions 2.5 cm (W) x 12.7 cm (D) x 12.7 cm (H)
Operating Temp 0 to 50 deg C
Power Consumption Dependent on backplane load
Communication ER Bus / IEEE802.3 10BASE-2

Yokogawa DCS and Process Control Connectivity

The EB511-10 serves as a critical gateway within the DCS architecture, facilitating communication across multiple industrial protocols including FOUNDATION Fieldbus, HART, and Modbus TCP/IP. The module leverages the IEEE802.3 10BASE-2 physical layer to ensure robust data transfer over the ER bus. Implementation of this interface requires careful adherence to signal impedance standards to maintain channel-to-channel isolation and minimize potential signal degradation within the control network.

Frequently Asked Questions

Q: Does the EB511-10 support hot-swapping within the CENTUM system?

A: No. The module is not rated for hot-insertion or hot-removal. The system power must be isolated before performing any maintenance or module replacement to prevent damage to the backplane communication circuitry.

Q: Is external power required for the EB511-10?

A: No. The module is powered directly via the system backplane, ensuring simplified installation within the CENTUM CS/VP rack architecture.

Field Installation Guidelines

  1. Ensure the control rack is clean and free from conductive particulate matter prior to module installation.
  2. Align the EB511-10 module carefully with the backplane guide rails and verify that the ER bus interface connector is fully seated.
  3. Use the specified 10BASE-2 cabling and proper termination resistors at the ends of the bus segment to prevent signal reflections and data transmission errors.
  4. Route all communication cables away from high-current power conduits to minimize electromagnetic interference (EMI).
  5. Verify that the module's operating environment remains within the 0 to 50 deg C range to ensure stable performance and prevent premature hardware failure.
