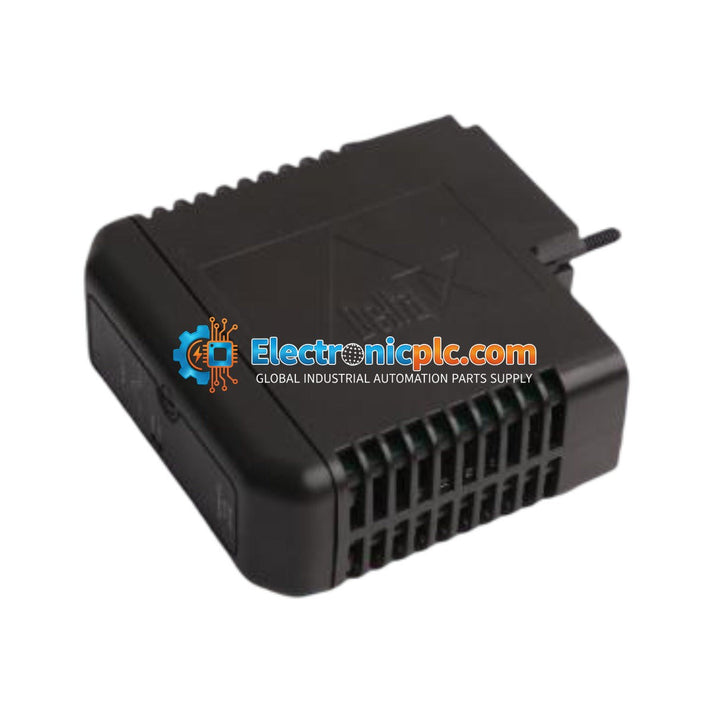

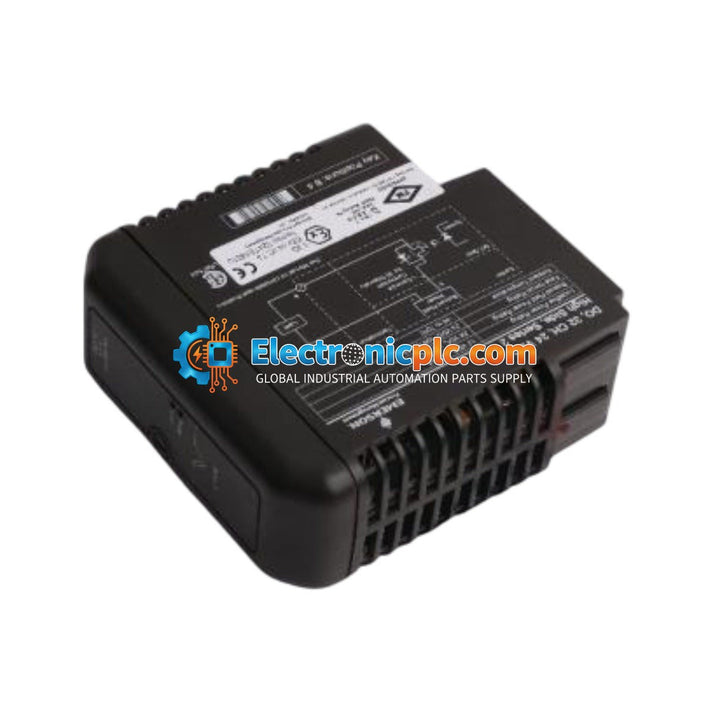

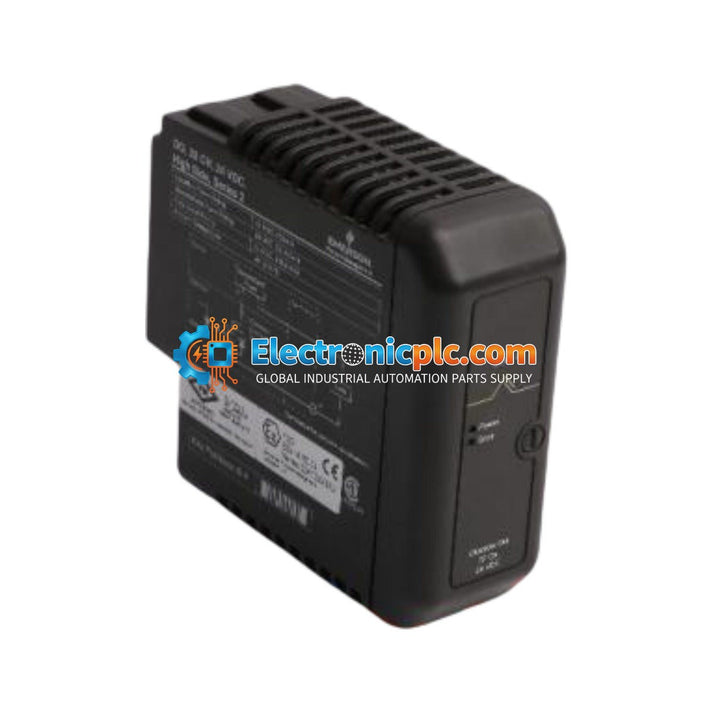

Emerson 12P3275X022 KJ3204X1-BA1 DeltaV 32-Channel Discrete Output Module

Emerson 12P3275X022 KJ3204X1-BA1 DeltaV 32-Channel Discrete Output Module

Description

The Emerson KJ3204X1-BA1 (12P3275X022) is a high-density 32-channel Discrete Output (DO) module designed for the DeltaV M-Series automation platform. This high-side switching module provides reliable control for field devices...

22 people are viewing this right now

Availability: Low stock: 4 left

SKU: 12P3275X022 KJ3204X1-BA1
Vendor: Emerson
Category: Discrete Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Emerson KJ3204X1-BA1 (12P3275X022) is a high-density 32-channel Discrete Output (DO) module designed for the DeltaV M-Series automation platform. This high-side switching module provides reliable control for field devices such as solenoids, relays, and indicators. Engineered for demanding industrial environments, it supports robust diagnostics and is suitable for use in hazardous areas, ensuring high system availability and reduced maintenance overhead in critical process control applications.

Features

  • 32-channel high-side discrete output configuration.
  • Bussed field power distribution supporting up to 3.2 A per card.
  • Individual channel rating of 100 mA at 24 VDC.
  • Physical rotary keying (Position B4) to prevent incorrect module insertion.
  • G3-level airborne contaminant protection for harsh environments.
  • High vibration and shock resistance for reliable operation in heavy industrial settings.

Applications

This module is typically deployed in DeltaV M-Series systems for oil and gas refineries, chemical processing, and power generation facilities. It is specifically designed to interface with field-mounted discrete devices requiring high-side switching in both safe and hazardous (Zone 2) locations.

Technical Specifications

Brand Emerson (DeltaV)
Model KJ3204X1-BA1
Part Number 12P3275X022 / 12P3275X042
Module Type 32-Channel Discrete Output (High-Side)
Local Bus Power 12 VDC at 150 mA
Bussed Field Power 24 VDC at 3.2 A per Card
Field Circuit Rating 24 VDC at 100 mA per Channel
Operating Temperature -40 to +70 deg C
Relative Humidity 5 to 95 percent (Non-Condensing)
Protection Rating IP 20

Installation Guidelines

  • Ensure the system is powered down before inserting or removing the module from the carrier.
  • Verify the rotary keying position (B4) matches the terminal block to prevent hardware damage.
  • In hazardous areas, ensure all non-sparking field circuits are de-energized prior to maintenance.
  • Maintain proper ventilation to stay within the -40 to +70 deg C operating range.
  • Use shielded cabling for field connections to minimize EMI interference.
  • Handle with standard ESD precautions to protect internal circuitry.

Compliance and Certifications

The KJ3204X1-BA1 is certified for use in hazardous locations, including II 3G Ex nA IIC Gc. Relevant certifications include FM12ATEX0090U and IECEx FMG 12.0035U.

FAQ

Is this module compatible with all DeltaV systems?
This module is specifically designed for the DeltaV M-Series platform. Please verify your system hardware revision and carrier compatibility before installation.

Does this module require periodic calibration?
No, the KJ3204X1-BA1 is a solid-state device and does not require periodic calibration or user-serviceable adjustments.
