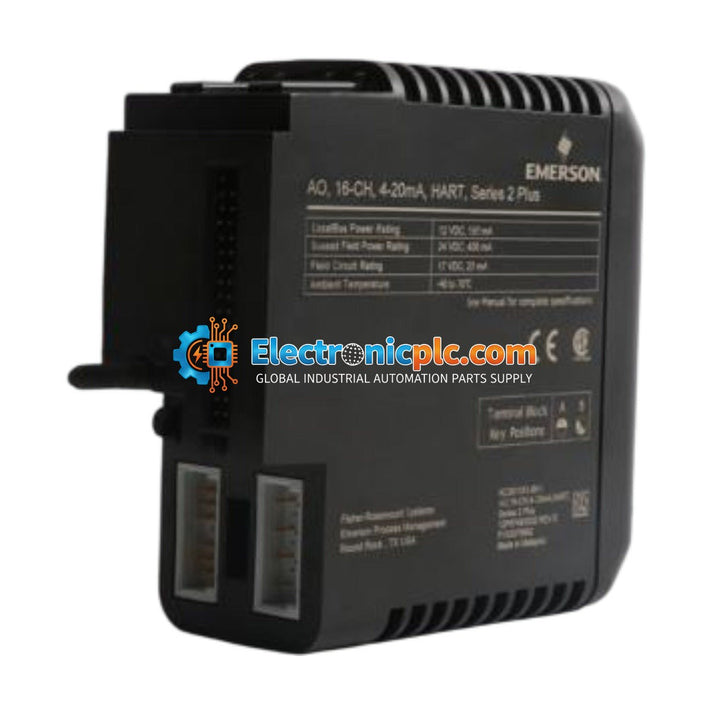

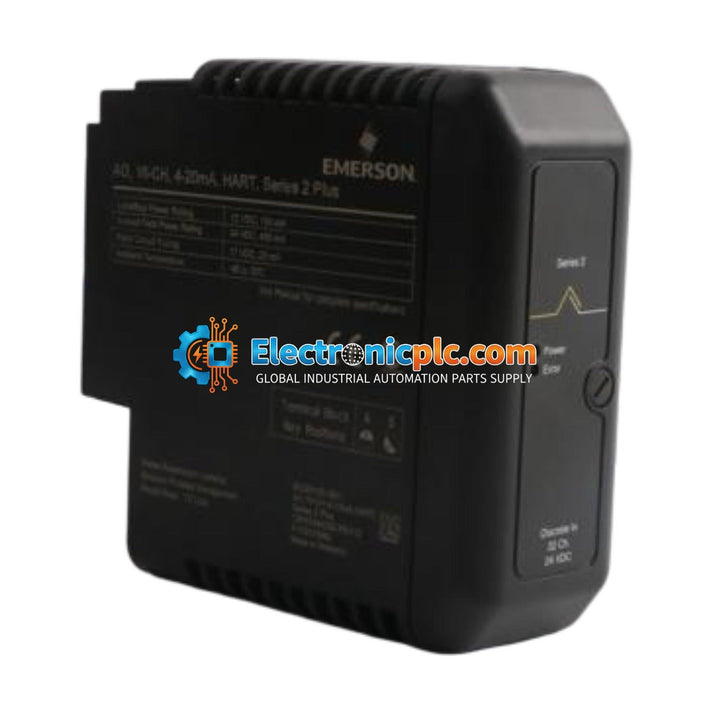

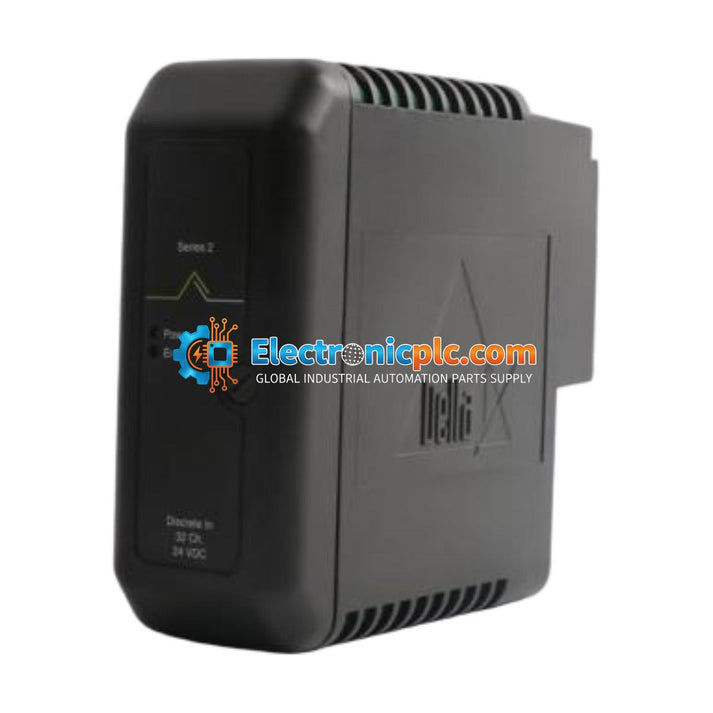

Emerson DeltaV KC3011X1-BA1 16-Channel Analog Output Module

Emerson DeltaV KC3011X1-BA1 16-Channel Analog Output Module

Description

The Emerson DeltaV KC3011X1-BA1 is a high-performance 16-channel Analog Output (AO) Plus module designed for the DeltaV S-series platform. This module provides precise 4-20 mA control signals and features integrated...

21 people are viewing this right now

Availability: Low stock: 4 left

SKU: KC3011X1-BA1
Vendor: Emerson
Category: Analog Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Emerson DeltaV KC3011X1-BA1 is a high-performance 16-channel Analog Output (AO) Plus module designed for the DeltaV S-series platform. This module provides precise 4-20 mA control signals and features integrated HART communication, enabling seamless field device diagnostics and configuration. Engineered for demanding industrial environments, including oil refineries, chemical processing, and power generation, the KC3011X1-BA1 offers high density and reliability to support critical modulating control valves and actuators.

Features

  • 16-channel density for optimized I/O cabinet space.
  • Integrated HART communication support for advanced device management.
  • Rotary keying system (Position A5) to prevent incorrect module insertion.
  • Robust design compliant with ISA-S71.04-1985 Class G3 for airborne contaminants.
  • Non-sparking (Ex nA) design suitable for Hazardous Atmosphere Zone 2.

Applications

The KC3011X1-BA1 is intended for use in DeltaV S-series I/O subsystems, primarily for applications requiring high-precision analog control. Typical uses include modulating control valves, positioners, and other 4-20 mA field instruments that benefit from HART-based diagnostic data.

Technical Specifications

Model KC3011X1-BA1
Series DeltaV S-series
Channel Count 16
Signal Type 4-20 mA with HART
Local Bus Power 12 VDC at 160 mA
Bussed Field Power 24 VDC at 400 mA
Field Circuit Load 17 VDC at 23 mA
Operating Temperature -40 to +70 deg C
Storage Temperature -40 to +85 deg C
Relative Humidity 5 to 95 percent (Non-Condensing)
Shock Resistance 10 g (11 ms half-sine)
Vibration Resistance 1 mm peak-to-peak (2-13.2 Hz); 0.7 g (13.2-150 Hz)

Installation Guidelines

  • Ensure all field and system power is disconnected before inserting or removing the module from the carrier.
  • Verify that the rotary keying on the module matches the terminal block (Position A5).
  • Install in a clean, dry environment; ensure the cabinet meets ISA-S71.04-1985 Class G3 standards for corrosive environments.
  • Maintain proper ventilation within the I/O cabinet to ensure operating temperatures remain within the -40 to +70 deg C range.
  • Use shielded cabling for all analog signal runs to minimize EMI interference in industrial environments.

Compliance and Certifications

  • Hazardous Area: II 3 G Ex nA IIC Gc
  • Certifications: FM15ATEX0004U, IECEx FMG 15.0001U

FAQ

Does this module support HART communication?
Yes, the KC3011X1-BA1 supports HART communication, allowing for bidirectional data exchange with field devices for configuration and diagnostics.

Can I hot-swap this module?
No, you must remove both field and system power before inserting or removing the module from the DeltaV carrier to ensure safety and prevent electrical damage.
