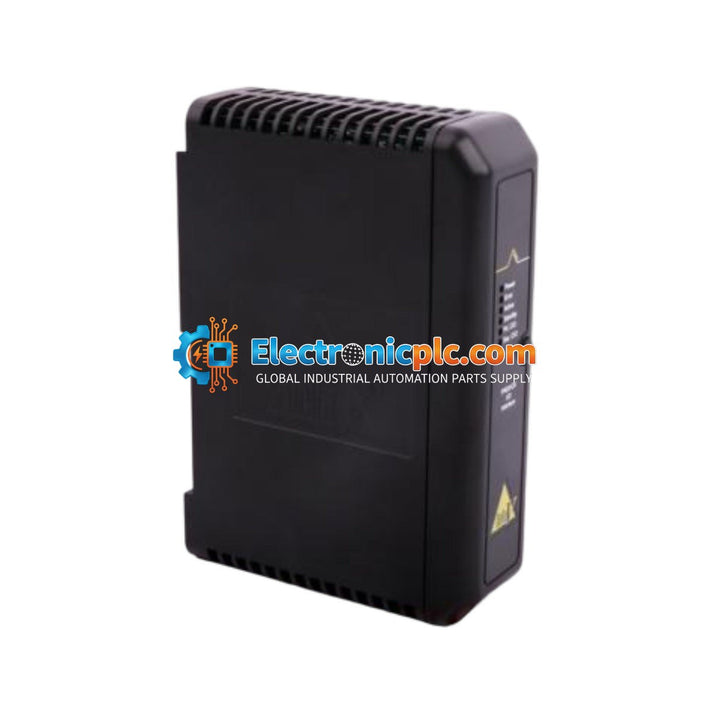

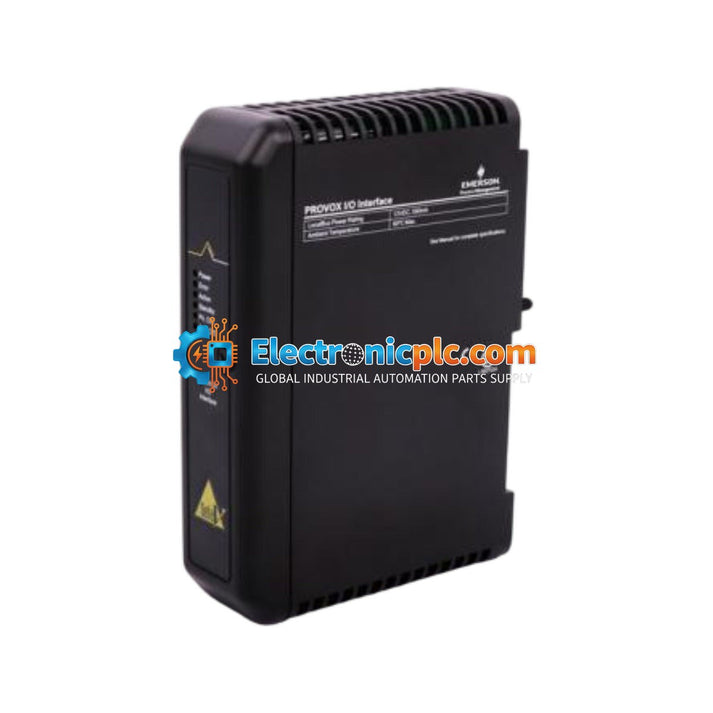

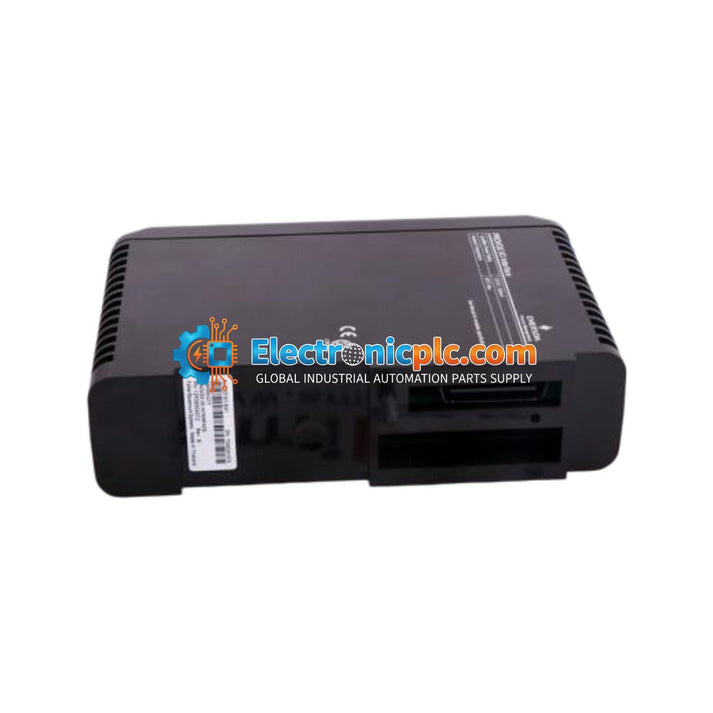

Emerson DeltaV KJ2101X1-BA 12P2690X012 PROVOX I/O Interface Module

Emerson DeltaV KJ2101X1-BA 12P2690X012 PROVOX I/O Interface Module

Description

The Emerson DeltaV KJ2101X1-BA (12P2690X012) is a specialized I/O interface module designed to bridge legacy PROVOX subsystems with the modern DeltaV automation platform. This module enables industrial facilities, such as...

18 people are viewing this right now

Availability: Low stock: 8 left

SKU: KJ2101X1-BA 12P2690X012
Vendor: Emerson
Category: I/O Interface Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Emerson DeltaV KJ2101X1-BA (12P2690X012) is a specialized I/O interface module designed to bridge legacy PROVOX subsystems with the modern DeltaV automation platform. This module enables industrial facilities, such as those in chemical processing, power generation, and pharmaceutical manufacturing, to integrate existing PROVOX I/O files into the DeltaV architecture. By facilitating this migration, the unit allows for a phased, low-risk upgrade path that preserves existing field wiring investments while introducing advanced diagnostic capabilities and high-speed data throughput.

Features

  • System Integration: Acts as a high-performance communication gateway, translating proprietary PROVOX I/O bus protocols for compatibility with DeltaV controllers.
  • Redundancy Support: Designed to support redundant configurations, ensuring continuous process availability by allowing a standby unit to assume control seamlessly if the primary interface fails.
  • Broad Compatibility: Interfaces directly with legacy PROVOX I/O files, including those utilized in 20-series and 100-series hardware sets.
  • Data Integrity: Utilizes rigorous error-checking algorithms to maintain signal precision across the legacy-to-modern interface boundary.

Applications

This interface module is intended for use in plant migration projects where legacy PROVOX control systems are being upgraded to DeltaV. It is ideal for environments requiring minimal downtime and the retention of existing field-side instrumentation and wiring.

Technical Specifications

Model KJ2101X1-BA
Part Number 12P2690X012
Input Voltage 24 VDC (via LocalBus)
Power Consumption 5.0 W (max)
Operating Temperature -40 to 70 deg C
Storage Temperature -40 to 85 deg C
Relative Humidity 5 to 95 percent (non-condensing)
Vibration Rating 1 mm peak-to-peak (5-16 Hz); 0.5g (16-150 Hz)
Shock Rating 10g 1/2 Sinewave for 11 msec

Installation Guidelines

  • Mounting: Designed for installation on a DeltaV 2-wide horizontal carrier.
  • Handling: Ensure proper ESD (electrostatic discharge) precautions are taken when handling the module to prevent damage to internal circuitry.
  • Power: Always ensure the system power is disconnected or the carrier is de-energized before inserting or removing the module to prevent electrical arcing or damage to the backplane pins.
  • Environment: Ensure the installation location meets the specified temperature and humidity ranges to maintain long-term reliability.
  • Grounding: Verify that the carrier is properly grounded according to DeltaV system installation standards to mitigate EMI and ensure signal integrity.

FAQ

Does this module support redundant configurations?

Yes, the KJ2101X1-BA is designed to support redundant operation, allowing for a seamless transition to a standby module in the event of a primary unit failure.

Is this module compatible with all PROVOX series?

The module is specifically designed for compatibility with PROVOX 20-series and 100-series I/O hardware sets.
