Emerson DeltaV KJ3201X1-BK1 12P4692X042 Digital Input Module

Emerson DeltaV KJ3201X1-BK1 12P4692X042 Digital Input Module

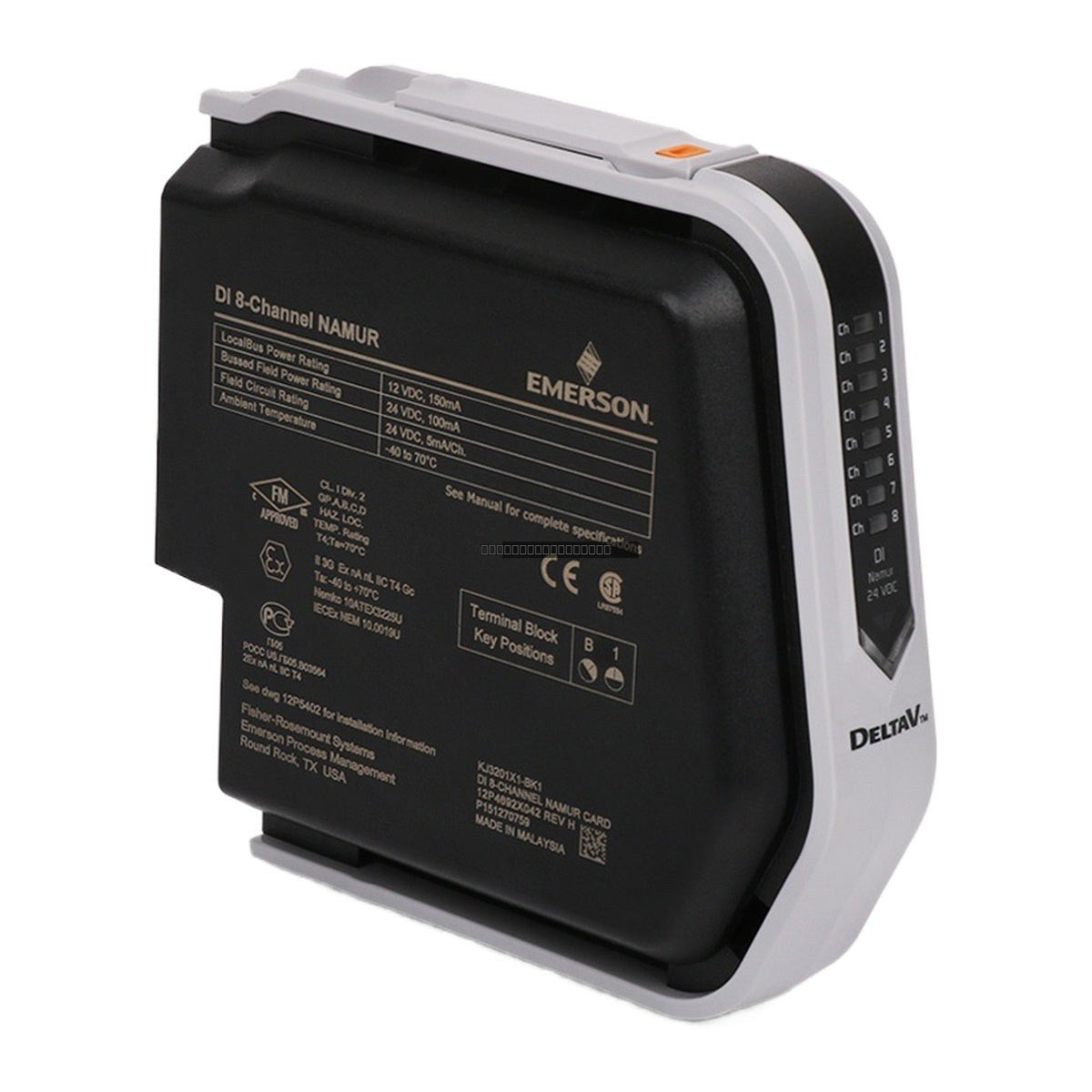

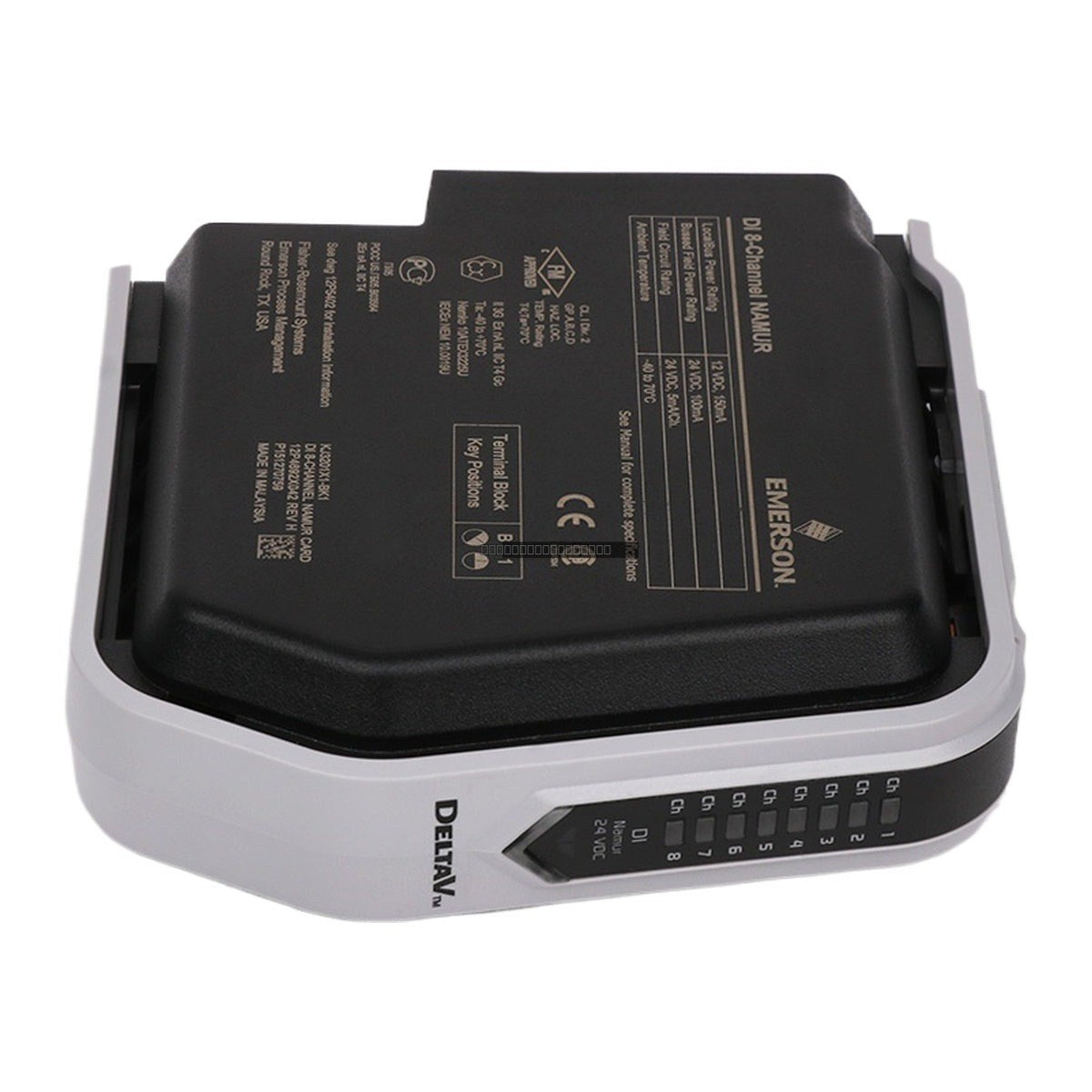

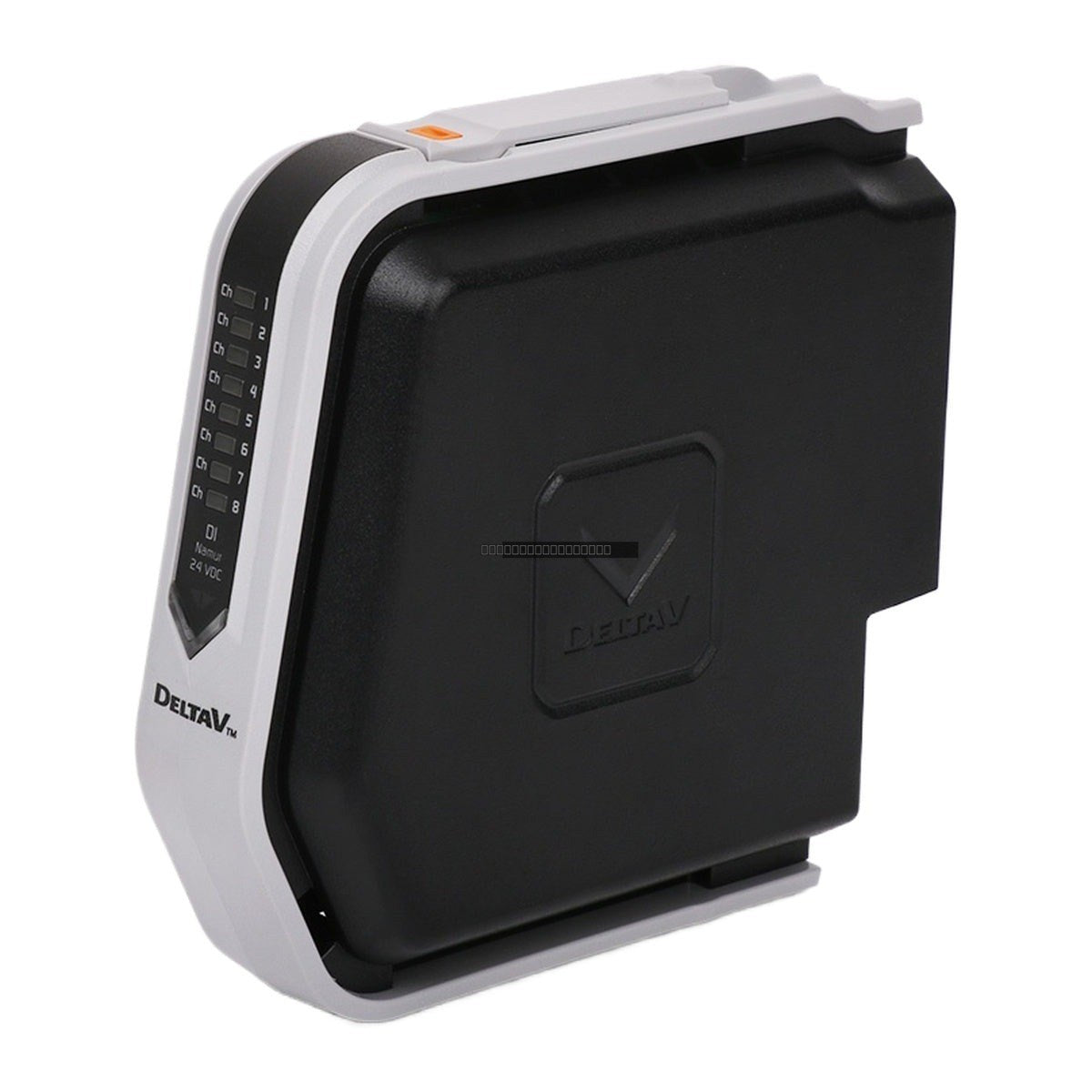

The Emerson KJ3201X1-BK1 (12P4692X042) is an 8-channel S-Series Digital Input (DI) card designed for the DeltaV Distributed Control System (DCS). This module provides reliable signal acquisition for industrial automation, supporting...

26 people are viewing this right now

Availability: Low stock: 6 left

SKU: KJ3201X1-BK1 12P4692X042 SE4001S2T1B1
Vendor: Emerson
Category: Digital Input Module
