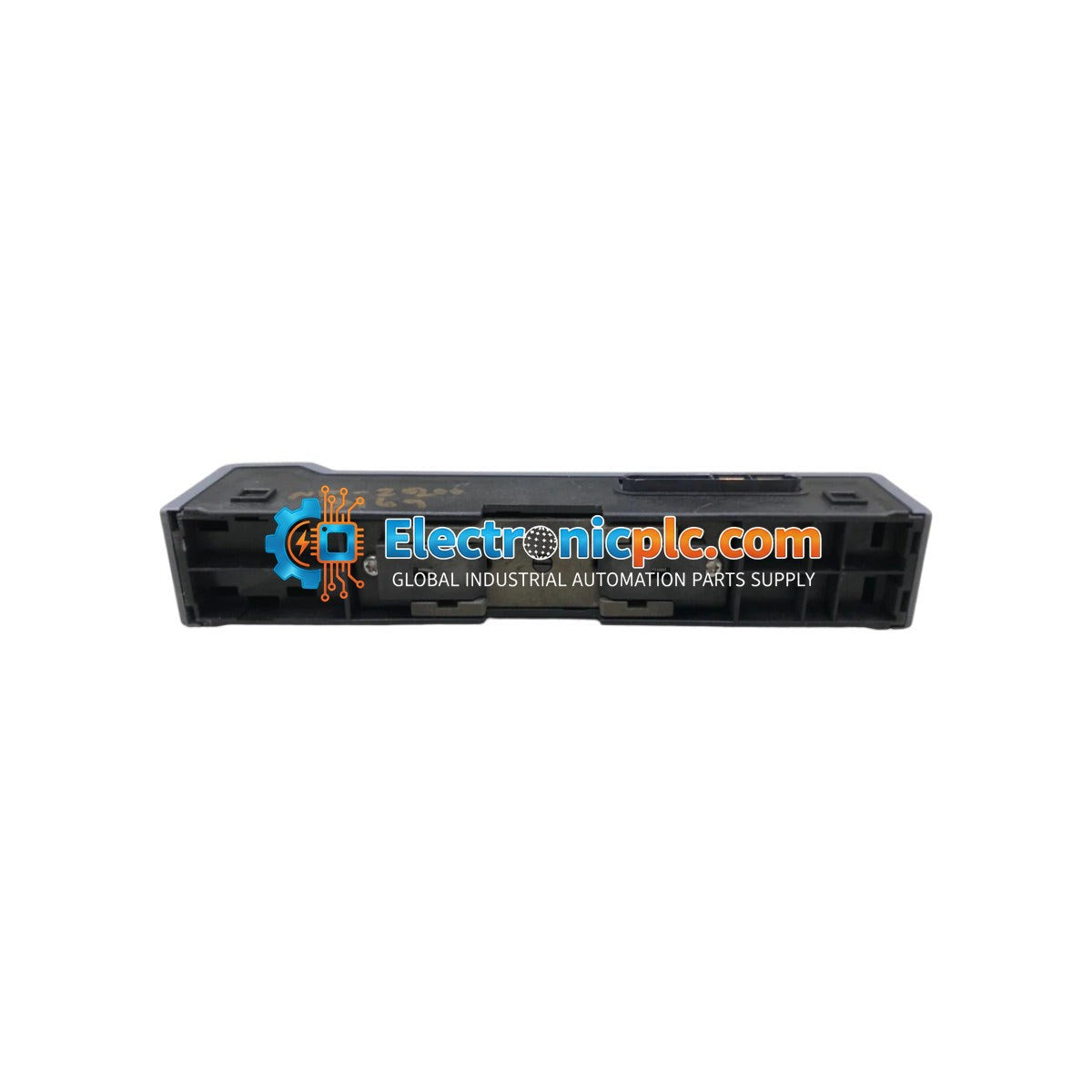

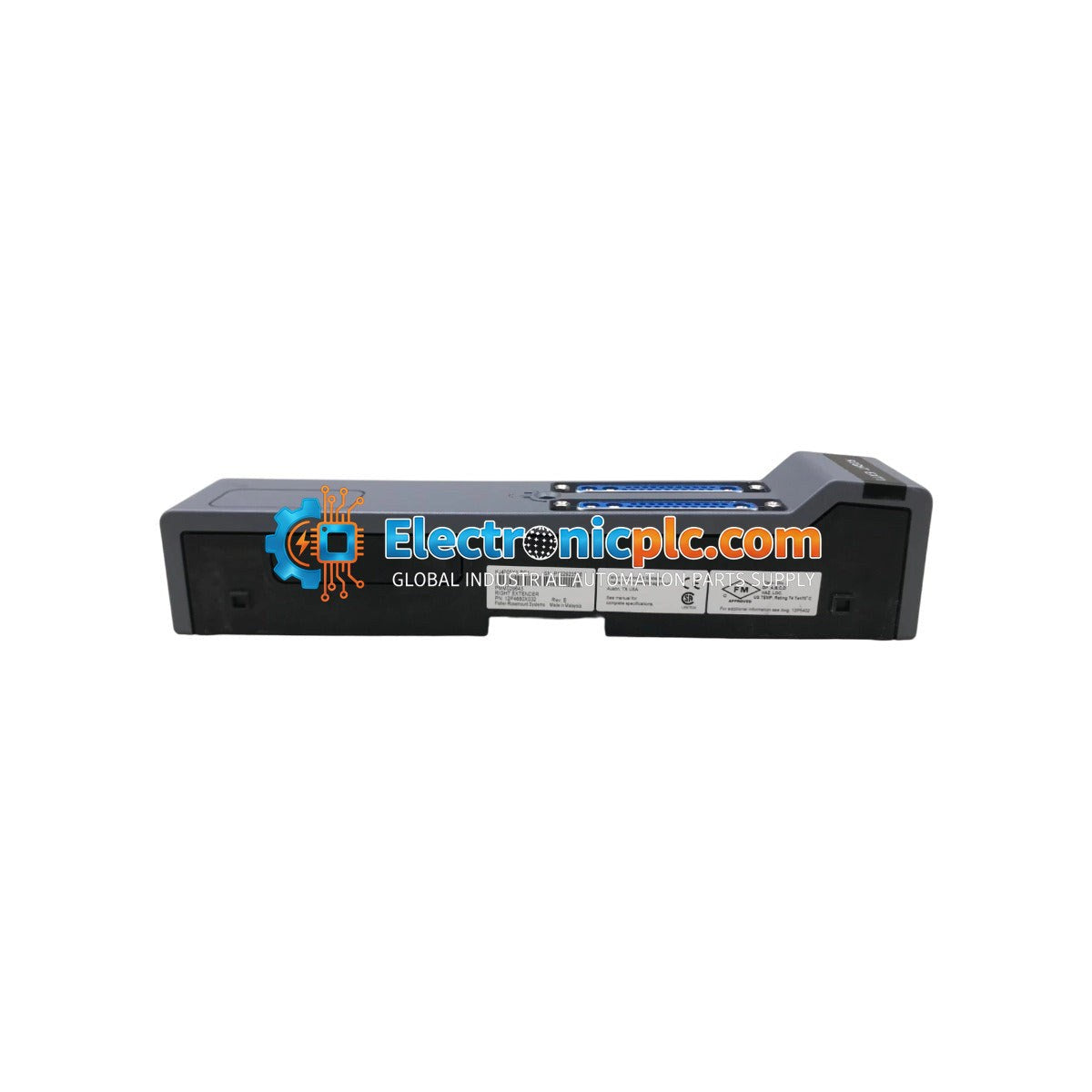

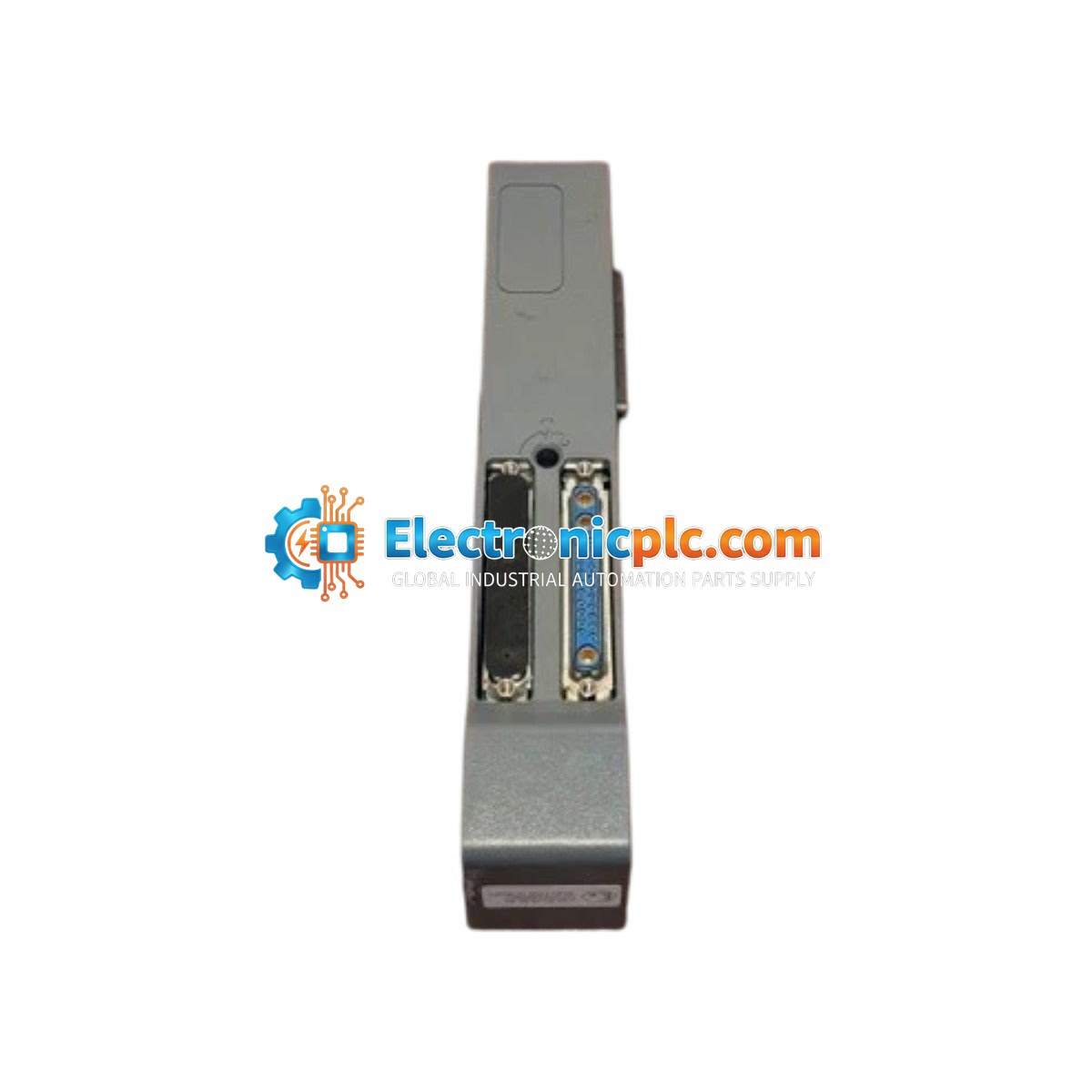

Emerson KJ4005X1-BC1 S-Series Horizontal Right Extender Carrier

Emerson KJ4005X1-BC1 S-Series Horizontal Right Extender Carrier

Description

The Emerson KJ4005X1-BC1 is an S-Series Horizontal Right Extender Carrier designed for use within the DeltaV distributed control system architecture. This carrier facilitates the expansion of I/O subsystems by providing...

25 people are viewing this right now

Availability: Low stock: 2 left

SKU: KJ4005X1-BC1
Vendor: Emerson
Category: I/O Carrier
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Emerson KJ4005X1-BC1 is an S-Series Horizontal Right Extender Carrier designed for use within the DeltaV distributed control system architecture. This carrier facilitates the expansion of I/O subsystems by providing the necessary physical mounting and electrical interface for S-Series I/O modules in a horizontal configuration. It is engineered to ensure robust signal integrity and reliable power distribution across the extended I/O bus.

Features

  • Designed specifically for the Emerson DeltaV S-Series I/O platform.
  • Horizontal mounting orientation for space-efficient cabinet layout.
  • Right-side extension capability to support system scalability.
  • Provides secure mechanical seating and electrical connectivity for compatible I/O modules.
  • Robust construction suitable for industrial control room and remote rack environments.

Technical Specifications

Product Model KJ4005X1-BC1
Spare Model 12P4680X032
Manufacturer Emerson
Product Type Horizontal Right Extender Carrier
Weight 0.4 kg

Installation Guidelines

  • Ensure the control system power is disconnected before installing or removing the carrier or any associated I/O modules.
  • Verify that the carrier is properly seated and secured to the DIN rail or mounting surface to prevent vibration-induced disconnects.
  • Maintain proper grounding practices to ensure EMI/RFI immunity in accordance with DeltaV installation standards.
  • Handle with care to avoid damage to the backplane pins and electrical connectors.
  • Ensure adequate ventilation in the cabinet to prevent thermal buildup around the I/O bus components.

FAQ

What is the primary function of the KJ4005X1-BC1?

The KJ4005X1-BC1 acts as a mounting and communication interface carrier for S-Series I/O modules, specifically configured for horizontal extension on the right side of an existing I/O assembly.

Is this carrier compatible with all DeltaV I/O?

This carrier is designed for the DeltaV S-Series I/O platform. Please verify your specific system configuration and module compatibility before installation.
