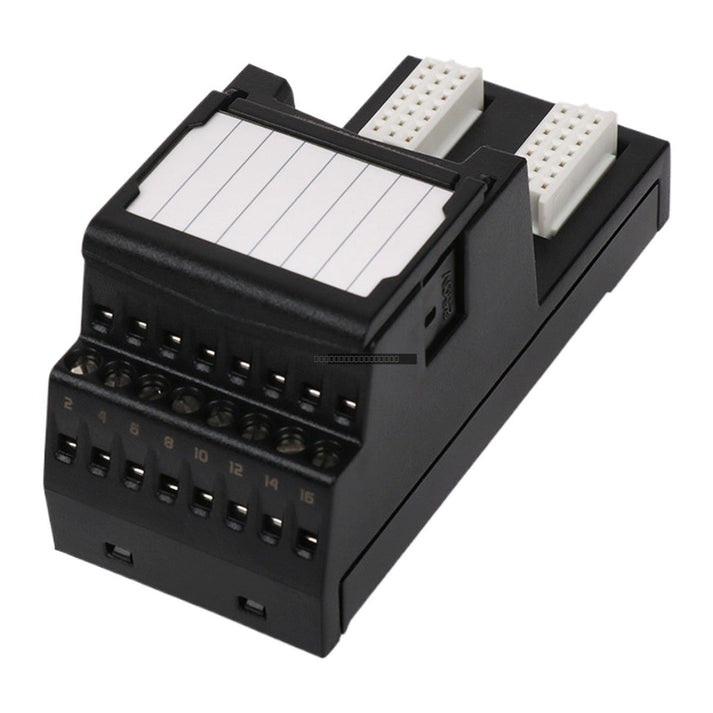

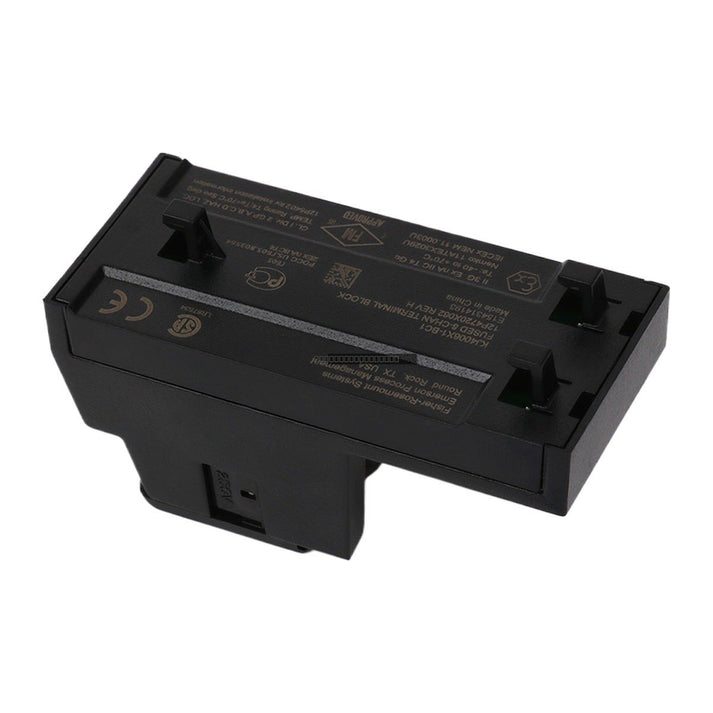

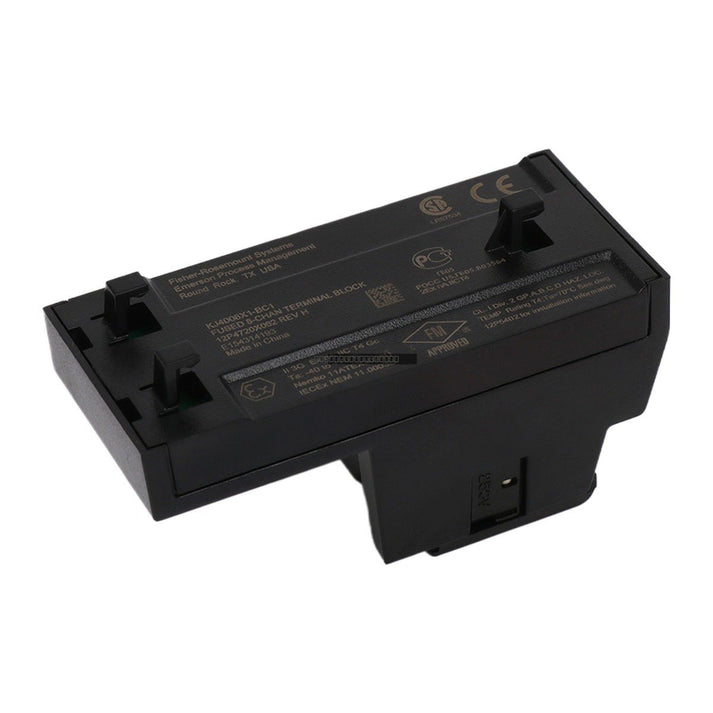

Emerson DeltaV KJ4006X1-BC1 12P4720X062 Fused Terminal Block

Emerson DeltaV KJ4006X1-BC1 12P4720X062 Fused Terminal Block

Description

The Emerson DeltaV KJ4006X1-BC1 (12P4720X062) is an 8-channel fused terminal block designed for use within the DeltaV distributed control system environment. This component provides reliable field wiring termination and circuit...

21 people are viewing this right now

Availability: Low stock: 2 left

SKU: KJ4006X1-BC1 12P4720X062
Vendor: Emerson
Category: Terminal Block
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Emerson DeltaV KJ4006X1-BC1 (12P4720X062) is an 8-channel fused terminal block designed for use within the DeltaV distributed control system environment. This component provides reliable field wiring termination and circuit protection for I/O signals, ensuring robust connectivity and safety in industrial process control applications.

Features

  • 8-channel configuration for high-density signal termination.
  • Integrated fusing for individual channel protection.
  • Designed for operation in demanding industrial environments with high resistance to vibration and shock.
  • Supports field power up to 60 VDC at 1 A per channel.
  • Compliant with ISA-S71.04-1985 Class G3 standards for airborne contaminants.

Technical Specifications

Model KJ4006X1-BC1 (12P4720X062)
Type Fused Terminal Block
Channels 8
Voltage Rating 250 VAC
Current Rating 2 A
Field Power 60 VDC at 1 A/Channel
Operating Temperature -40 degC to +70 degC
Relative Humidity 5 to 95% Non-Condensing
Shock Resistance 10g 1/2 Sinewave for 11msec
Vibration Resistance 1mm P-P (2-13.2Hz); 0.7g (13.2-150Hz)

Installation Guidelines

  • Ensure the system power is disconnected before installing or removing the terminal block from the mounting rail.
  • Verify that all field wiring is properly secured to the terminals to prevent intermittent connections.
  • Maintain proper clearance for airflow to ensure the module operates within the specified temperature range.
  • Handle with care to avoid electrostatic discharge (ESD) damage to sensitive electronic components in the vicinity.
  • Ensure that the terminal block is mounted in an environment that meets the specified airborne contaminant ratings (Class G3).

FAQ

What is the primary function of the KJ4006X1-BC1?
This module serves as a fused terminal block for the DeltaV system, providing 8 channels of signal termination and circuit protection for field devices.

Can this terminal block be used in high-vibration environments?
Yes, the unit is rated for industrial vibration levels, specifically 1mm peak-to-peak from 2 to 13.2Hz and 0.7g from 13.2 to 150Hz.
