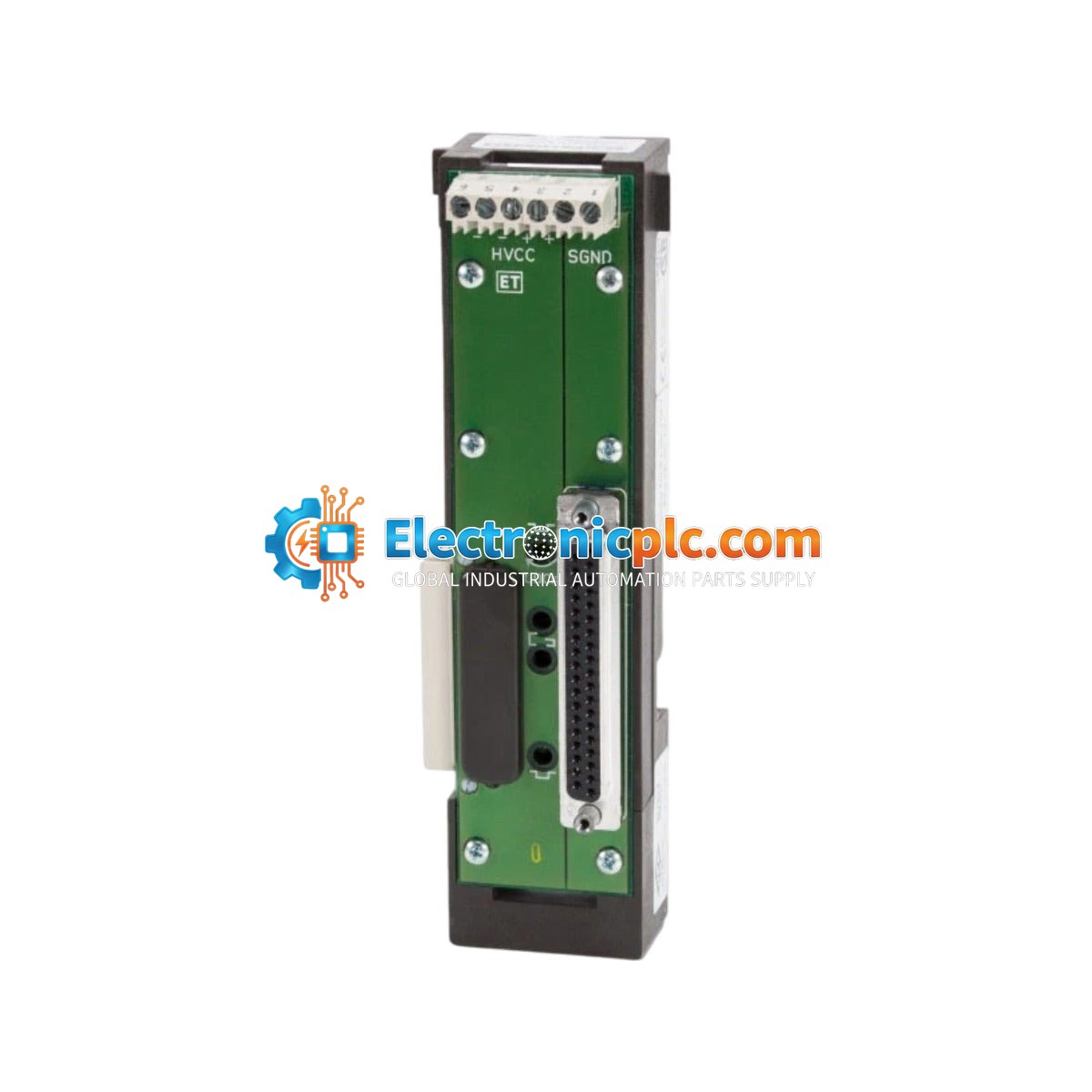

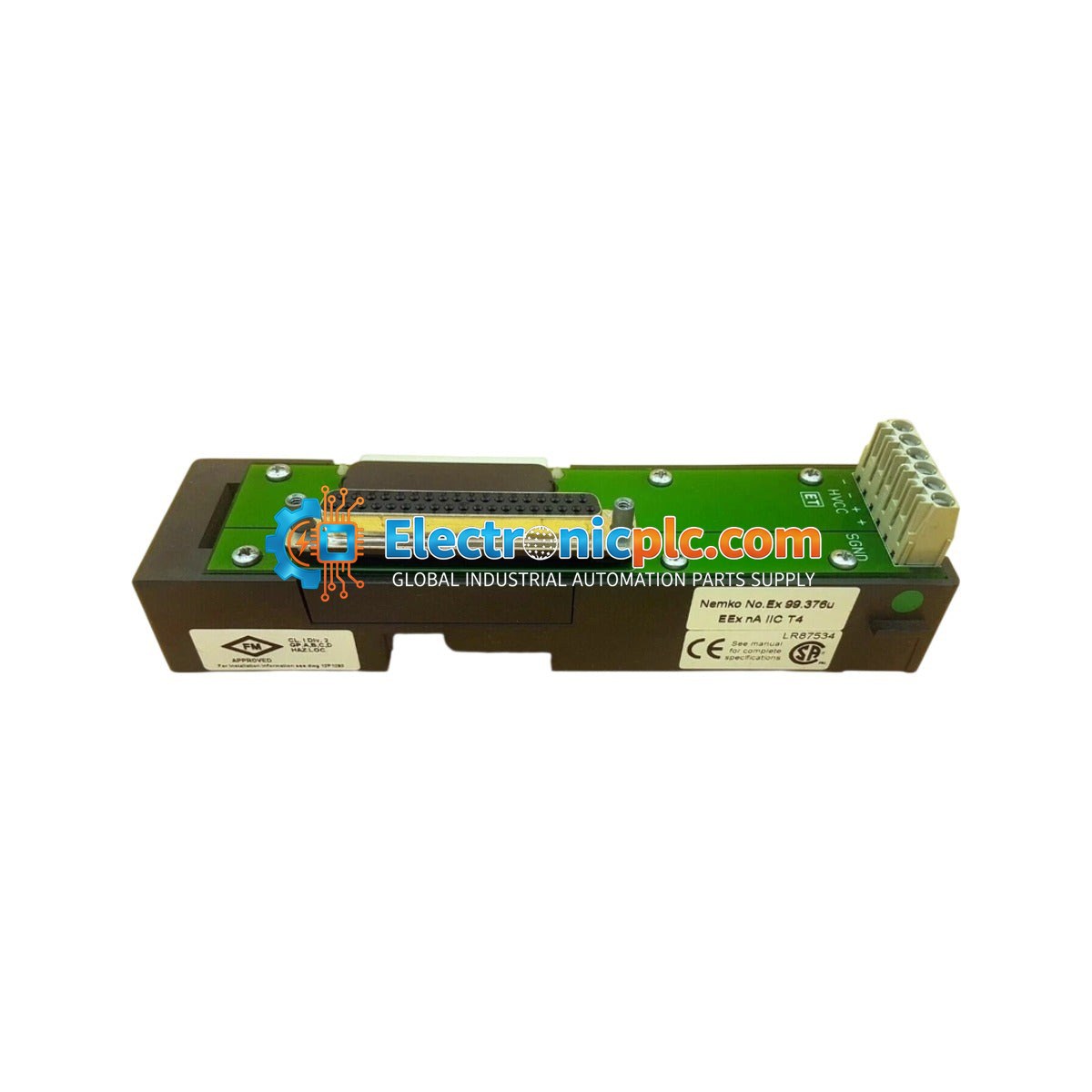

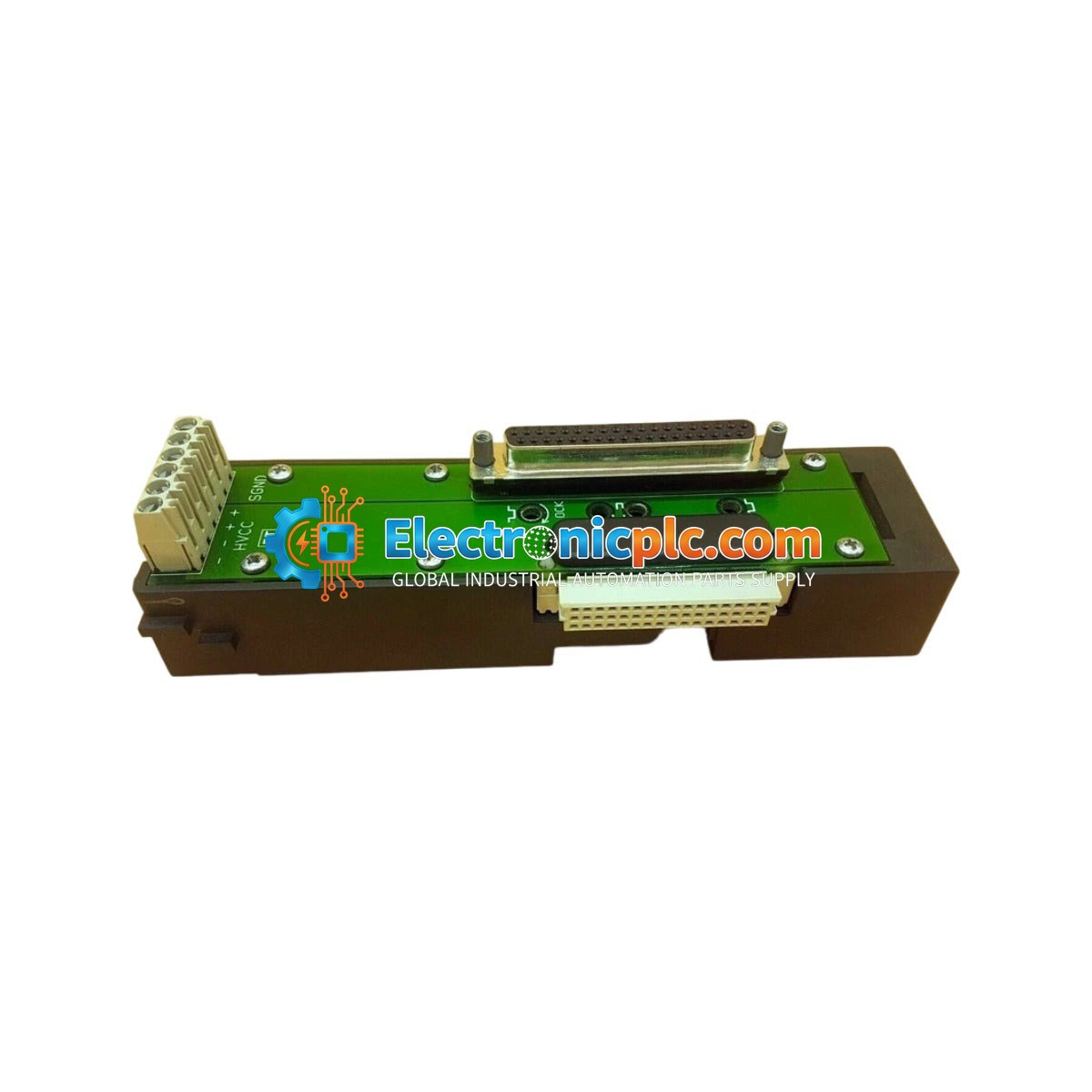

Emerson DeltaV KJ4010X1-BG1 12P0830X062 Right LocalBus Extender Cable Assembly

Emerson DeltaV KJ4010X1-BG1 12P0830X062 Right LocalBus Extender Cable Assembly

Description

The Emerson DeltaV KJ4010X1-BG1 (12P0830X062) is a specialized Right LocalBus Extender Cable Assembly engineered for the DeltaV Scalable Process System. This component is essential for extending the LocalBus across multiple...

21 people are viewing this right now

Availability: Low stock: 10 left

SKU: KJ4010X1-BG1 12P0830X062
Vendor: Emerson
Category: LocalBus Extender Cable Assembly
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Emerson DeltaV KJ4010X1-BG1 (12P0830X062) is a specialized Right LocalBus Extender Cable Assembly engineered for the DeltaV Scalable Process System. This component is essential for extending the LocalBus across multiple I/O carriers, providing the flexibility required for distributed control architectures in complex industrial environments such as chemical processing, oil and gas, and mining. It ensures reliable, high-speed communication between hardware segments while maintaining signal integrity across the extended bus length.

Features

  • Facilitates seamless expansion of the DeltaV LocalBus across distributed I/O carriers.
  • Robust construction designed for high-reliability communication in demanding industrial conditions.
  • Supports system scalability while minimizing signal degradation.
  • Rated for hazardous location operation (Zone 2).
  • Maintenance-free design with no user-serviceable parts or calibration requirements.

Applications

This cable assembly is primarily used in Emerson DeltaV distributed control systems (DCS) to bridge I/O carrier segments within control cabinets or across adjacent enclosures, supporting large-scale automation deployments that require physical separation of I/O hardware.

Technical Specifications

Model KJ4010X1-BG1 (12P0830X062)
Brand Emerson (DeltaV)
LocalBus Power 12.6 VDC at 8 A
Operating Temperature -40 to 70 deg C
Relative Humidity 5 to 95 percent (Non-Condensing)
Ingress Protection IP 20
Max System Length 6.5 meters (Combined Carriers and Extenders)
Shock Resistance 10g 1/2 Sinewave for 11 msec
Vibration Resistance 1mm P-P (5-16Hz); 0.5g (16-150Hz)
Contaminant Rating ISA-S71.04-1985 Class G3

Installation Guidelines

  • Power Down Required: This unit is not hot-swappable. The system must be completely de-energized before connecting or disconnecting the cable assembly to prevent electrical damage or hazardous sparking.
  • Hazardous Area Safety: Rated for Zone 2 (II 3 G, EEx nA IIC T4). Do not disconnect in hazardous areas unless the area is verified as non-hazardous or power is removed.
  • Cable Routing: Interconnecting cables between separate enclosures must be installed within protective conduit to ensure mechanical protection and signal integrity.
  • System Limits: The total combined length of all I/O carriers and LocalBus Extenders must not exceed 6.5 meters.

Compliance and Certifications

This module complies with hazardous area requirements including Nemko No. 02ATEX431U (II 3 G, EEx nA IIC T4). Always verify the specific site requirements against the latest Emerson DeltaV documentation.

FAQ

Is this cable assembly hot-swappable?

No, the KJ4010X1-BG1 is not hot-swappable. You must completely de-energize the system power before attempting to connect or disconnect the cable assembly from the I/O carriers.

What is the maximum allowable length for the LocalBus?

The total combined length of all I/O carriers and LocalBus Extenders in the system must not exceed 6.5 meters to ensure proper communication performance.
