Description

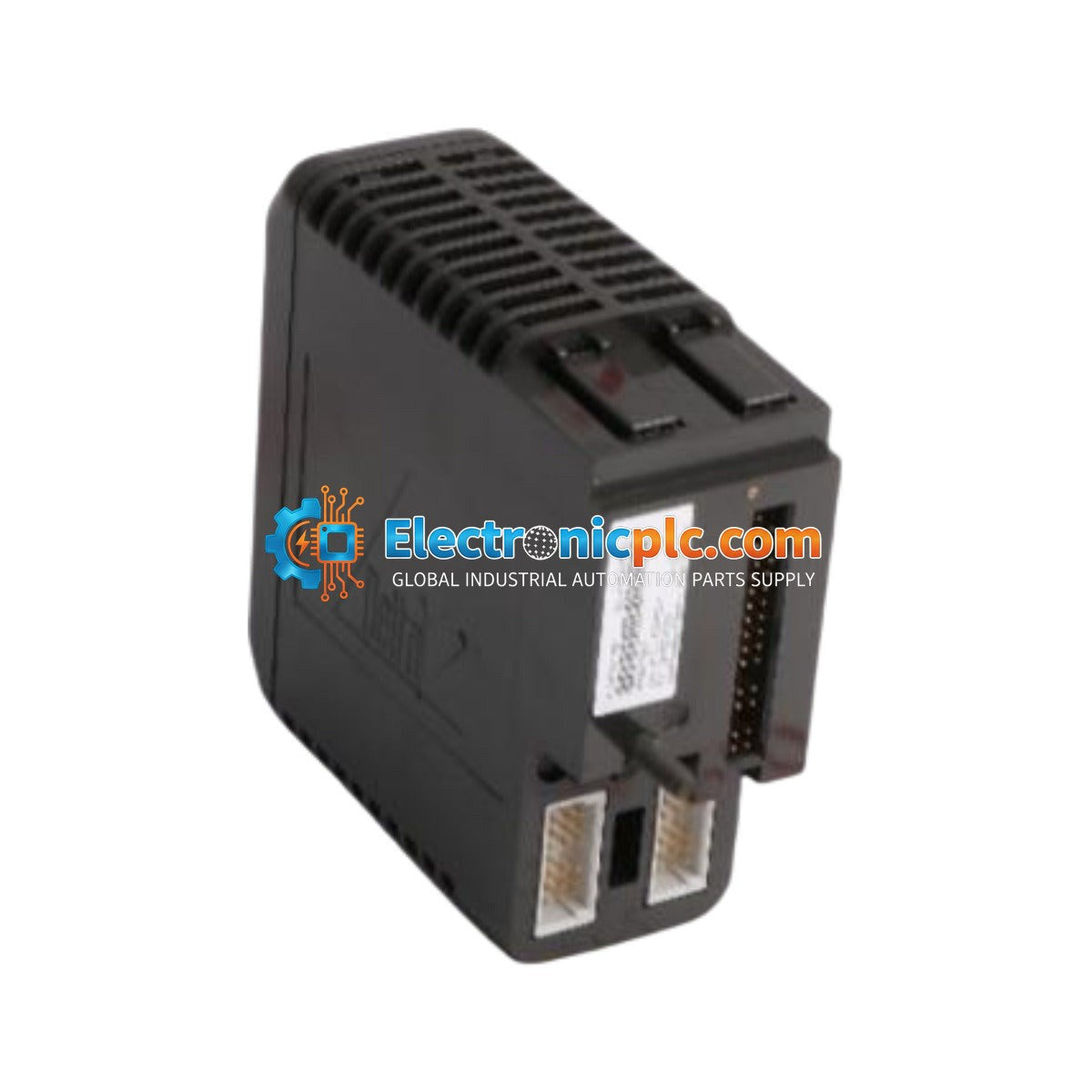

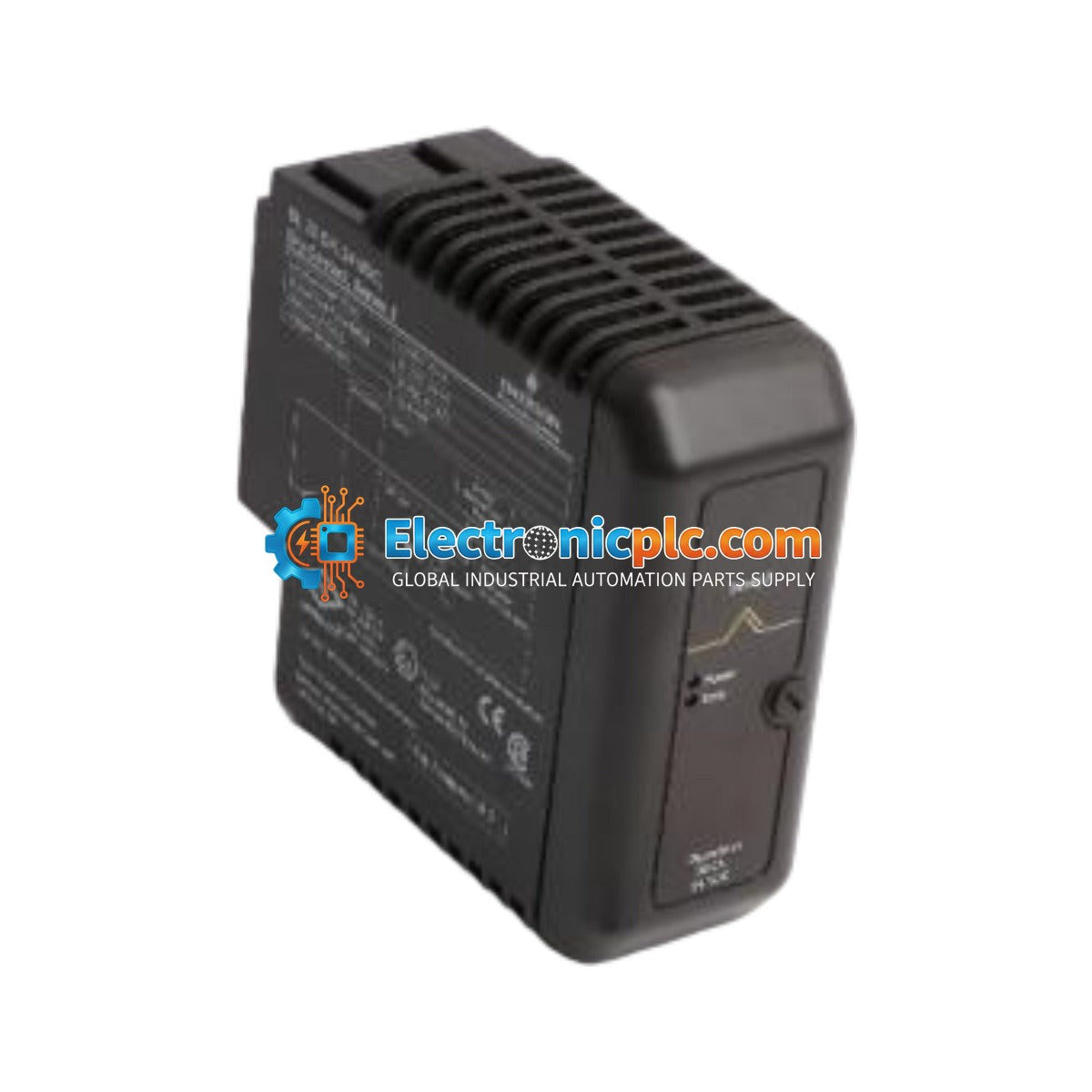

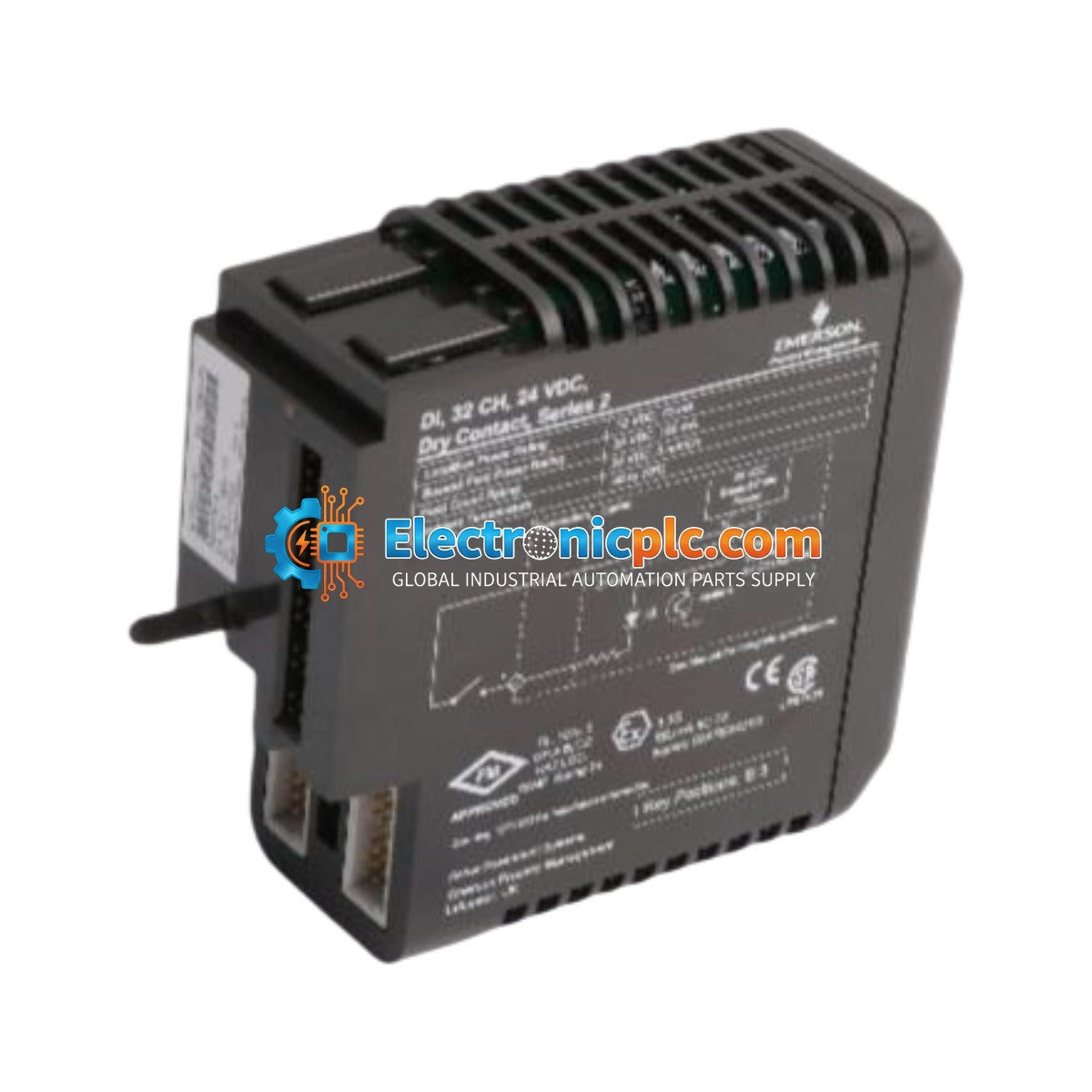

The Emerson DeltaV KJ3203X1-BA1 is a high-density discrete input module designed for integration within the DeltaV distributed control system (DCS). This module provides 32 channels of 24VDC discrete input, allowing for the monitoring of field-mounted switches, sensors, and other binary signal devices. It is engineered to provide reliable signal acquisition for process automation applications, ensuring seamless communication between field instrumentation and the control system controller.

Features

• 32-channel discrete input capacity for high-density I/O requirements.
• Designed for 24VDC signal levels, compatible with standard industrial discrete devices.
• Optimized for use within the DeltaV I/O subsystem architecture.
• Supports hot-swapping capabilities for maintenance without system downtime.
• Integrated diagnostic features for monitoring channel status and module health.

Applications

This module is typically deployed in process industries such as oil and gas, chemical processing, power generation, and water treatment. It is used to interface with field devices such as limit switches, proximity sensors, and auxiliary contacts to provide real-time status feedback to the DeltaV controller.

Technical Specifications

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the module from the I/O carrier.
• Handle the module using proper ESD (electrostatic discharge) precautions to prevent damage to internal circuitry.
• Verify that the module is fully seated in the designated slot on the DeltaV I/O carrier to ensure proper backplane connection.
• Use shielded cabling for field inputs to minimize electromagnetic interference (EMI) in high-noise industrial environments.
• Ensure all field wiring is terminated correctly according to the system loop diagrams and local electrical codes.

FAQ

What is the primary function of the KJ3203X1-BA1?

The KJ3203X1-BA1 is a 32-channel discrete input module used to monitor 24VDC binary signals from field devices and transmit that data to the Emerson DeltaV DCS.

Is this module hot-swappable?

Yes, the DeltaV I/O modules are designed to be hot-swappable, allowing for replacement during system operation without requiring a total shutdown of the controller.

What voltage level does this module support?

This module is specifically designed for 24VDC discrete input signals.
