Description

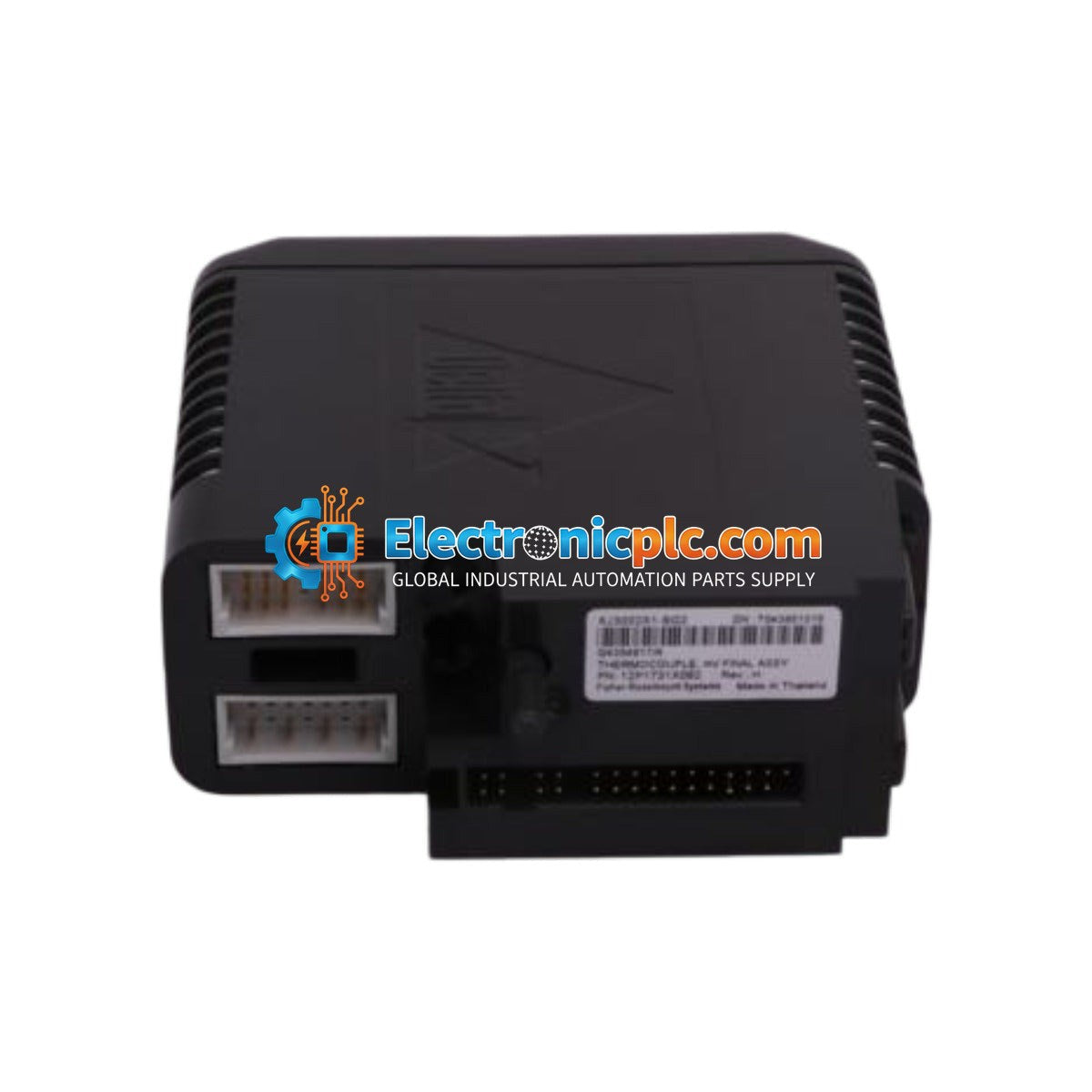

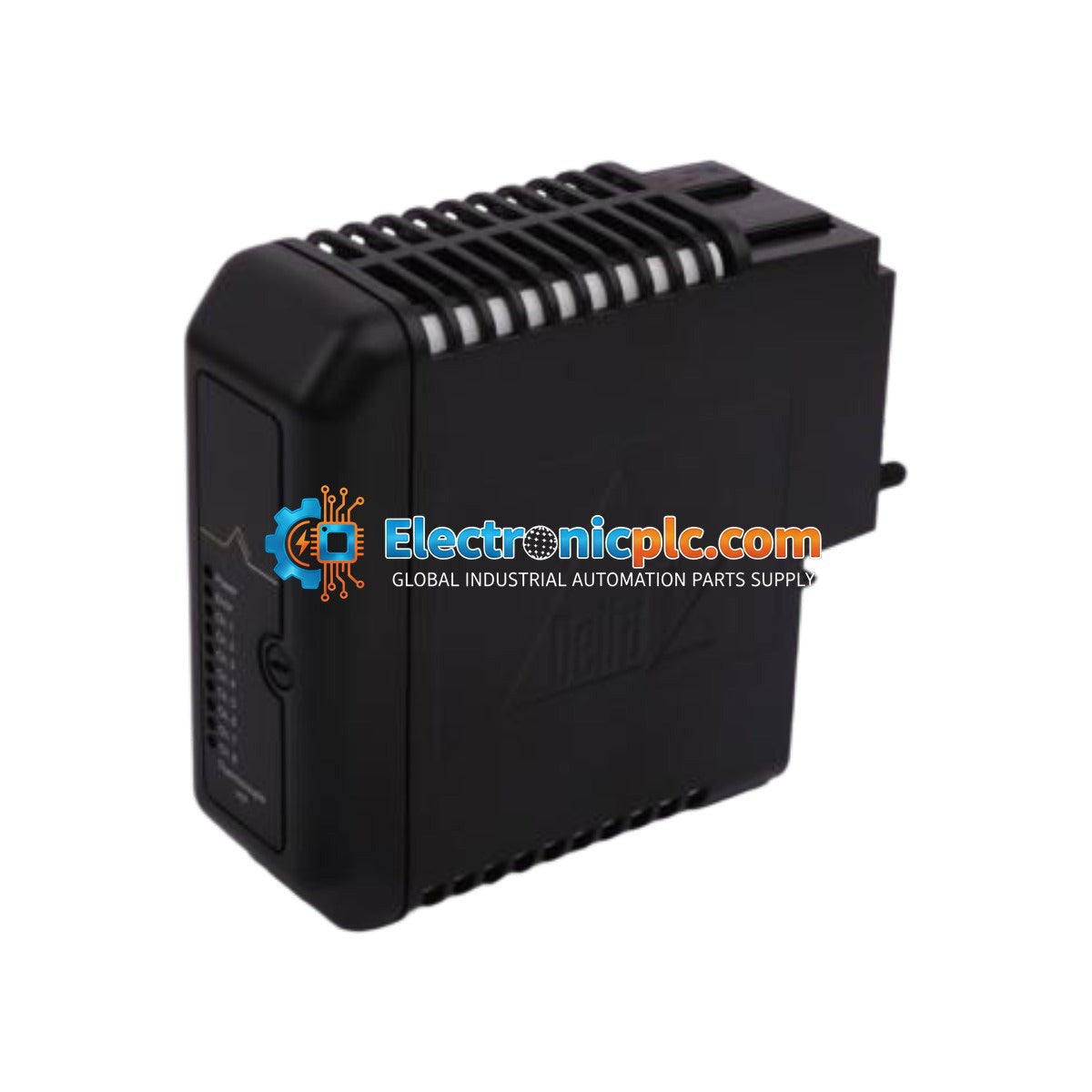

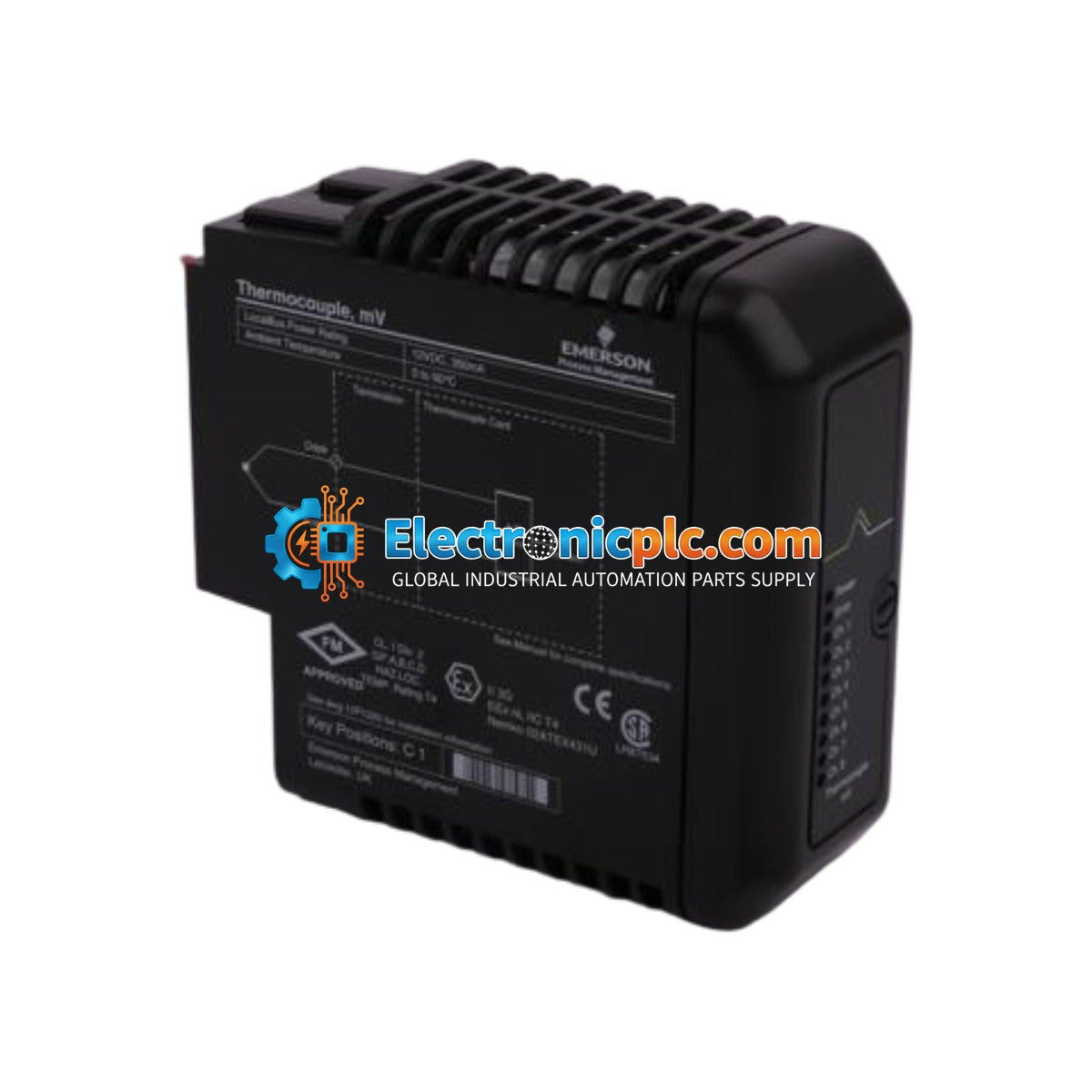

The Emerson DeltaV KJ3002X1-BG2 (also identified as VE4003S5B1 or 12P1731X082) is a high-precision analog input module engineered for the DeltaV M-Series distributed control system. This module is specifically designed to interface with thermocouple and millivolt (mV) signals, providing direct measurement capabilities for temperature-critical industrial processes. By incorporating built-in cold junction compensation and advanced signal noise rejection, the module ensures high measurement accuracy without requiring external signal converters. It is built to withstand harsh industrial conditions, including exposure to corrosive gases, and is certified for use in hazardous environments.

Features

• Direct Thermocouple Interface: Eliminates the need for external signal conditioning for standard thermocouple types.
• Integrated Diagnostics: Seamless integration with DeltaV system diagnostics for real-time health monitoring and fault detection.
• Corrosion Resistance: Hardened circuitry compliant with ISA-S71.04 Class G3 standards for operation in environments with high concentrations of corrosive gases.
• Safety Keying: Features B2 terminal block keying to prevent improper module insertion.
• Hazardous Area Compatibility: ATEX Zone 2 (EEx nL IIC T4) certified for safe operation in potentially explosive atmospheres.

Applications

This module is widely utilized in process automation environments where precise temperature monitoring is essential. Typical applications include:

• Oil and gas refining processes.
• Chemical reactor temperature monitoring.
• Power plant furnace and boiler control systems.
• General industrial temperature acquisition requiring high noise immunity.

Technical Specifications

Installation Guidelines

• Power Down: Always ensure the system power is disconnected before installing or removing the module from the carrier.
• ESD Precautions: Handle the module using proper electrostatic discharge (ESD) prevention techniques to avoid damaging sensitive internal components.
• Keying: Verify that the terminal block keying matches the B2 position before attempting to seat the module.
• Environment: Ensure the installation location meets the specified temperature and humidity requirements. Avoid mounting in areas exceeding the vibration or shock limits defined in the specifications.
• Wiring: Use shielded cabling for thermocouple inputs to minimize EMI interference, ensuring proper grounding practices are followed at the terminal block.

FAQ

Is this module hot-swappable?

Yes, the KJ3002X1-BG2 supports hot-swapping within the DeltaV M-Series carrier, provided it is used in conjunction with a compatible system power supply such as the KJ1501X1-BC1.

What does the B2 keying indicate?

The B2 keying is a physical safety feature on the module and terminal block that ensures the module is only inserted into a compatible slot, preventing electrical damage from incorrect hardware placement.
