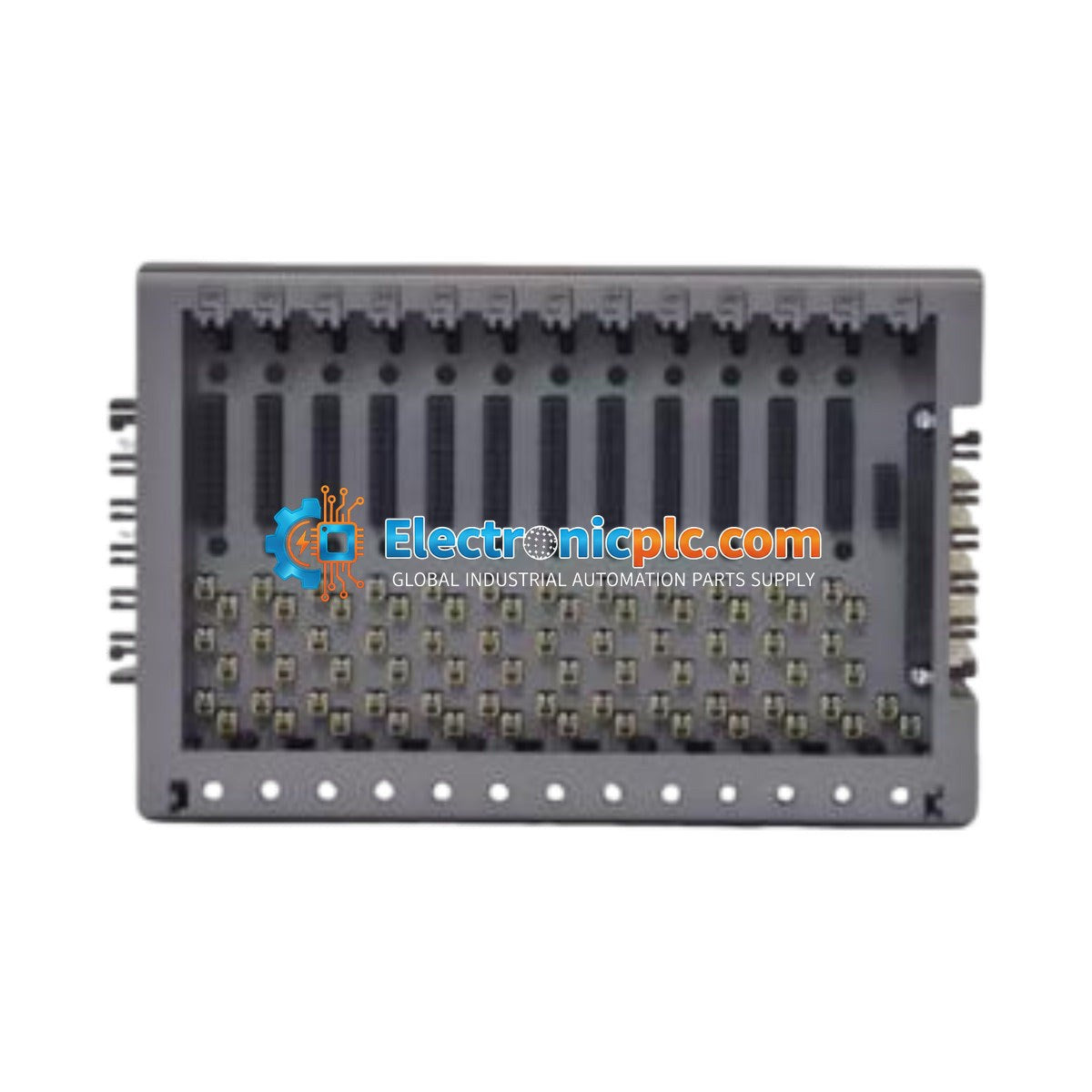

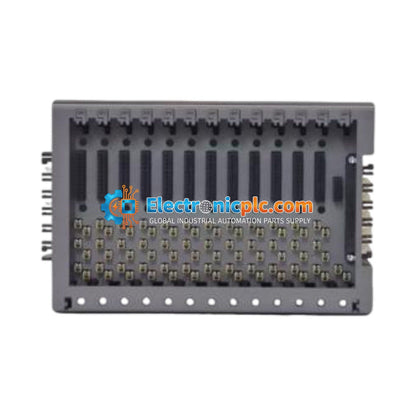

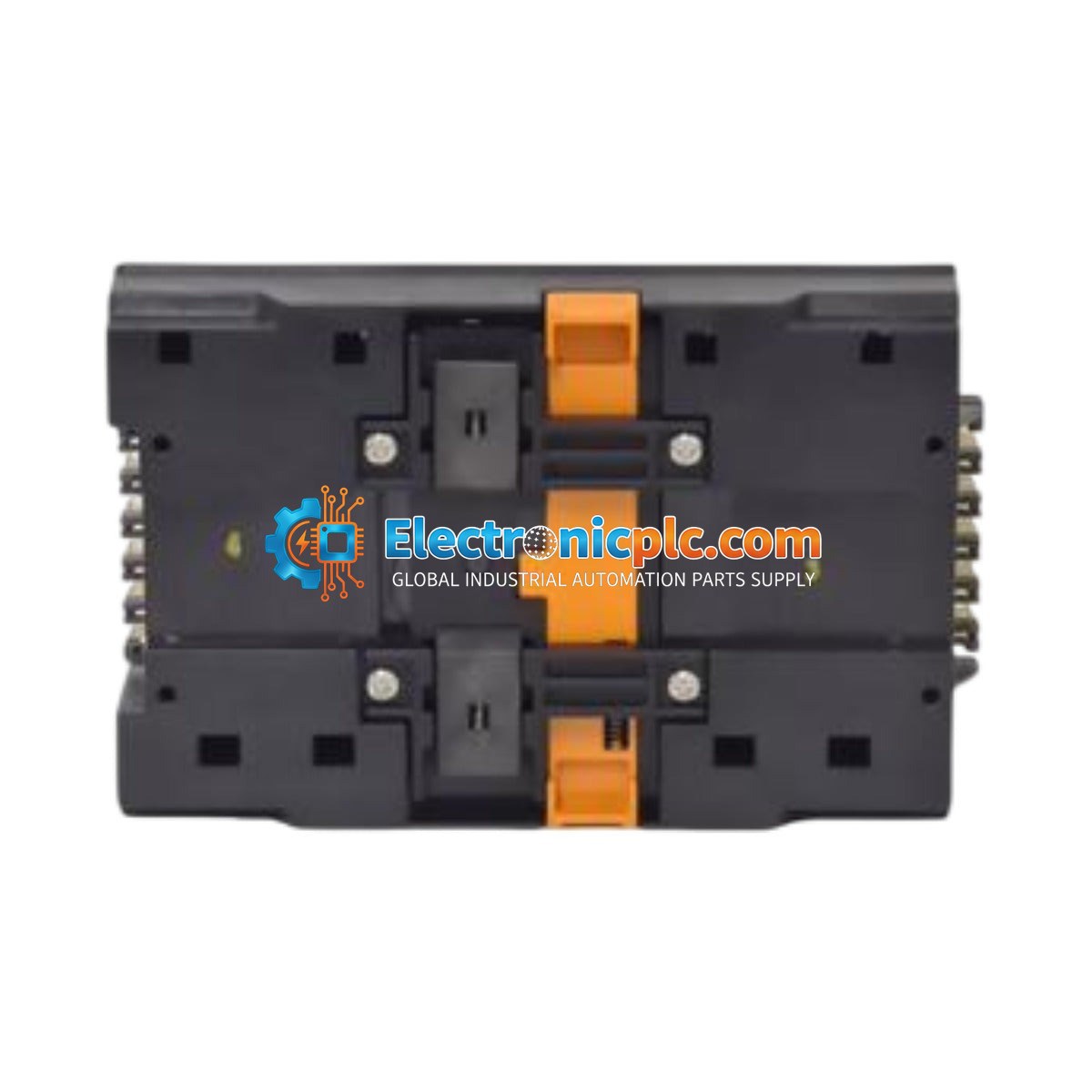

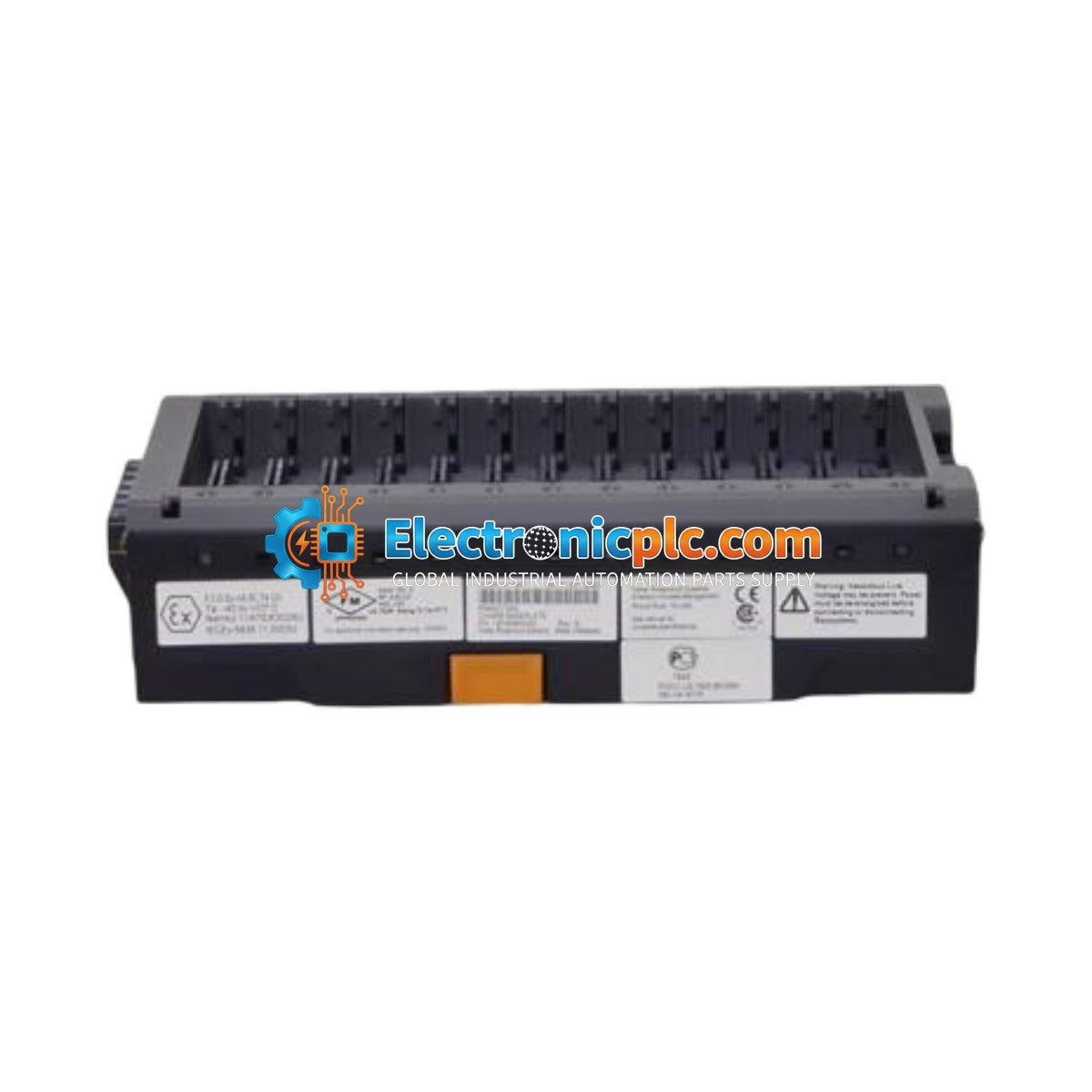

Emerson KL4201X1-BA1 DeltaV CHARM Baseplate

Emerson KL4201X1-BA1 DeltaV CHARM Baseplate

Description

The Emerson KL4201X1-BA1 is a critical hardware component within the DeltaV Electronic Marshalling system. This CHARM Baseplate provides the physical and electrical mounting infrastructure for Characterization Modules (CHARMs), enabling flexible...

19 people are viewing this right now

Availability: Low stock: 10 left

SKU: KL4201X1-BA1
Vendor: Emerson
Category: CHARM Baseplate
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Emerson KL4201X1-BA1 is a critical hardware component within the DeltaV Electronic Marshalling system. This CHARM Baseplate provides the physical and electrical mounting infrastructure for Characterization Modules (CHARMs), enabling flexible I/O mapping without the need for traditional cross-marshalling wires. It is designed for large-scale industrial automation, including oil and gas, petrochemical, and mining sectors, facilitating a decentralized I/O architecture that reduces installation complexity and optimizes cabinet space.

Features

  • Supports DeltaV Electronic Marshalling architecture.
  • Distributes 6.3 VDC CHARM Bus power and 24 VDC Field Circuit power.
  • Ruggedized design for G3 harsh environment compliance.
  • Supports high-density I/O configurations.
  • Compatible with standard DeltaV S-Series CHARM modules.

Applications

This baseplate is used in distributed control systems (DCS) to streamline field wiring. It is ideal for environments requiring high reliability, such as refineries, chemical processing plants, and offshore platforms where space-saving and simplified maintenance are critical.

Technical Specifications

Model KL4201X1-BA1
Brand Emerson
Series DeltaV S-Series / CHARMs
CHARM Bus Power 6.3 VDC at 4 A
Field Circuit Power 24 VDC at 10 A
Operating Temperature -40 to +70 deg C
Relative Humidity 5 to 95 percent Non-Condensing
Hazardous Area Ratings II 3G Ex ec IIC Gc; CL. I Div. 2 GP. A,B,C,D; CL. I Zone 2 AEx/Ex ec IIC Gc
Certifications FM19ATEX0173U, IECEx FMG 12.0019U, FM21UKEX0017U
Airborne Contaminants ISA-S71.04-1985 Class G3
Shock Resistance 10g 1/2 Sinewave for 11 msec
Vibration Resistance 1 mm Peak to Peak (2 to 13.2 Hz); 0.7g (13.2 to 150 Hz)

Installation Guidelines

  • Ensure the system is powered down before installing or removing the baseplate or any attached CHARM modules.
  • Verify that the installation environment is non-hazardous before performing maintenance or module replacement.
  • Mount the baseplate securely on a standard DIN rail or panel as specified by DeltaV cabinet documentation.
  • Ensure proper grounding of the baseplate to the cabinet chassis to maintain EMI/EMC integrity.
  • Route field wiring according to local electrical codes for Class I Division 2 / Zone 2 hazardous areas.
  • Maintain adequate ventilation around the baseplate to ensure operation within the specified -40 to +70 deg C range.

FAQ

Is this baseplate user-serviceable?

No, the KL4201X1-BA1 contains no user-serviceable parts and does not require calibration. Any failure typically requires a full unit replacement.

Can this be used in hazardous areas?

Yes, it is rated for use in Class I Division 2 and Zone 2 hazardous locations, provided it is installed in accordance with the relevant ATEX, IECEx, and UKEX certifications.
