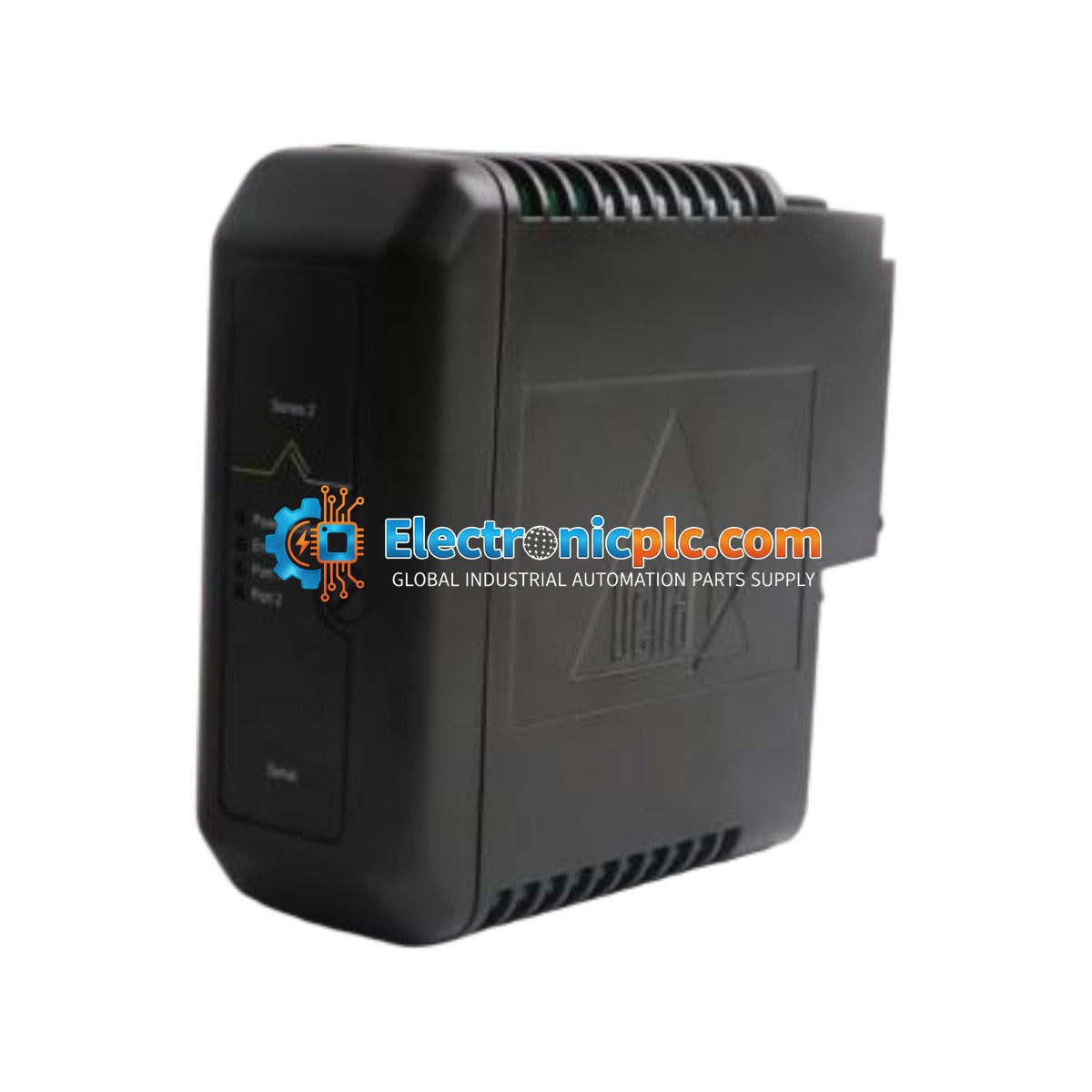

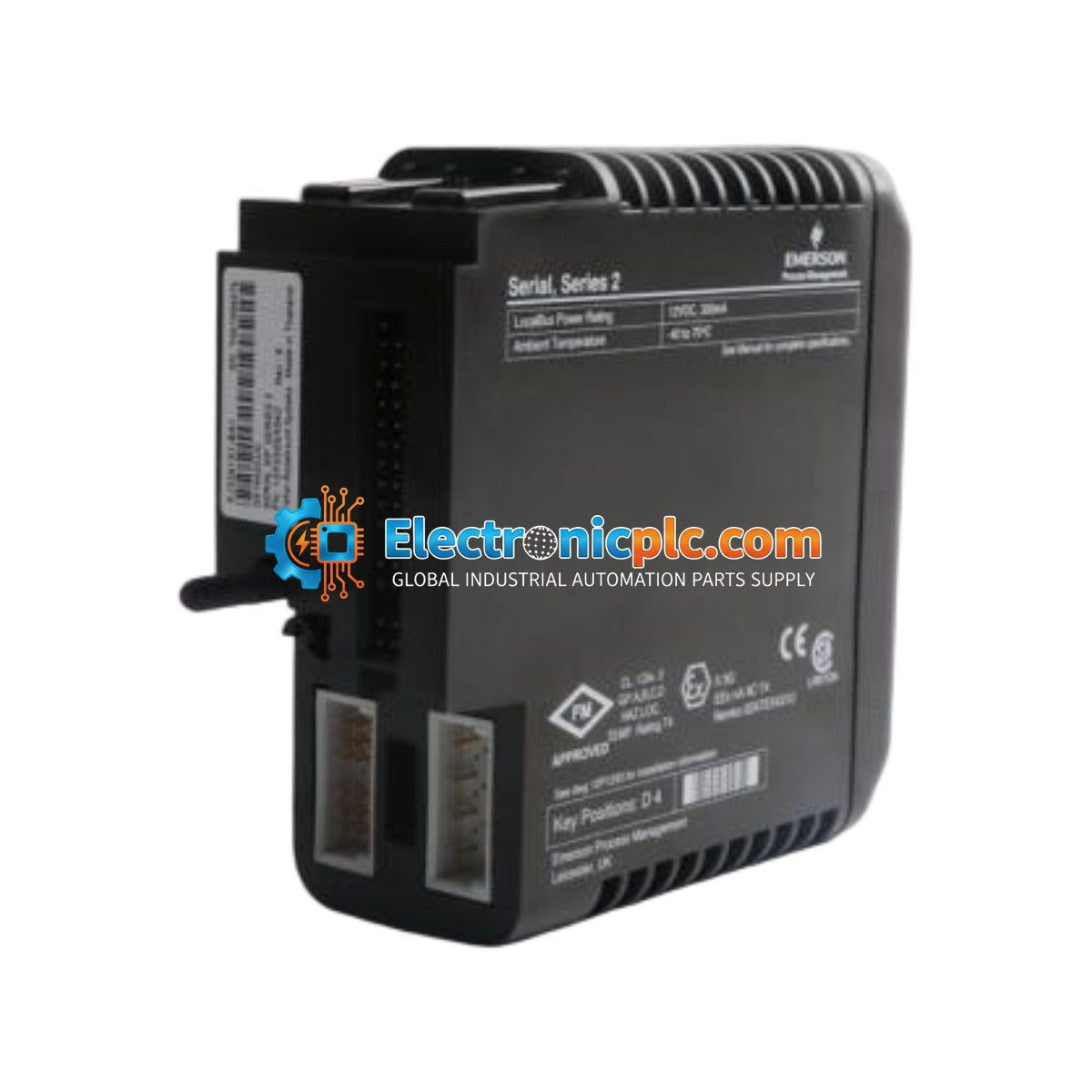

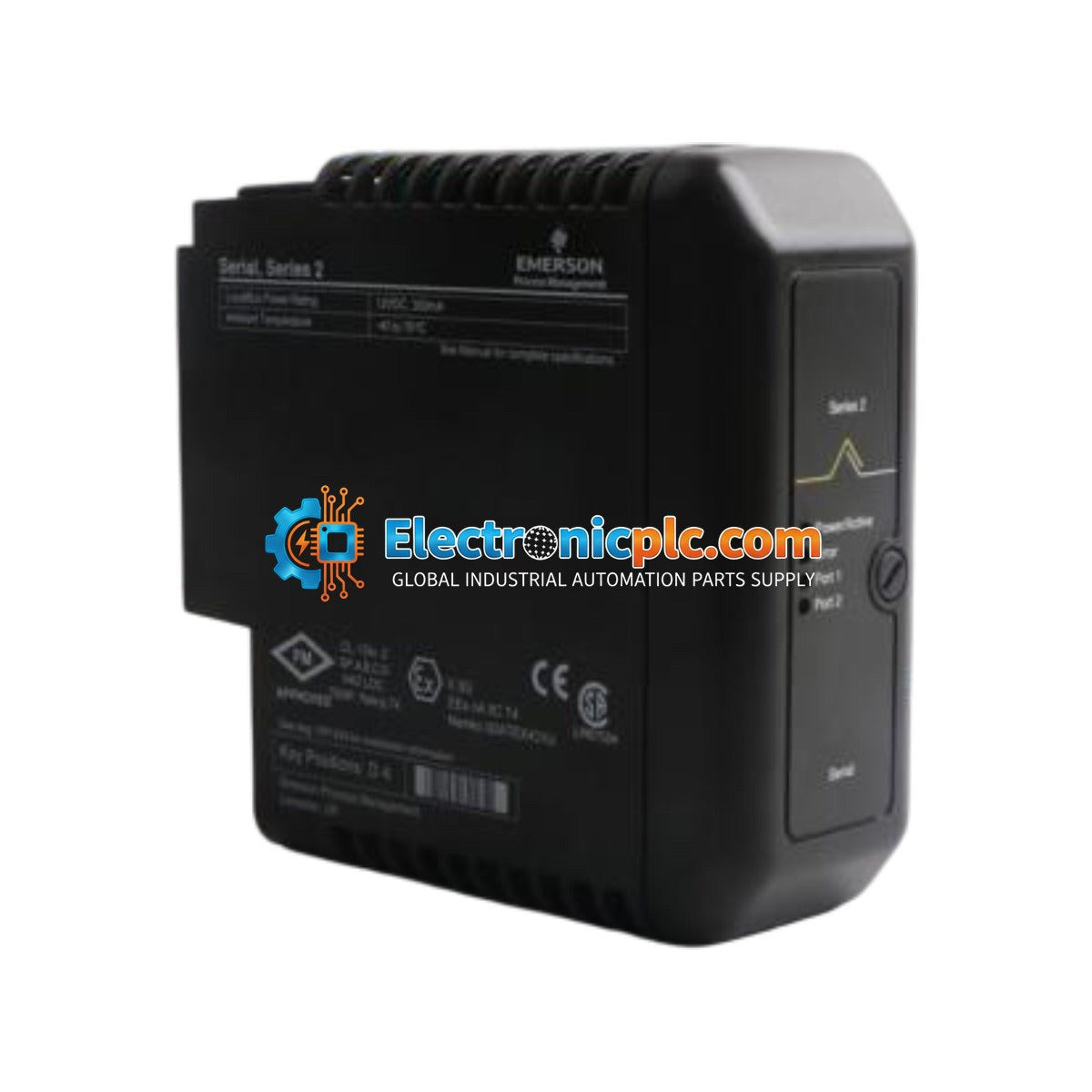

Emerson VE4006P2 KJ3241X1-BA1 DeltaV Serial Interface Module

Emerson VE4006P2 KJ3241X1-BA1 DeltaV Serial Interface Module

Description

The Emerson VE4006P2 (KJ3241X1-BA1) is a high-performance serial interface module engineered for the DeltaV M-Series Scalable Process System. This module facilitates reliable, redundant data communication between DeltaV controllers and a...

18 people are viewing this right now

Availability: Low stock: 5 left

SKU: VE4006P2 KJ3241X1-BA1
Vendor: Emerson
Category: Serial Interface Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Emerson VE4006P2 (KJ3241X1-BA1) is a high-performance serial interface module engineered for the DeltaV M-Series Scalable Process System. This module facilitates reliable, redundant data communication between DeltaV controllers and a wide array of external serial devices. Designed for mission-critical industrial environments, it ensures continuous process monitoring and control by providing robust, fault-tolerant communication pathways, effectively reducing the risk of signal loss and unplanned system downtime.

Features

  • Redundant serial communication architecture for high-availability applications.
  • Supports seamless integration with various industrial serial protocols within the DeltaV ecosystem.
  • Mechanical rotary keying (Position D4) to prevent incorrect terminal block installation.
  • Designed for operation in harsh industrial environments with ISA-S71.04-1985 Class G3 corrosion protection.
  • High resilience against shock and vibration for deployment in heavy industrial settings.

Applications

This serial interface module is widely utilized in high-stakes process automation environments, including oil and gas refineries, chemical processing plants, and power generation facilities where reliable data exchange between controllers and field devices is essential for safety and operational efficiency.

Technical Specifications

Model KJ3241X1-BA1 (VE4006P2)
Series DeltaV M-Series
Power (Local Bus) 12 VDC at 300 mA
Operating Temperature -40 to +70 deg C
Relative Humidity 5 to 95 percent Non-Condensing
Protection Rating IP 20
Hazardous Area Rating II 3G Ex nA nC IIC Gc
Shock Resistance 10g 1/2 Sinewave for 11 msec
Vibration Resistance 1 mm Peak to Peak (2 to 13.2 Hz); 0.7g (13.2 to 150 Hz)
Terminal Block Keying Position D4

Installation Guidelines

  • Ensure the system power is disconnected before installing or removing the module from the carrier.
  • Verify the mechanical rotary keying is set to Position D4 on the terminal block to match the module.
  • Handle the module using proper ESD (Electrostatic Discharge) mitigation techniques to protect internal circuitry.
  • Ensure the module is securely seated in the DeltaV carrier to maintain proper local bus connection.
  • Route communication cables away from high-EMI sources to maintain signal integrity.
  • Maintain adequate ventilation in the cabinet to ensure operation within the specified -40 to +70 deg C range.

Compliance and Certifications

  • ATEX Certificate: FM12ATEX0090U
  • IECEx Certificate: IECEx FMG 12.0035U
  • Airborne Contaminants: ISA-S71.04-1985 Class G3

FAQ

What is the primary function of the VE4006P2 module?

The VE4006P2 is a redundant serial interface module used in the DeltaV system to provide reliable communication between the controller and external serial-based field devices.

Is this module suitable for hazardous locations?

Yes, the module is rated for use in hazardous atmospheres, carrying II 3G Ex nA nC IIC Gc, ATEX, and IECEx certifications.

How do I prevent incorrect module installation?

The module features a mechanical rotary keying system. Ensure the key on the terminal block is set to Position D4 to match the module's configuration.
