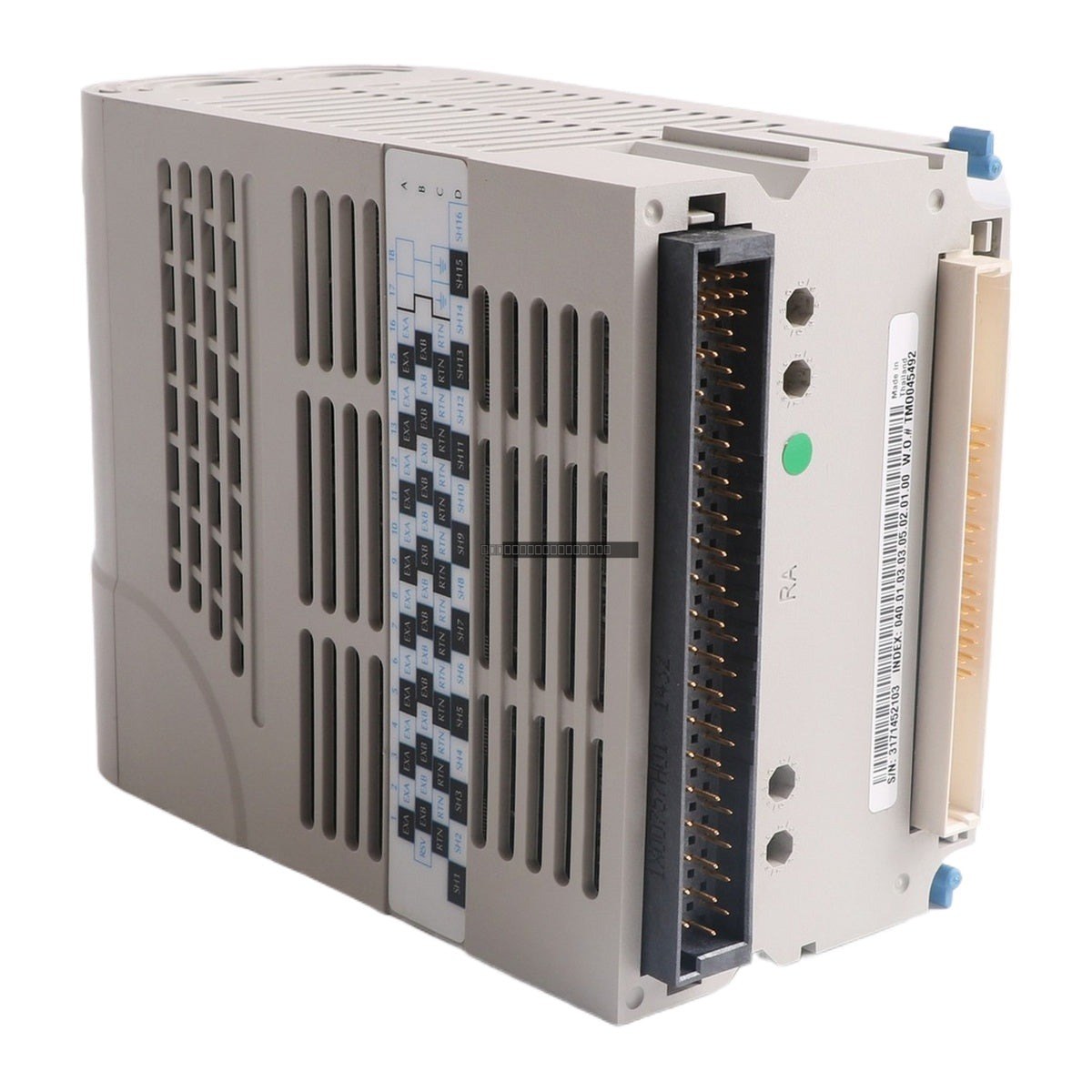

The Emerson Westinghouse 5X00622G01 is a high-density digital output module designed for industrial control applications. This unit provides 16 independent output channels, enabling efficient management of field devices such as actuators, solenoids, and indicators within a distributed control system.

Features

• 16-channel digital output configuration for high-density signal control.
• Supports 24 VDC output voltage operation.
• Integrated isolation (optical or relay) to protect control circuitry from field-side transients.
• Flexible output architecture suitable for dry contact relay or solid-state switching requirements.
• Robust thermal performance with an operating range of -20 degC to +60 degC.

Technical Specifications

Installation Guidelines

• Ensure the control system power is disconnected before installing or removing the module from the rack.
• Handle the module using proper ESD (Electrostatic Discharge) precautions to prevent damage to sensitive internal components.
• Verify that the module is fully seated in the backplane connector to ensure reliable communication and power distribution.
• Route field wiring away from high-voltage AC lines or high-EMI sources to minimize signal interference.
• Ensure adequate ventilation in the cabinet to maintain the operating temperature within the specified -20 degC to +60 degC range.

FAQ

What is the primary function of the 5X00622G01?

This module serves as a digital output interface for Emerson Westinghouse control systems, allowing the controller to drive up to 16 external field devices using 24 VDC signals.

Does this module require external power?

Yes, the module is designed to operate with a 24 VDC supply. Please refer to your specific system wiring diagram for correct power distribution and commoning requirements.

What type of isolation does this module provide?

The 5X00622G01 utilizes either optical or relay isolation to provide electrical separation between the field-side devices and the internal logic circuitry of the controller.
