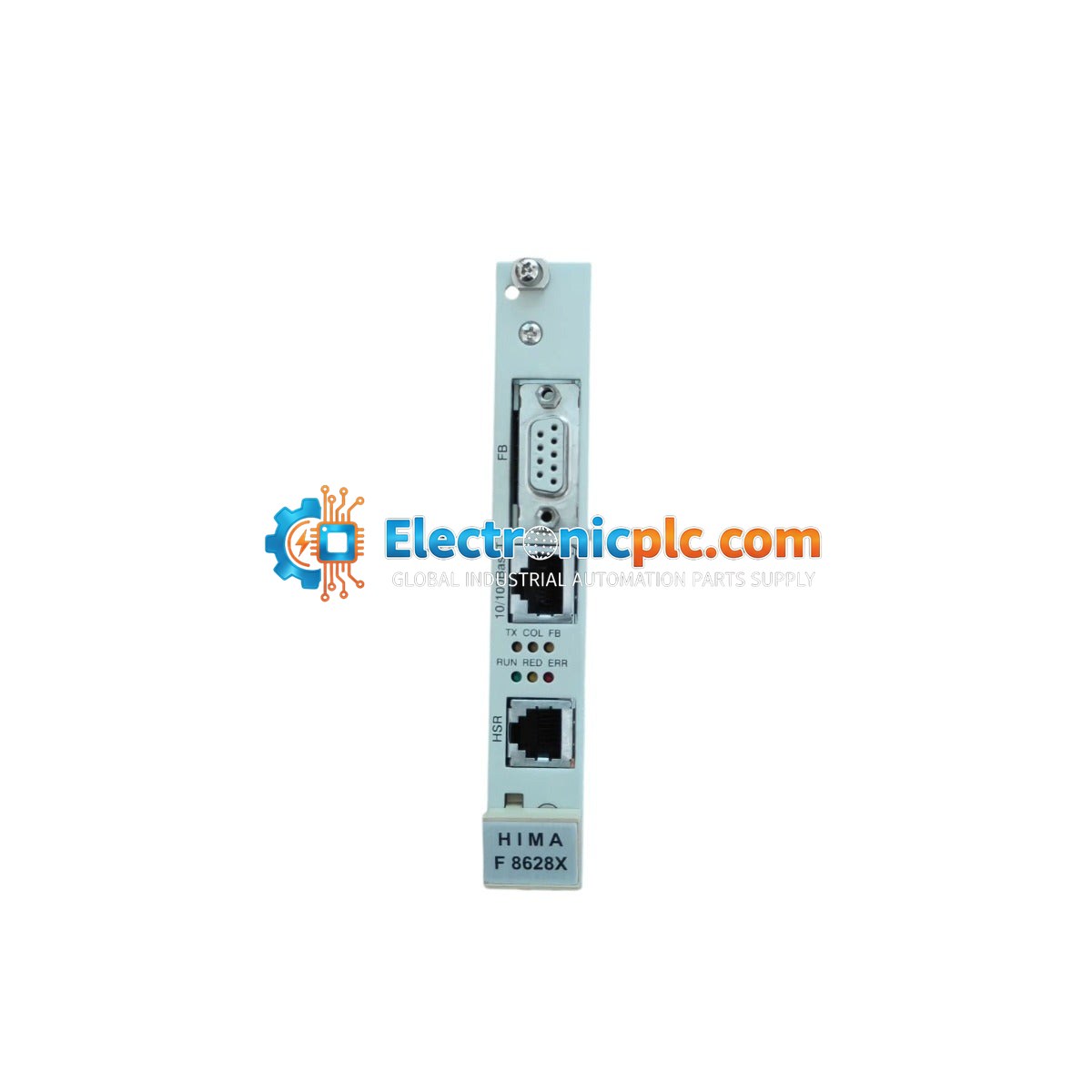

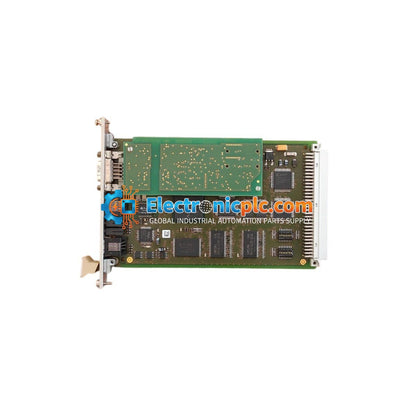

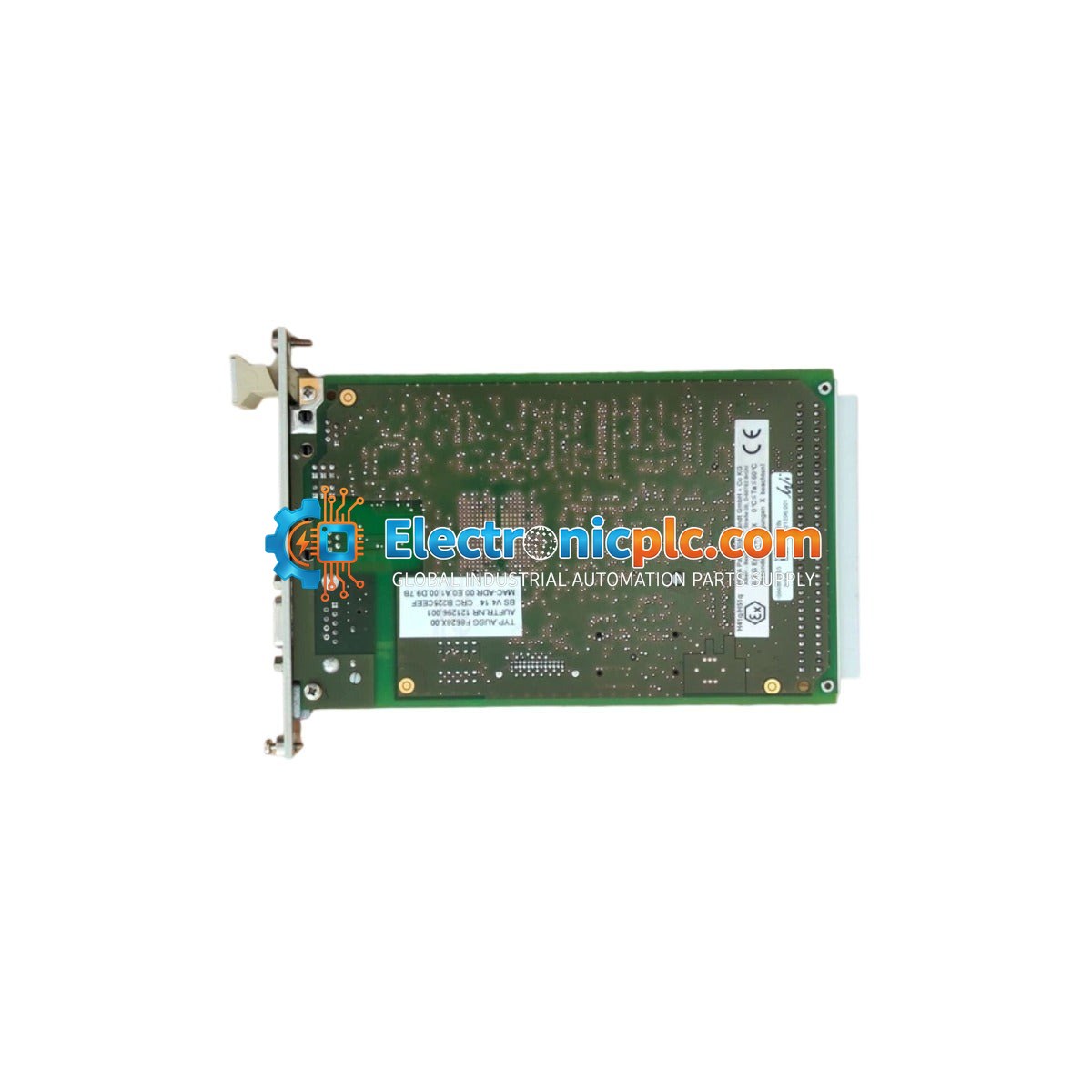

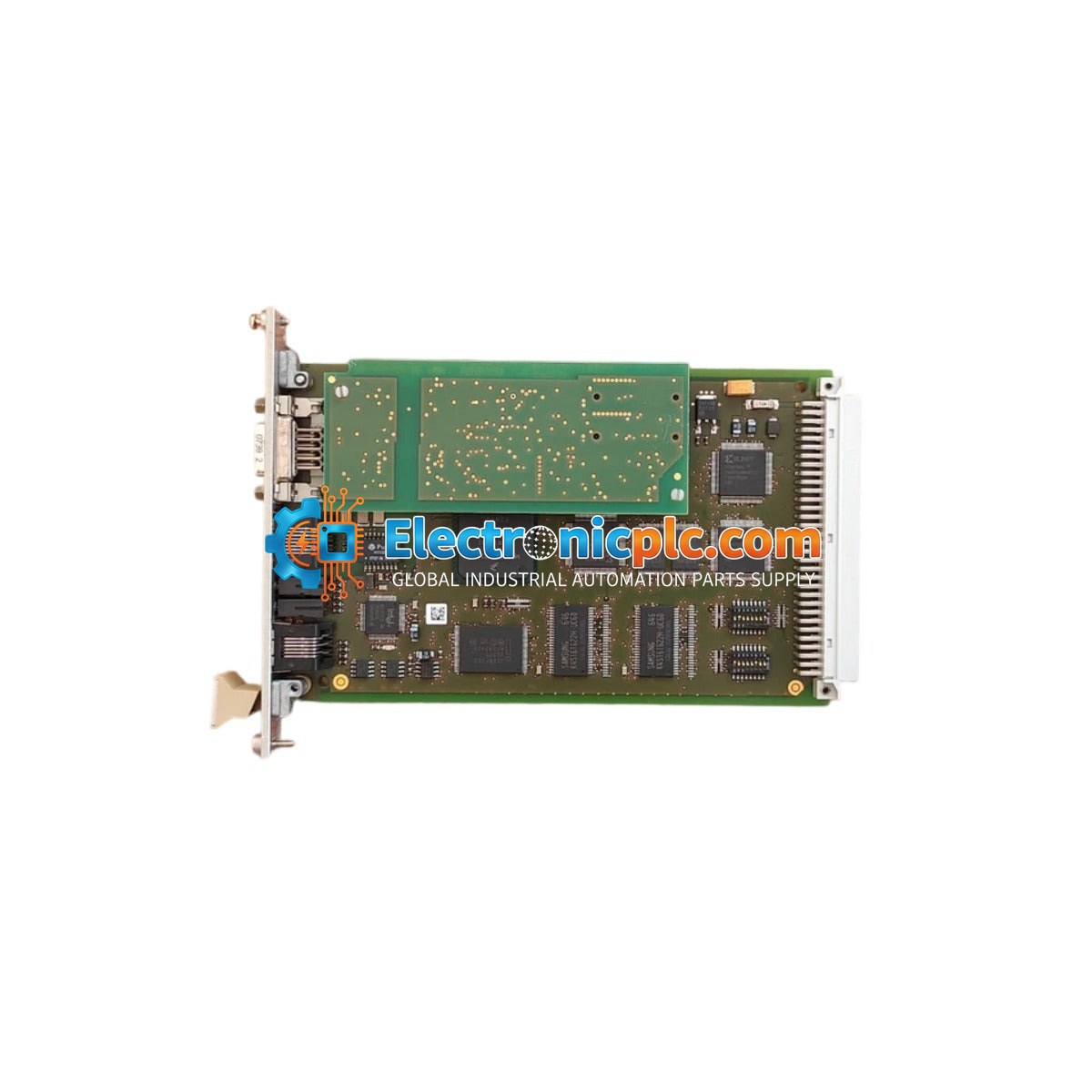

HIMA F 8628X PROFIBUS-DP Slave Communication Module

HIMA F 8628X PROFIBUS-DP Slave Communication Module

Description

The HIMA F 8628X is a dedicated PROFIBUS-DP slave communication module designed for integration within HIMA H41q and H51q Programmable Electronic Systems (PES). This module facilitates reliable data exchange between...

28 people are viewing this right now

Availability: Low stock: 3 left

SKU: F 8628X
Vendor: HIMA
Category: Communication Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The HIMA F 8628X is a dedicated PROFIBUS-DP slave communication module designed for integration within HIMA H41q and H51q Programmable Electronic Systems (PES). This module facilitates reliable data exchange between the HIMA safety controller and a PROFIBUS-DP network, serving as a slave node in industrial automation architectures. It is compatible with systems beginning with OS41q/51q V7.0-7 (9906) and utilizes the HK-COM-3 function block for configuration and communication management.

Features

  • Designed for PROFIBUS-DP slave communication.
  • Equipped with a 32-bit Motorola MPC860T processor featuring an integrated RISC communication controller.
  • Optimized for seamless integration into H41q/H51q safety systems.
  • Compact hardware footprint requiring 3 HU (height units) and 4 SU (slot units).
  • Supports data input capacity of up to 192 bytes.

Technical Specifications

Model F 8628X
Function PROFIBUS-DP Slave Module
Operating Voltage 5 VDC / 1 A
Processor 32-bit Motorola MPC860T
Max Input Data 192 Byte
Physical Dimensions 3 HU (Height), 4 SU (Width)
Manufacturer HIMA

Installation Guidelines

  • Ensure the system is powered down before inserting or removing the F 8628X module from the rack to prevent electrical damage.
  • The module is designed for standard HIMA rack mounting; ensure the module is fully seated and the locking mechanisms are engaged.
  • Handle with care to prevent electrostatic discharge (ESD) damage to the internal circuitry.
  • Verify that the system firmware version is compatible (OS41q/51q V7.0-7 or higher) before commissioning.
  • Ensure proper grounding of the PROFIBUS cable shield at the designated terminal points to minimize EMI interference.

FAQ

What is the primary function of the F 8628X?
The F 8628X acts as a PROFIBUS-DP slave communication interface, allowing HIMA H41q/H51q safety systems to communicate with external PROFIBUS-DP masters.

Which systems are compatible with this module?
This module is compatible with HIMA H41q and H51q series PES, specifically those running OS41q/51q V7.0-7 (9906) or later.
