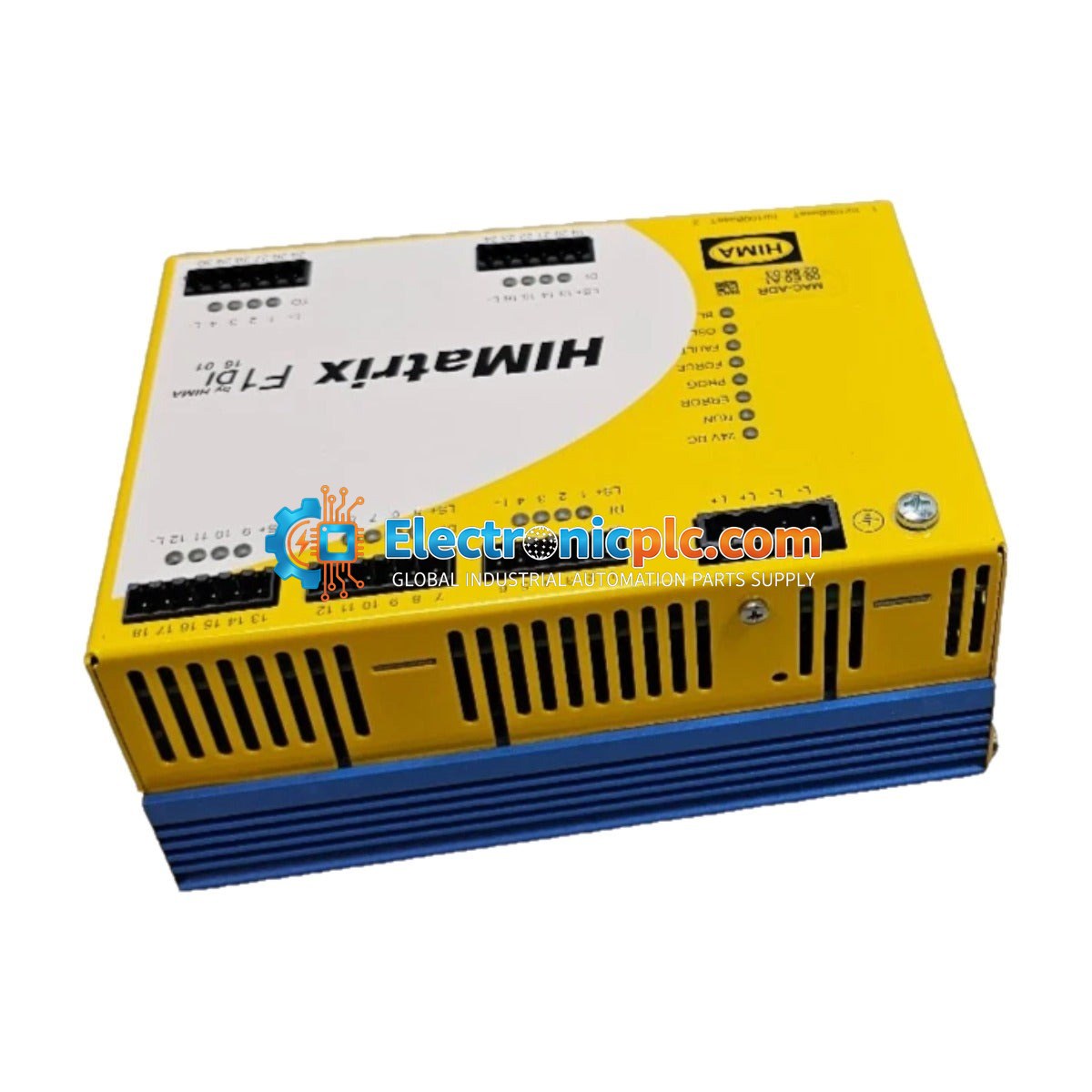

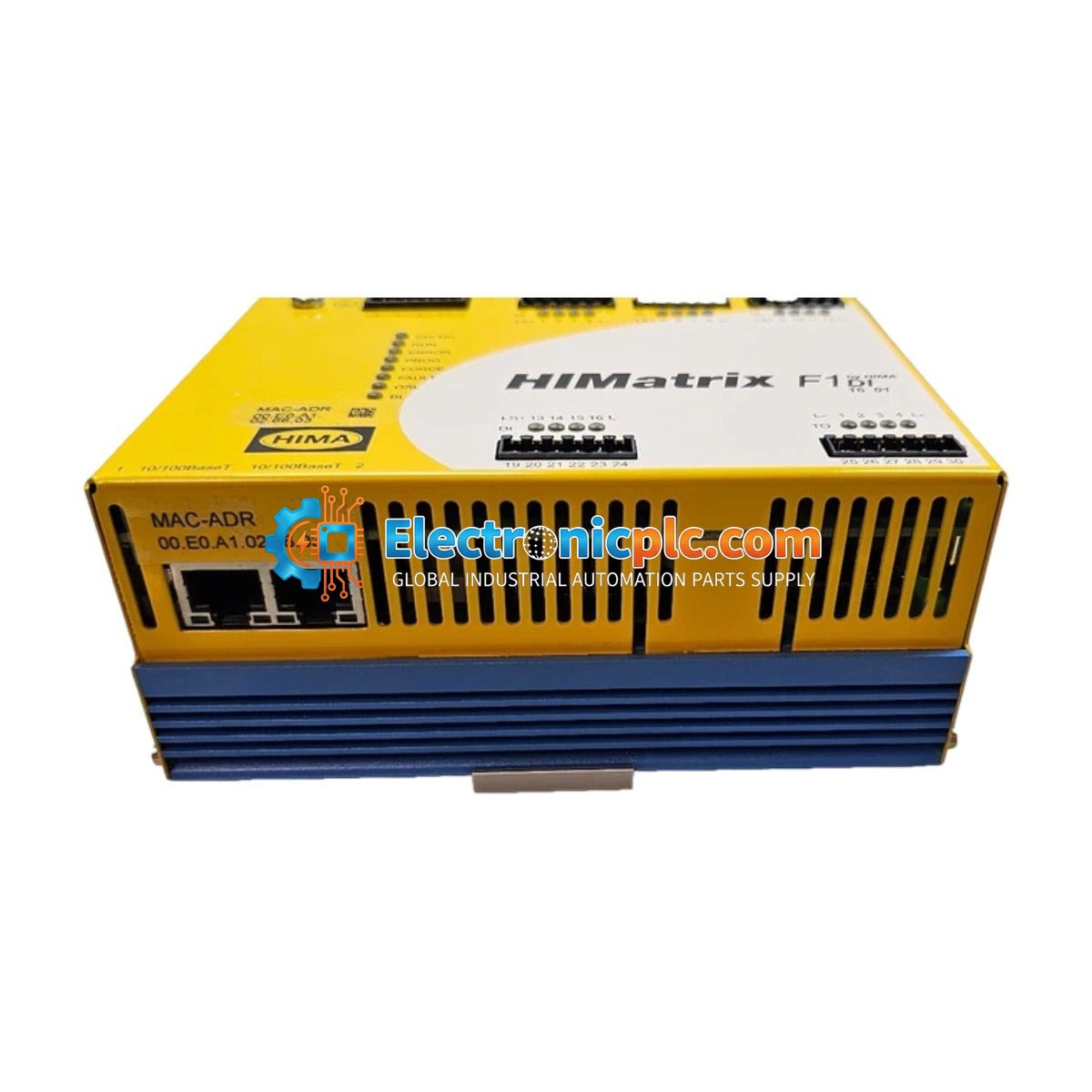

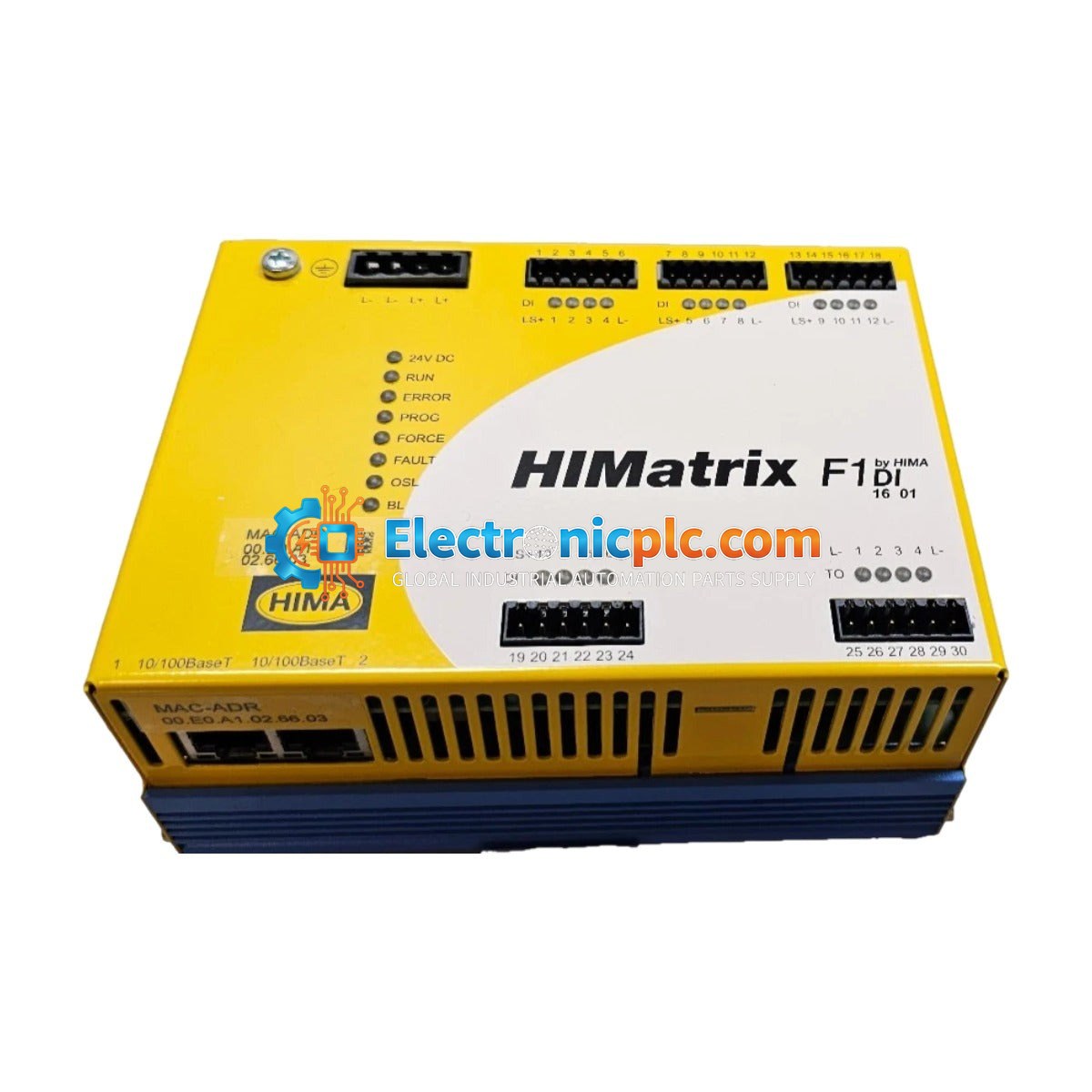

HIMA F1 DI 16 01 HIMatrix Remote I/O Module

HIMA F1 DI 16 01 HIMatrix Remote I/O Module

Description

The HIMA F1 DI 16 01 is a safety-related remote I/O module designed for the HIMatrix system, specifically engineered to support high-demand, safety-critical applications. This module facilitates the integration of...

21 people are viewing this right now

Availability: Low stock: 8 left

SKU: F1 DI 16 01
Vendor: HIMA
Category: Remote I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The HIMA F1 DI 16 01 is a safety-related remote I/O module designed for the HIMatrix system, specifically engineered to support high-demand, safety-critical applications. This module facilitates the integration of distributed sensors and actuators into a centralized safety architecture, making it suitable for industries such as petrochemical refining, automated manufacturing, and power generation. Certified to SIL 3 standards, the F1 DI 16 01 ensures high functional safety and system availability while minimizing wiring complexity through localized signal processing.

Features

  • 16 digital input channels for monitoring safety-critical signals.
  • 4 pulsed output channels for monitoring and control, enabling detection of short circuits and cross-faults.
  • Designed for decentralized installation in harsh industrial environments with IP67-rated protection.
  • Full compliance with IEC 61508 and IEC 61784 safety standards.
  • Real-time diagnostic capabilities for constant supervision of connected field devices.

Applications

This module is typically deployed in safety-instrumented systems (SIS) where distributed I/O is required to reduce cabling costs and improve response times. Common applications include emergency shutdown systems (ESD), burner management systems, and safety-critical process automation in hazardous areas.

Technical Specifications

Model F1 DI 16 01
Brand HIMA
System HIMatrix
Digital Inputs 16 Channels
Pulsed Outputs 4 Channels
Power Supply 24 VDC
Power Consumption 10 W
Operating Temperature -20 to +60 deg C

Installation Guidelines

  • Ensure the module is mounted in a location that meets the specified operating temperature range of -20 to +60 deg C.
  • Use appropriate shielded cabling for signal integrity in high-EMI environments.
  • Always power down the system before inserting or removing the module from the rack or field mounting location.
  • Ensure proper grounding of the module chassis to prevent electrical interference and ensure safety compliance.
  • Verify that all field wiring is correctly terminated according to the HIMA HIMatrix system documentation to maintain SIL 3 integrity.

FAQ

Is the F1 DI 16 01 suitable for safety-critical applications?

Yes, the module is certified to SIL 3 standards and complies with IEC 61508 and IEC 61784, making it appropriate for high-demand safety-critical control loops.

What is the primary function of the pulsed outputs?

The 4 pulsed outputs are designed for the detection of short circuits and cross-faults in the connected wiring, which is essential for maintaining the safety integrity of the control loop.
