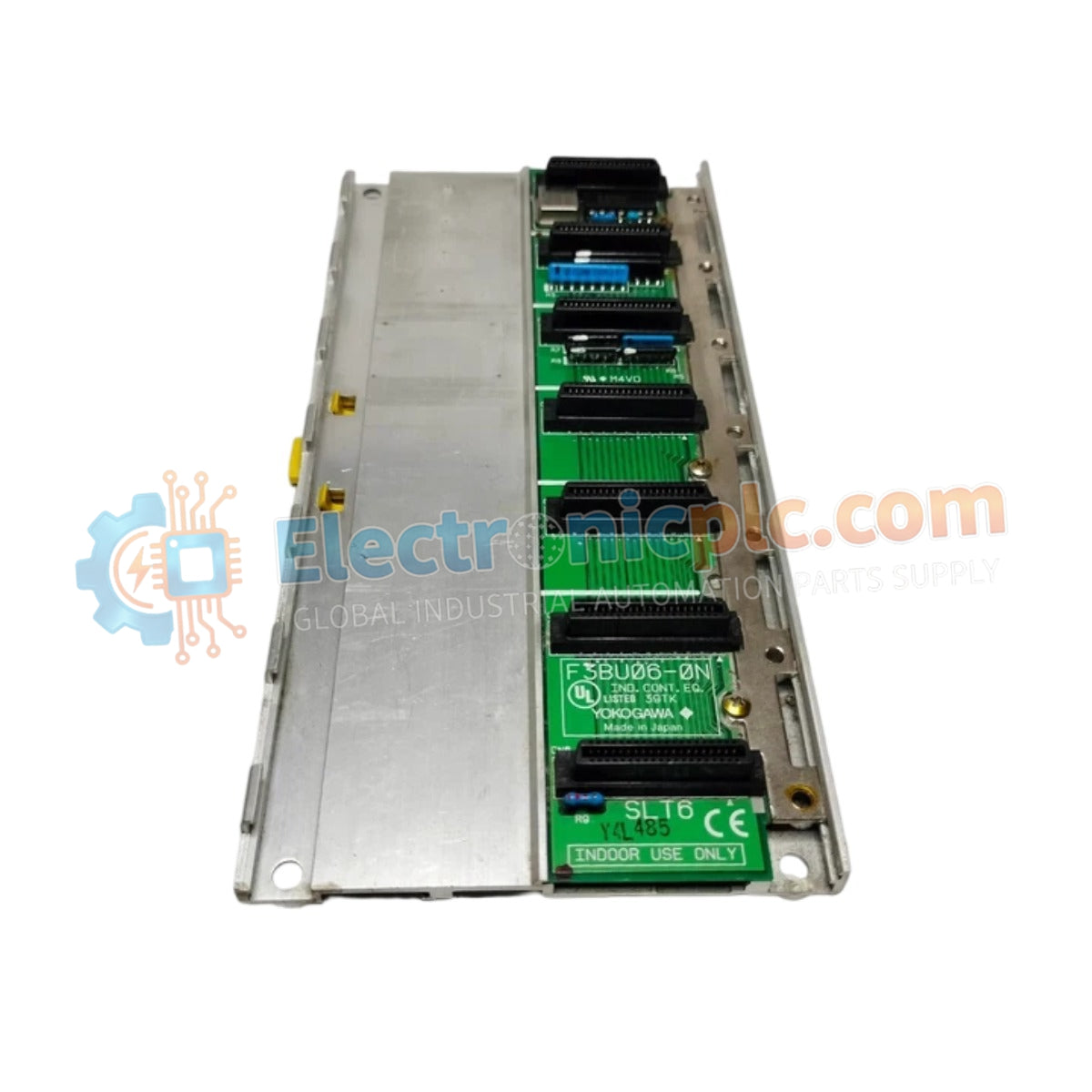

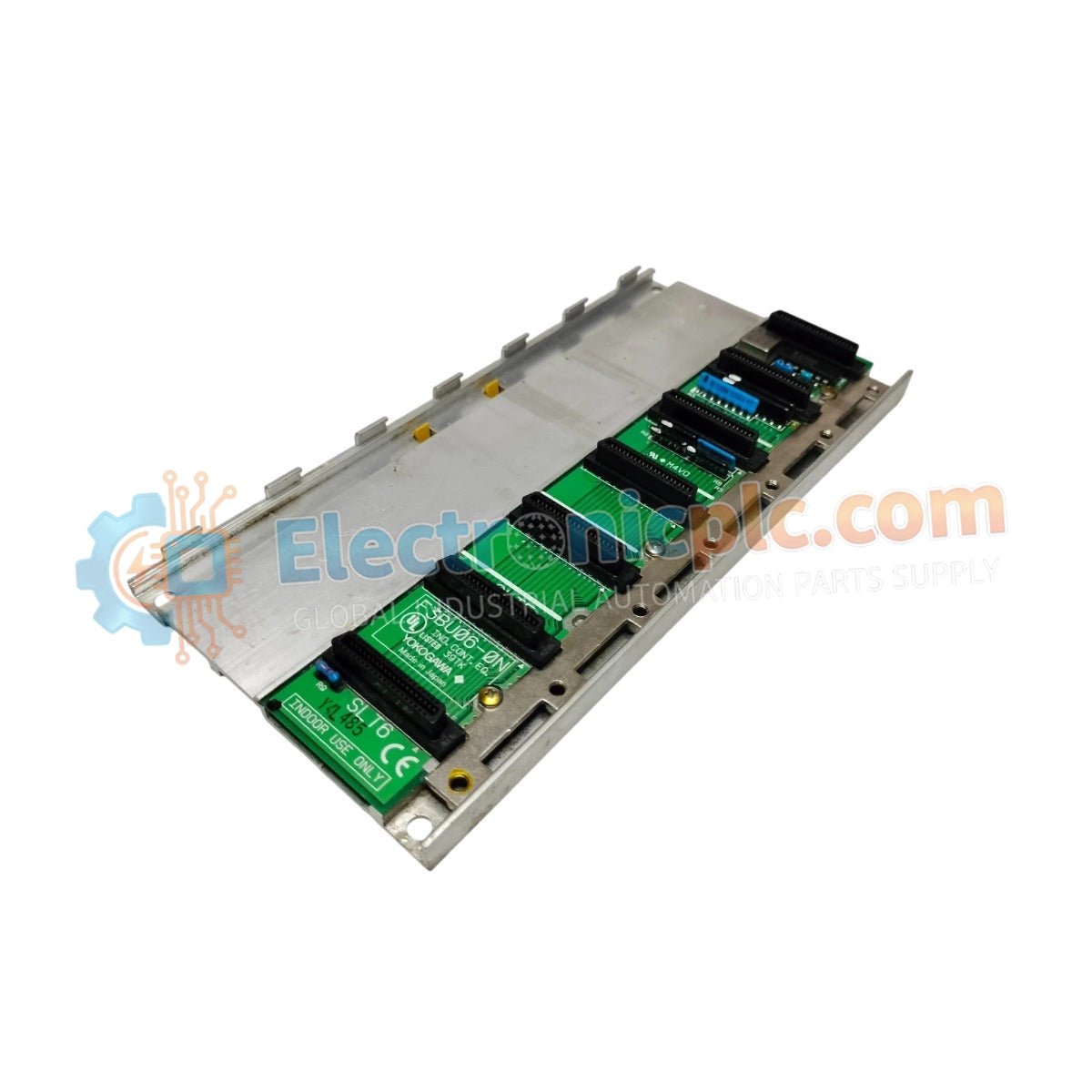

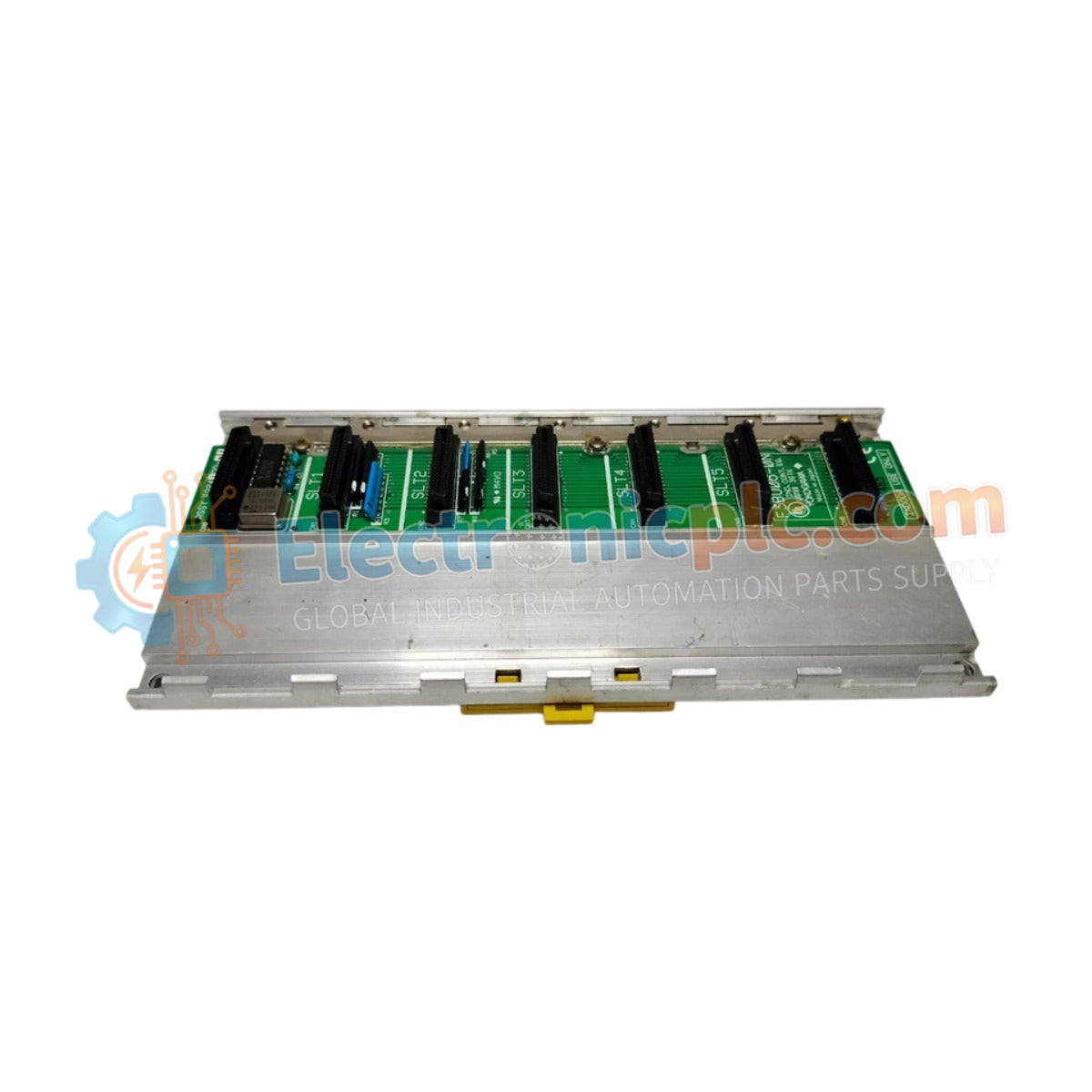

The Yokogawa F3BU06-0N, also cataloged as the F3BU06-0N Base Module, operates as a dedicated hardware component for module integration and backplane signal distribution within FA-M3 programmable logic controller platforms.

Hardware Specifications

Backplane Bus and Module Integration

The F3BU06-0N provides a standardized mechanical and electrical interface for the FA-M3 system. The backplane architecture facilitates high-speed data transfer between the CPU module and the five available I/O slots. By maintaining a constant 5 VDC supply rail, the base module ensures signal integrity for low-voltage logic operations across all connected modules. The design utilizes a robust frame for DIN-rail or panel-mount installation, ensuring stability for high-density I/O configurations in industrial environments.

Frequently Asked Questions (FAQ)

Q: Does the F3BU06-0N include a dedicated power supply module?

A: No, the module provides 6 total slots, where 1 slot is reserved for a power supply module and 5 slots are allocated for CPU or I/O modules.

Q: Is this base module compatible with hot-swapping I/O modules?

A: While the FA-M3 architecture supports various modules, specific hot-swap capabilities depend on the individual module firmware and system configuration. Ensure the system is powered down if the specific I/O module does not explicitly support live insertion.

Field Installation Guidelines

1. Mount the base module on a flat, vibration-resistant surface or a standard DIN-rail.
2. Ensure at least 50 mm of clearance above and below the module to allow for proper airflow and heat dissipation.
3. Install the power supply module into the leftmost slot before populating the remaining I/O slots.
4. Verify that the grounding terminal on the base unit is connected to a low-impedance facility earth to prevent EMI issues.
5. Inspect the backplane connectors for debris or bent pins before inserting any I/O module to ensure reliable electrical contact.
