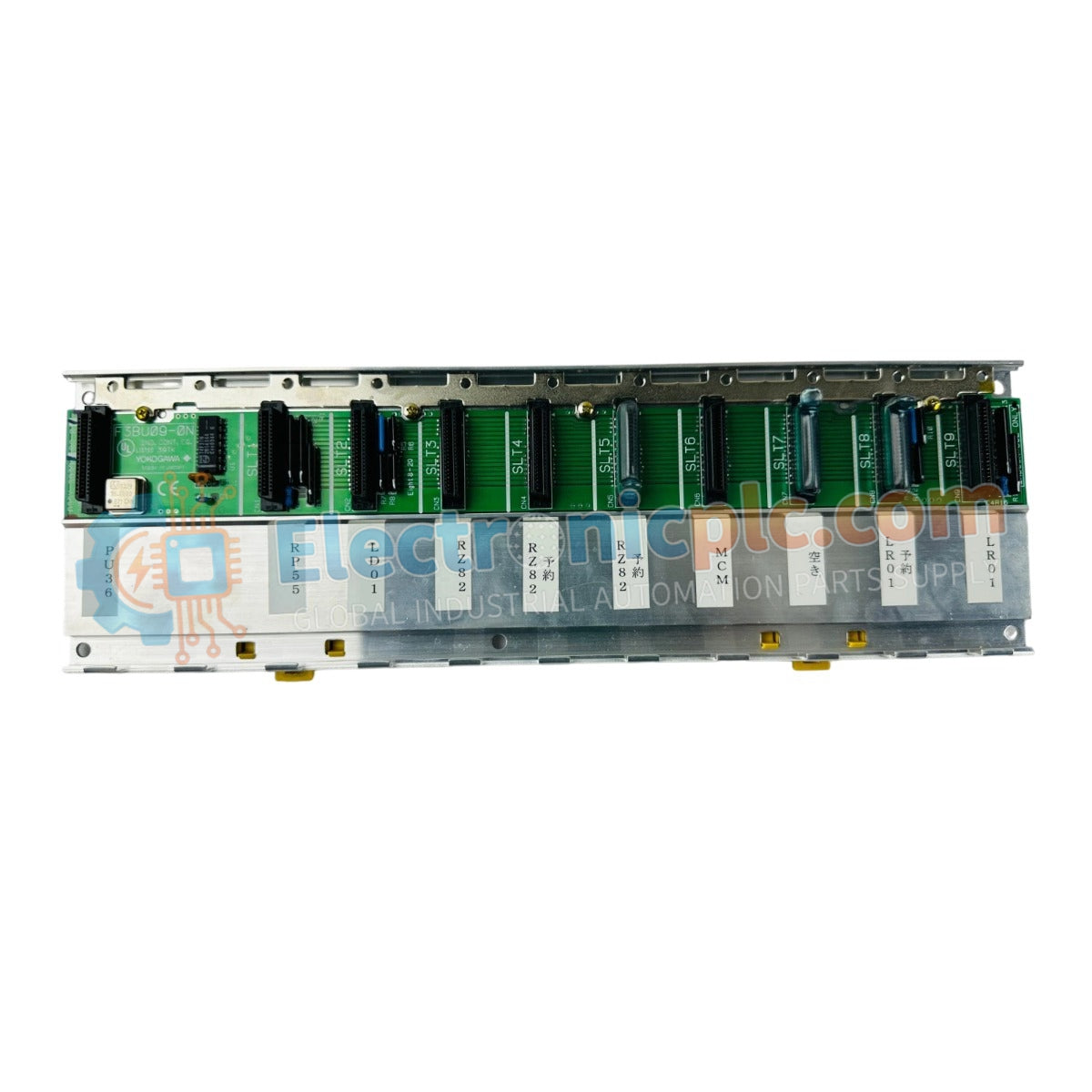

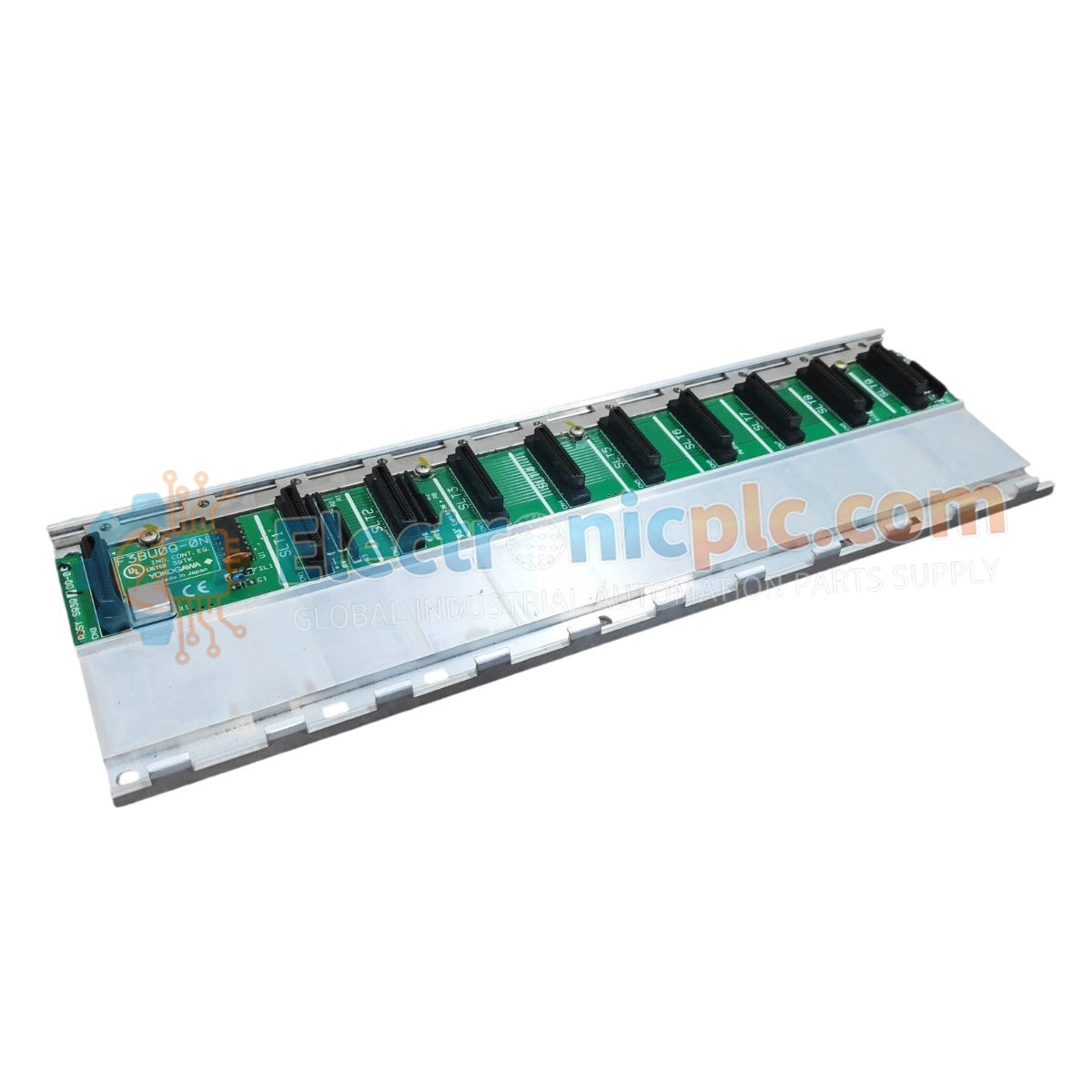

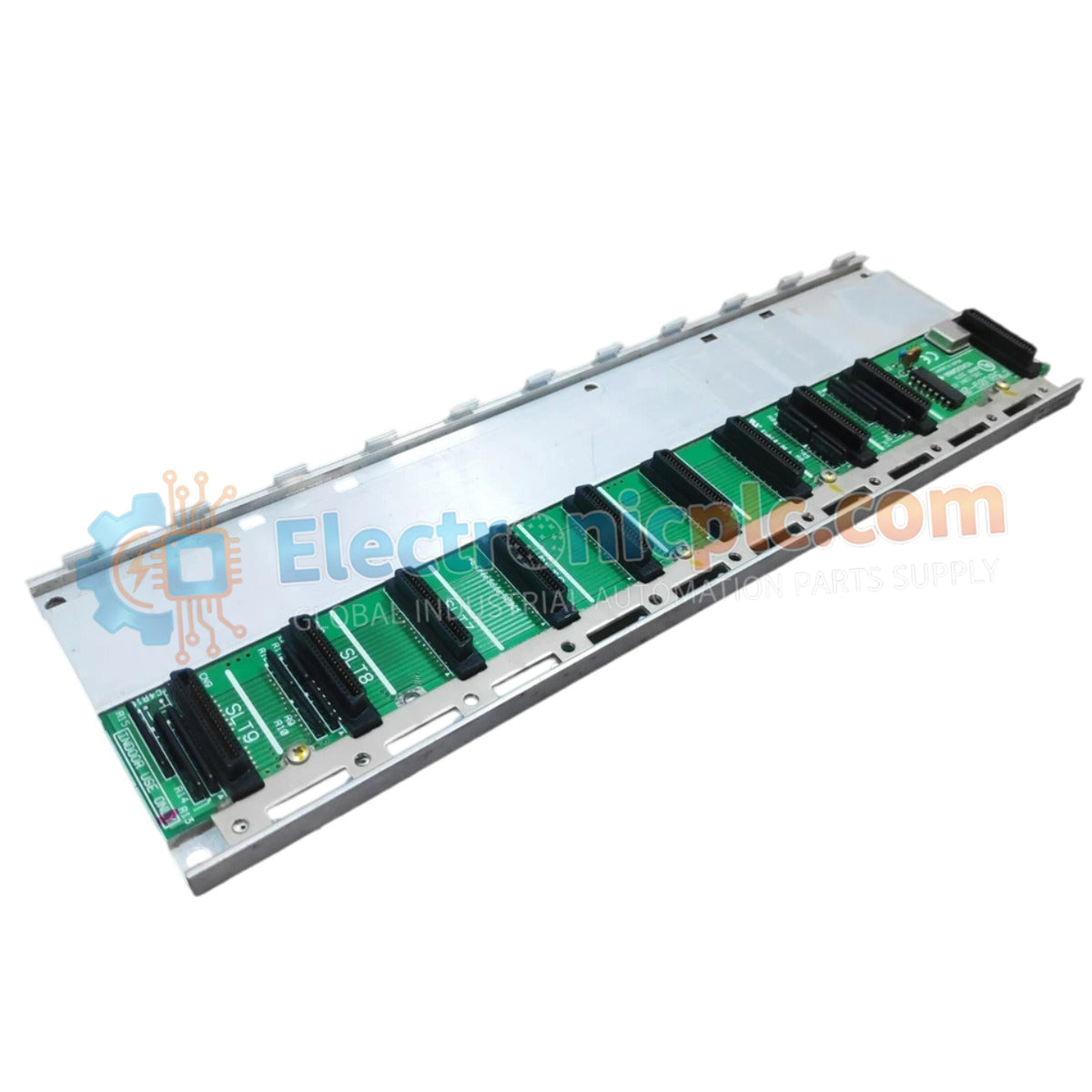

Configured for multi-module distribution in FA-M3 control networks, the Yokogawa F3BU09-0N (F3BU09-0N Base Module) provides direct physical and backplane electrical execution for system processors, power units, and I/O integration.

Hardware Specifications

Yokogawa PLC Backplane Architecture

The F3BU09-0N acts as the mechanical and electrical backbone of the FA-M3 PLC system. It facilitates high-speed backplane bus communication velocity, ensuring that modules mounted within the 9 slots maintain synchronized data exchange with the CPU. The design optimizes I/O density scaling by providing a rigid framework that supports the physical mounting of varied-width modules. By providing a stable reference ground and power distribution path across the backplane, this module ensures consistent signal integrity for high-speed digital and analog processing.

Frequently Asked Questions

Q: Can the base module be mounted in any orientation?

A: The base module is designed primarily for horizontal mounting to ensure optimal airflow through the modules. Mounting in other orientations may restrict thermal dissipation and is not recommended unless explicitly supported by the environmental cooling design of the host panel.

Q: Are there specific requirements for the mounting hardware?

A: The module is designed for mounting using M4 screws through the Ø5 mounting holes. Ensure that all mounting hardware is tightened to the specified torque to maintain structural stability and vibration resistance in industrial environments.

Field Installation Guidelines

1. Ensure the installation surface is level and capable of supporting the combined weight of the base unit and all installed modules.
2. Maintain a minimum clearance of 50 mm around the base module to facilitate natural convection cooling and prevent thermal accumulation.
3. Before installation, confirm that the environment is free of corrosive gases and excessive dust, as specified in the ambient atmosphere requirements.
4. If installing in a high-vibration environment, utilize secondary support brackets to secure the base unit and prevent mechanical stress on the backplane connectors.
5. After securing the base unit, verify that the grounding terminal is connected to a low-impedance earth ground to provide adequate protection against electrostatic discharge (ESD).
