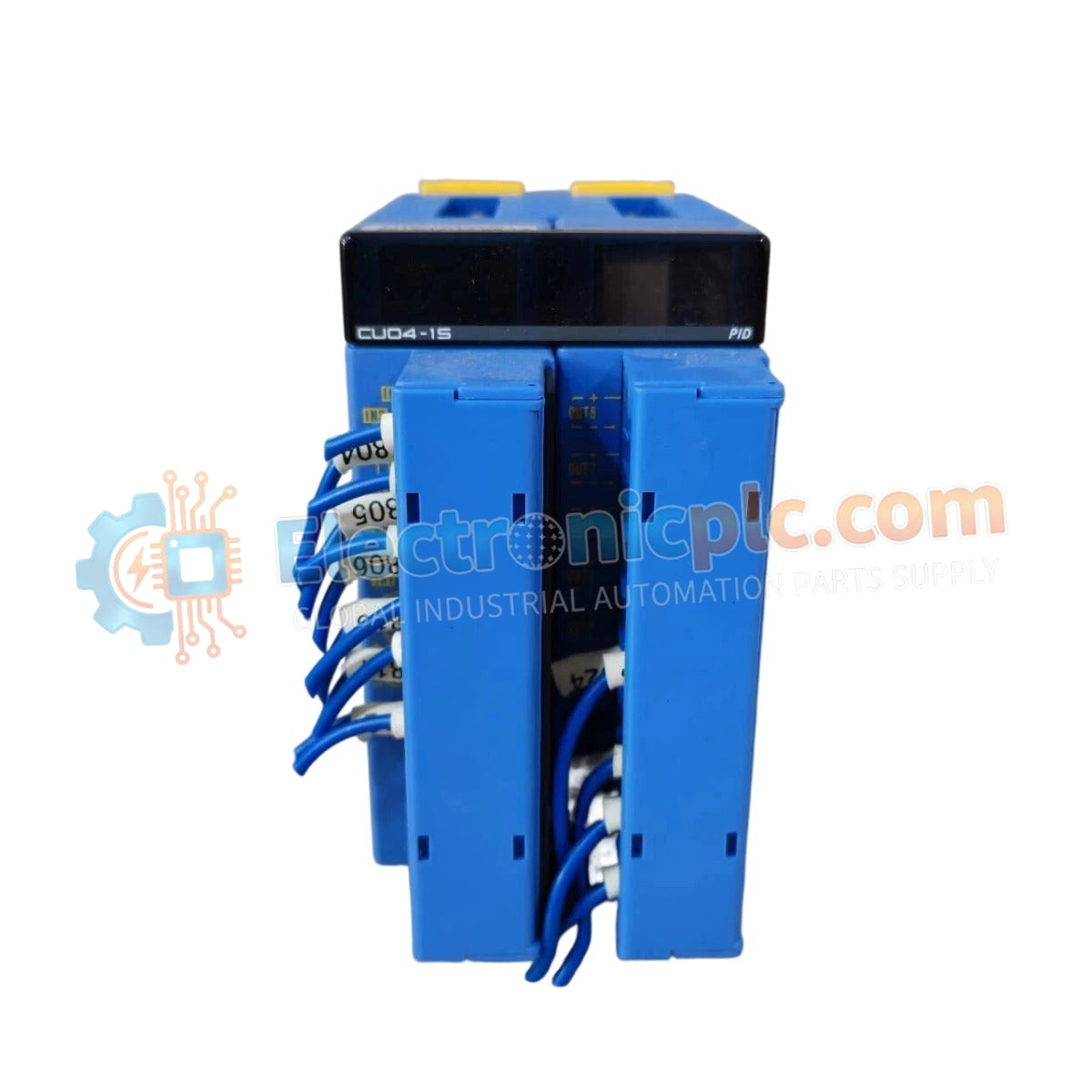

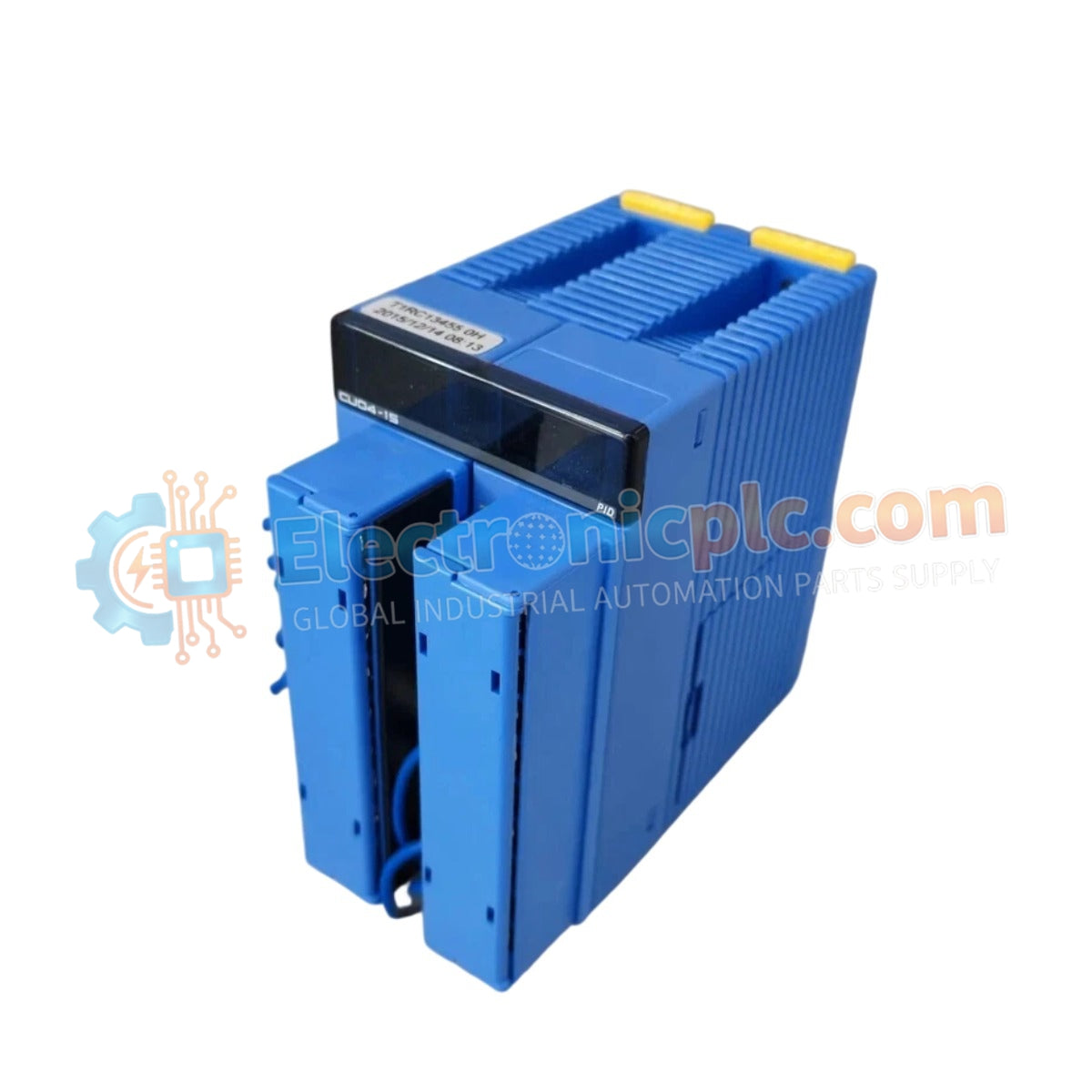

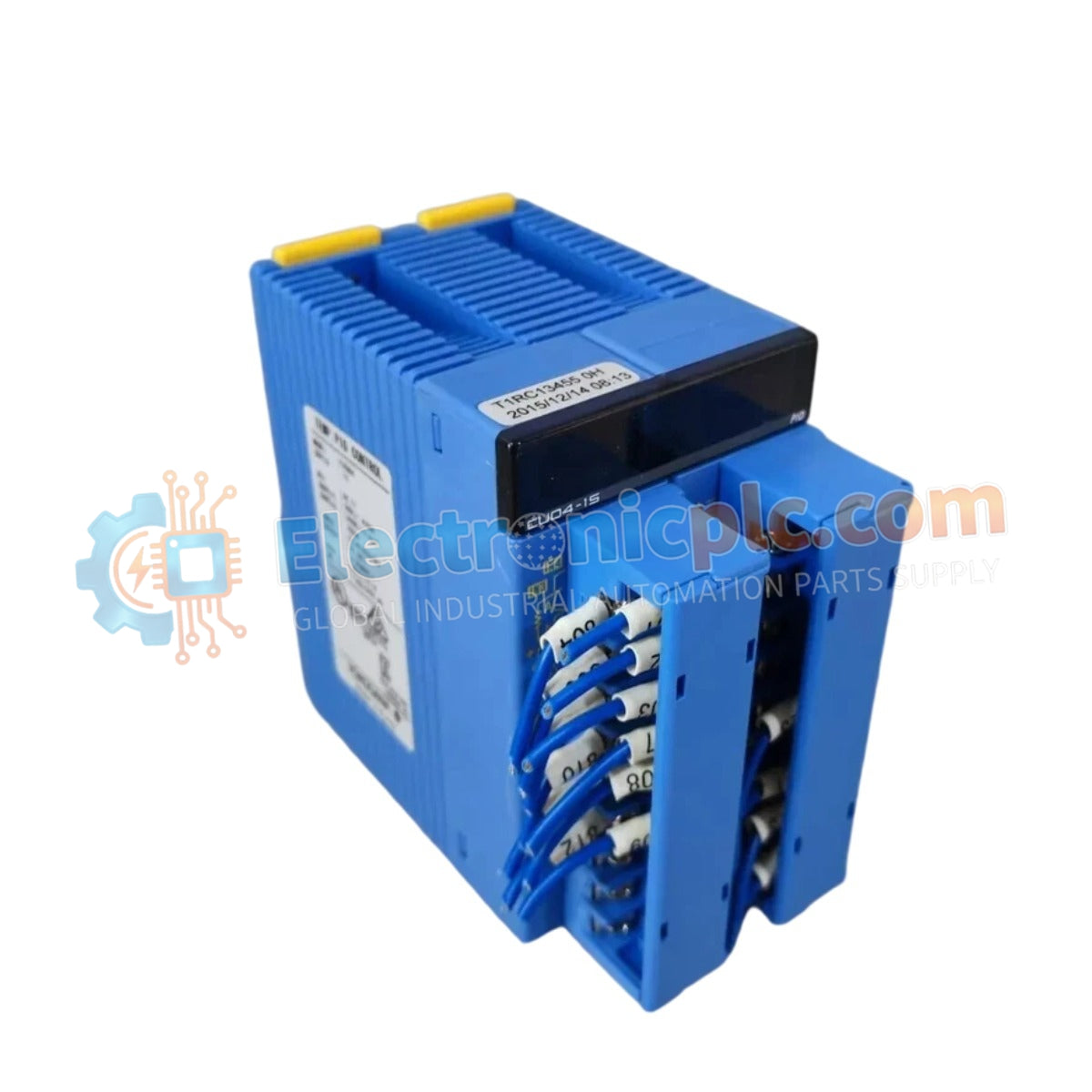

The Yokogawa F3CU04-1S (F3CU04-1S) is a high-precision PID temperature control module engineered for the FA-M3 programmable logic controller (PLC) system. It manages four independent control loops, providing advanced thermal regulation...

22 people are viewing this right now

Availability: In stock

SKU: F3CU04-1S
Vendor: Yokogawa
Category: Temperature Control Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Yokogawa F3CU04-1S (F3CU04-1S) is a high-precision PID temperature control module engineered for the FA-M3 programmable logic controller (PLC) system. It manages four independent control loops, providing advanced thermal regulation for complex industrial processes.

Hardware Specifications

Parameter Specification
Model F3CU04-1S
Brand Yokogawa
Origin Japan
Weight 0.35kg
Dimensions 58 mm (W) x 100 mm (H) x 106.1 mm (D)
Operating Temp 0 to 55 deg C
Control Loops 4
Sampling Period 200 ms per loop
Input Accuracy ±0.1% of full scale
Power Consumption 470 mA (5 V DC)

Functional Capabilities and Control Modes

The F3CU04-1S supports versatile input configurations, including RTD, thermocouple, and DC voltage, allowing each of the four channels to be independently customized. The module provides sophisticated control strategies, including single-loop, cascade, and two-input changeover modes. With 12 distinct alarm types—ranging from deviation limits to absolute input thresholds—the module ensures robust process monitoring. Input channels are electrically isolated from the internal PLC circuitry to maintain signal integrity, while the time-proportional open-collector outputs enable efficient heating or cooling control.

Frequently Asked Questions

Q: Does the module require an external power supply for operation?

A: No. The F3CU04-1S is powered directly via the FA-M3 base unit backplane, simplifying installation and reducing wiring requirements.

Q: What are the mounting restrictions for this module?

A: The module occupies two slots within the FA-M3 base unit and is strictly limited to horizontal mounting orientation to ensure proper heat dissipation and reliable operation within the specified temperature range.

Field Installation Guidelines

  1. Ensure the module is installed in a horizontal orientation to maintain optimal thermal performance.
  2. Confirm that the FA-M3 backplane slot is free of dust before seating the module to ensure solid electrical contact.
  3. Secure the module using the provided mounting hardware to prevent mechanical vibration, which can affect control loop stability.
  4. Utilize shielded instrumentation cables for all RTD and thermocouple inputs to minimize electromagnetic interference (EMI) in the factory environment.
  5. Verify that all terminal block connections are torqued according to specifications (M3.5 screws) to prevent intermittent signal errors during process execution.
