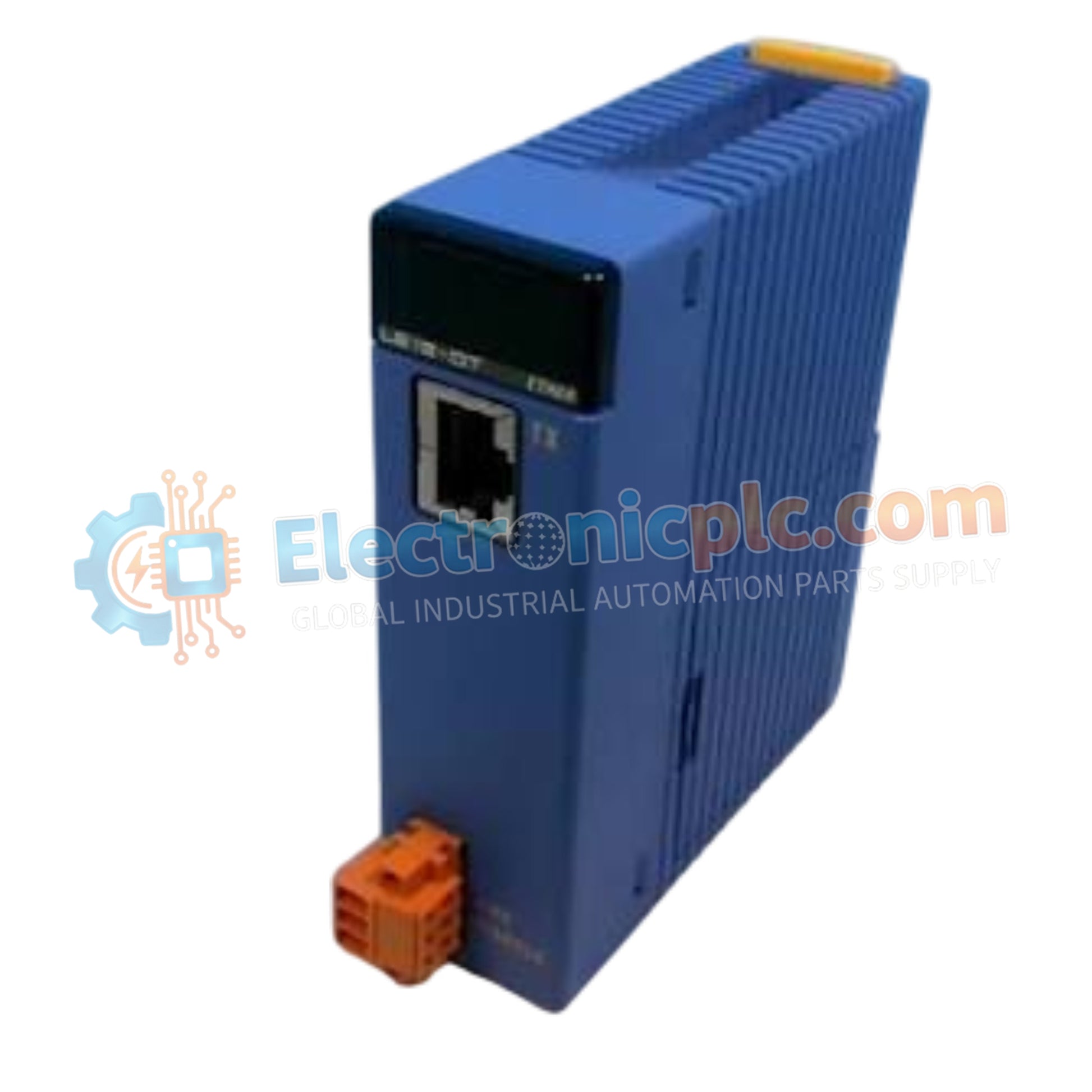

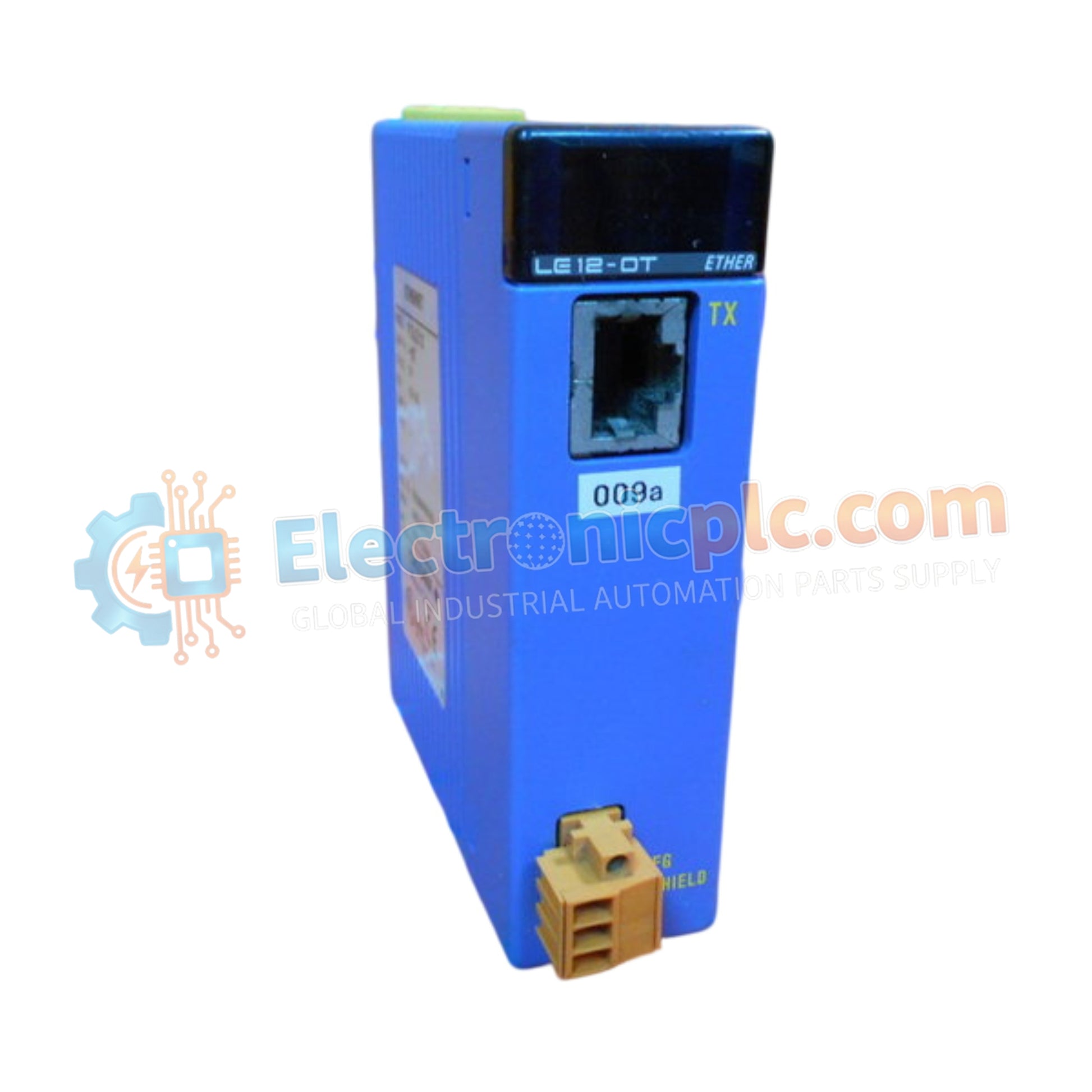

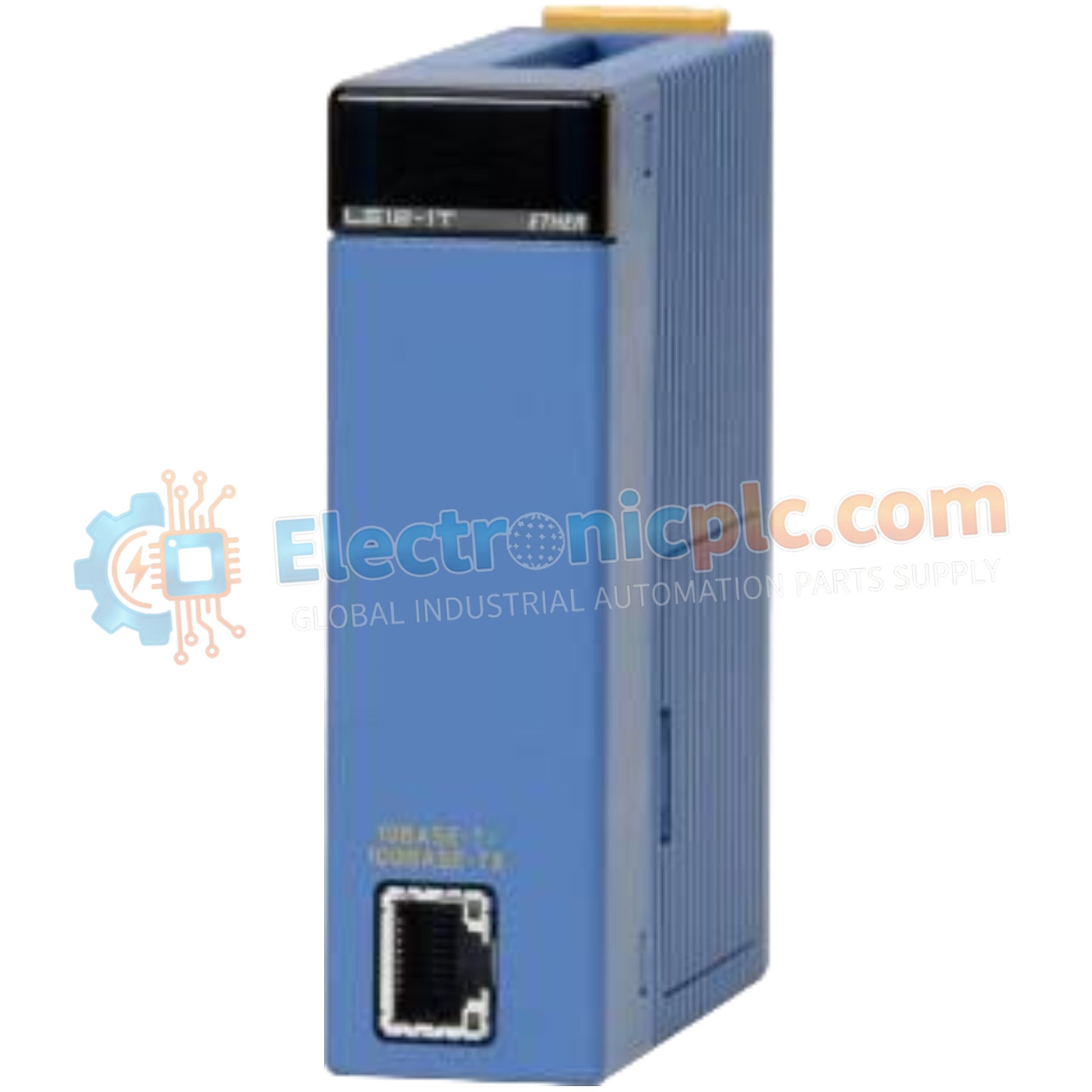

F3LE12-0T Ethernet Interface Module Yokogawa

F3LE12-0T Ethernet Interface Module Yokogawa

The Yokogawa F3LE12-0T, also cataloged as the F3LE12-0T Ethernet Interface Module, operates as a dedicated hardware component for high-speed Ethernet communication and data exchange within FA-M3 Range-free Multi-controller networks.

Suffix...

20 people are viewing this right now

Availability: Low stock: 50 left

SKU: F3LE12-1T
Vendor: Yokogawa
Category: Ethernet Interface Module

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

The Yokogawa F3LE12-0T, also cataloged as the F3LE12-0T Ethernet Interface Module, operates as a dedicated hardware component for high-speed Ethernet communication and data exchange within FA-M3 Range-free Multi-controller networks.

Suffix Breakdown & Model Matrix

  • F3LE12: Base model designation for the FA-M3 range Ethernet communication interface module.
  • -0T: Hardware configuration suffix indicating a standard RJ45 copper media port supporting 10BASE-T/100BASE-TX standards.

Hardware Specifications

Parameter Specification
Model F3LE12-0T
Brand Yokogawa
Origin Japan
Weight 0.3kg
Dimensions Standard FA-M3 base module dimensions
Operating Temp Standard industrial enclosure range (0 to 55 deg C)
Power Consumption Standard internal backplane current draw (exact value omitted per hardware spec)
Communication Speed 10 Mbps and 100 Mbps (10BASE-T/100BASE-TX)
Connector Type RJ45 Ethernet port
Network Protocols TCP/IP and UDP/IP
Maximum Node Distance 100 m

Channel-to-Channel Isolation and Network Connectivity

The module implements baseband transmission via CSMA/CD access control over dual-speed 10BASE-T and 100BASE-TX physical layers. Galvanic isolation across the network port circuitry protects the backplane bus from transient surge voltages and ground potential shifts. The integrated TCP/IP and UDP/IP stack execution ensures deterministic packet handling for multi-controller synchronization across FA-M3 backplane architectures.

Frequently Asked Questions

Q: Does the F3LE12-0T module support active online firmware flashing without halting backplane execution?

A: Firmware updates require a controlled system shutdown or specific slot power cycle depending on the active CPU execution state.

Q: What is the maximum segment length permitted between the module RJ45 port and the nearest network switch?

A: The maximum distance between nodes is limited to 100 m in accordance with standard copper Ethernet physical layer specifications.

Field Installation Guidelines

  • Insert the module into an available designated slot on the FA-M3 base unit, ensuring proper backplane connector engagement before securing the retention mechanism.
  • Connect shielded twisted-pair patch cables to the RJ45 port, ensuring proper grounding of cable shields to minimize electromagnetic interference.
  • Maintain adequate ambient temperature conditions between 0 and 55 deg C with appropriate cabinet ventilation to prevent thermal accumulation.
