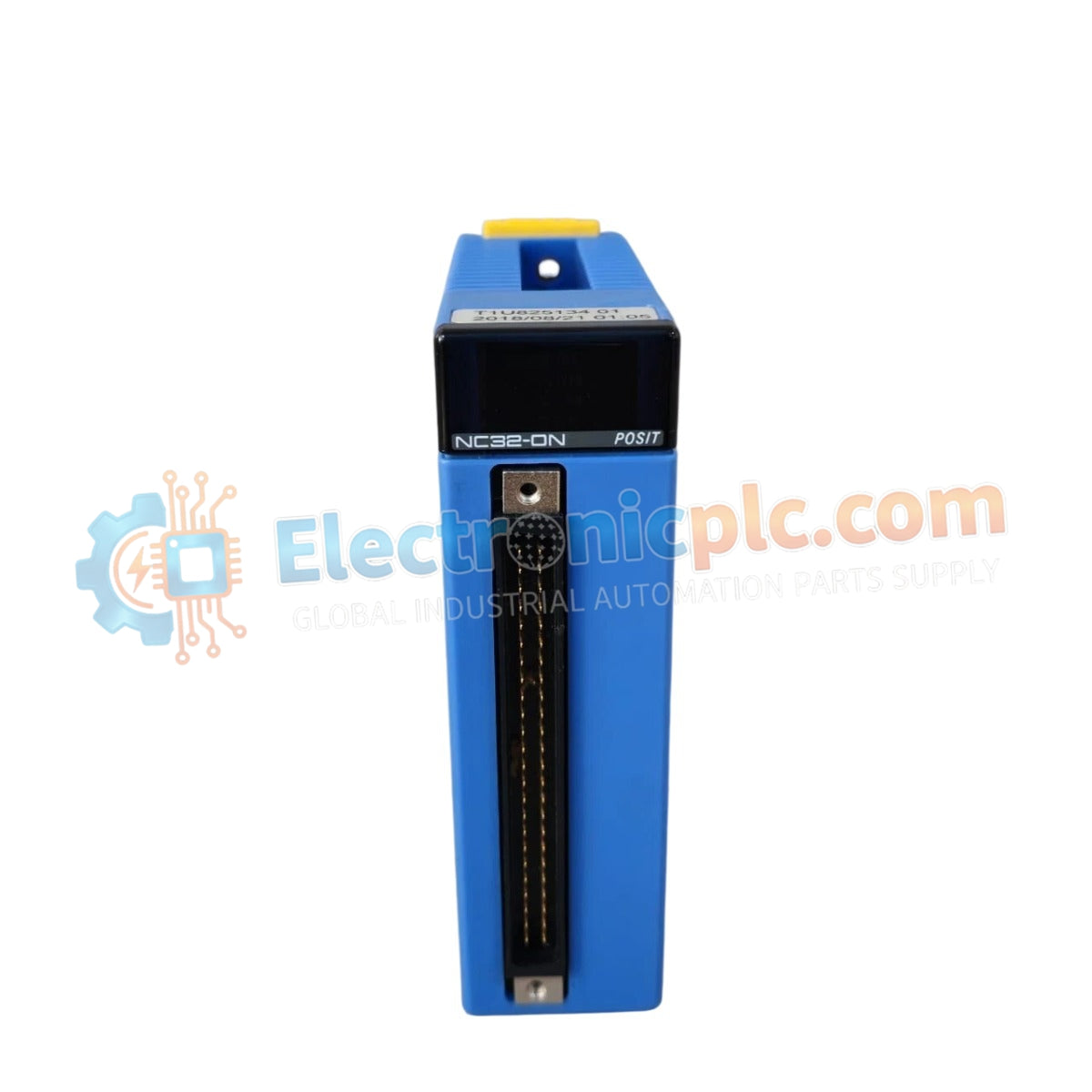

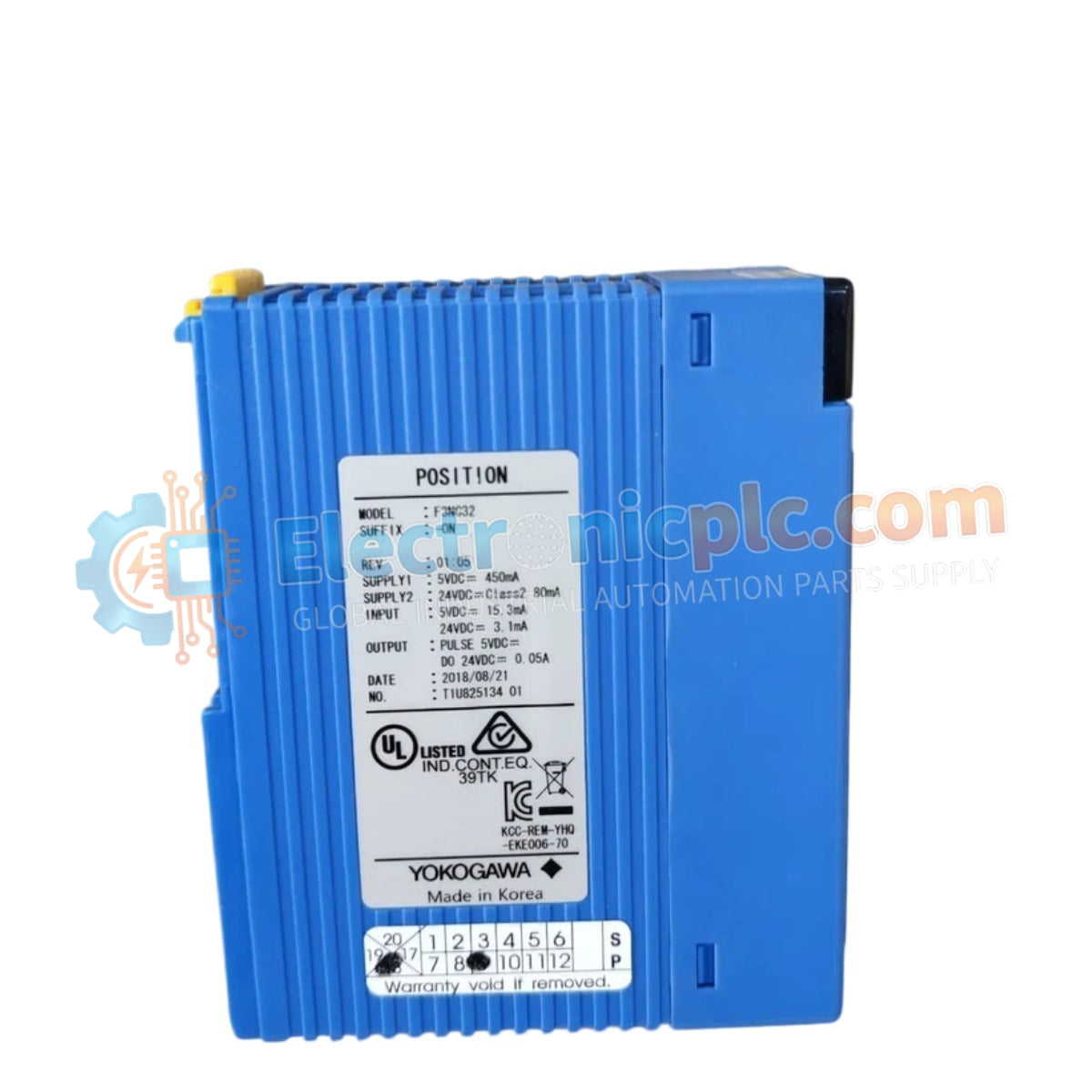

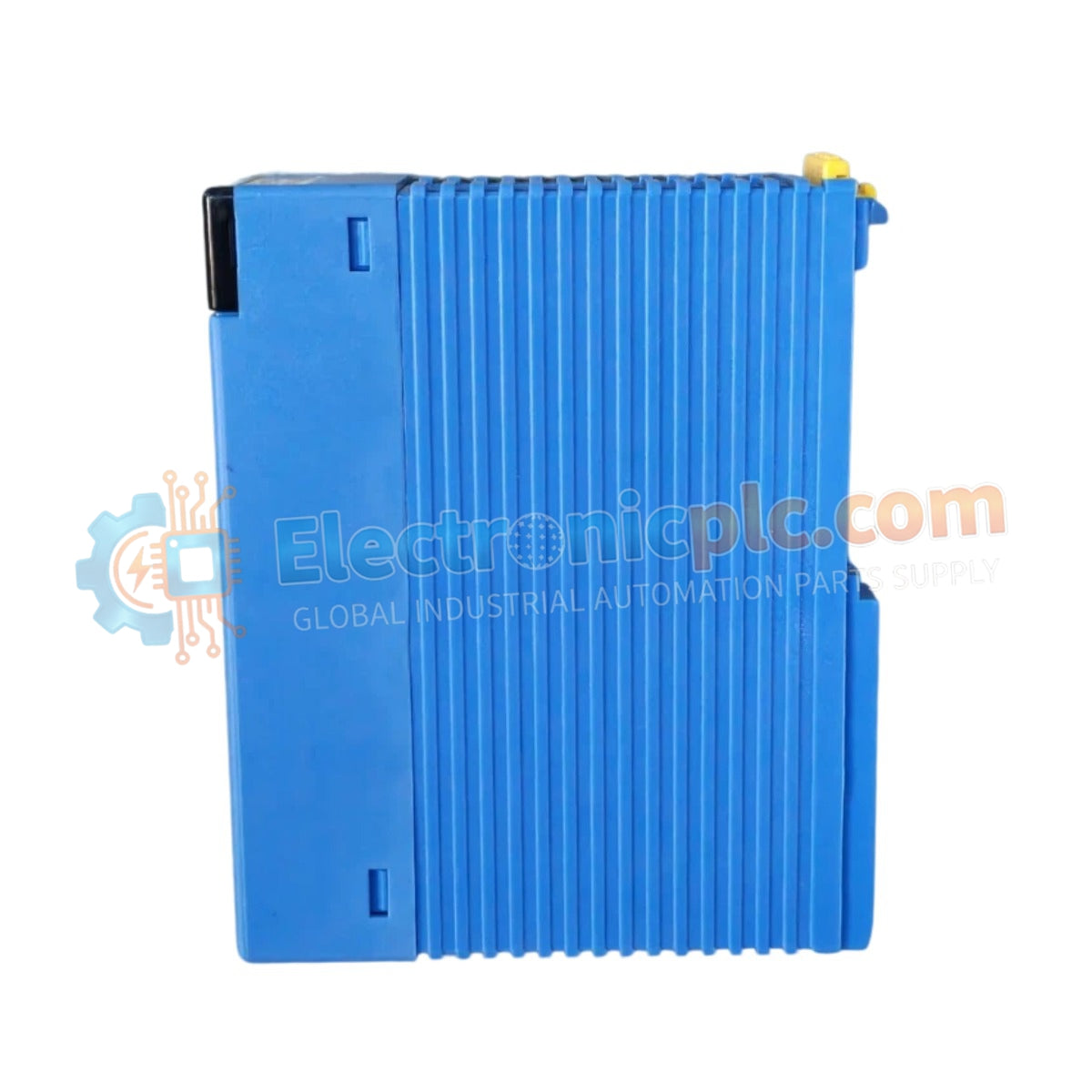

Configured for high-precision motion control within FA-M3 control networks, the Yokogawa F3NC32-0N/L1 (F3NC32-0N/L1 Positioning Module) provides direct physical and electrical execution for multi-axis actuator command signals.

Hardware Specifications

...
24 people are viewing this right now

Availability: In stock

SKU: F3NC32-0N/L1
Vendor: Yokogawa
Category: Positioning Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Configured for high-precision motion control within FA-M3 control networks, the Yokogawa F3NC32-0N/L1 (F3NC32-0N/L1 Positioning Module) provides direct physical and electrical execution for multi-axis actuator command signals.

Hardware Specifications

Parameter Specification
Model F3NC32-0N/L1
Brand Yokogawa
Origin Japan
Weight 0.25 kg
Dimensions 28.9 mm (W) x 83.2 mm (D) x 100 mm (H)
Operating Temp 0 to 55 deg C
Power Consumption 400 mA (5 V DC)
Interface Type Pulse train output
Axis Control 2-axis independent control

Yokogawa DCS and Process Control Connectivity

The F3NC32-0N/L1 module integrates into the FA-M3 backplane to deliver high-speed pulse train outputs required for motion synchronization. The hardware supports FOUNDATION Fieldbus and Profibus PA connectivity protocols at the controller level to ensure coordinated operation with wider DCS field instrumentation. Each output channel provides high-speed differential signal transmission, maintaining signal integrity and pulse-count accuracy during high-frequency operation. The module architecture incorporates channel-to-channel isolation to prevent potential electrical noise coupling between independent motion axes.

Frequently Asked Questions

Q: Does the module support real-time adjustments of velocity profiles during operation?

A: Yes. The module allows for dynamic updates to acceleration, deceleration, and target position parameters via the control registers mapped to the FA-M3 backplane.

Q: Are the pulse outputs compatible with both differential and open-collector inputs on servo drives?

A: The module is designed for standard high-speed signal outputs. Users must ensure that the drive input configuration matches the output signal levels defined in the hardware manual to avoid input stage damage or signal loss.

Field Installation Guidelines

  1. Ensure the module is fully seated into the base unit slot to maintain a robust connection with the backplane bus pins.
  2. Secure the module using the provided locking levers to prevent movement caused by industrial vibration.
  3. Utilize shielded twisted pair cables for all pulse and direction signals to minimize electromagnetic interference (EMI).
  4. Connect the signal common directly to the drive chassis ground at the receiving end to establish a single-point grounding path and reduce ground loops.
  5. Confirm that the external 24 V DC power supply for output buffers is regulated and free of high-frequency noise.
