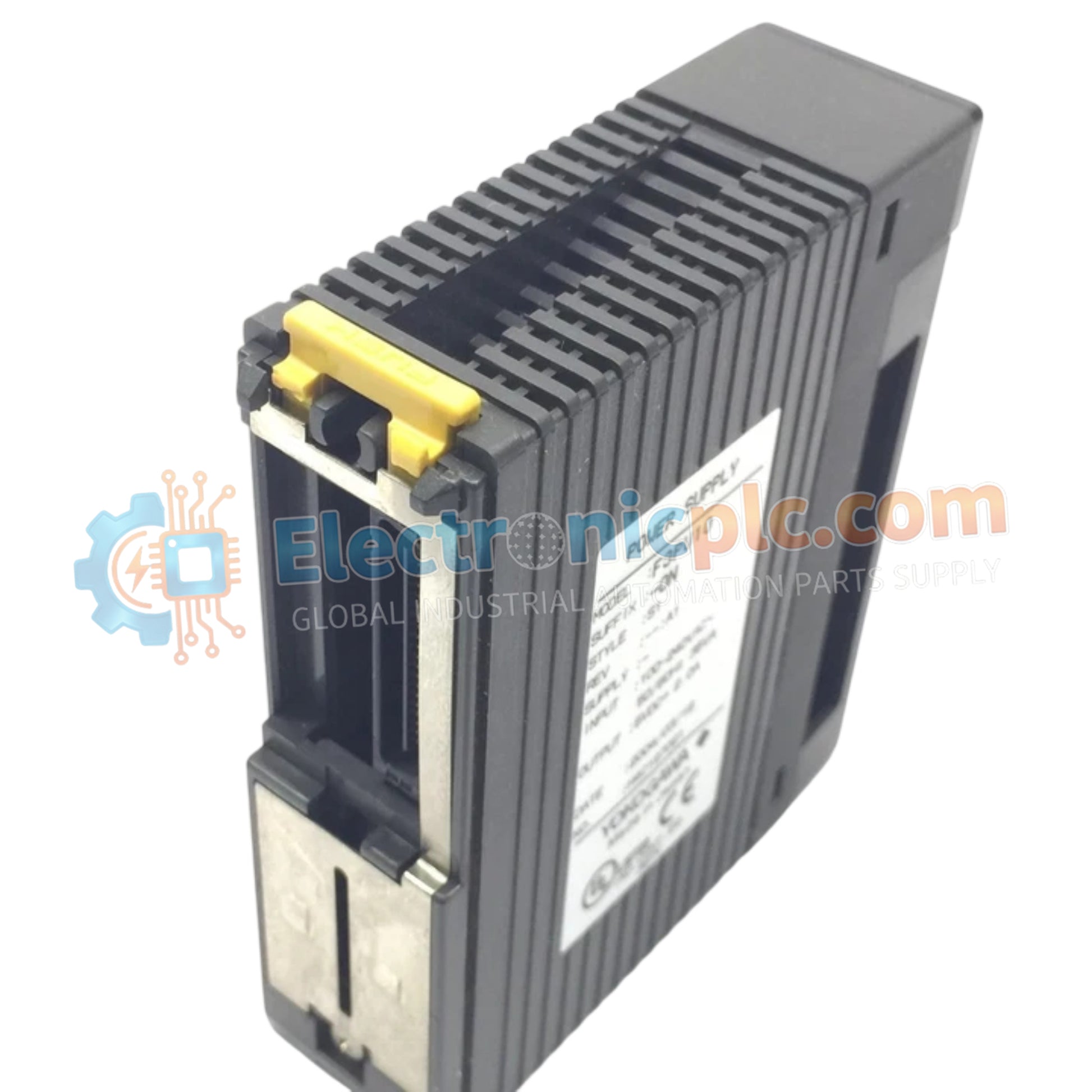

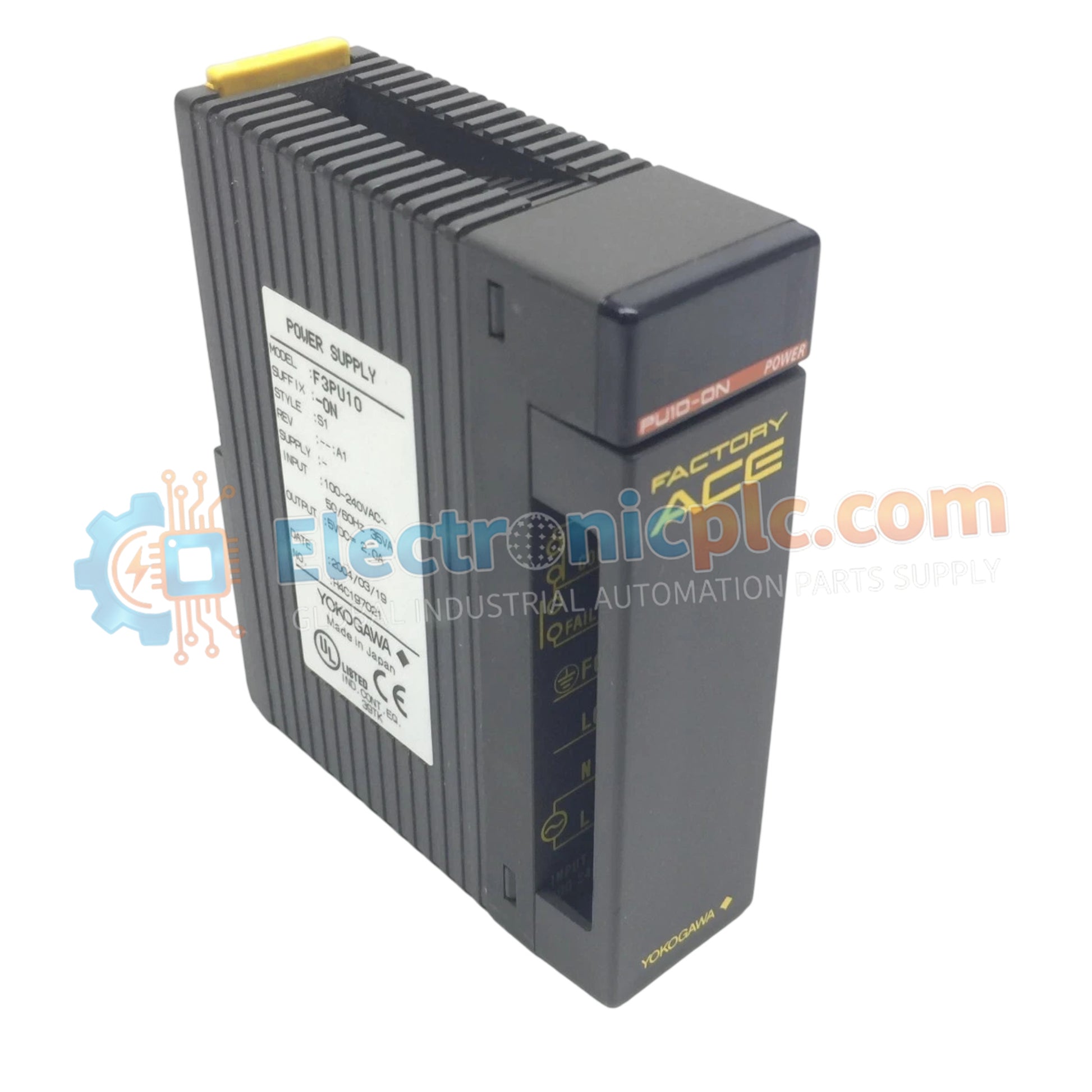

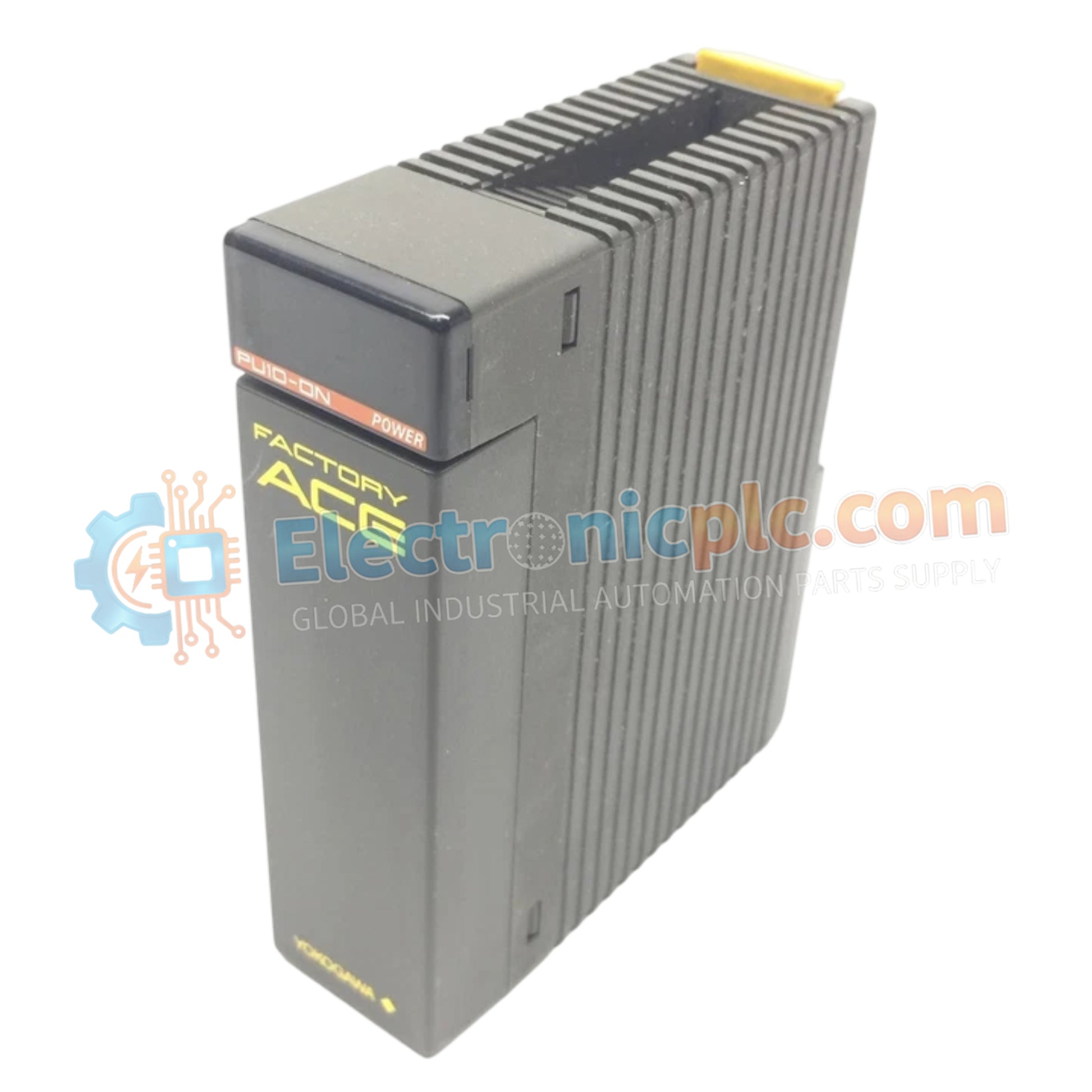

The Yokogawa F3PU10-0N, also cataloged as the F3PU10-0N Power Supply, operates as a dedicated hardware component for power distribution within FA-M3 programmable logic controller platforms.

Suffix Breakdown & Model Matrix

• F3PU10-0N: Base module designation for an AC-input power supply unit, specifically engineered for compatibility with 4-slot or 6-slot base units within the FA-M3 series.

Hardware Specifications

Industrial Control and Power Bus Compatibility

The F3PU10-0N provides deterministic voltage regulation to the backplane bus, ensuring stable DC supply to modular I/O cards and CPU processors. The module architecture is designed to manage I/O density scaling efficiently within smaller 4 or 6 slot backplane configurations. The power conversion stage includes internal filtering to mitigate line-side harmonics and transient noise, ensuring that firmware flash compatibility and deterministic communication speeds are maintained across the backplane bus during active operation.

Frequently Asked Questions

Q: Is the F3PU10-0N module hot-swappable while the base unit is under load?

A: No. The F3PU10-0N is not designed for hot-swapping. The AC input must be disconnected and the PLC base unit powered down before attempting to remove or install the power supply module.

Q: Can the F3PU10-0N be used with backplanes larger than 6 slots?

A: No. The F3PU10-0N is rated specifically for 4-slot or 6-slot configurations. Attempting to use this unit with higher-density backplanes may result in insufficient power capacity and system instability.

Field Installation Guidelines

1. Verify that the incoming AC supply is within the 100-240 VAC range before connection to prevent damage to the internal conversion circuitry.
2. Ensure the module is seated fully into the power supply slot of the 4 or 6 slot base unit, and tighten the mounting screws to ensure proper grounding to the PLC chassis.
3. Keep AC input cabling separated from sensitive low-voltage I/O signal wiring to prevent electromagnetic induction.
4. Confirm that the ventilation slots on the base unit are unobstructed to allow for adequate heat dissipation of the power supply and adjacent modules.
5. Check that the module's status LED indicates a nominal output state after power-up; if the LED remains unlit, verify the source voltage and confirm the module is securely latched.
