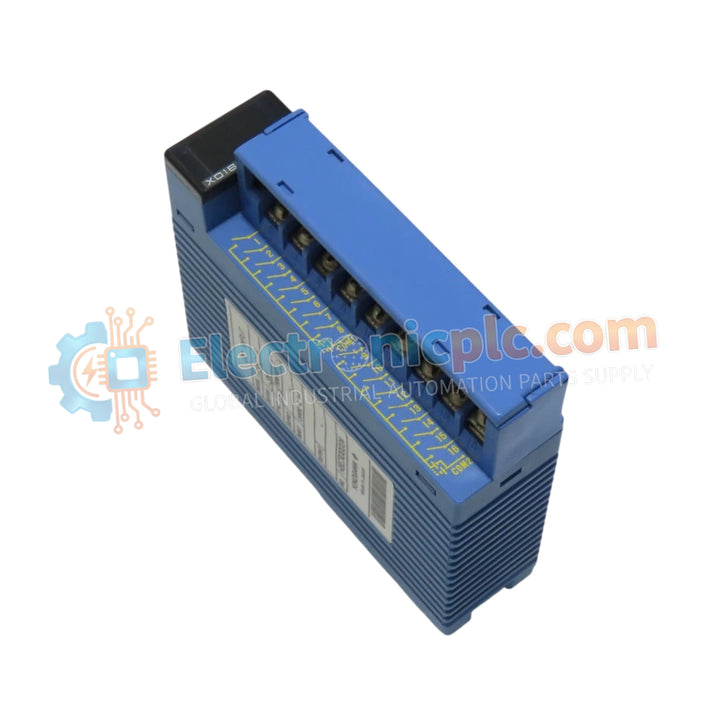

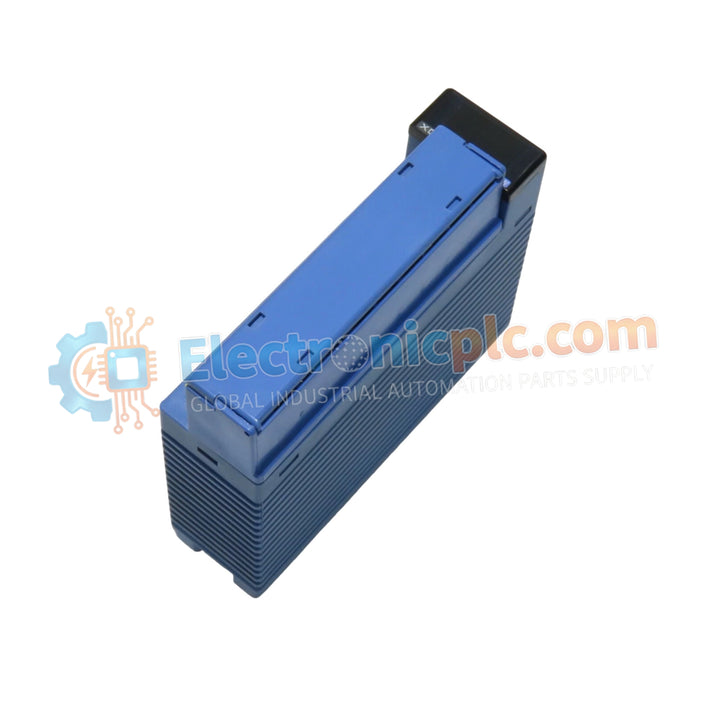

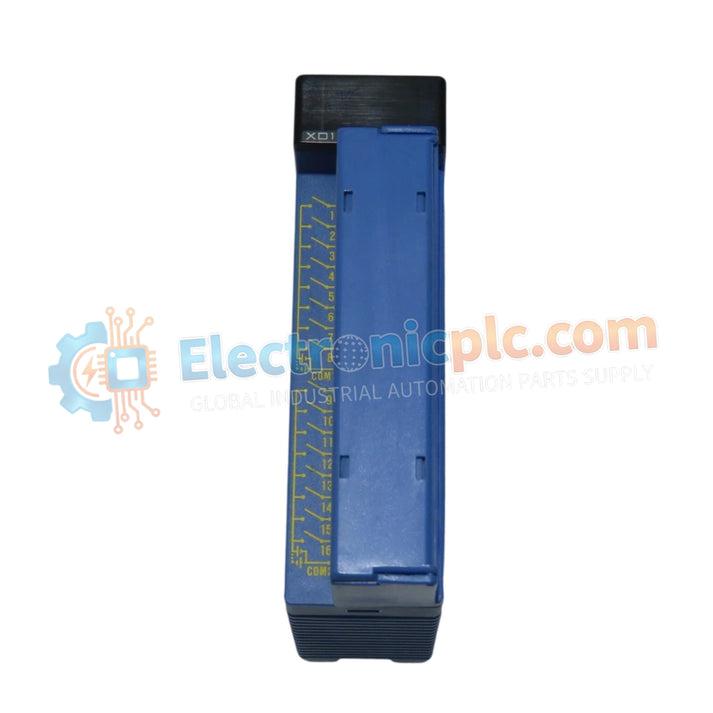

The YOKOGAWA F3XD16-3N, also cataloged as the F3XD16 Digital Input Module, operates as a dedicated hardware component for discrete signal acquisition within FA-M3 PLC platforms.
| Parameter | Specification |
|---|---|
| Model | F3XD16-3N |
| Brand | YOKOGAWA |
| Origin | Japan |
| Weight | 0.2 kg |
| Dimensions | 3.3 cm x 10.2 cm x 8.9 cm |
| Operating Temp | 0 deg C to 55 deg C |
| Power Consumption | 65 mA (5 V DC) |
| Input Channels | 16 |
| Input Voltage | 24 V DC |
| Input Current | 4.1 mA per point |
| Isolation | Photocoupler |
The F3XD16-3N utilizes the FA-M3 backplane bus to facilitate high-speed, deterministic signal transfer between field sensors and the controller CPU. The module architecture is engineered for efficient I/O density scaling, allowing for the integration of multiple input modules without compromising bus communication velocity. Photocoupler isolation is provided for each of the 16 channels, ensuring the suppression of common-mode noise and protecting the controller logic from field-level transient voltages. Firmware flash compatibility is supported to maintain consistency with system-wide PLC configurations.
Q: Can the input response time be adjusted for specific signal filtering requirements?
A: Yes, the input response time is software-configurable between 62.5 us and 16 ms. This allows for the filtering of contact bounce or high-frequency noise from mechanical field devices.
Q: Does the module support both sink and source input configurations?
A: Yes, the F3XD16-3N is designed to support both sink and source input logic, providing flexibility for varied field device wiring requirements within the same FA-M3 rack.
