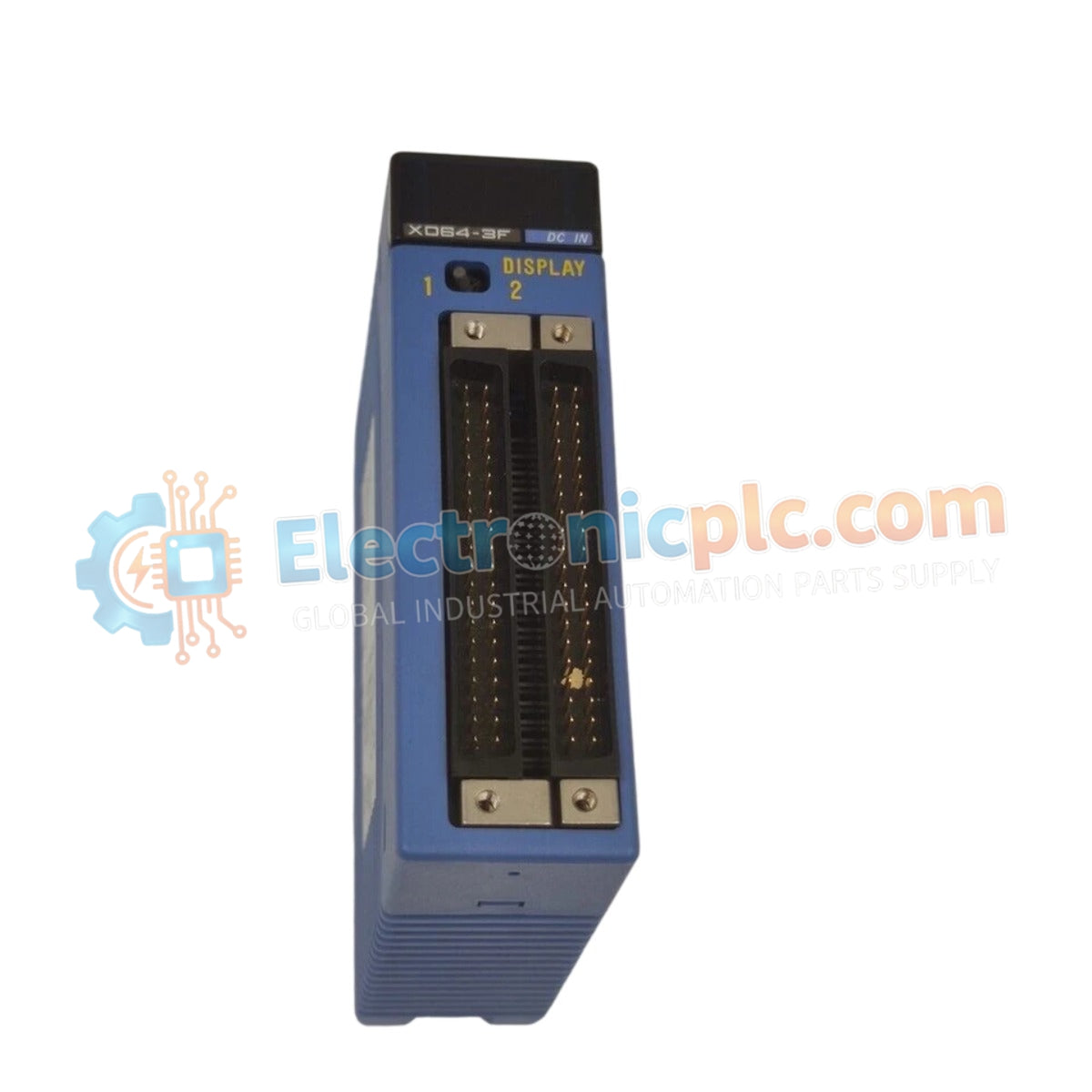

F3XD64-3F/K2 Yokogawa Digital Input Module

F3XD64-3F/K2 Yokogawa Digital Input Module

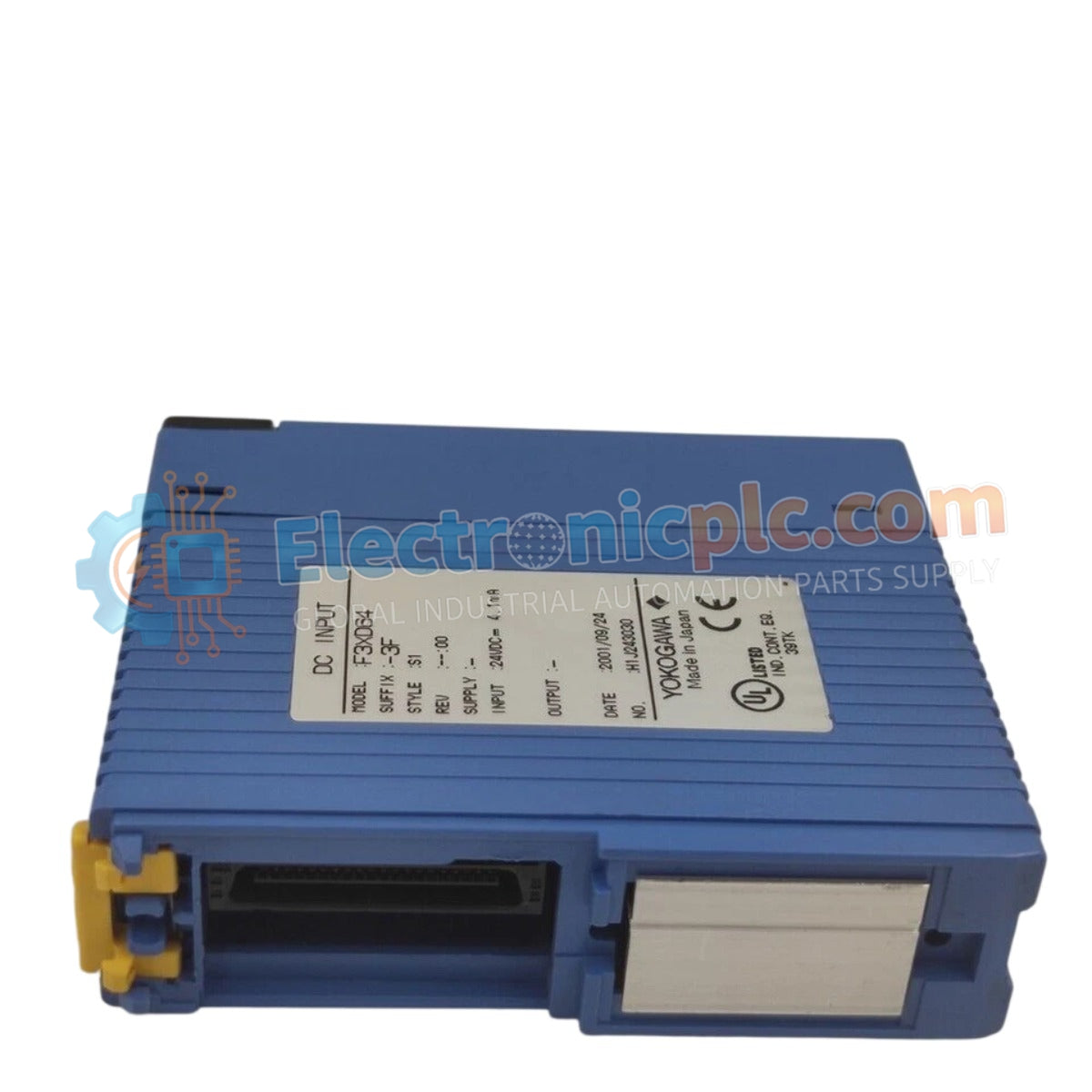

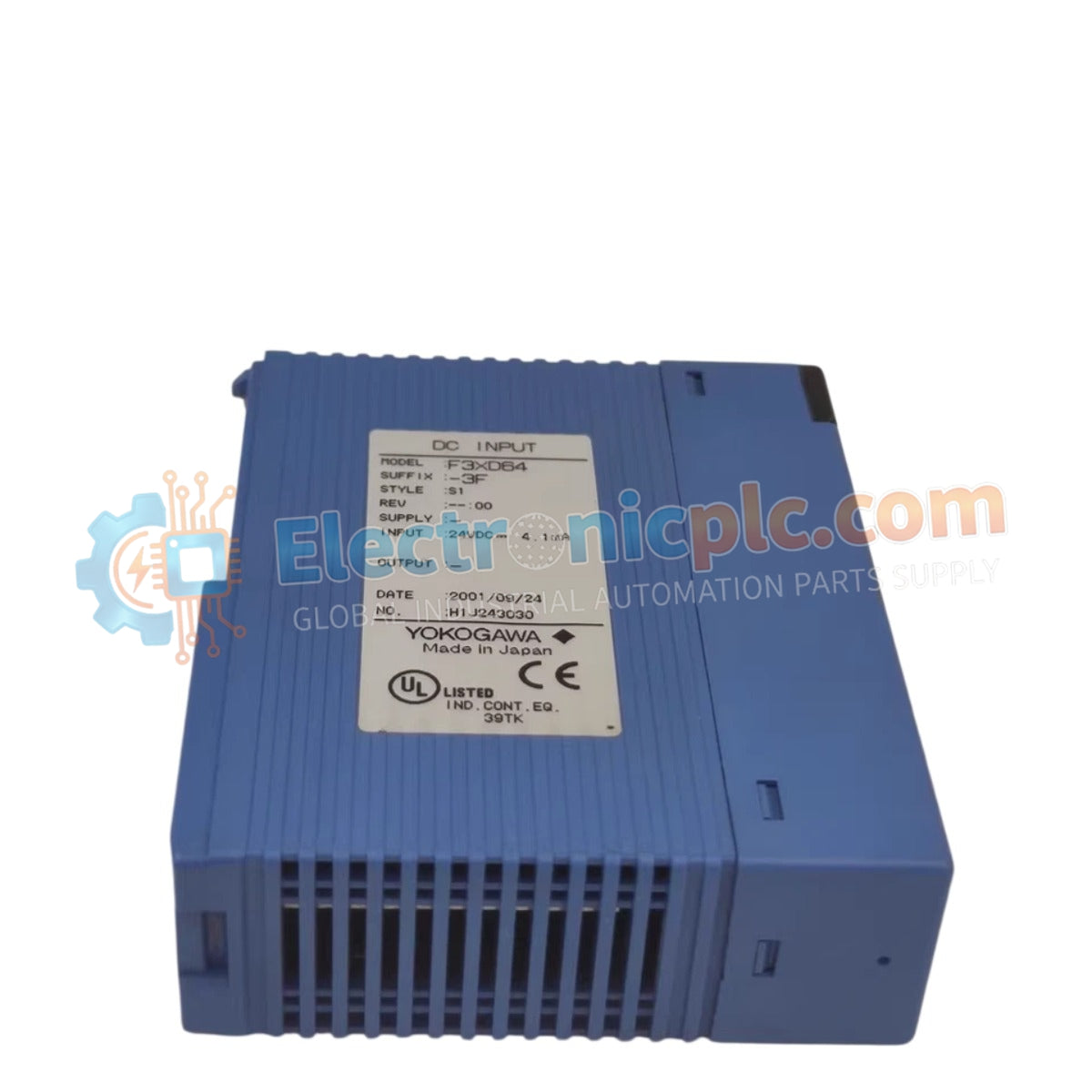

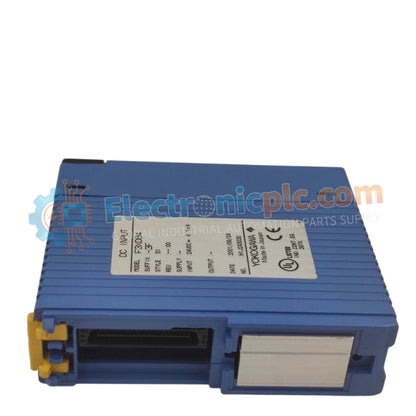

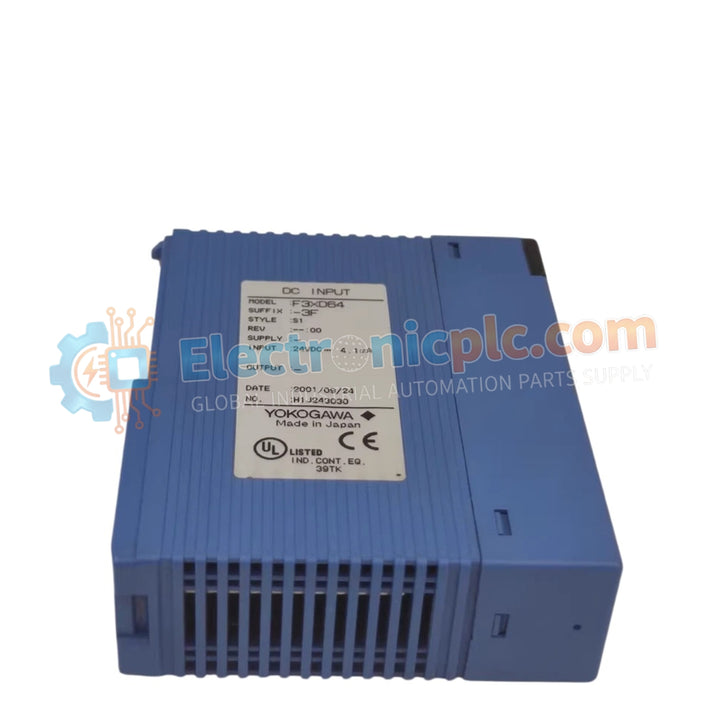

Configured for high-density discrete signal acquisition in FA-M3 control networks, the Yokogawa F3XD64-3F/K2 (F3XD64-3F/K2 Digital Input Module) provides direct electrical execution for 64-channel field device interfacing via the system backplane.

...
25 people are viewing this right now

Availability: In stock

SKU: F3XD64-3F/K2
Vendor: Yokogawa
Category: Digital Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Configured for high-density discrete signal acquisition in FA-M3 control networks, the Yokogawa F3XD64-3F/K2 (F3XD64-3F/K2 Digital Input Module) provides direct electrical execution for 64-channel field device interfacing via the system backplane.

Suffix Breakdown & Model Matrix

The F3XD64-3F/K2 represents the high-density digital input configuration within the FA-M3 series. The suffix "/K2" designates specific terminal block and interface compatibility standards, ensuring physical and electrical alignment with the standard FA-M3 modular rack systems.

Hardware Specifications

Parameter Specification
Model F3XD64-3F/K2
Brand Yokogawa
Origin Japan
Weight 0.14 kg
Dimensions Standard FA-M3 single-slot form factor
Operating Temp 0 to 55 deg C
Power Consumption 75 mA (5 V DC)
Input Channels 64
Rated Input Voltage 24 V DC
Input Response Time 0, 62.5, 250, 1000, 16000 us (Selectable)

Yokogawa DCS and Process Control Connectivity

The F3XD64-3F/K2 is engineered for seamless integration into Yokogawa DCS and PLC environments, providing essential signal conditioning for process control loops. The module architecture incorporates photocoupler-based channel-to-channel isolation to maintain signal integrity and suppress electrical noise when interfaced with remote field instrumentation. By adhering to standardized input voltage thresholds (16.0 V DC for ON state), the module ensures deterministic data acquisition across all 64 channels, suitable for high-speed process monitoring and sequence control.

Frequently Asked Questions

Q: Does this module support both sink and source input configurations?

A: Yes. The F3XD64-3F/K2 is designed to accommodate both sink and source input wiring, allowing it to adapt to various field device signal polarities without hardware modification.

Q: Is this module capable of hot-swapping?

A: No. Standard FA-M3 modules are not designed for hot-swapping. The power to the rack must be removed before installing or removing the module to prevent electrical arcing or damage to the backplane communication pins.

Field Installation Guidelines

  1. Ensure the installation environment is free from conductive debris and excessive moisture to maintain the integrity of the input circuitry.
  2. Align the 40-pin connector carefully during installation to prevent bent pins; ensure the locking mechanism is fully secured.
  3. Utilize shielded twisted pair cables for signal runs exceeding 3 meters to minimize electromagnetic interference (EMI).
  4. Terminate all cable shields to a dedicated, low-impedance earth ground at the control panel entry point.
  5. Verify that the common supply voltage for field sensors is verified as 24 V DC prior to final connection to the module terminals.
