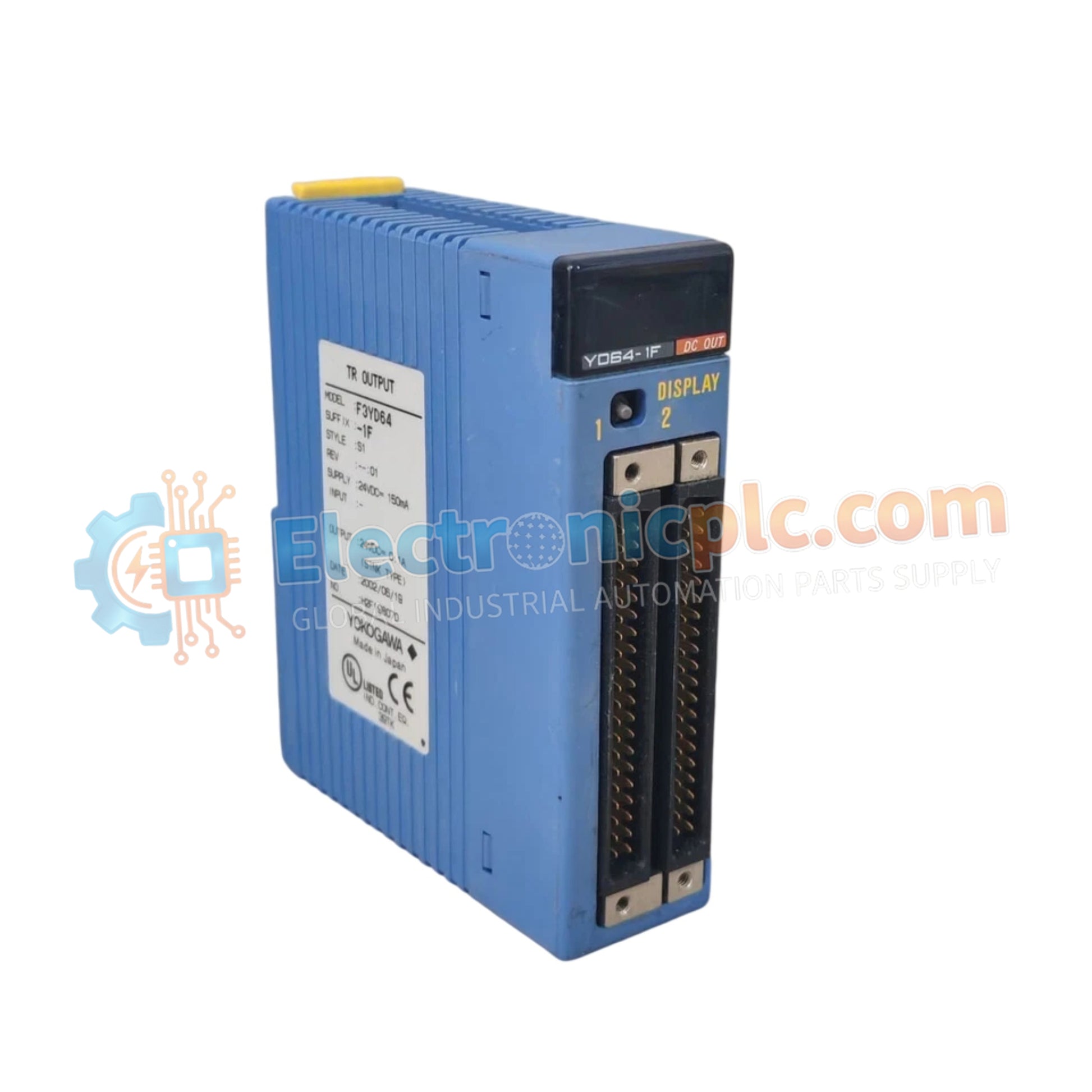

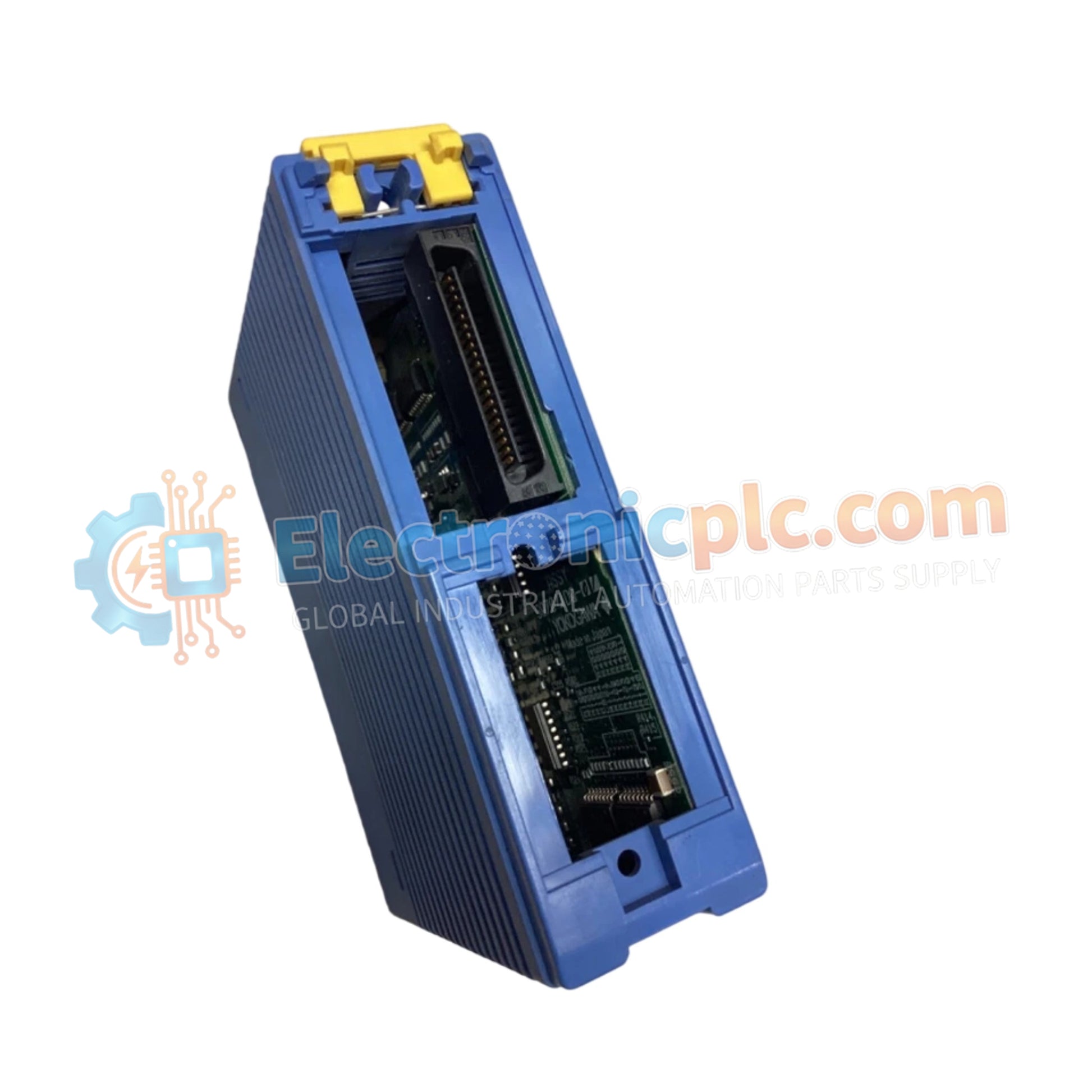

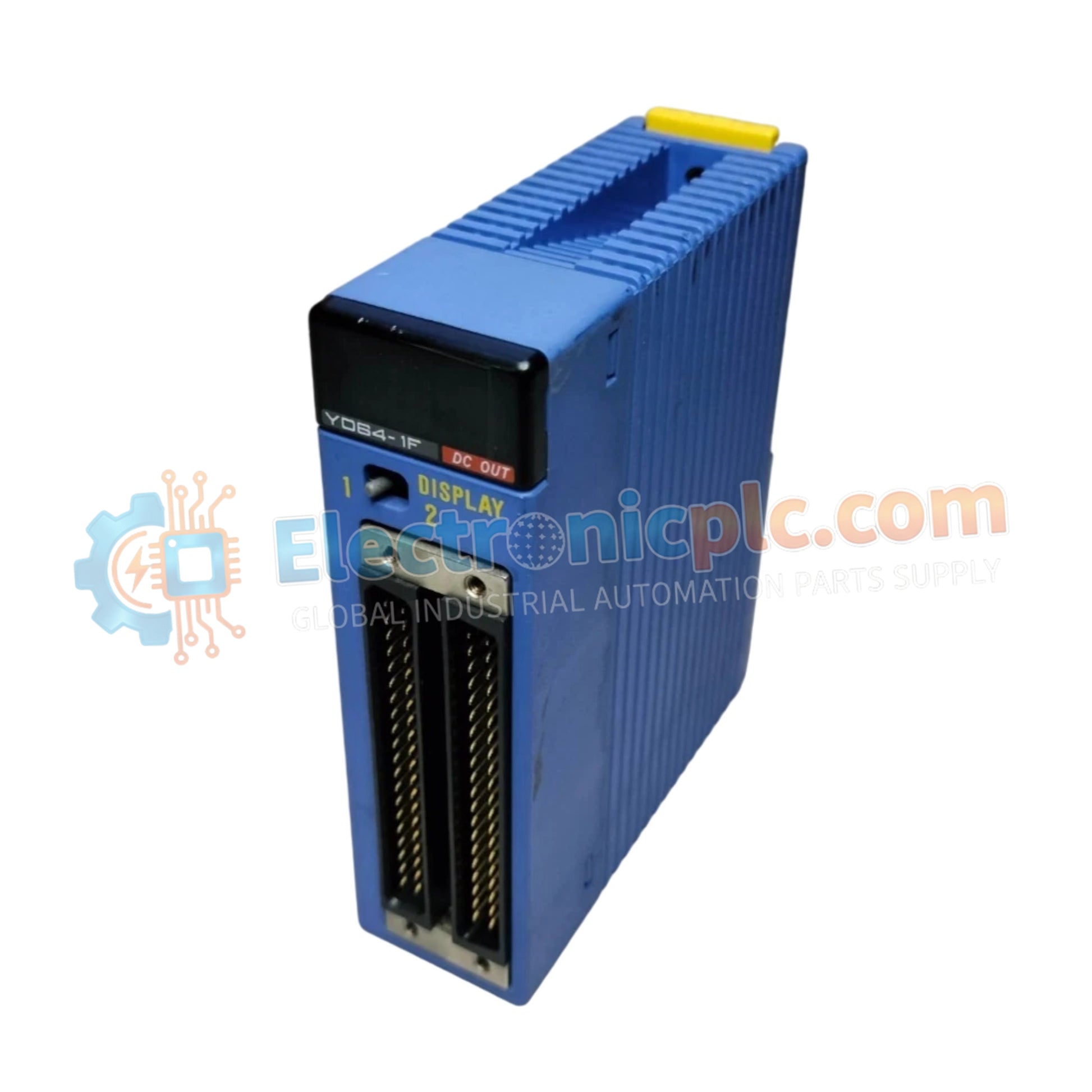

The YOKOGAWA F3YD64-1F, also cataloged as the F3YD64 Transistor Output Module, operates as a dedicated hardware component for discrete logic state execution and actuator control within FA-M3 industrial automation platforms.

Hardware Specifications

Industrial Control & Drive Technical Characteristics

The F3YD64-1F module is engineered for high-density discrete signal output, utilizing transistor-based switching to manage field-side load transitions. The module’s sink-type architecture is optimized for integration with negative-common industrial control loops, ensuring deterministic responsiveness during PLC logic execution. By maintaining precise switching characteristics, the hardware supports efficient I/O density scaling across the backplane bus, enabling the controller to manage multiple actuator or indicator states with consistent signal timing and minimal latency.

Frequently Asked Questions (FAQ)

Q: What is the recommended method for protecting the transistor outputs from inductive load flyback?

A: Given the 0.1 A output capacity, it is necessary to install external flyback suppression diodes (DC loads) or RC snubber circuits across any inductive field loads to prevent transient voltage spikes from damaging the internal switching transistors.

Q: Can the F3YD64-1F be used to switch loads greater than 0.1 A?

A: No, the output current is strictly limited to 0.1 A per point to ensure the longevity of the semiconductor switches. For higher-current applications, use the module output to drive an intermediate interposing relay.

Field Installation Guidelines

• Mounting: Seat the module securely into the designated base unit slot. Ensure the module is properly aligned with the backplane connector pins to prevent mechanical stress during insertion and operation.
• Wiring: Utilize appropriate wire gauges for the 24 V DC circuit. Ensure that all output connections are routed through proper cable management to reduce the risk of short-circuits between individual output channels.
• Grounding: Bond the controller chassis to the facility protective earth (PE) bus. A stable grounding reference is necessary to maintain signal integrity and ensure the effective operation of the internal voltage regulation and protection circuitry.
• Safety Verification: Before enabling the 24 V DC field supply, verify that no field wiring is shorted to ground or to other power circuits, as this will lead to immediate damage of the transistor output stages.
