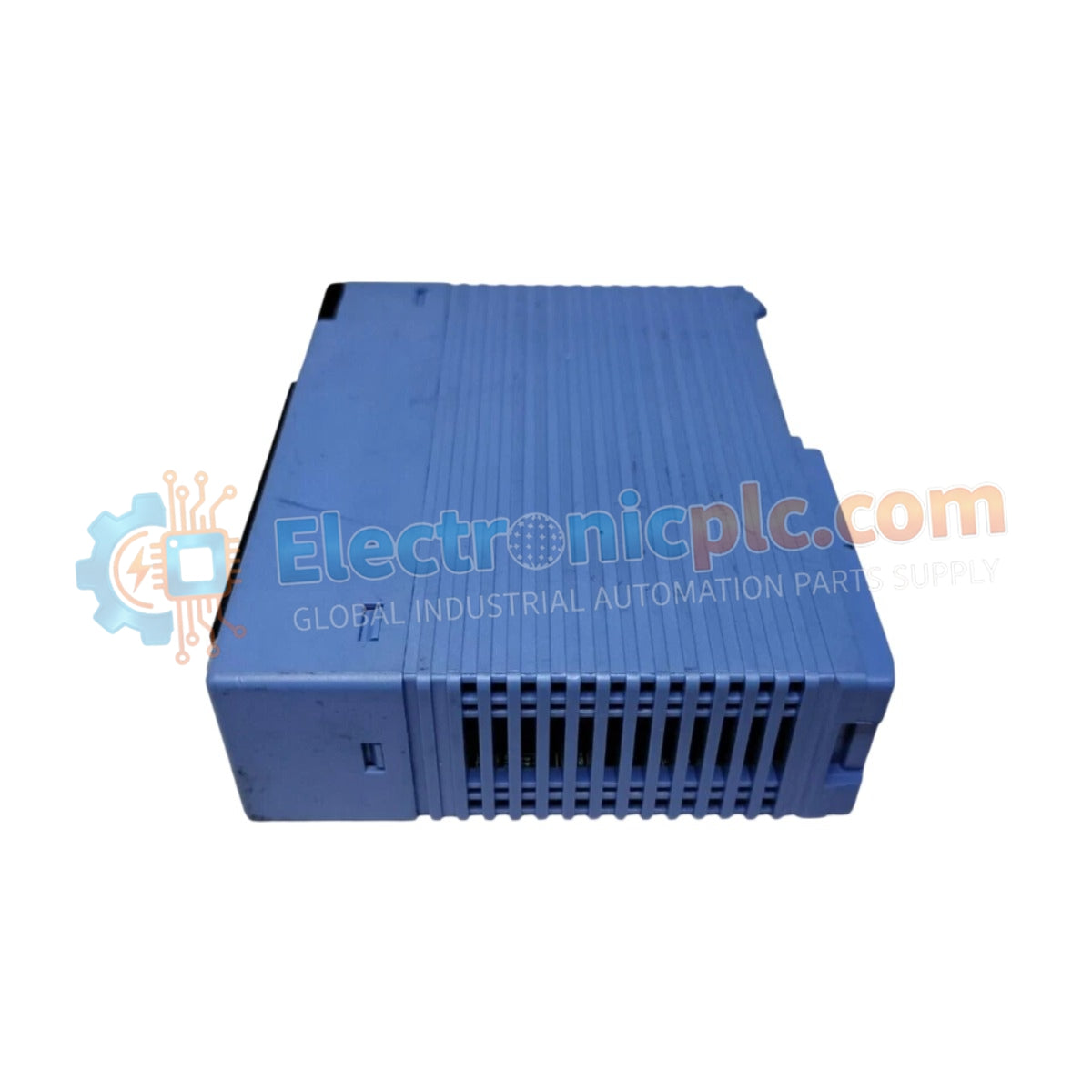

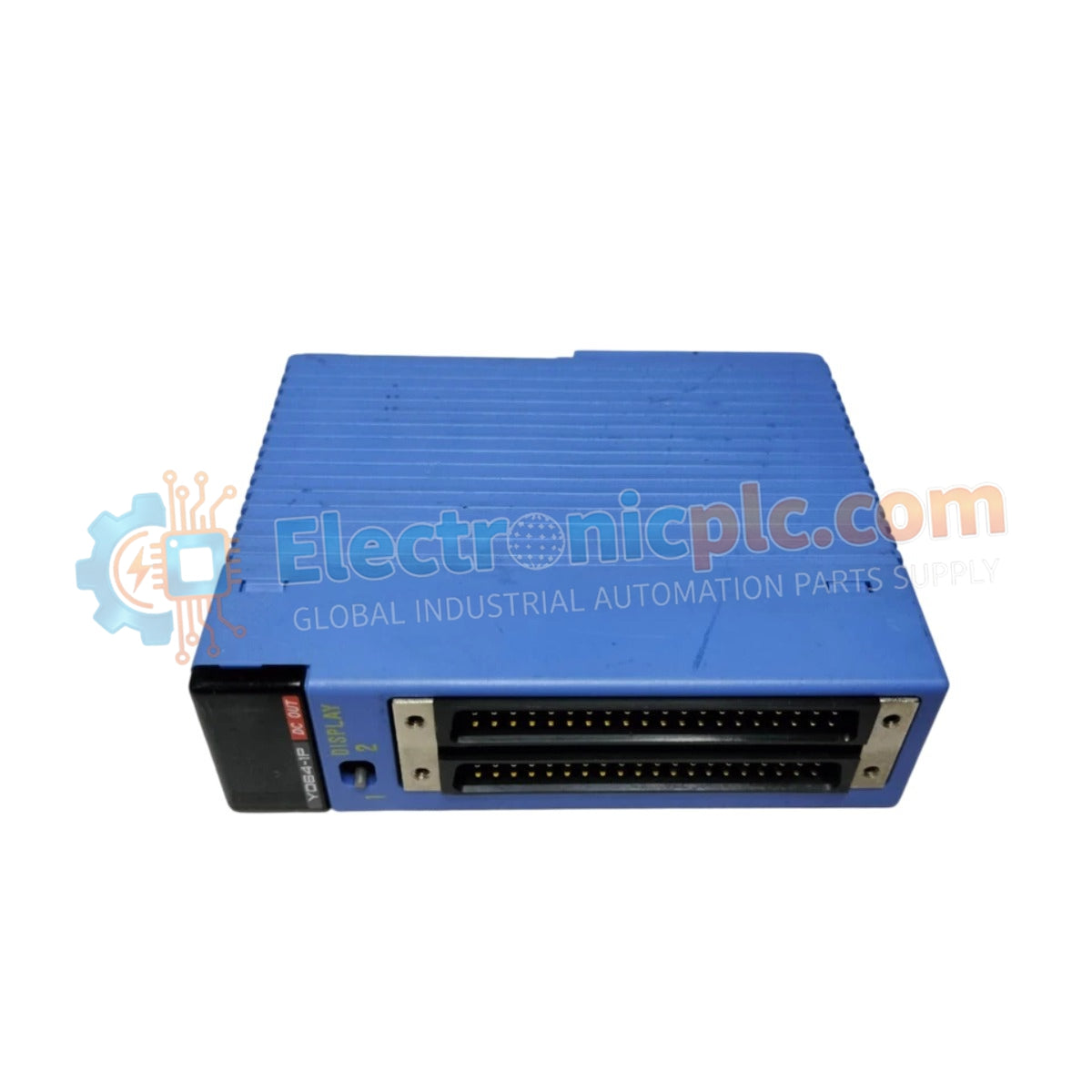

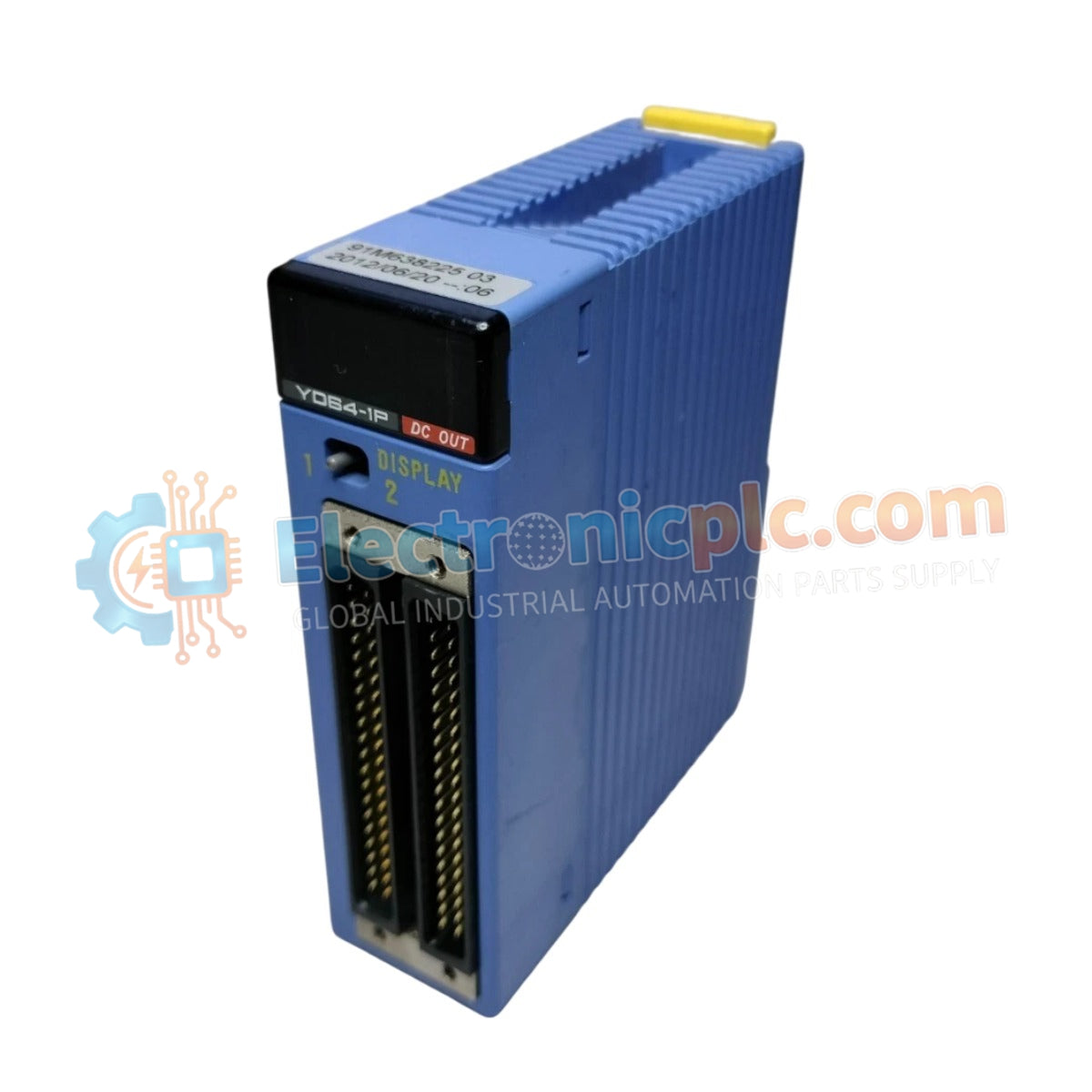

The Yokogawa F3YD64-1P, also cataloged as the F3YD64-1P Transistor Output Module, operates as a dedicated hardware component for high-density digital signal switching within FA-M3 sequence CPU system platforms. This module provides direct electrical execution of control logic by driving field-level actuators through 64 individual output points.

Suffix Breakdown & Model Matrix

• F3YD64: Base model designation indicating a 64-point transistor output configuration.
• -1P: Hardware revision/type identifier specifying the isolated transistor output architecture for the FA-M3 series.

Hardware Specifications

Industrial Control & Isolation Characteristics

The F3YD64-1P is engineered to maintain high signal integrity in dense I/O applications. By utilizing photocoupler isolation, the module prevents electrical transients from the field-side wiring from propagating back to the control-side backplane, ensuring stable communication velocity across the FA-M3 bus. The 8-point common line configuration allows for segmented power distribution, enabling users to isolate different load groups while maintaining common reference points for logic control. This architecture supports I/O density scaling essential for complex machine control sequences.

Frequently Asked Questions

Q: Can this module be installed in a hot-swap environment?

A: No. Power must be isolated from the FA-M3 backplane before installing or removing the F3YD64-1P module to prevent potential damage to the bus communication interface.

Q: How should the common line be configured for the 8-point grouping?

A: Each group of 8 points shares a common return; ensure that the total current draw for each group does not exceed the hardware-rated limits to prevent thermal degradation of the common trace.

Field Installation Guidelines

• Mounting: Ensure the module is securely latched into the FA-M3 base unit. Use the locking tabs to maintain DIN-rail mounting stability and prevent disconnection due to vibration.
• Wiring: Keep load-side wiring away from high-voltage AC paths to prevent induced noise. Ensure external power supply polarity (12 to 24 VDC) is verified before making physical connections to the terminal block.
• Grounding: Terminate cable shields at the designated ground terminal on the base unit to maximize surge voltage protection and minimize electromagnetic interference.
• Commissioning: Prior to full system integration, perform a continuity check on all 64 output points to ensure that the sink-type transistor logic corresponds with the field device requirements.
