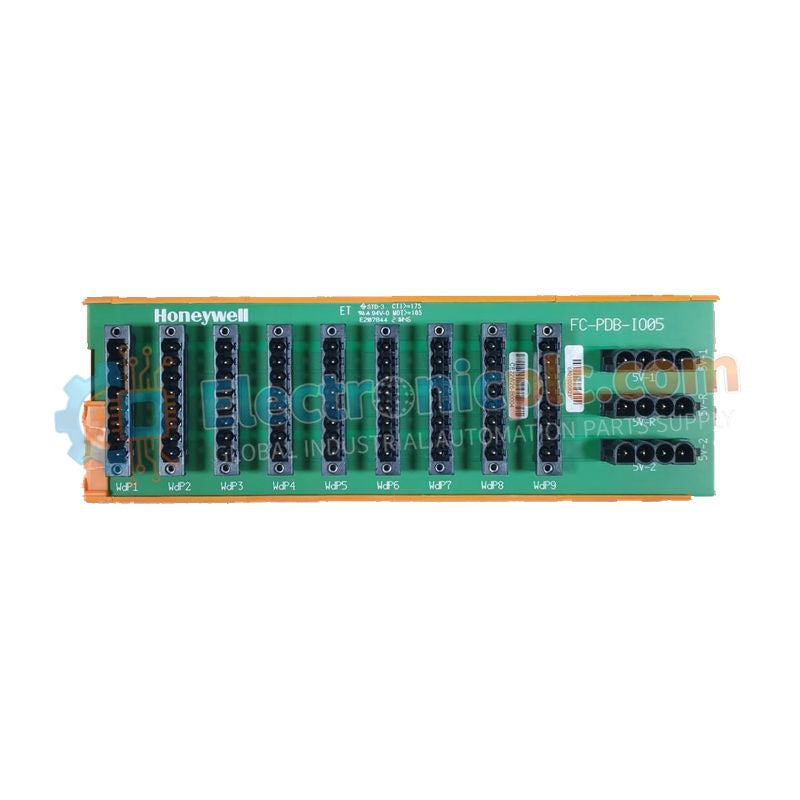

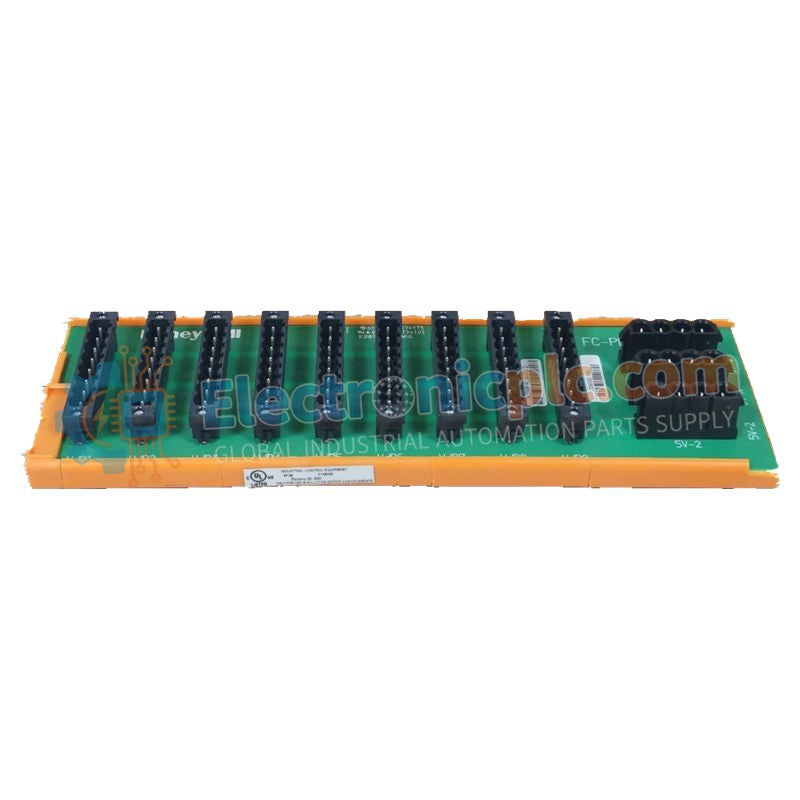

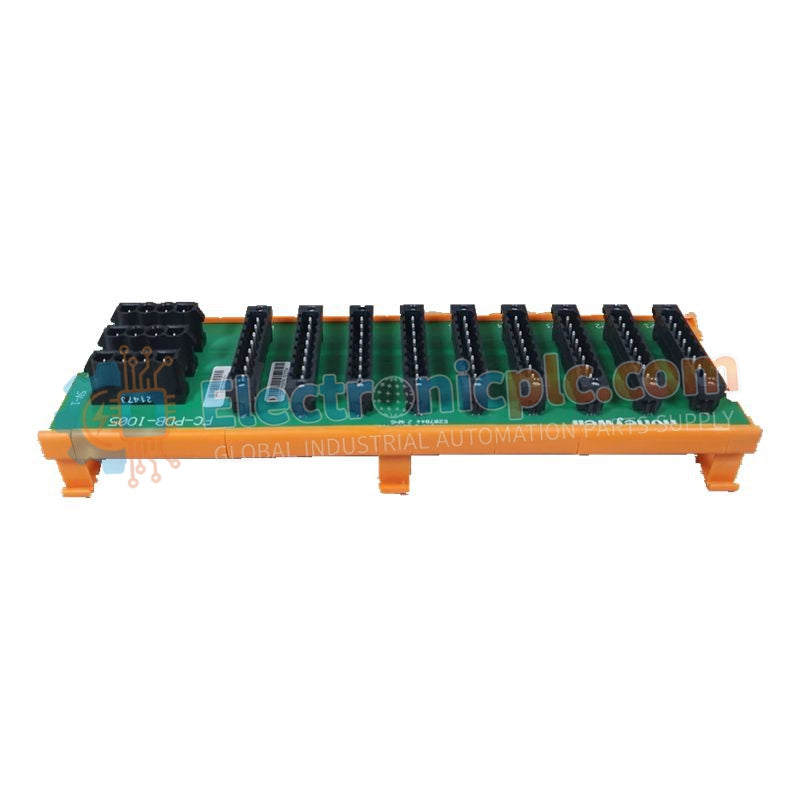

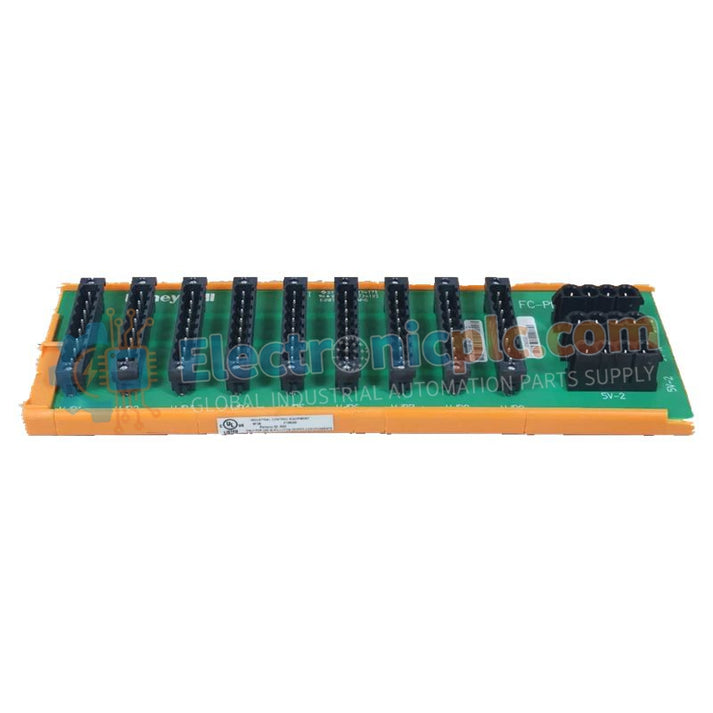

FC-PDB-IOX05 Power Distribution Board Honeywell

FC-PDB-IOX05 Power Distribution Board Honeywell

Product Overview

The Honeywell FC-PDB-IOX05 serves as the primary electrical routing hub for Safety Manager I/O expansion assemblies. This Power Distribution Board (PDB) manages the intake and distribution of 24...

23 people are viewing this right now

Availability: Low stock: 50 left

SKU: FC-PDB-IOX05
Vendor: Honeywell
Category: Power Distribution Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Overview

The Honeywell FC-PDB-IOX05 serves as the primary electrical routing hub for Safety Manager I/O expansion assemblies. This Power Distribution Board (PDB) manages the intake and distribution of 24 VDC power across the backplane, ensuring all connected I/O modules receive stable and filtered voltage. It plays a key role in maintaining system uptime by mitigating power-related noise and supporting redundant power feeds.

Technical Specifications

Parameter Specification
Module Type Power Distribution Board (PDB)
Input Voltage 24 VDC (Nominal)
Dimensions 12.7 × 12.7 × 12.7 cm
Weight 0.8 kg
Compatibility Safety Manager I/O Expansion Chassis
Mounting Internal Chassis Integration
Condition 100% Brand New and Original

Engineering Advantages

Redundant Power Balancing
Supports dual power inputs with automatic load balancing, ensuring seamless operation if one power source fails.

Transient Surge Protection
Integrated filtering suppresses voltage spikes and EMI, protecting sensitive I/O electronics from disturbances.

Individual Slot Isolation
Power distribution design isolates faults to specific segments, preventing system-wide failures.

Low-Resistance Architecture
Heavy-duty copper traces minimize voltage drop and heat generation, maintaining efficiency under full load conditions.

Diagnostic Feedback
Provides real-time status signals to the controller, enabling continuous monitoring of power rail health.

FAQs

Does the FC-PDB-IOX05 support hot-swapping of power feeds?
Yes, it supports redundant inputs, allowing one power source to be serviced while the other maintains operation (subject to load capacity).

Is this board compatible with all Safety Manager chassis versions?
No, it is specifically designed for IOX-style expansion configurations. Compatibility should be verified before installation.

What are the signs of a failing power distribution board?
Common indicators include intermittent I/O communication issues, low voltage alarms, or activation of overcurrent protection.

How is the product packaged for shipping?
Each unit is shipped in original Honeywell industrial packaging with anti-static protection and factory seals, ensuring it arrives brand new.
