Product Overview

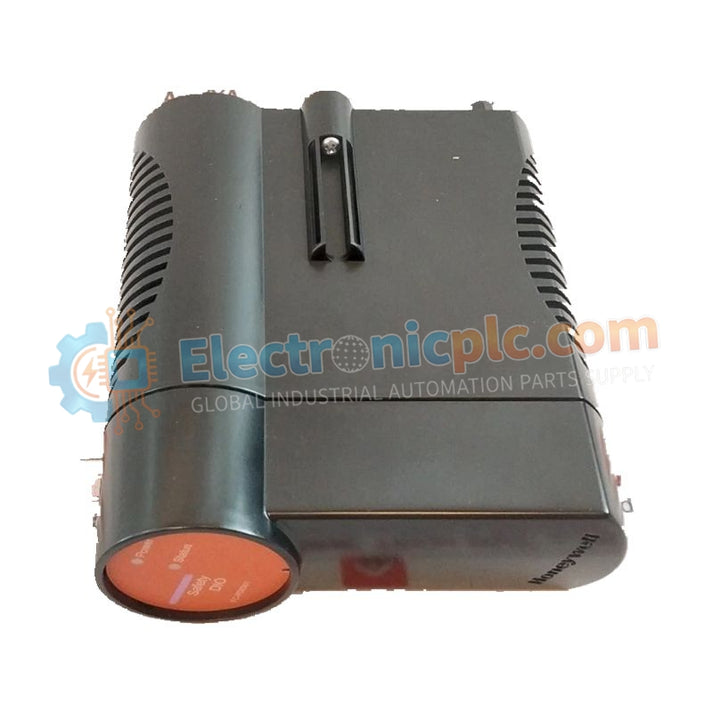

The Honeywell FC-PDIO01 serves as a high-integrity hybrid module for the Safety Manager and Fail Safe Control (FSC) platforms. It integrates both digital input and digital output functionalities into a single hardware footprint. This dual-purpose design allows process engineers to manage bidirectional signal interfacing within safety-critical loops, ensuring precise monitoring and control of field devices in high-risk industrial environments.

Technical Specifications

Engineering Advantages

• Hybrid Efficiency: By combining inputs and outputs on one module, this unit reduces the total number of slots required in the chassis, effectively lowering hardware costs and cabinet space requirements.

• Extreme Thermal Tolerance: The wide operating range (-40°C to +70°C) enables reliable performance in remote field enclosures or high-temperature processing plants without additional cooling infrastructure.

• High-Integrity Diagnostics: The module executes continuous internal self-tests to detect cross-faults, short circuits, and open loops, triggering safety protocols instantly to prevent hazardous conditions.

• Standardized Power Distribution: The 24 VDC nominal rating ensures seamless integration with standard industrial sensors and actuators, simplifying the electrical design of the safety instrumented system (SIS).

FAQs

Can this module handle SIL 3 loops independently?
The FC-PDIO01 meets SIL 3 requirements when configured within a redundant Honeywell Safety Manager architecture, providing the highest level of risk reduction for critical processes.

What happens if an output channel exceeds 0.5 A?
The module features built-in overcurrent protection that monitors each channel. If the load exceeds the 0.5 A rating, the circuit interrupts power to protect the internal hardware and prevents damage to the backplane.

Is this unit compatible with older Honeywell FSC systems?
Yes, the FC-PDIO01 maintains backward compatibility with legacy FSC platforms while offering full support for modern Safety Manager upgrades.

How do I verify the authenticity of this module?
We provide this product as 100% brand new original equipment. Each unit arrives in factory-sealed packaging with traceable serial numbers and official Honeywell documentation.
