Product Overview

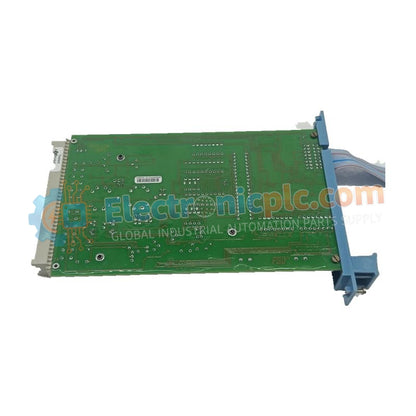

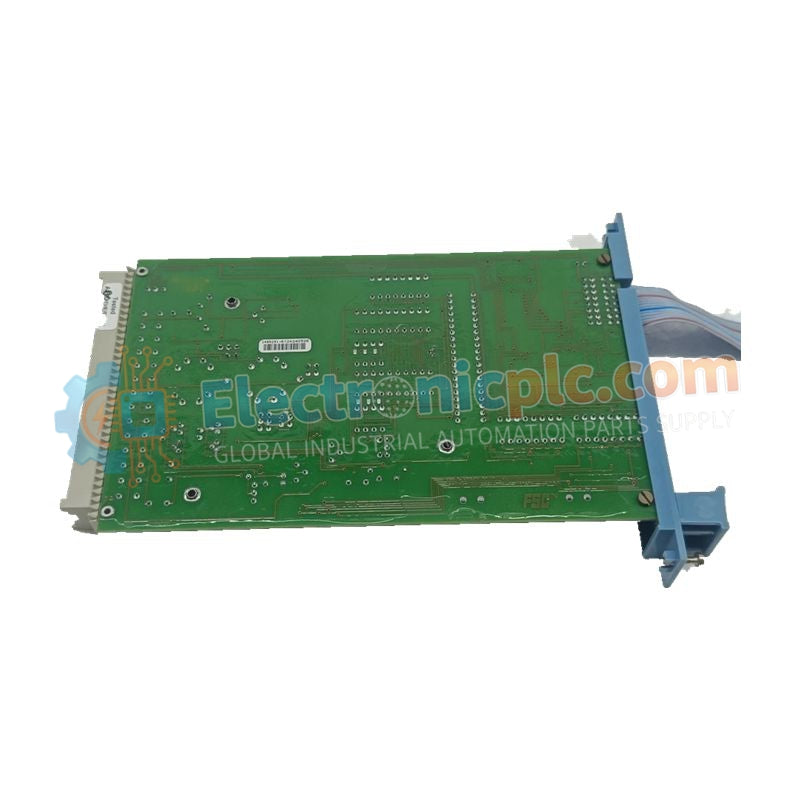

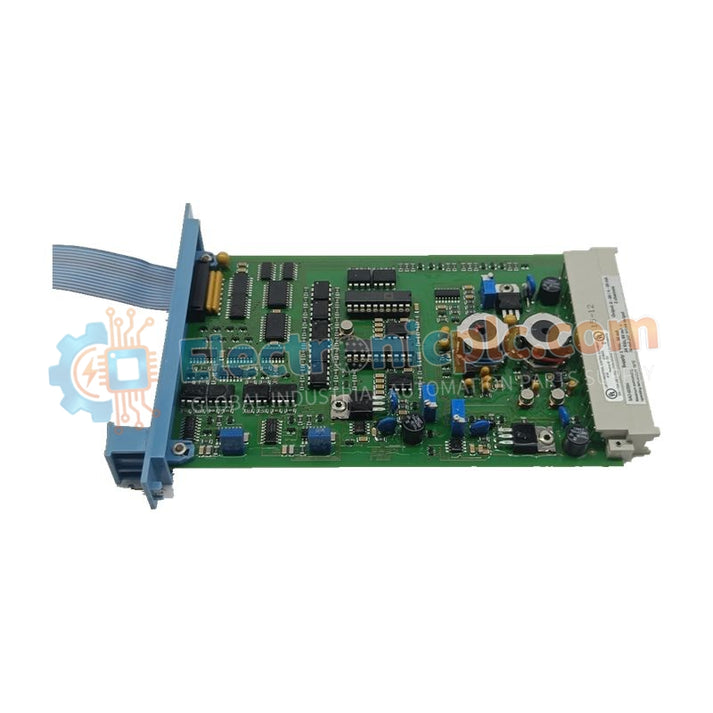

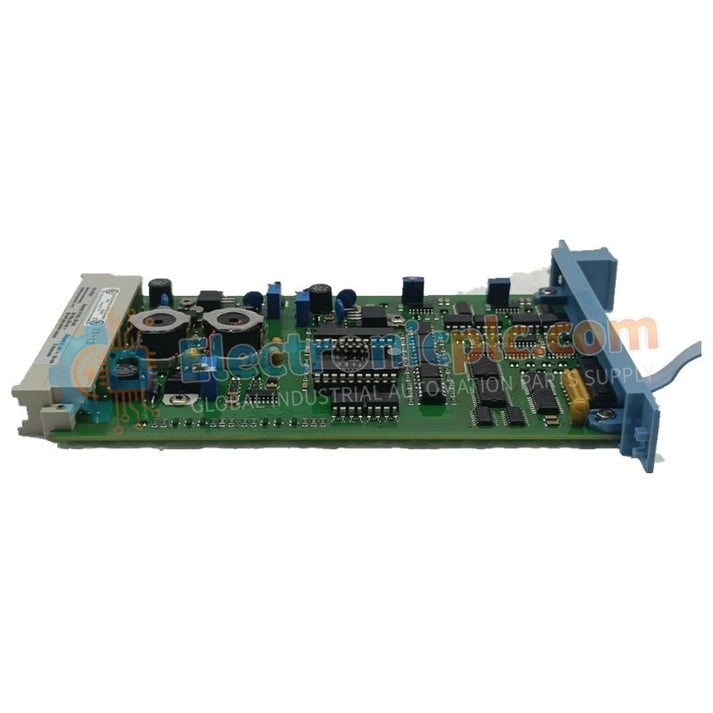

The Honeywell FC-SAO-0220M (also identified as TSAO-0220M) functions as a high-precision analog output module for the Safety Manager and Fail Safe Control (FSC) platforms. This module translates digital commands from the safety controller into standard industrial analog signals, typically 4-20mA, to drive final control elements such as control valve positioners and variable speed drives. It provides the critical link for safety-instrumented functions that require modulating control rather than simple discrete switching.

Technical Specifications

Engineering Advantages

• High-Resolution Control: The module provides granular current output, ensuring precise adjustment of field devices, which is essential for maintaining process stability in critical pressure or flow control loops.

• Continuous Read-Back Diagnostics: Internal circuitry monitors the actual output current and compares it to the commanded value. Any discrepancy triggers an immediate system alert, preventing undetected failures in the safety loop.

• Compact Cubic Profile: The 12.7 cm uniform dimensions facilitate standardized mounting within Safety Manager chassis, allowing for efficient heat dissipation and simplified cable management.

• Galvanic Isolation: The module features robust electrical isolation between the system backplane and the field-side wiring, protecting the central logic solver from external electrical noise and transients.

FAQs

Does this module support SIL 3 safety loops?
The FC-SAO-0220M meets the rigorous requirements of IEC 61508. When utilized in a redundant configuration within the Honeywell Safety Manager framework, it supports SIL 3 safety-instrumented functions.

Can technicians hot-swap this module during operation?
Yes, the module supports hot-swap capabilities. In a redundant system, you can replace a faulty unit without interrupting the safety function or the active control signal to the field.

Is this a genuine, brand new Honeywell product?
We supply this module as 100% brand new original equipment. Each unit ships in original factory-sealed packaging with full serial number traceability for industrial quality assurance.

What field termination assembly (FTA) should I use with this module?
The FC-SAO-0220M connects to the field via dedicated Honeywell Analog Output FTAs. Always match the cable and FTA part numbers to the module specifications to ensure correct signal routing and impedance matching.
