The Honeywell FC-TSRO-0824 V1.1 serves as a specialized Digital Output Field Termination Assembly (FTA) for the Safety Manager and Fail Safe Control (FSC) systems. This module provides the physical and electrical interface between the controller's digital...
Availability: Low stock: 50 left
Reliable Worldwide Delivery
30-Day Money-Back Guarantee
Need more details? Read our fullShipping PolicyandRefund Policy.

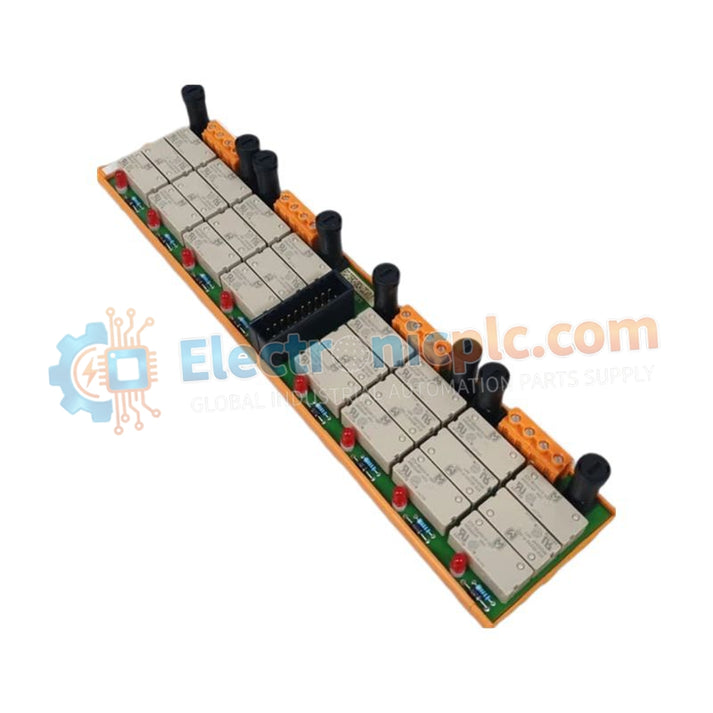

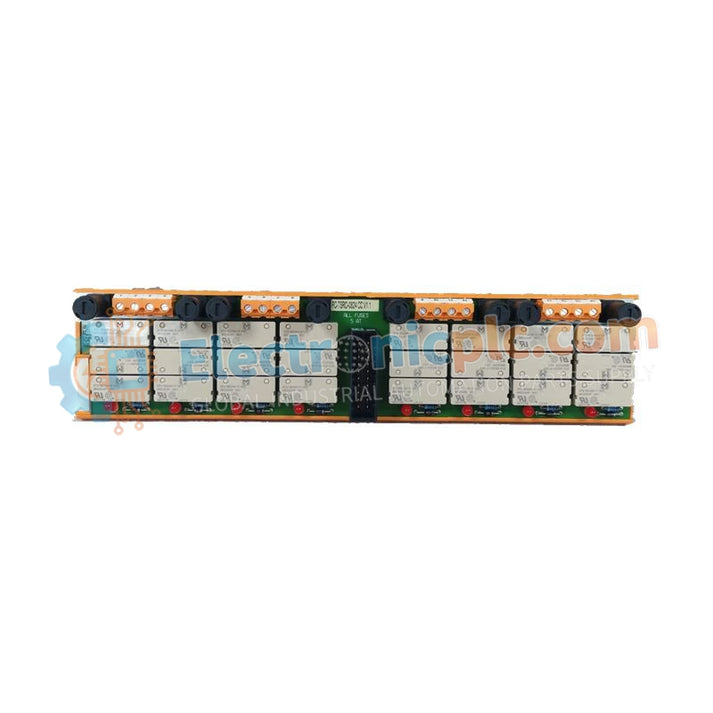

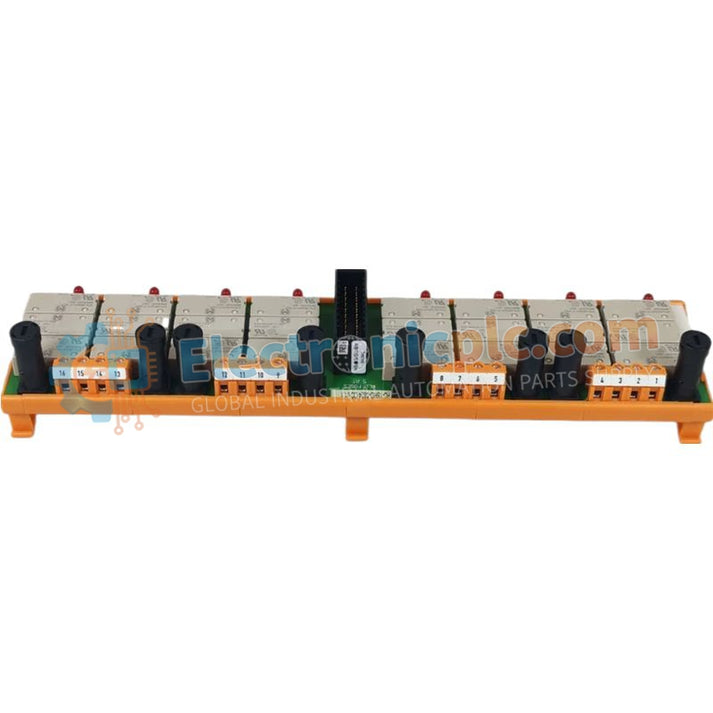

The Honeywell FC-TSRO-0824 V1.1 serves as a specialized Digital Output Field Termination Assembly (FTA) for the Safety Manager and Fail Safe Control (FSC) systems. This module provides the physical and electrical interface between the controller's digital output cards and field-side inductive or resistive loads. Featuring 8 independent channels, the "RO" designation indicates Relay Output capability, allowing the safety system to switch higher voltage or current loads than standard transistor-based outputs.
| Specification | Details |
|---|---|
| Model Number | FC-TSRO-0824 |
| Condition | 100% Brand New and Original |
| Output Type | 8-Channel Relay Output (Safe Digital Output) |
| Nominal Voltage | 24V DC (System Side) |
| Dimensions | 15.0 cm x 8.0 cm x 3.5 cm |
| Weight | 0.35 kg |
| Compatibility | Honeywell Safety Manager / FSC I/O Modules |
Isolated Relay Contact Interface: The mechanical relay architecture provides complete galvanic isolation between the Safety Manager electronic bus and the field equipment, protecting the processor from back-EMF and high-voltage transients.
Versatile Load Switching: Unlike solid-state outputs, these relay contacts handle a variety of AC and DC voltages, making the FTA ideal for driving solenoid valves, motor starters, and interposing relays.
Simplified Maintenance Access: The 15.0 cm x 8.0 cm footprint facilitates easy access to terminal screw points, allowing technicians to perform loop testing and wiring changes without disturbing adjacent modules.
Version 1.1 Enhanced Stability: The V1.1 hardware revision includes optimized circuit board traces and improved connector durability, ensuring long-term contact reliability in environments subject to industrial vibration.
Can I use this FTA for SIL 3 safety loops?
Yes, the FC-TSRO-0824 V1.1 integrates into Honeywell Safety Manager architectures designed for high-integrity safety functions. When configured in a redundant pair with the appropriate I/O cards, it supports SIL 3 requirements.
Does this module support line monitoring?
Standard relay FTAs do not typically support line monitoring for open/short circuits in the same way as electronic outputs. You must verify your specific Safety Manager I/O card settings to ensure the diagnostic coverage matches your safety requirements.
Is this product a brand new or refurbished Honeywell part?
We supply this unit as 100% brand new original equipment. Each FTA arrives in its original factory-sealed packaging with a unique serial number for full industrial traceability and quality assurance.
What is the maximum current rating per relay channel?
The current capacity depends on the specific load type (inductive vs. resistive). Engineers should consult the Honeywell Safety Manager hardware manual for the FC-TSRO-0824 V1.1 to determine the exact derating curves for their application.
