Foxboro FBM202 I/A Series 8-Channel Thermocouple Input Module

Foxboro FBM202 I/A Series 8-Channel Thermocouple Input Module

Description

The Foxboro FBM202 is a high-performance 8-channel isolated thermocouple input module designed for the I/A Series distributed control system. This module interfaces directly with standard thermocouple sensors (Types J, K,...

17 people are viewing this right now

Availability: Low stock: 8 left

SKU: FBM202
Vendor: Foxboro
Category: Thermocouple Input Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

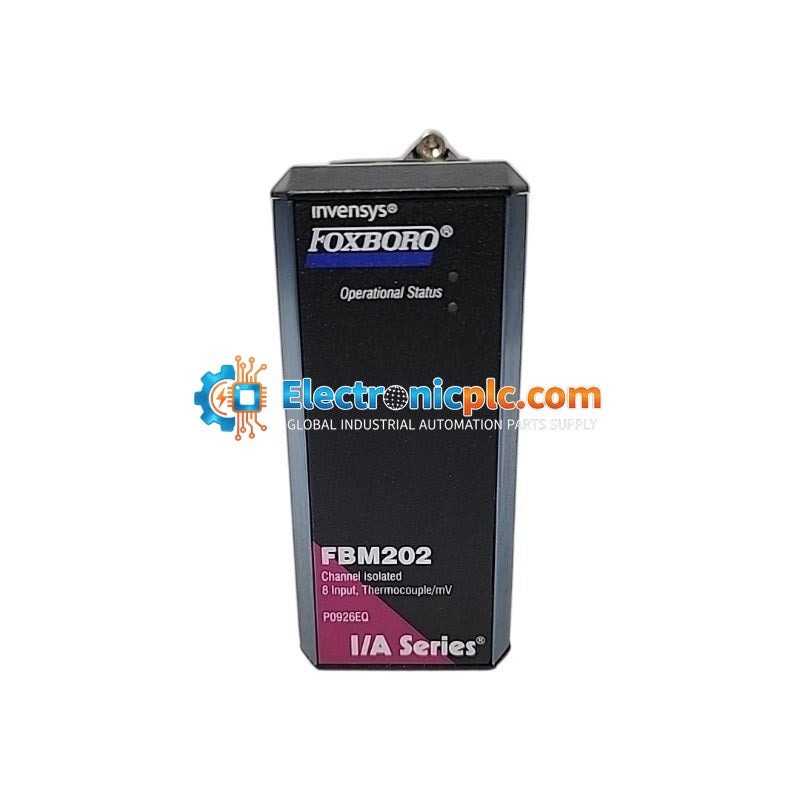

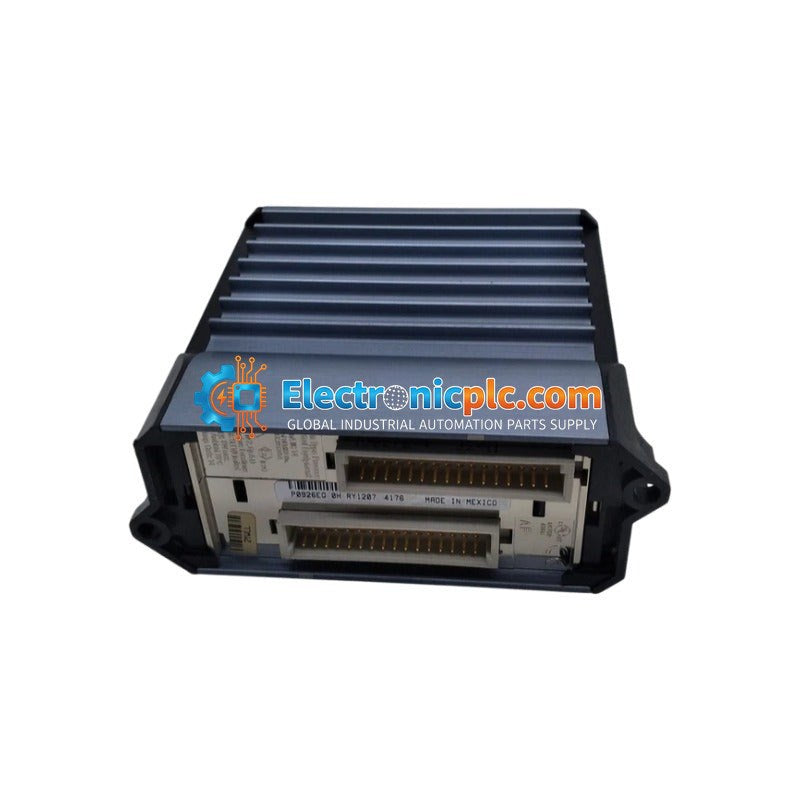

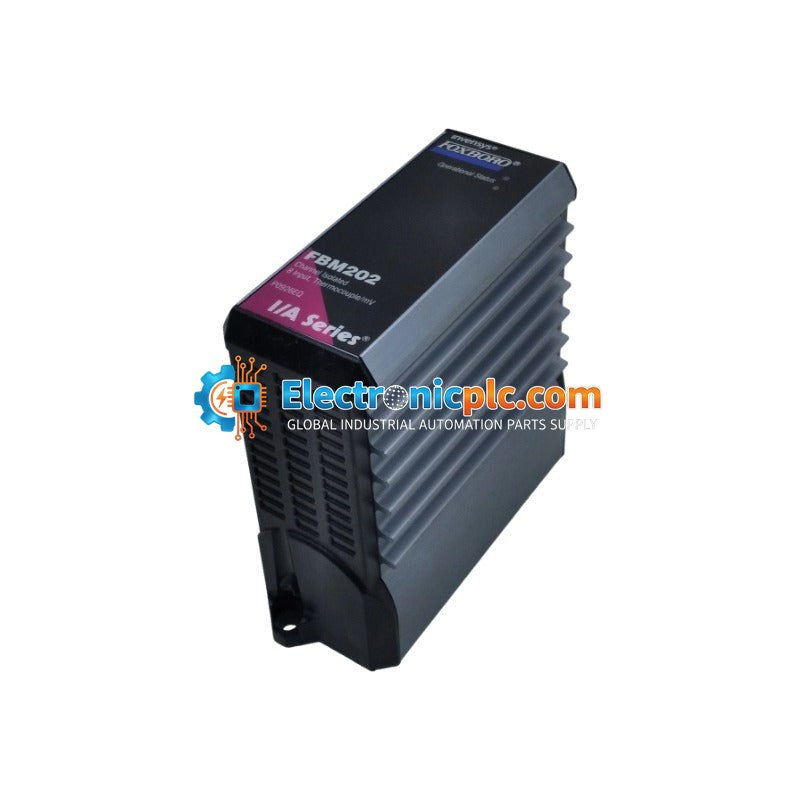

The Foxboro FBM202 is a high-performance 8-channel isolated thermocouple input module designed for the I/A Series distributed control system. This module interfaces directly with standard thermocouple sensors (Types J, K, T, E, R, S, B, and N) and millivolt signals, providing precise temperature data to the controller backplane. By providing individual channel-to-channel isolation, the FBM202 effectively eliminates ground loop interference and protects control logic from field-side transients. It is a critical component for temperature monitoring in oil refineries, petrochemical plants, and power generation facilities.

Features

  • 8-Channel Input: Supports a wide range of thermocouple types and millivolt signals.
  • Galvanic Isolation: Independent channel-to-channel and channel-to-ground isolation up to 600 V AC.
  • Hot-Swappable: Designed for replacement without de-energizing the baseplate, minimizing downtime.
  • Cold Junction Compensation: Integrated automatic CJC for high-fidelity measurements.
  • Configurable Filtering: Software-adjustable integration times to reject 50 Hz or 60 Hz line noise.
  • Redundant Communication: Dual Fieldbus paths ensure continuous data flow.

Applications

The FBM202 is primarily utilized in industrial automation environments requiring high-density, reliable temperature sensing. Common applications include boiler monitoring, furnace control, chemical reactor temperature tracking, and general process temperature acquisition within I/A Series control networks.

Technical Specifications

Model FBM202
Module Type 8-Channel Thermocouple / mV Input
Input Ranges Type B, E, J, K, N, R, S, T and -20 to +100 mV
Accuracy +/- 0.03 percent of span (typical)
Isolation 600 V AC channel-to-channel and channel-to-ground
Power Consumption 3 W maximum
Operating Temperature -20 to +70 deg C
Storage Temperature -40 to +85 deg C
Relative Humidity 5 to 95 percent (non-condensing)
Compliance G3 harsh environment rating (ISA Standard S71.04)

Installation Guidelines

  • Handling: Use standard ESD precautions when handling the module to prevent damage to internal circuitry.
  • Mounting: Ensure the module is fully seated in the designated I/A Series baseplate slot to maintain proper electrical contact.
  • Wiring: Use shielded thermocouple extension wire to minimize noise pickup. Ensure proper polarity is maintained for all sensor inputs.
  • Environment: While rated for G3 harsh environments, ensure the cabinet is adequately ventilated to maintain operating temperatures within the specified -20 to +70 deg C range.
  • Maintenance: Always verify the integrity of the terminal assembly connections during module installation or replacement.

FAQ

Is the FBM202 compatible with all I/A Series baseplates?

The FBM202 is designed for standard I/A Series baseplates. Please verify your specific baseplate revision and power supply configuration to ensure compatibility with the module's power requirements.

Does this module require external power for the sensors?

The FBM202 is designed to read passive thermocouple signals directly. It does not require external excitation for the thermocouples themselves, though it does require the standard 24V DC power provided by the I/A Series baseplate.
