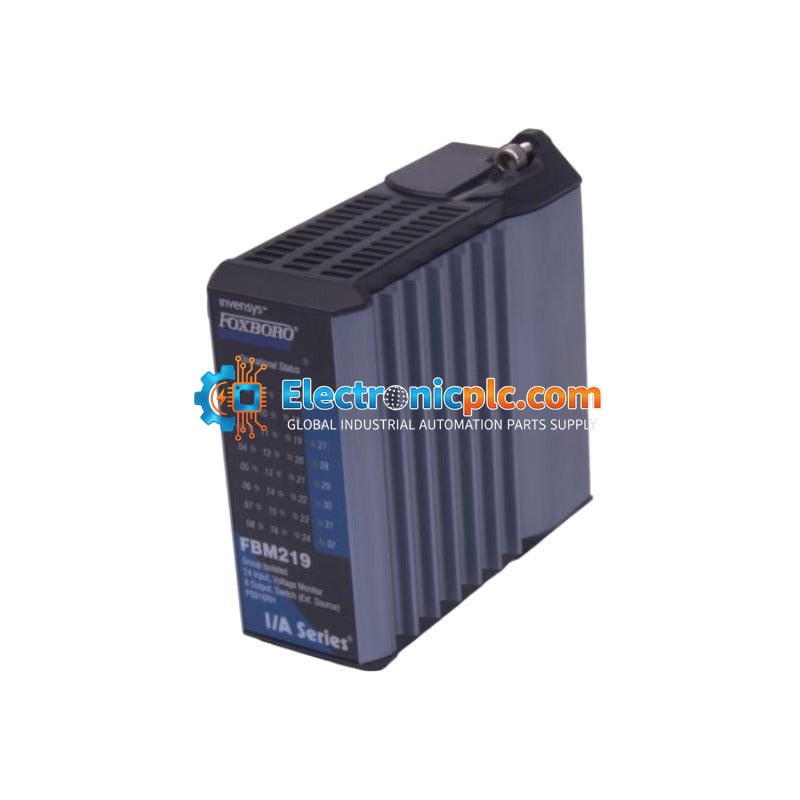

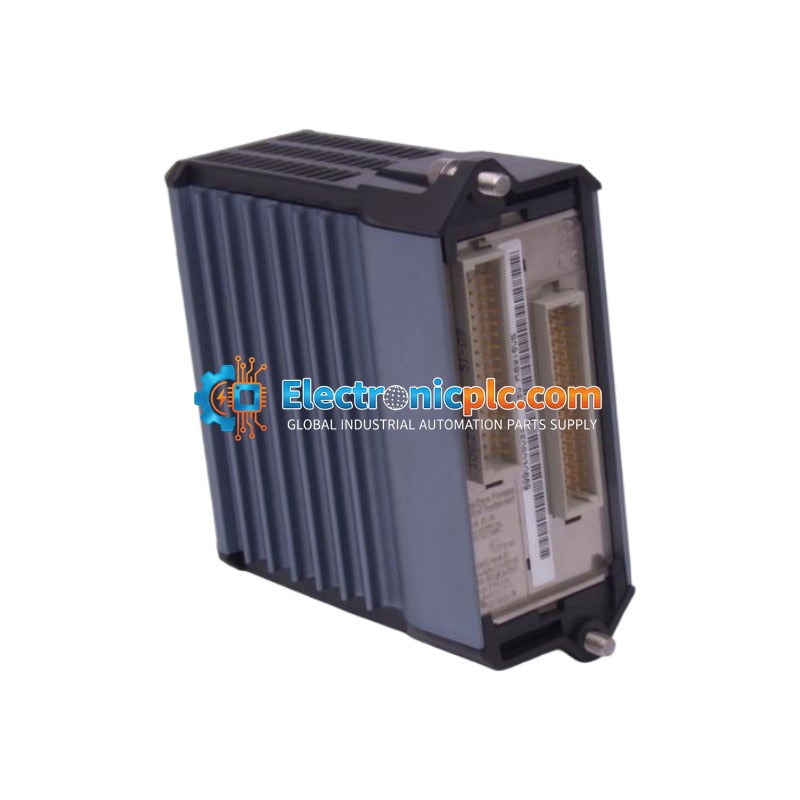

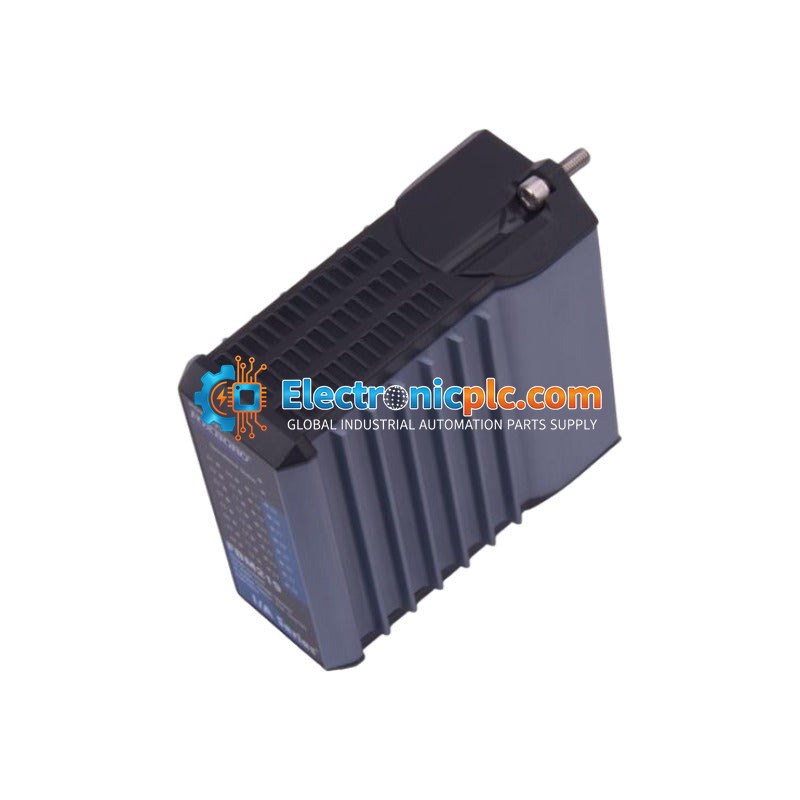

Foxboro FBM219 (P0916RH) I/A Series Discrete I/O Interface Module

Foxboro FBM219 (P0916RH) I/A Series Discrete I/O Interface Module

Description

The Foxboro FBM219 (P0916RH) is a high-density discrete input/output interface module designed for the I/A Series Distributed Control System. Featuring 24 channels, this module provides essential status monitoring and control...

20 people are viewing this right now

Availability: Low stock: 9 left

SKU: FBM219
Vendor: Foxboro
Category: Discrete I/O Interface Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Foxboro FBM219 (P0916RH) is a high-density discrete input/output interface module designed for the I/A Series Distributed Control System. Featuring 24 channels, this module provides essential status monitoring and control execution for field-mounted sensors and actuators. It is engineered for high-availability environments, including oil and gas refining, power generation, and chemical processing, ensuring rapid signal processing and robust electrical isolation to minimize process latency and prevent unplanned downtime in mission-critical industrial loops.

Features

  • 24-channel discrete I/O interface for versatile field device connectivity.
  • Group-isolated architecture designed for the Series 200 I/O subsystem.
  • Galvanic isolation to protect the system backplane from field-side voltage transients.
  • Redundant 2 Mbps HDLC fieldbus communication for continuous data integrity.
  • Onboard self-diagnostics for monitoring internal logic and communication port health.
  • Supports 24 VDC nominal input/output operations.

Applications

The FBM219 is suitable for interfacing with various field devices, including limit switches, relay contacts, and solenoid valves. It is widely deployed in process automation applications where high-density, reliable discrete signal handling is required within the I/A Series ecosystem.

Technical Specifications

Model FBM219 (P0916RH)
Brand Foxboro (Schneider Electric)
Module Type Discrete I/O Interface Module
Channels 24 (Group Isolated)
Voltage 24 VDC (Nominal)
Communication Redundant 2 Mbps HDLC
Isolation 600 VAC (Channel-to-Ground)
Power Consumption 3.0 Watts maximum
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 70 deg C
Relative Humidity 5 to 95 percent (non-condensing)

Installation Guidelines

  • Ensure the system power is disconnected before installing or removing the module from the baseplate.
  • The module is designed for mounting in a Series 200 I/O baseplate. Ensure proper seating to maintain backplane communication.
  • Use shielded cables for field wiring to minimize electromagnetic interference (EMI).
  • Maintain adequate ventilation in the cabinet to ensure the ambient temperature remains within the specified 0 to 60 deg C range.
  • Handle with care to prevent electrostatic discharge (ESD) damage to the module electronics.

FAQ

What is the primary function of the FBM219?

The FBM219 acts as a discrete I/O interface, allowing the Foxboro I/A Series DCS to monitor and control field devices like switches and solenoids through 24 isolated channels.

Does this module support redundant communication?

Yes, the FBM219 utilizes a redundant 2 Mbps HDLC fieldbus to ensure reliable communication with the station-level Control Processor.
