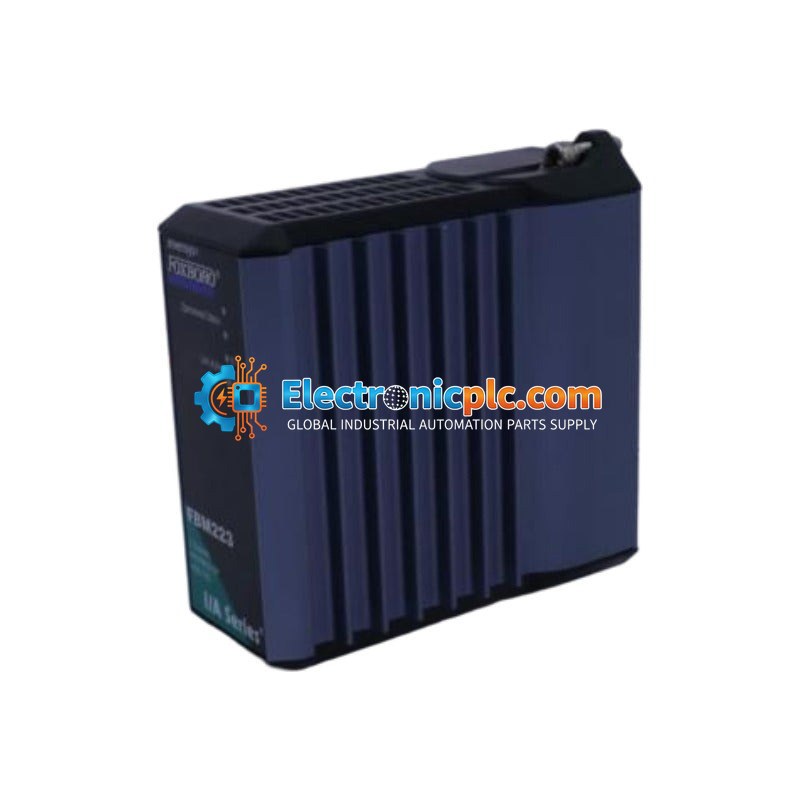

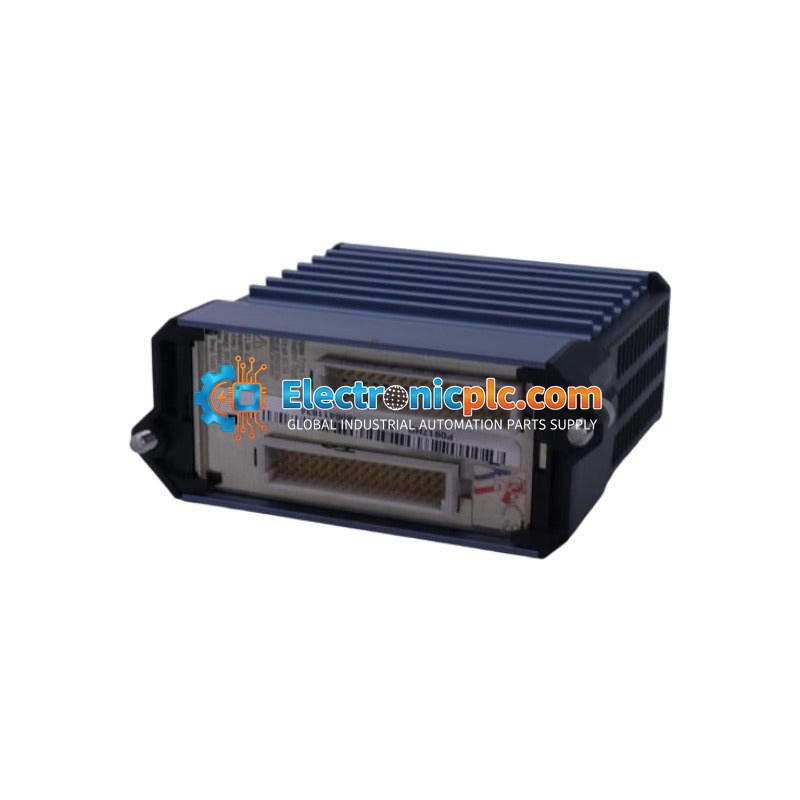

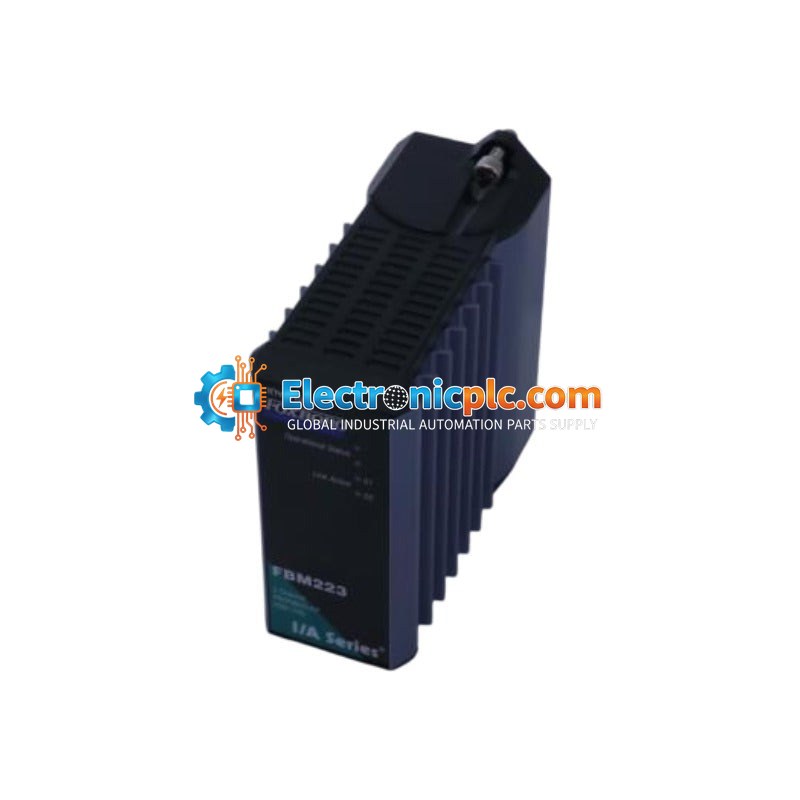

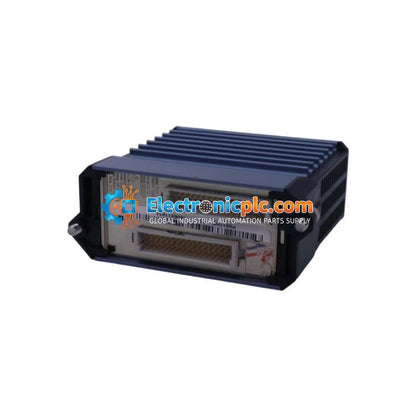

Foxboro FBM223 I/A Series Profibus-DP Fieldbus Interface Module (P0917HD)

Foxboro FBM223 I/A Series Profibus-DP Fieldbus Interface Module (P0917HD)

Description

The Foxboro FBM223 (P0917HD) is a high-performance Fieldbus Module designed for the I/A Series Distributed Control System (DCS). It functions as a Profibus-DP Master, providing a seamless communication bridge...

19 people are viewing this right now

Availability: Low stock: 7 left

SKU: FBM223
Vendor: Foxboro
Category: Fieldbus Interface Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Foxboro FBM223 (P0917HD) is a high-performance Fieldbus Module designed for the I/A Series Distributed Control System (DCS). It functions as a Profibus-DP Master, providing a seamless communication bridge between the control system and various field devices such as motor control centers (MCCs), variable speed drives, and complex instrumentation. By supporting digital integration, the FBM223 reduces the need for extensive hardwiring, simplifies system commissioning, and enhances overall asset visibility through comprehensive device diagnostics.

Features

  • Profibus-DP Master Capability: Supports integration of up to 125 slave devices on a single network segment.
  • Redundant Communication: Interfaces with the station-level Control Processor via a redundant 2 Mbps HDLC fieldbus for high availability.
  • Galvanic Isolation: Internal isolation protects the system backplane from field-side electrical noise and transient interference.
  • Redundancy Support: Compatible with redundant pair configurations on dedicated baseplates for mission-critical applications requiring seamless failover.
  • Autonomous Diagnostics: Includes onboard memory for data buffering and executes continuous self-diagnostics to monitor port and logic health.

Applications

The FBM223 is engineered for demanding industrial environments, including oil and gas processing, power generation, and water/wastewater treatment facilities. It is ideal for systems requiring high-speed, deterministic data exchange between the DCS and intelligent field devices.

Technical Specifications

Parameter Specification
Model FBM223 (P0917HD)
Module Type Profibus-DP Fieldbus Interface Module
Protocol Profibus-DP (Master)
Communication Rate 9.6 kbps to 12 Mbps
Max Slave Devices 125
Fieldbus Interface Redundant 2 Mbps HDLC
Power Consumption 4 Watts (max)
Operating Temperature 0 to 60 deg C
Storage Temperature -40 to 70 deg C
Relative Humidity 5 to 95 percent (non-condensing)

Installation Guidelines

  • Ensure the system is powered down before inserting or removing the module from the baseplate.
  • The module is designed for the Series 200 I/O subsystem; ensure correct seating on the baseplate to engage the backplane connectors.
  • Maintain proper grounding practices to minimize EMI/RFI interference.
  • Use shielded cabling for Profibus-DP segments and ensure proper termination at both ends of the network to prevent signal reflections.
  • Handle with ESD-safe precautions to prevent damage to internal circuitry.

FAQ

Q: Can the FBM223 be used in a redundant configuration?
A: Yes, the FBM223 supports redundant pair configurations on a dedicated baseplate to ensure continuous process control during hardware maintenance or failure.

Q: What is the maximum number of devices this module can support?
A: The FBM223 can manage communication for up to 125 Profibus-DP slave devices on a single network segment.
