Description

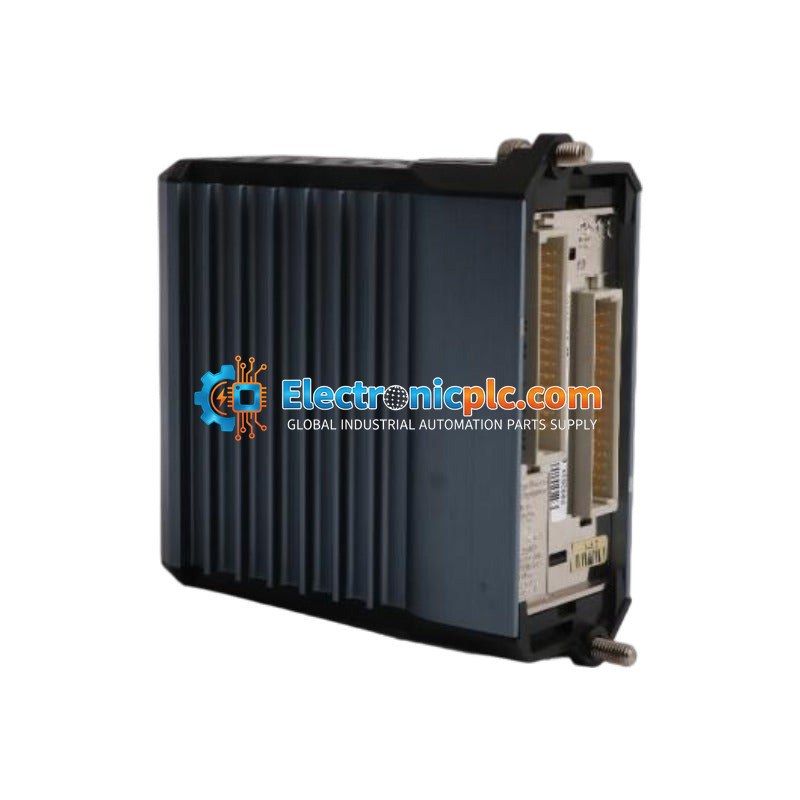

The Foxboro FBM233 (P0926GX) is a high-performance Ethernet Device Communications Module engineered for the I/A Series (Intelligent Automation) system. This module functions as a vital gateway between the Foxboro control network and external Ethernet-based field devices. It is widely deployed in demanding industrial sectors such as oil and gas refining, power generation, and pharmaceutical manufacturing to integrate third-party equipment like PLCs, motor control centers, and smart transmitters. By supporting high-speed data exchange and providing a standardized interface for heterogeneous systems, the FBM233 reduces integration complexity and enhances real-time visibility into process assets.

Features

• Supports 10/100 Mbps Ethernet connectivity for high-speed data exchange.
• Dual RJ-45 Ethernet ports enable redundant network topologies to prevent control loop failure.
• Dedicated internal processor for protocol conversion and data buffering, ensuring deterministic system performance.
• Seamless integration with the Foxboro 200 Series baseplate architecture.
• Treats external device data as native I/O variables within the control strategy.

Applications

The FBM233 is designed for industrial automation environments requiring the integration of third-party Ethernet-enabled devices into a Foxboro I/A Series control system. It is commonly used for interfacing with Modbus TCP-compliant equipment, including variable frequency drives, smart instrumentation, and secondary PLC networks.

Technical Specifications

Installation Guidelines

• Ensure the system power is disconnected before installing or removing the module from the 200 Series baseplate.
• The module is designed for mounting on standard Foxboro 200 Series baseplates; ensure secure seating to maintain electrical contact.
• Use shielded twisted-pair Ethernet cabling to minimize EMI interference in industrial environments.
• Maintain proper ventilation clearance around the baseplate to ensure operating temperatures remain within the 0 to 60 deg C range.
• Handle with standard ESD precautions to prevent damage to internal circuitry.

FAQ

What protocols does the FBM233 support?

The FBM233 (P0926GX) is primarily designed to support Modbus TCP communication, allowing it to act as a gateway for various Ethernet-based field devices to communicate with the I/A Series system.

Does this module support redundancy?

Yes, the FBM233 features dual Ethernet ports, which support redundant network topologies to ensure high availability and continued operation in the event of a single network path failure.
