Description

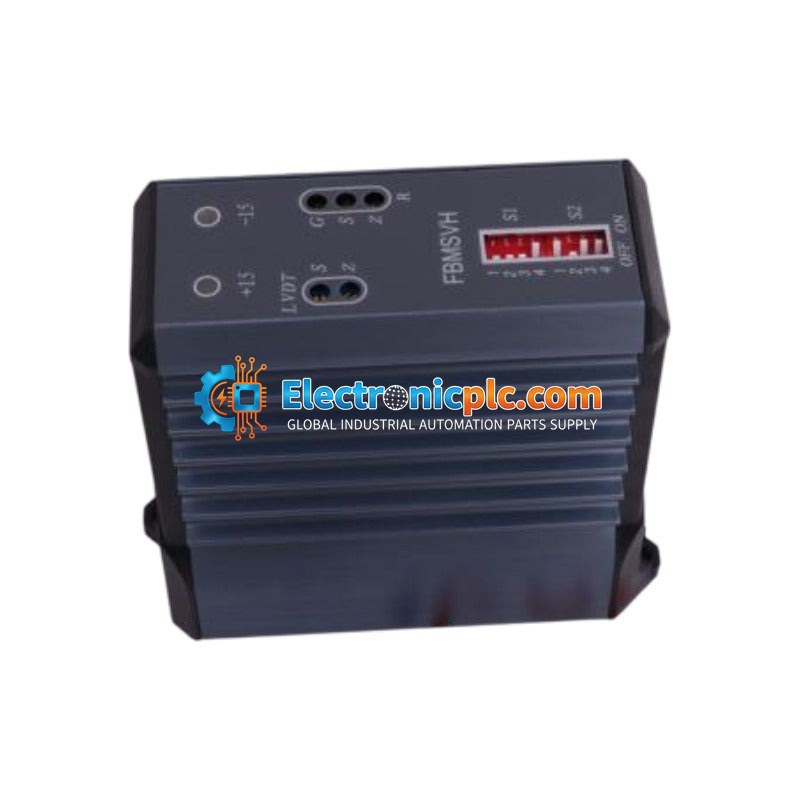

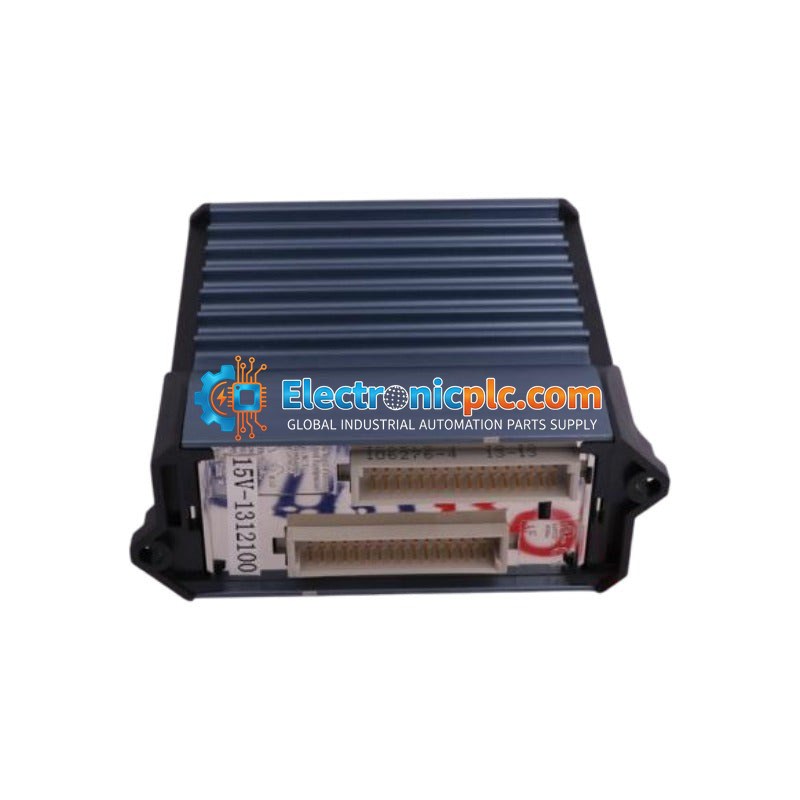

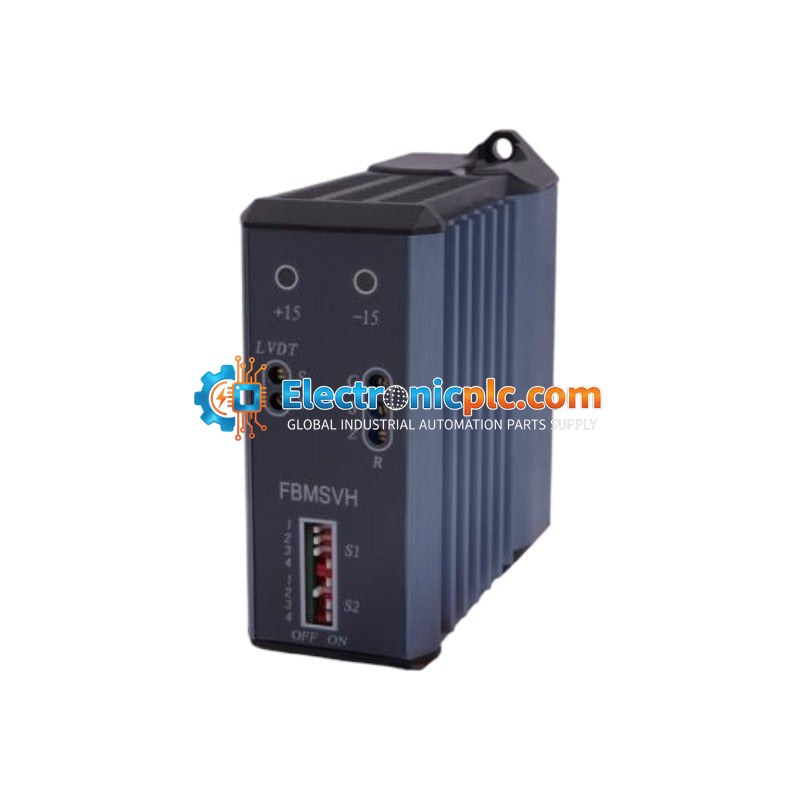

The Foxboro FBMSVH is a high-availability Control Processor Card integrated into the Foxboro I/A Series distributed control system architecture. This module functions as a critical processing node designed to execute complex regulatory control, discrete logic, and sophisticated computational tasks in real-time. Tailored for intensive industrial operations such as hydrocarbon processing, mineral mining, and utility-scale power generation, the FBMSVH provides the deterministic performance required for stable process loops. Its design emphasizes fault tolerance and rapid data throughput, which are essential for mitigating the risks of system interrupts. By ensuring continuous execution of control strategies, this card plays a vital role in maximizing operational efficiency and minimizing costly unscheduled downtime.

Features

• High-speed RISC-based processor for low-latency control execution.
• Advanced error-correcting code (ECC) memory to prevent data corruption in high-EMI environments.
• Supports redundant pairing for bumpless failover in mission-critical applications.
• Integrated diagnostics for real-time monitoring of hardware integrity and communication link status.
• Seamless integration with Foxboro I/A Series high-speed control networks and Fieldbus Modules (FBMs).

Applications

The FBMSVH is deployed in demanding industrial environments requiring high-availability control, including:

• Hydrocarbon processing and refining
• Mineral mining and material handling
• Utility-scale power generation and distribution
• Large-scale chemical manufacturing

Technical Specifications

Installation Guidelines

• Ensure the control system is powered down before inserting or removing the module from the rack.
• Handle the module using ESD-safe practices to prevent damage to sensitive electronic components.
• Ensure the module is fully seated in the designated slot to maintain proper backplane communication.
• Maintain adequate ventilation in the cabinet to ensure the module operates within its specified temperature range.
• Route communication and I/O cables away from high-voltage or high-EMI sources to maintain signal integrity.

FAQ

What is the primary function of the FBMSVH?

The FBMSVH acts as a central processing unit within the Foxboro I/A Series system, executing control strategies and managing communication between field devices and the higher-level control network.

Does this module support redundancy?

Yes, the FBMSVH is designed to support redundant configurations, allowing for a primary and tracker module setup to ensure bumpless failover during hardware faults.

What environment is this module suitable for?

It is designed for industrial environments with an operating temperature range of 0 to 60 deg C and is built to withstand standard industrial shock and vibration levels.
