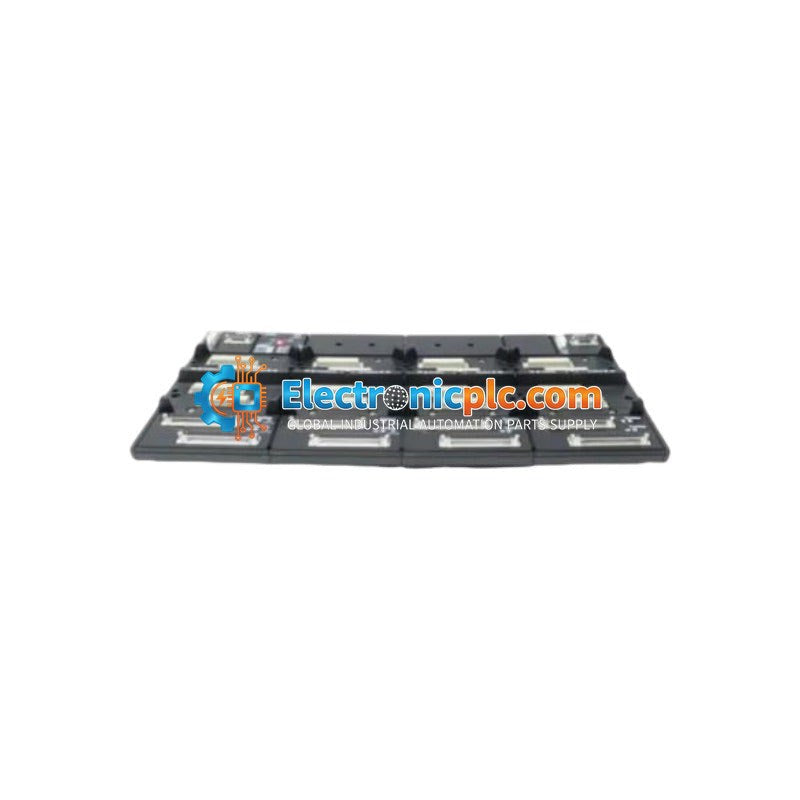

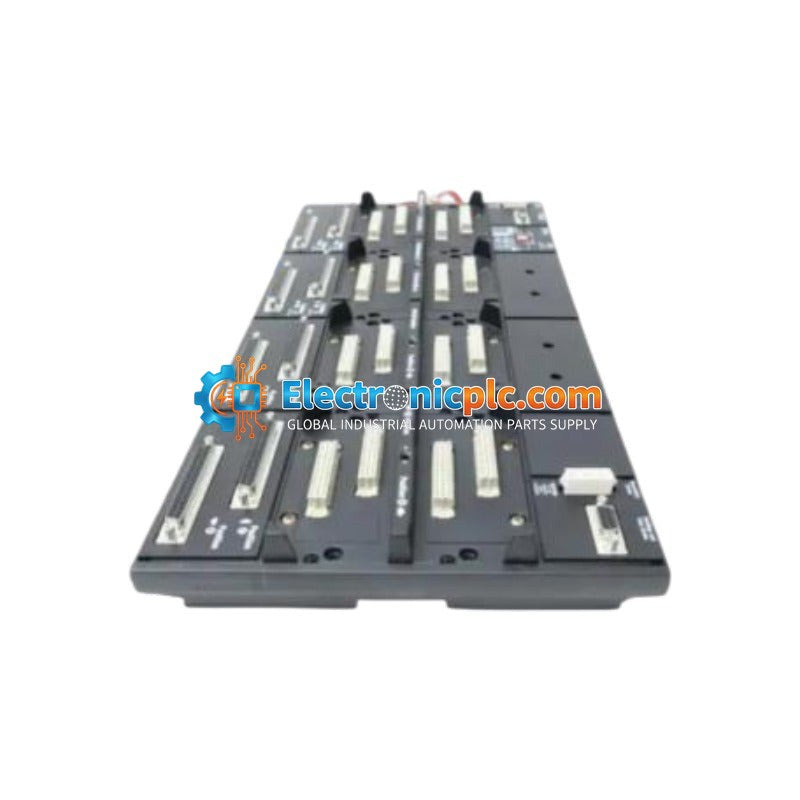

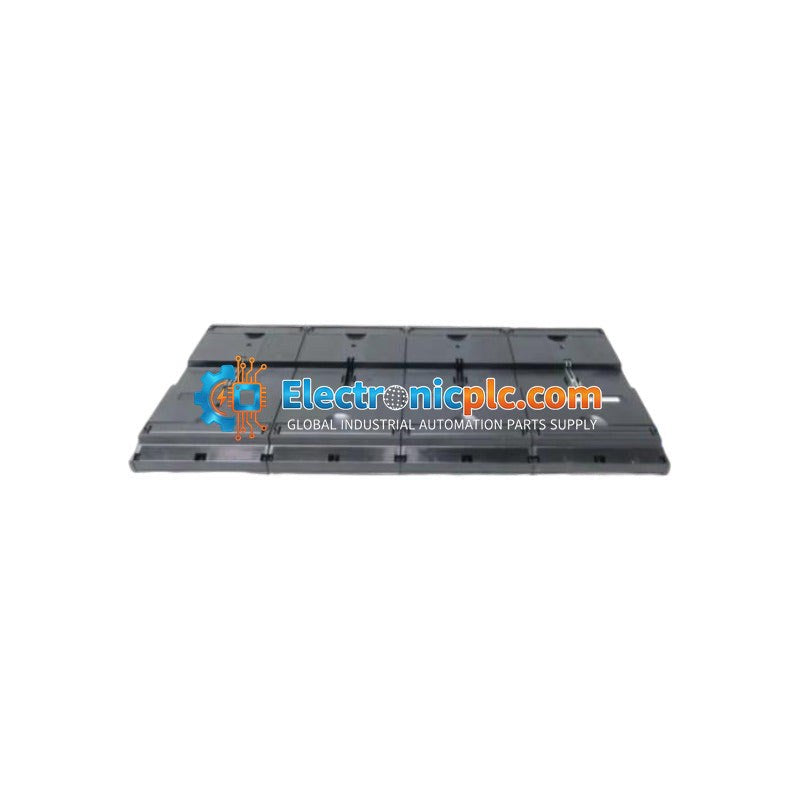

Foxboro P0926JM I/A Series 8-Position Baseplate Assembly

Foxboro P0926JM I/A Series 8-Position Baseplate Assembly

Description

The Foxboro P0926JM is an 8-position modular baseplate assembly designed for the I/A Series (Intelligent Automation) hardware ecosystem. This baseplate serves as the structural and electrical foundation for mounting up...

22 people are viewing this right now

Availability: Low stock: 9 left

SKU: P0926JM
Vendor: Foxboro
Category: I/O Baseplate
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Foxboro P0926JM is an 8-position modular baseplate assembly designed for the I/A Series (Intelligent Automation) hardware ecosystem. This baseplate serves as the structural and electrical foundation for mounting up to eight 200 Series Field Bus Modules (FBMs). Engineered for high-reliability process control environments, including oil and gas, chemical processing, and power generation, the P0926JM provides a robust interconnect for field I/O, supporting system expansion and simplified maintenance. Its hot-swappable interface allows for module replacement without interrupting system power, aiding in the reduction of mean time to repair (MTTR) and supporting continuous plant operation.

Features

  • Supports up to 8 slots for 200 Series Field Bus Modules.
  • Redundant 24 VDC power input terminals for high-availability power distribution.
  • High-speed 2 Mbps HDLC Fieldbus interface for deterministic communication.
  • Hot-swappable design allows module replacement during live operation.
  • Integrated shielding and grounding to mitigate electromagnetic interference (EMI).
  • Rugged construction suitable for demanding industrial environments.

Applications

This baseplate is used in Foxboro I/A Series distributed control systems (DCS) to facilitate communication between field instrumentation and control processors. It is commonly deployed in critical process control loops, safety systems, and data acquisition arrays where high signal integrity and redundant power are required.

Technical Specifications

Model P0926JM
Brand Foxboro (Schneider Electric)
Slot Capacity 8 Positions (200 Series FBMs)
Input Voltage Dual 24 VDC Redundant
Bus Interface Redundant 2 Mbps HDLC Fieldbus
Operating Temperature -20 to 70 deg C
Storage Temperature -40 to 85 deg C
Relative Humidity 5 to 95% (Non-condensing)
Mounting Horizontal DIN Rail or Panel Mount
Protection Rating IP20 (when fully populated)

Installation Guidelines

  • Ensure the mounting surface is clean and capable of supporting the weight of the baseplate and populated modules.
  • The unit supports horizontal DIN rail or panel mounting; ensure adequate clearance for airflow and cable routing.
  • Always power down the system or ensure proper hot-swap procedures are followed before inserting or removing modules from the baseplate.
  • Connect redundant 24 VDC power feeds to the designated terminals to ensure system availability.
  • Ensure the baseplate is properly grounded to the cabinet chassis to maintain EMI shielding effectiveness.
  • Handle with care to avoid damage to the backplane pins and connectors.

Compliance and Certifications

The P0926JM is designed to meet rigorous industrial standards, including UL, CSA, CE, and ATEX Class 1 Division 2 requirements for hazardous locations.

FAQ

Is the P0926JM compatible with all FBMs?

The P0926JM is specifically designed for the Foxboro 200 Series Field Bus Modules. Please verify your specific module series compatibility before installation.

Does this baseplate support redundant power?

Yes, the P0926JM features dual 24 VDC power input terminals to provide redundant power feeds to the modules, protecting against single-source power failure.
