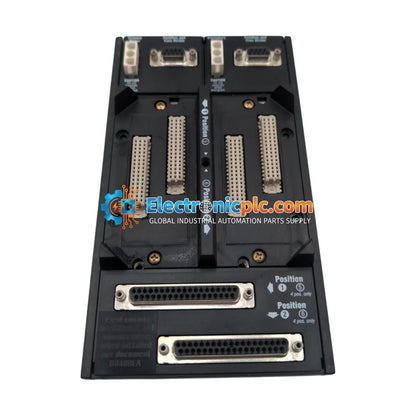

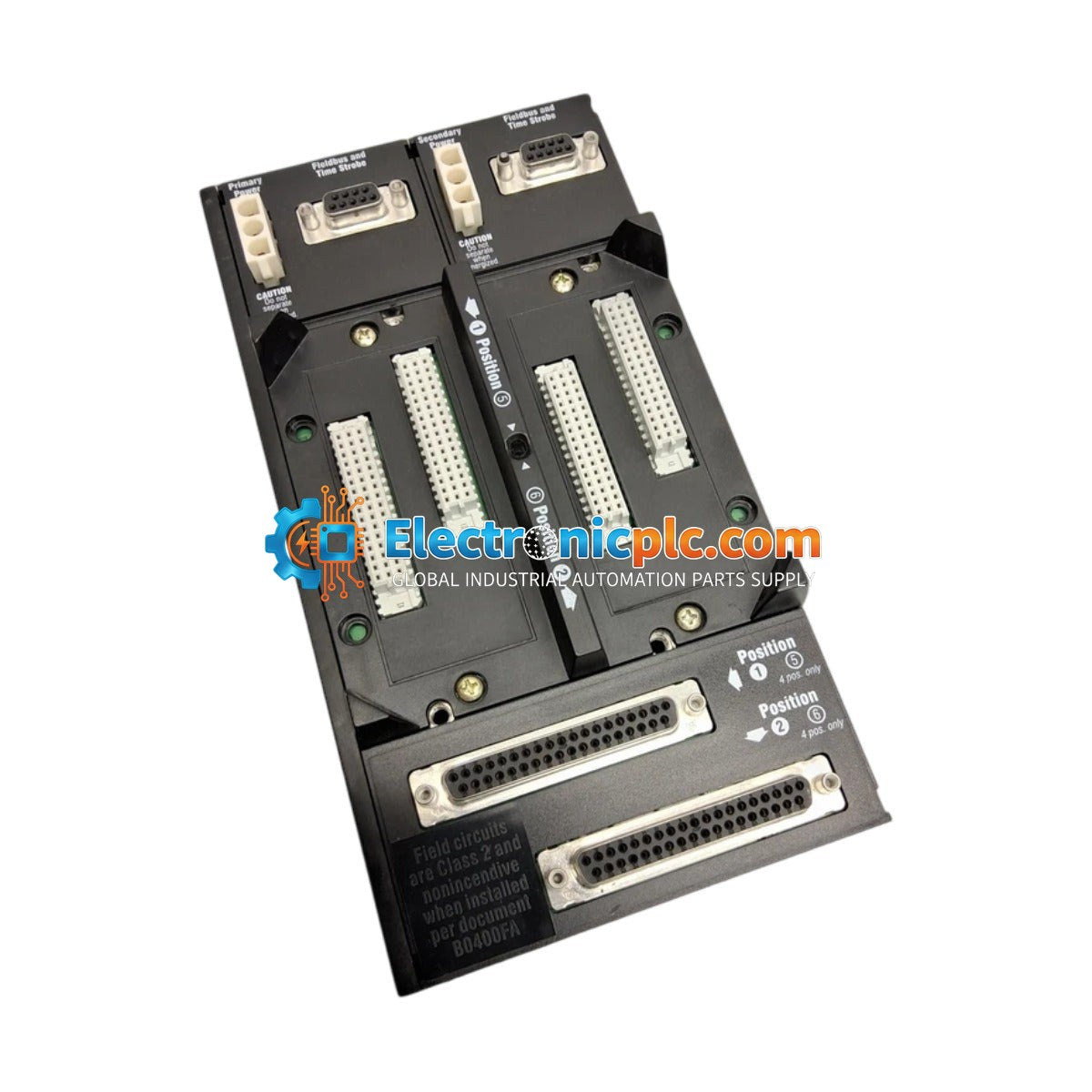

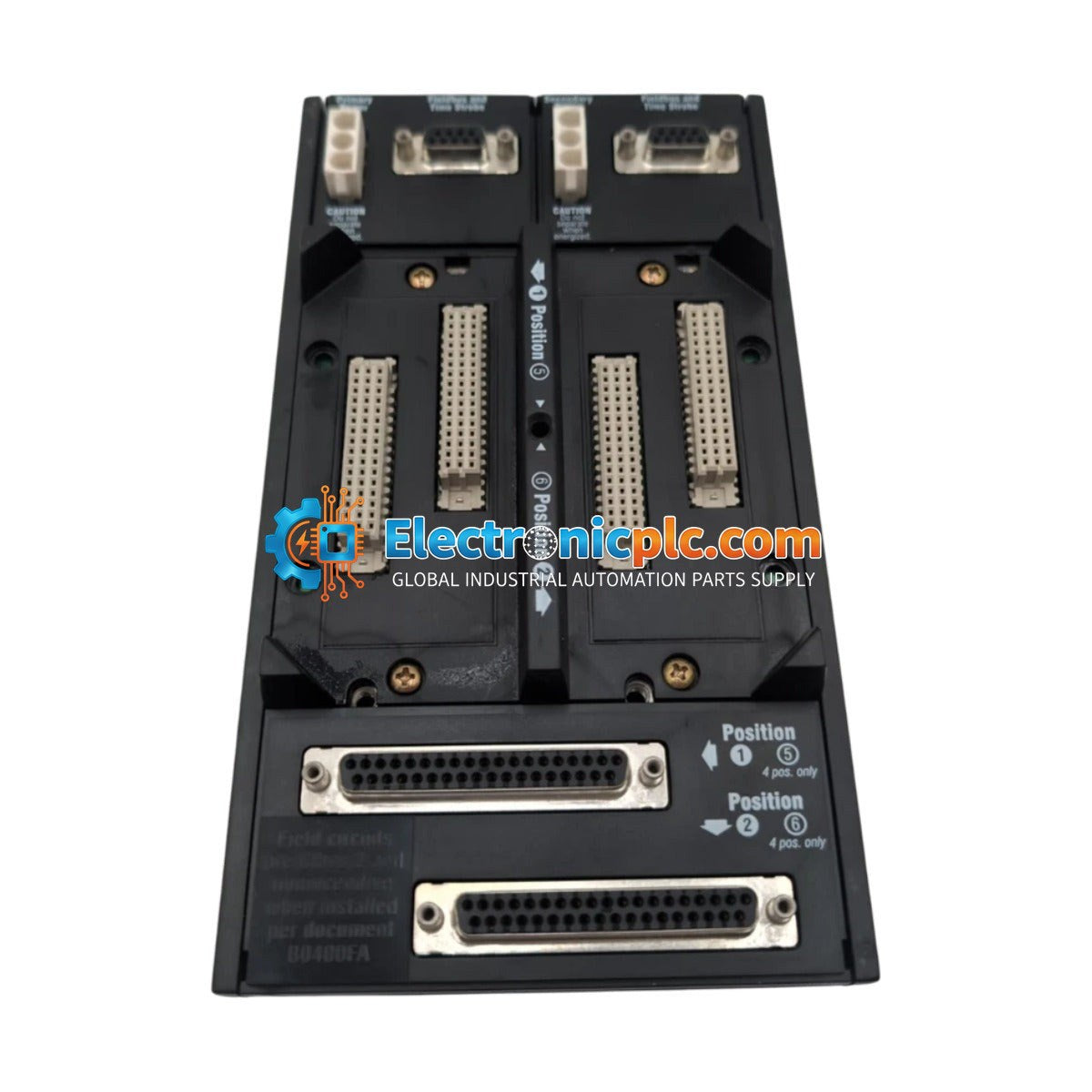

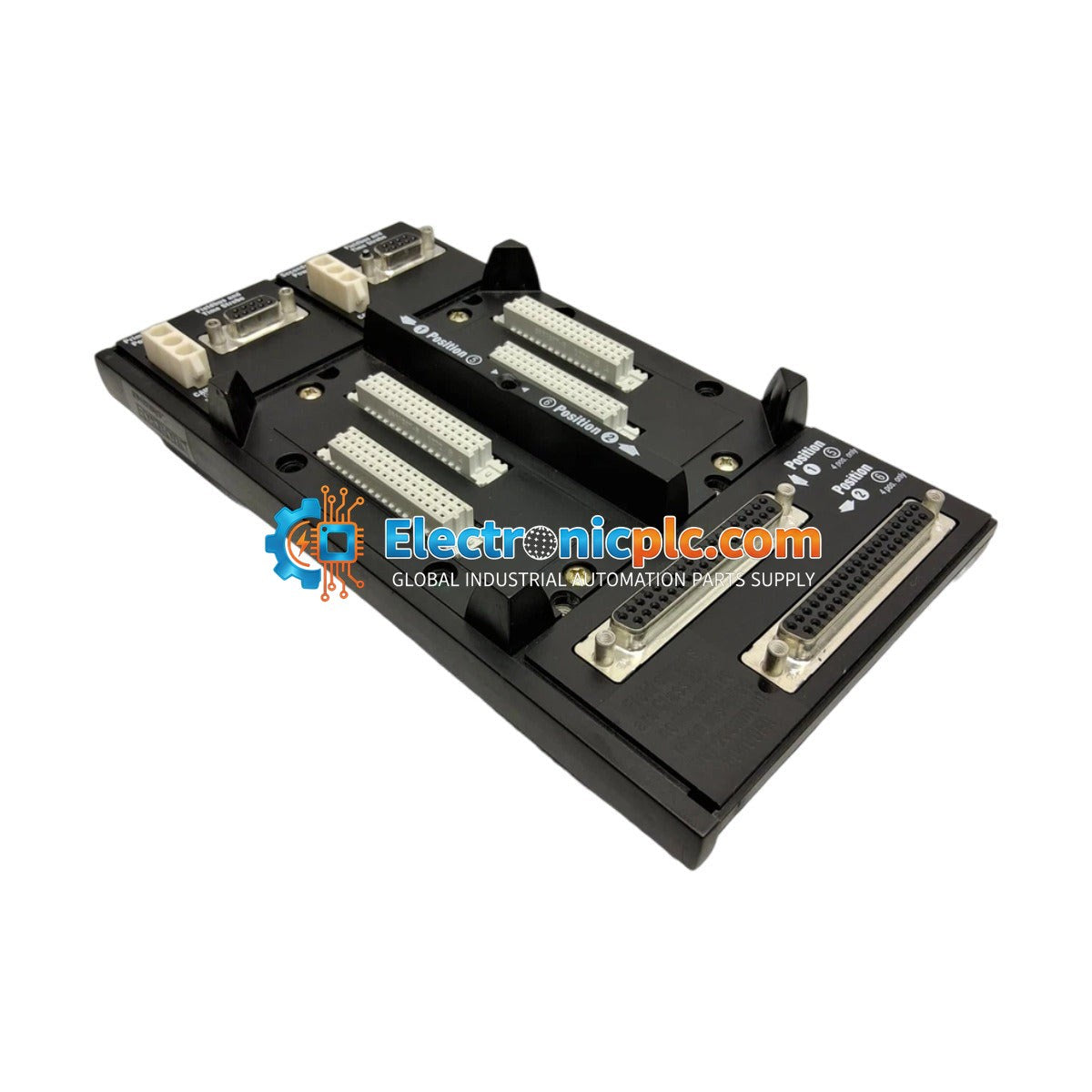

Foxboro P0926KE I/A Series 2-Position Modular Baseplate

Foxboro P0926KE I/A Series 2-Position Modular Baseplate

Description

The Foxboro P0926KE (also identified as RH926KE) is a 2-position modular baseplate engineered for the Foxboro I/A Series and Foxboro Evo process automation systems. This baseplate serves as a critical...

25 people are viewing this right now

Availability: Low stock: 2 left

SKU: P0926KE
Vendor: Foxboro
Category: Modular Baseplate
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Foxboro P0926KE (also identified as RH926KE) is a 2-position modular baseplate engineered for the Foxboro I/A Series and Foxboro Evo process automation systems. This baseplate serves as a critical mounting platform and communication backplane for 200 Series Fieldbus Modules (FBM) and Field Communications Modules (FCM). Designed for high-reliability industrial environments, it supports seamless integration and hot-swapping of modules, allowing for maintenance without interrupting field wiring or system power.

Features

  • Supports up to two 200 Series FBM or FCM modules.
  • Passive backplane architecture for enhanced system reliability.
  • Redundant 24 VDC power input connections for high availability.
  • Integrated module guides for precise alignment and protection of electrical contacts.
  • Supports 2 Mbps redundant Module Fieldbus (HDLC) communication.
  • Fixed baseplate addressing (Baseplate 0) with slots 1 and 2.

Applications

This baseplate is widely utilized in distributed control environments, including oil and gas refining, power generation, and large-scale mining operations where modular, high-availability I/O configurations are required.

Technical Specifications

Model P0926KE (RH926KE)
Brand Foxboro by Schneider Electric
Module Positions 2
Mounting Horizontal DIN rail
Input Voltage 24 VDC (Redundant)
Communication 2 Mbps Redundant Module Fieldbus (HDLC)
Operating Temperature -20 to +60 deg C
Storage Temperature -40 to +70 deg C
Relative Humidity 5 to 95% (Noncondensing)
Material PC and ABS (UL94 V0)

Installation Guidelines

  • Ensure the DIN rail is securely mounted and grounded according to local electrical codes before installing the baseplate.
  • The baseplate is designed for horizontal mounting; ensure adequate clearance for airflow and module insertion/removal.
  • Handle with care to avoid ESD damage to the backplane connectors.
  • Verify that the 24 VDC power supply is properly connected to the redundant terminals to ensure system availability.
  • Modules may be hot-swapped; however, always ensure the module is fully seated and locked into the guide rails to prevent contact misalignment.

Compliance and Certifications

The P0926KE is designed for use in hazardous locations, holding certifications including UL/UL-C Class I Div 2 and ATEX Zone 2. It is CE compliant. Please note this specific model is not Marine certified.

FAQ

Is this baseplate compatible with all 200 Series modules?

The P0926KE is designed for standard 200 Series FBMs and FCMs. Please verify your specific module's compatibility with the 2-position baseplate architecture before installation.

Can I replace modules while the system is running?

Yes, the P0926KE supports hot-swapping of modules, allowing you to remove or install units without powering down the baseplate or disconnecting field wiring.
