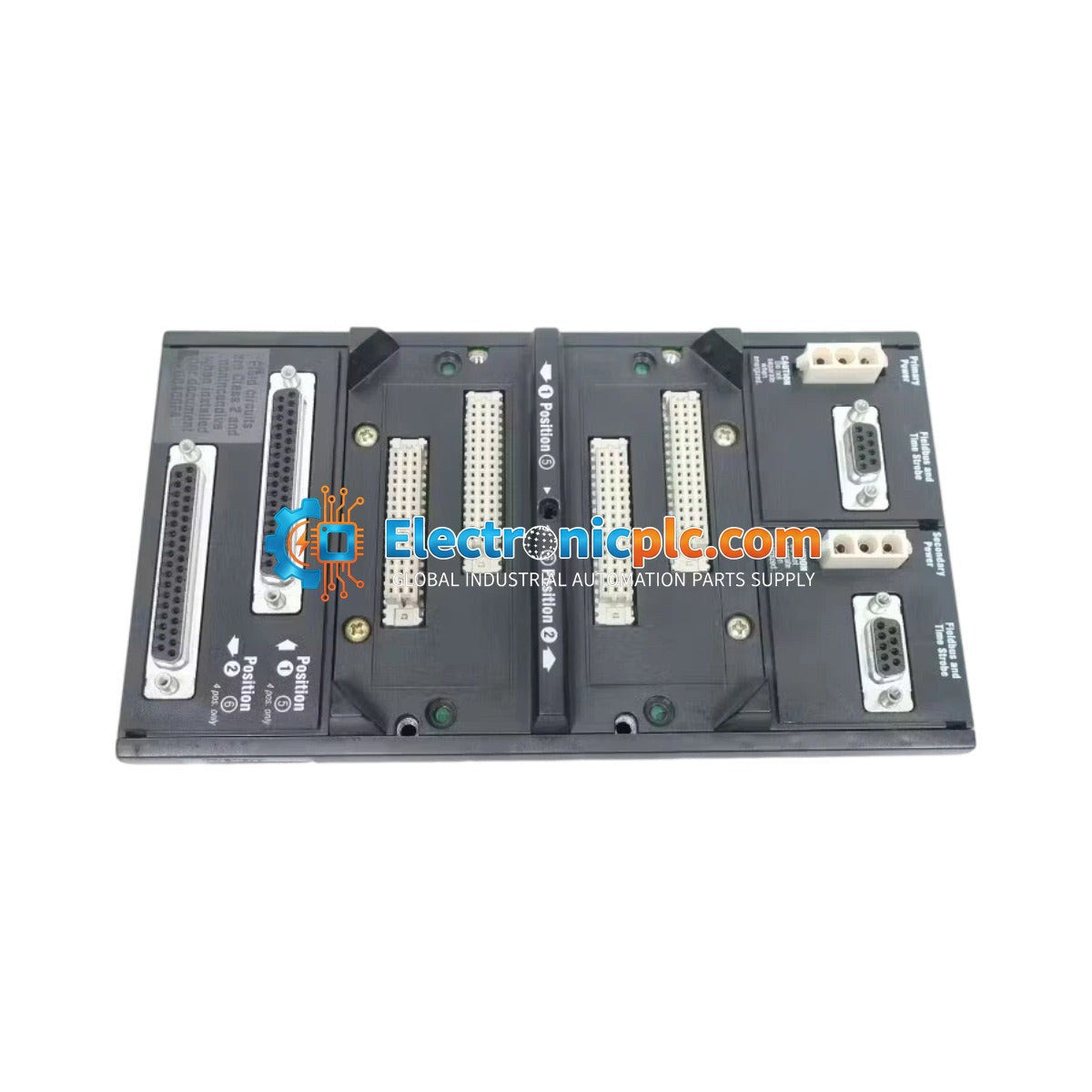

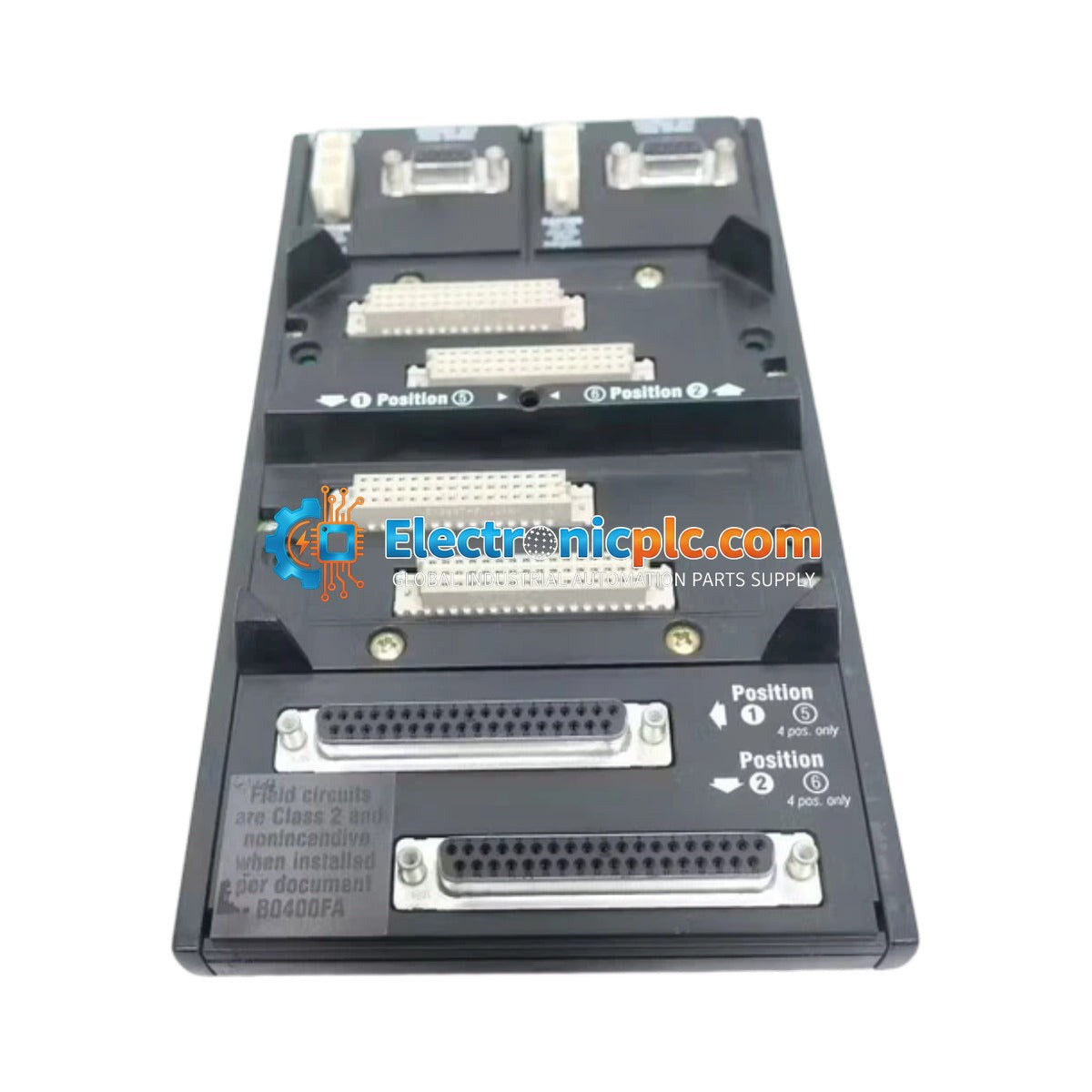

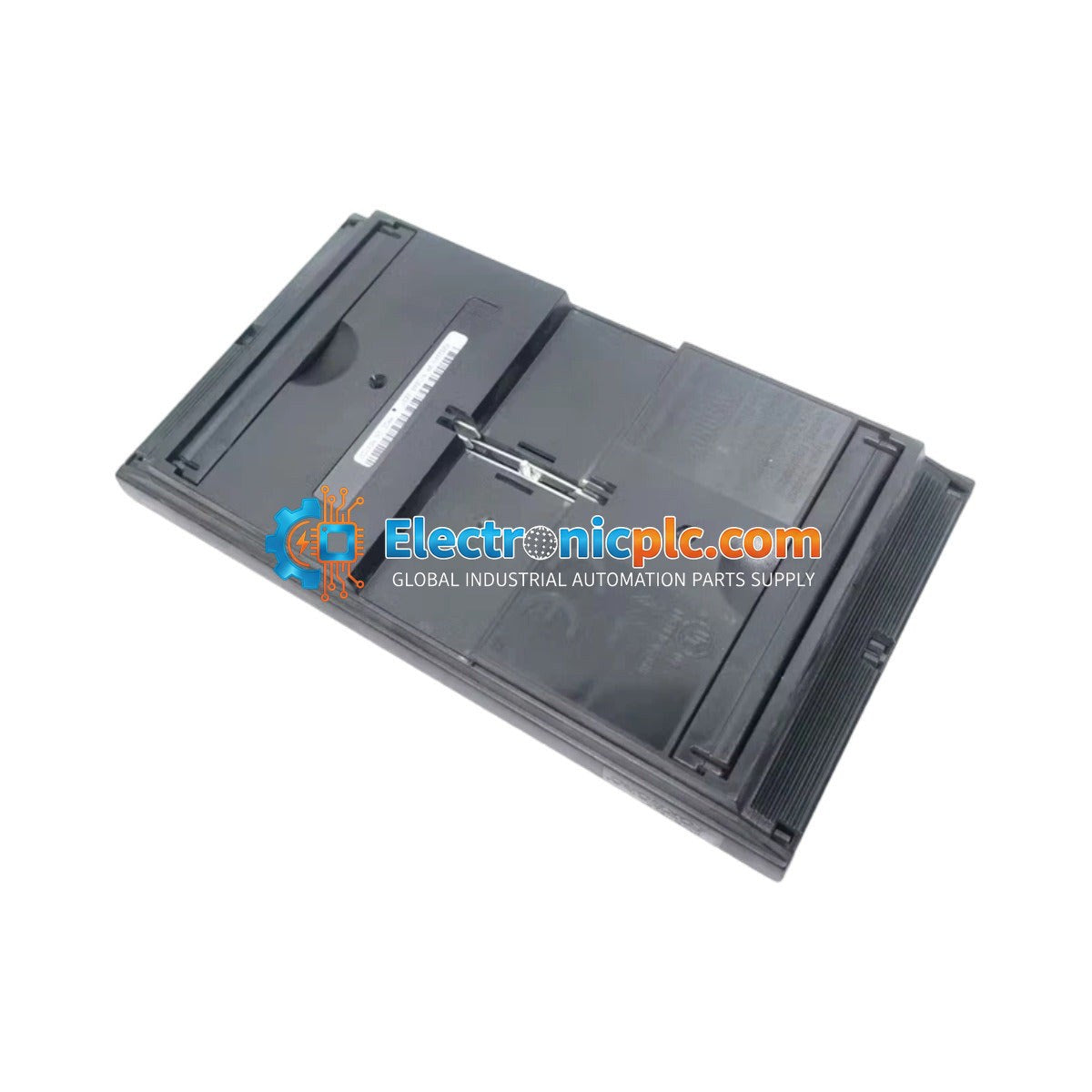

Foxboro P0926KH I/A Series 8-Position Vertical Baseplate Assembly

Foxboro P0926KH I/A Series 8-Position Vertical Baseplate Assembly

Description

The Foxboro P0926KH is a high-density 8-position vertical baseplate designed as the primary mounting infrastructure for I/A Series 200 Series Field Bus Modules (FBMs). This industrial-grade baseplate provides the physical...

27 people are viewing this right now

Availability: Low stock: 4 left

SKU: P0926KH
Vendor: Foxboro
Category: Baseplate Assembly
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The Foxboro P0926KH is a high-density 8-position vertical baseplate designed as the primary mounting infrastructure for I/A Series 200 Series Field Bus Modules (FBMs). This industrial-grade baseplate provides the physical and electrical interface required for module-to-module communication and power distribution. Optimized for use in sophisticated control environments such as chemical processing plants, metal smelting, and water treatment facilities, the P0926KH ensures a secure, vibration-resistant platform for critical I/O hardware. Its modular design allows for rapid hot-swapping of modules and simplified field wiring, which significantly reduces maintenance complexity and minimizes operational downtime during hardware upgrades or replacements.

Features

  • Supports up to eight 200 Series FBMs or associated communication modules.
  • Redundant 24 VDC power bus connections for high availability.
  • Integrated high-speed HDLC fieldbus for reliable data exchange.
  • Vertical orientation to maximize cabinet space and promote natural convection cooling.
  • Robust construction using heavy-duty polymer and aluminum alloy.
  • Designed for secure, vibration-resistant mounting in industrial control cabinets.

Applications

The P0926KH baseplate is widely utilized in Foxboro I/A Series distributed control systems (DCS). Typical applications include process automation in oil and gas, chemical manufacturing, power generation, and water/wastewater treatment facilities where high-density I/O and redundant power architectures are required.

Technical Specifications

Model P0926KH
Brand Foxboro (Schneider Electric)
Module Capacity 8 Positions (200 Series FBMs)
Input Voltage Dual 24 VDC Redundant Power Feeds
Communication Bus Redundant 2 Mbps HDLC Fieldbus
Operating Temperature -20 to 70 deg C
Storage Temperature -40 to 85 deg C
Relative Humidity 5 to 95% (Non-condensing)
Mounting Type Vertical DIN Rail or Rack Mount

Installation Guidelines

  • Ensure the cabinet environment meets the specified temperature and humidity ranges to prevent thermal degradation.
  • Install the baseplate in a vertical orientation to facilitate proper airflow and natural convection cooling.
  • Verify that redundant power supplies are correctly wired to the designated terminals to maintain system availability.
  • Use shielded cables for field wiring to minimize electromagnetic interference (EMI) and ensure signal integrity.
  • Ensure the baseplate is securely grounded to the cabinet chassis to provide a common reference and protect against surge events.
  • Always power down the system before inserting or removing FBMs to prevent electrical arcing or damage to the backplane connectors.

FAQ

Is the P0926KH compatible with all 200 Series modules?

The P0926KH is designed for standard 200 Series FBMs. Please verify the specific module compatibility with your system documentation or the module's technical datasheet.

Does this baseplate support hot-swapping?

Yes, the P0926KH is designed to support the hot-swapping of 200 Series modules, allowing for maintenance and replacement without shutting down the entire control system.
