The IGP10-A22D1F is an intelligent single-cell gauge pressure transmitter from the Foxboro I/A Series. It utilizes a silicon strain gauge sensor combined with digital signal processing and advanced temperature compensation...
Availability: Low stock: 10 left
Reliable Worldwide Delivery
30-Day Money-Back Guarantee
Need more details? Read our fullShipping PolicyandRefund Policy.

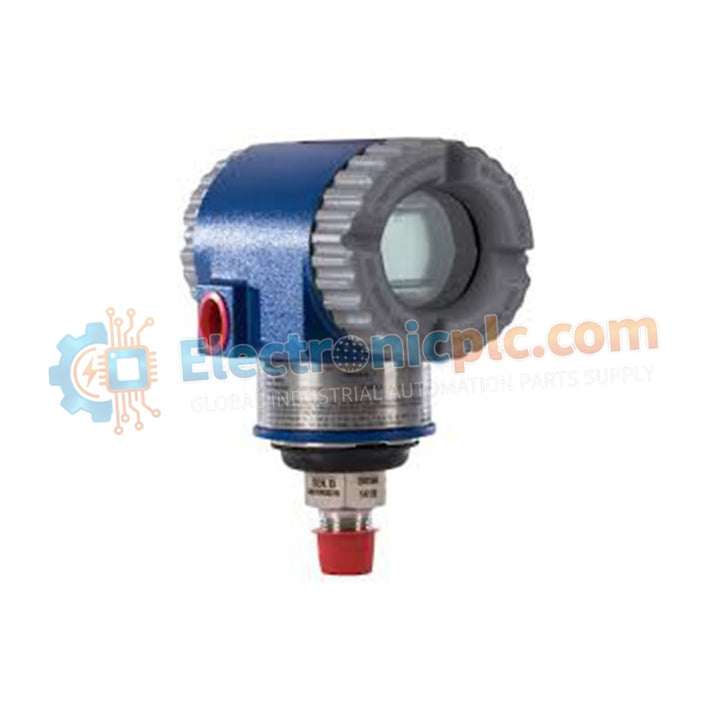

The IGP10-A22D1F is an intelligent single-cell gauge pressure transmitter from the Foxboro I/A Series. It utilizes a silicon strain gauge sensor combined with digital signal processing and advanced temperature compensation to deliver stable and highly accurate pressure measurements for liquids, gases, and steam.
Designed for demanding industrial environments, the transmitter features robust construction with corrosion-resistant wetted materials, making it suitable for high-pressure and chemically aggressive process applications.
| Parameter | Specification |
|---|---|
| Model | IGP10-A22D1F |
| Transmitter Type | Intelligent Gauge Pressure (Single Cell) |
| Output Signal | 4–20 mA DC with HART communication (version dependent) |
| Measurement Span | Adjustable (A22 code defines calibrated span range) |
| Process Connection | 1/2-14 NPT internal thread |
| Wetted Materials | 316L Stainless Steel or Hastelloy-C (per D1F configuration) |
| Fill Fluid | Silicone oil (standard) |
| Supply Voltage | 11.5 to 42 VDC (loop powered) |
| Accuracy | ±0.05% of calibrated span (high-accuracy option) |
| Enclosure Rating | NEMA 4X / IEC IP66 |
| Hazardous Area Approval | FM / CSA Explosion-proof & Intrinsically Safe (per A22D code) |
| Electronics Temperature Limit | –40°C to +85°C (–40°F to +185°F) |
The IGP10-A22D1F is widely applied in:
Hydrocarbon processing facilities
Oil & gas production systems
Pulp and paper plants
Water and wastewater treatment plants
General industrial process control loops
Typical installations include:
Vessel and tank pressure monitoring
Pump discharge pressure measurement
Main gas line pressure indication
Bypass manifold-mounted process transmitters
Can this unit be calibrated remotely?
Yes. The transmitter supports remote configuration and calibration via a HART communicator or Foxboro PC-based configuration tools, allowing adjustment without removing the device from service.
What does the “D1F” suffix signify?
In Foxboro’s model code structure, the “D1F” suffix generally defines the housing material, conduit entry type, and related mechanical options. Always verify the complete model string against the official Foxboro configuration chart to confirm exact metallurgy and enclosure specifications.
