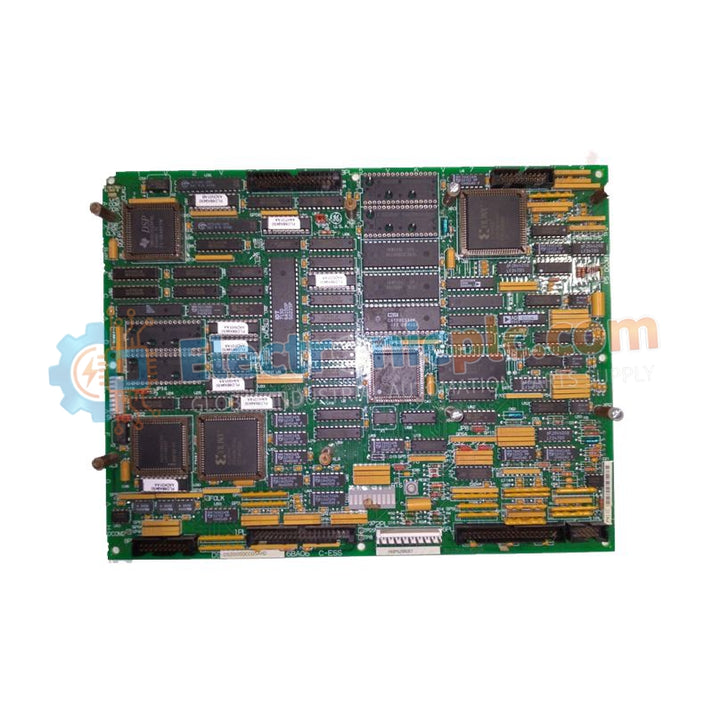

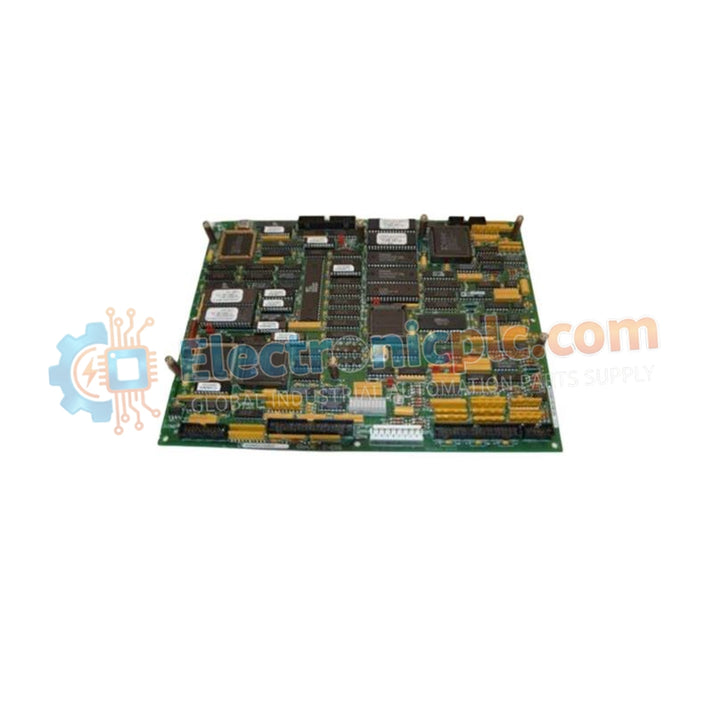

The GE DS200SDCCG5AHD is a high-performance Drive Control Card engineered specifically for the GE Speedtronic Mark V control system. As a core processing unit, this board manages the sophisticated control logic required for turbine drives and exciters. It integrates advanced Xilinx-based processing and specialized circuitry, including dedicated co-motor, drive control, and motor control processors. Designed for seamless system integration, the DS200SDCCG5AHD facilitates complex signal processing and communication between various system modules, ensuring stable and reliable turbine performance in demanding industrial environments.
| Specification | Details |
|---|---|
| Model | DS200SDCCG5AHD |
| System Compatibility | Mark V Speedtronic |
| Function | Drive Control Board |
| Key Processing Components | Advanced Xilinx chips, Co-motor processor, Drive control processor, Motor control processor |
| Connectivity | Vertical pin connectors and standoffs for daughterboard expansion |
| Board Features | Resistor network arrays, DIP switches, jumper switches, reset button, precision passive components |
| Mounting | Pre-drilled corner holes for secure chassis installation |
| Dimensions | 28 cm x 23 cm x 3 cm |
| Weight | 0.55 kg |
The DS200SDCCG5AHD belongs to the G5 version series of GE drive control boards (with other versions including G1, G3, G4, and G5). It is a highly specialized component; while it is designed to replace earlier versions, it is not backward compatible with the older DS215 series boards due to the additional integrated components and hardware architecture required for modern drive control.
The board is designed for flexibility, allowing for expansion via daughterboards to suit specific turbine or exciter control requirements.
A: No, this board is not backward compatible with the DS215 series. The G5 version includes additional circuitry and hardware components that are not present on the older boards.
A: The vertical pins and standoffs are designed to allow the attachment of daughterboards, which expand the functionality and communication capabilities of the main drive control board.
