GE DS200TCDAH1BHE Digital I/O Board

GE DS200TCDAH1BHE Digital I/O Board

Product Description

The GE DS200TCDAH1BHE is a critical Digital I/O board designed for the Speedtronic Mark V gas turbine control system. As a foundational component in the turbine control architecture, this board facilitates high-speed data exchange by...

26 people are viewing this right now

Availability: Low stock: 10 left

SKU: DS200TCDAH1BHE
Vendor: GE Fanuc
Category: Digital I/O Board
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Product Description

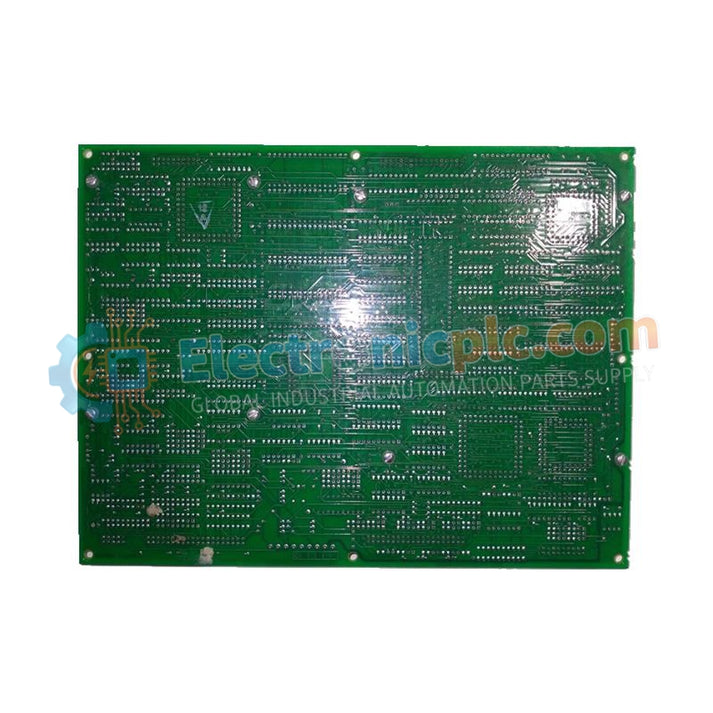

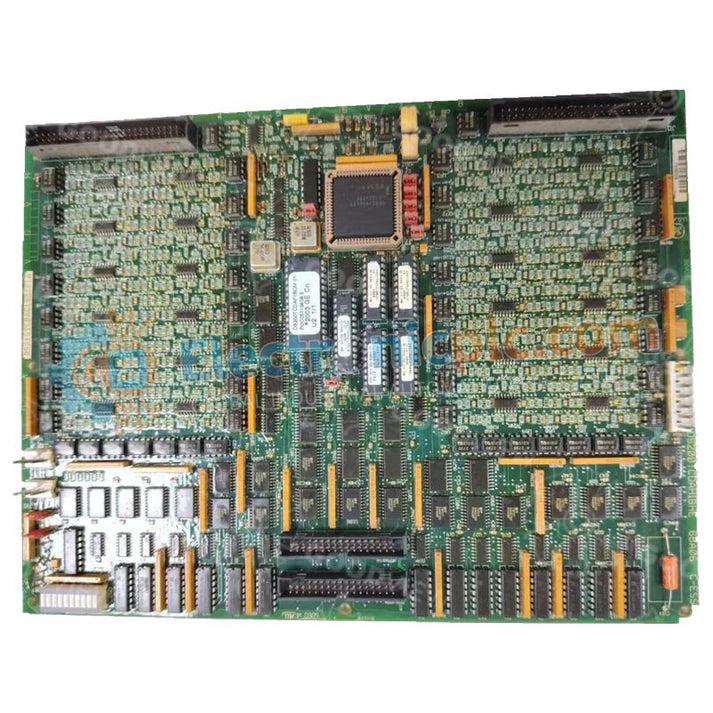

The GE DS200TCDAH1BHE is a critical Digital I/O board designed for the Speedtronic Mark V gas turbine control system. As a foundational component in the turbine control architecture, this board facilitates high-speed data exchange by processing 32 digital contact inputs from the Digital Turbine Building Assembly (DTBA) and managing 32 corresponding digital contact outputs. Engineered to provide reliable signaling for complex turbine operations, the DS200TCDAH1BHE ensures precise command execution and status monitoring, essential for maintaining the operational safety and efficiency of GE gas turbine units.

Technical Specifications

Specification Details
Model DS200TCDAH1BHE
Manufacturer General Electric (GE)
System Compatibility Speedtronic Mark V
Function Digital Input/Output Board
Input Capacity 32 digital contact inputs
Output Capacity 32 digital contact outputs
Connectivity 2 x 3-pin connectors, 2 x 50-pin connectors
Indicators 1 single LED, 1 block of 10 diagnostic LEDs
Configuration Includes 8 hardware jumpers for custom setup
Testing Integrated test points for circuit diagnostics

Operational Versatility

The DS200TCDAH1BHE is built to endure the high-demand environment of power generation and industrial facilities. Its rugged construction protects internal circuitry from typical electrical interference, while the onboard diagnostic indicators and test points significantly reduce troubleshooting time during routine maintenance. By serving as a robust bridge between the DTBA and the central control system, this board plays a vital role in real-time turbine management and event reporting.

Frequently Asked Questions

Q: How are the 8 jumpers used on this board?

A: The onboard jumpers are used to configure the board's operational parameters to match the specific requirements of the Mark V turbine control cabinet. Refer to the system documentation for the correct jumper settings for your application.

Q: Is this board hot-swappable in a Mark V cabinet?

A: While the Mark V system allows for component replacement, always follow standard lockout/tagout and ESD (Electrostatic Discharge) safety procedures before handling any circuit board to prevent damage or accidental system trips.
