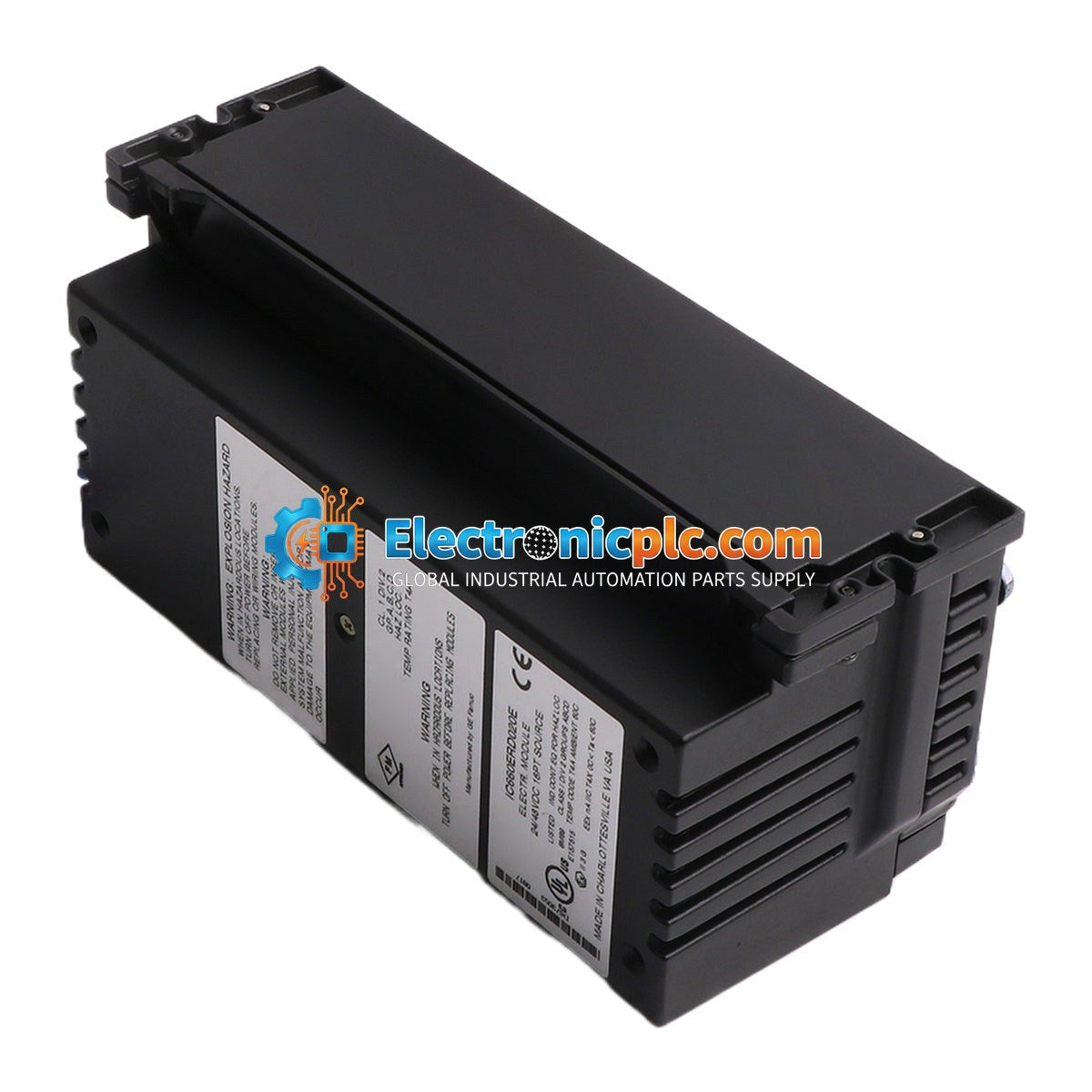

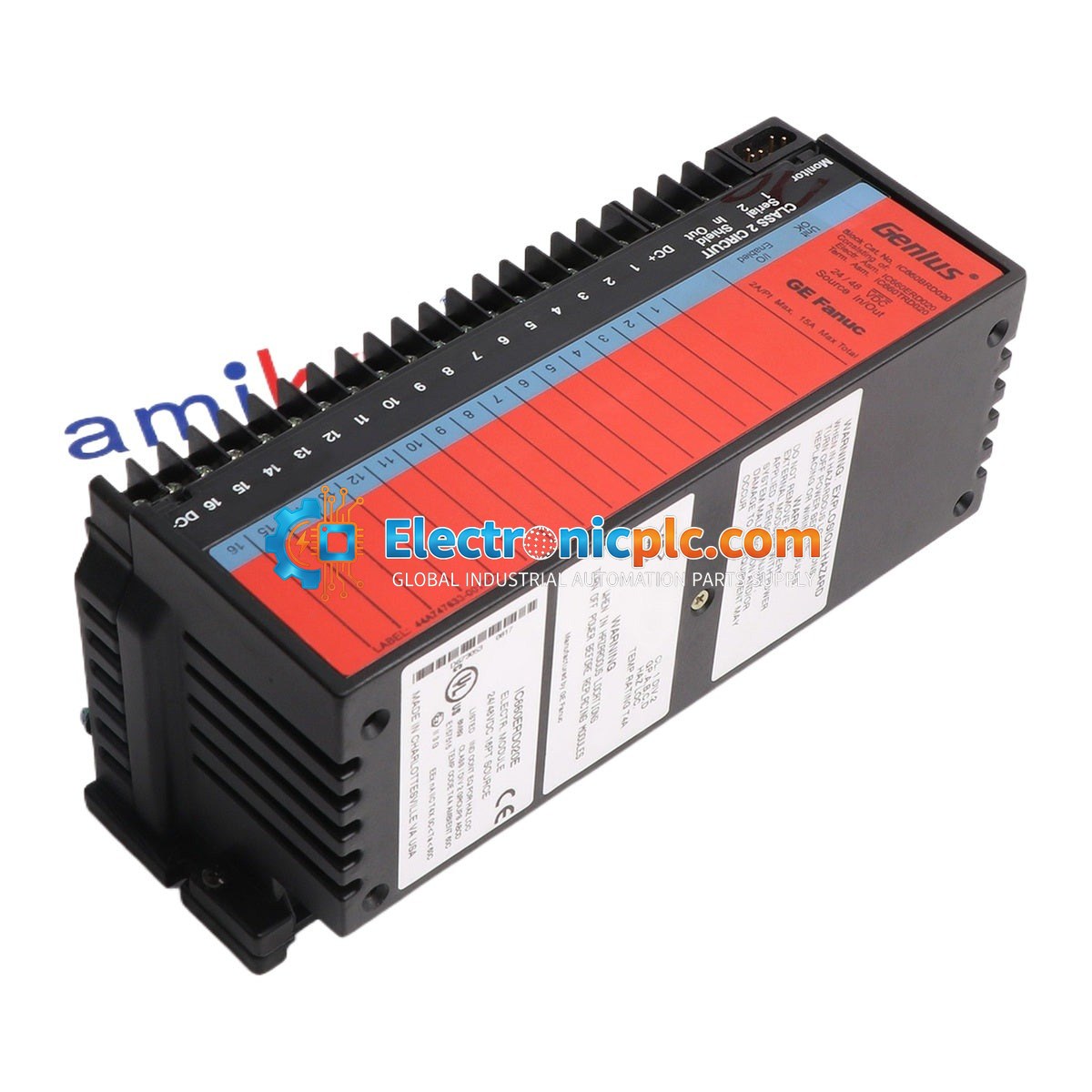

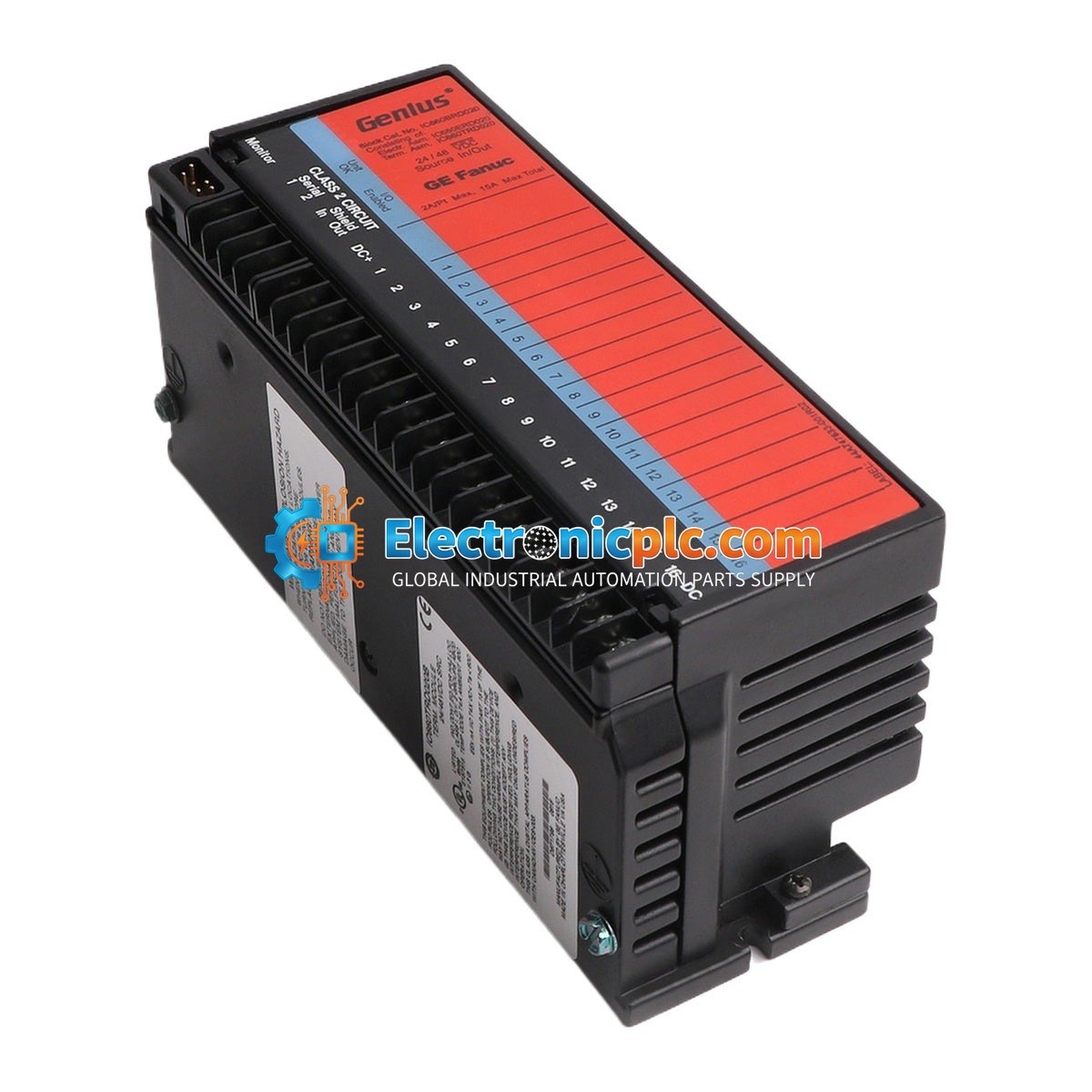

General Electric IC660BRD020 Genius I/O 16-Point Discrete Source Block

General Electric IC660BRD020 Genius I/O 16-Point Discrete Source Block

Description

The General Electric IC660BRD020 is a 16-point discrete source I/O block from the Genius I/O product series. This module is designed to provide reliable input/output control in industrial automation environments,...

20 people are viewing this right now

Availability: Low stock: 10 left

SKU: IC660BRD020
Vendor: General Electric
Category: Discrete I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC660BRD020 is a 16-point discrete source I/O block from the Genius I/O product series. This module is designed to provide reliable input/output control in industrial automation environments, specifically handling 24/48 Volts DC source signals. It acts as a critical interface between field devices and the controller, ensuring consistent signal processing and system integration within the Genius I/O architecture.

Features

  • 16-point discrete source output circuitry.
  • Supports a wide operating voltage range of 18 to 56 Volts DC (rated for 24 and 48 Volts DC).
  • Designed for robust performance in industrial control systems.
  • Maximum current draw of 300 milliamps.
  • Compatible with the established Genius I/O communication network.

Technical Specifications

Product Model IC660BRD020
Manufacturer General Electric
Series Genius I/O
Circuit Type Source
Output Circuits 16
Operating Voltage 18 to 56 VDC (24/48 VDC rated)
Max Current Draw 300 mA
Max Ripple 10%

Installation Guidelines

  • Ensure the system power is disconnected before installing or removing the I/O block to prevent electrical damage.
  • Mount the module in a location that allows for adequate ventilation and cooling to maintain optimal operating temperatures.
  • Verify that all field wiring is properly secured to the terminal blocks and that polarity is observed for all DC connections.
  • Use shielded cables where necessary to minimize electromagnetic interference (EMI) in high-noise industrial environments.
  • Handle the module using standard ESD (Electrostatic Discharge) precautions to protect sensitive internal components.

FAQ

What is the primary function of the IC660BRD020?

The IC660BRD020 is a 16-point discrete source I/O block used to interface 24/48 VDC field devices with a Genius I/O network.

What is the operating voltage range for this module?

The module operates within a range of 18 to 56 Volts DC, with specific ratings for 24 and 48 Volts DC applications.

Is this module compatible with other Genius I/O series components?

Yes, the IC660BRD020 is designed to function as part of the GE Genius I/O system, allowing for integration with other compatible blocks and controllers in the same series.
