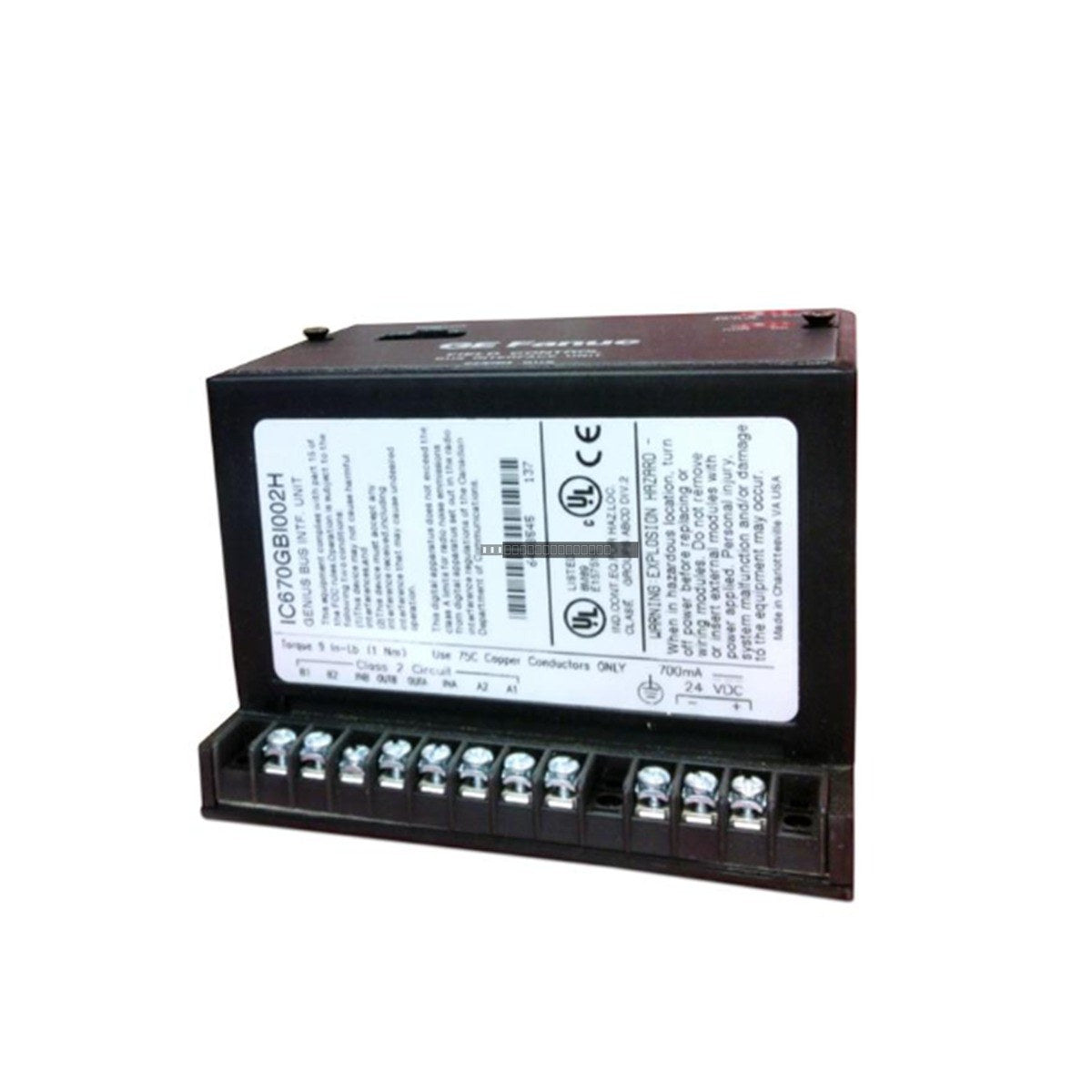

The GE Fanuc IC670GBI002D is a high-performance Bus Interface Unit (BIU) designed for the Field Control I/O system. This module serves as the primary communication bridge between the field I/O devices and the host controller, facilitating reliable data exchange in industrial automation environments. Engineered for durability and flexibility, it supports advanced features such as CPU redundancy and hot-swappable module maintenance to minimize system downtime.

Features

• Supports CPU redundancy for enhanced system availability and fault tolerance.
• Designed for hot insertion and removal of I/O modules, allowing for maintenance without shutting down the entire process.
• Robust power management with support for a wide range of input voltages.
• High MTBF rating exceeding 183,000 hours, ensuring long-term operational reliability.
• Compatible with the broader GE Field Control IC670G/IC670GBI series architecture.

Applications

This Bus Interface Unit is typically utilized in distributed control systems, manufacturing automation, and process control applications where reliable, high-speed communication between field sensors/actuators and the central PLC or DCS is required.

Technical Specifications

Installation Guidelines

• Ensure the power is disconnected before installing or removing the module from the rack.
• The module supports hot-swapping; however, verify that the local safety protocols allow for live maintenance in your specific environment.
• Mount the unit in a clean, dry, and vibration-free enclosure to maintain the integrity of the internal electronics.
• Ensure proper grounding of the Field Control rack to prevent EMI interference and protect against voltage surges.
• Maintain adequate spacing around the module to allow for proper thermal dissipation.

FAQ

What is the primary function of the IC670GBI002D?

The IC670GBI002D acts as the interface between the Field Control I/O station and the communication bus, managing data traffic and status reporting for the connected I/O modules.

Is this module still in production?

No, the IC670GBI002D is currently classified as discontinued or obsolete by the manufacturer. We provide these units as reliable spare parts for legacy system maintenance.

Does this module support hot-swapping?

Yes, the Field Control architecture supports the hot insertion and removal of modules, allowing you to replace or add components while the system is under power, provided the specific application safety requirements are met.
