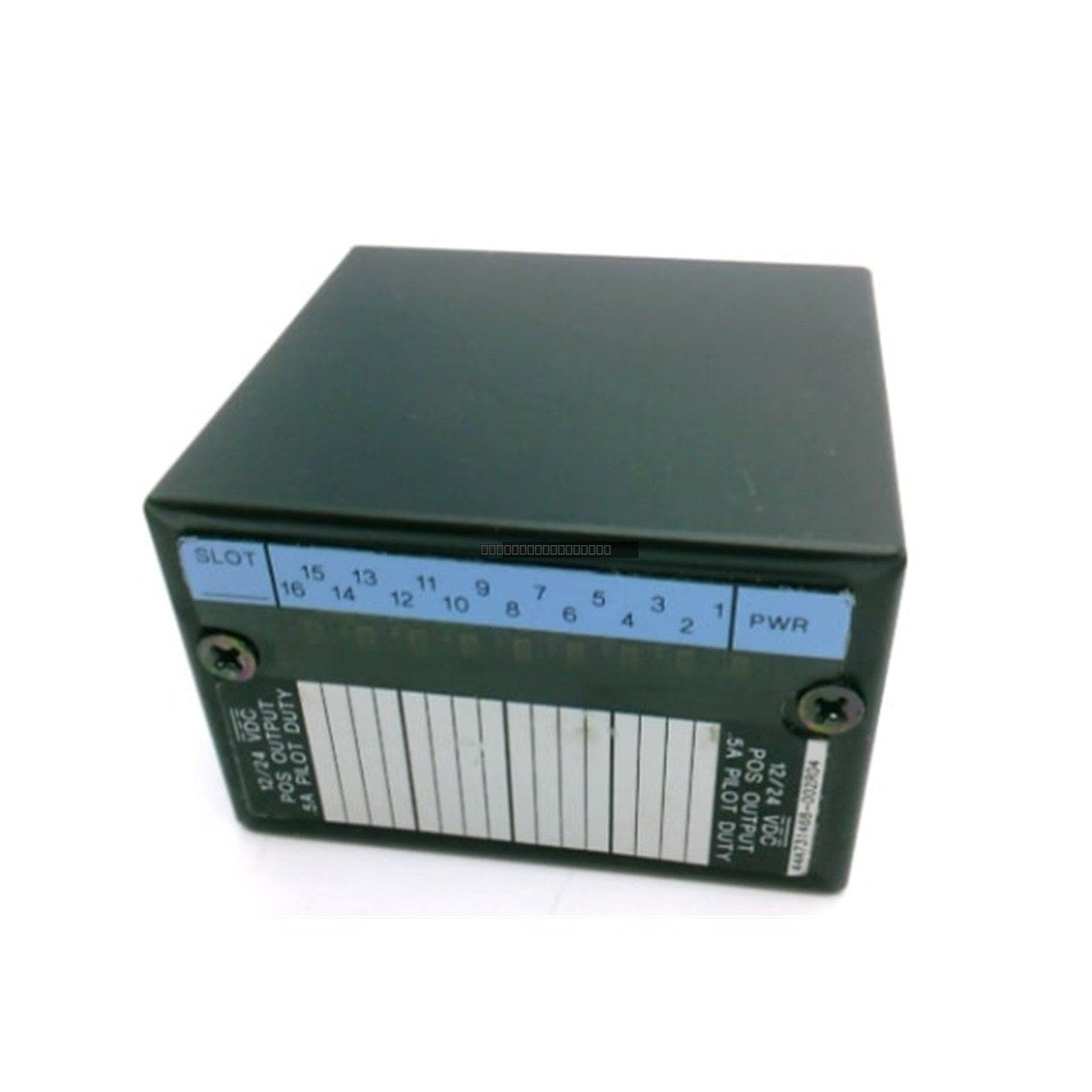

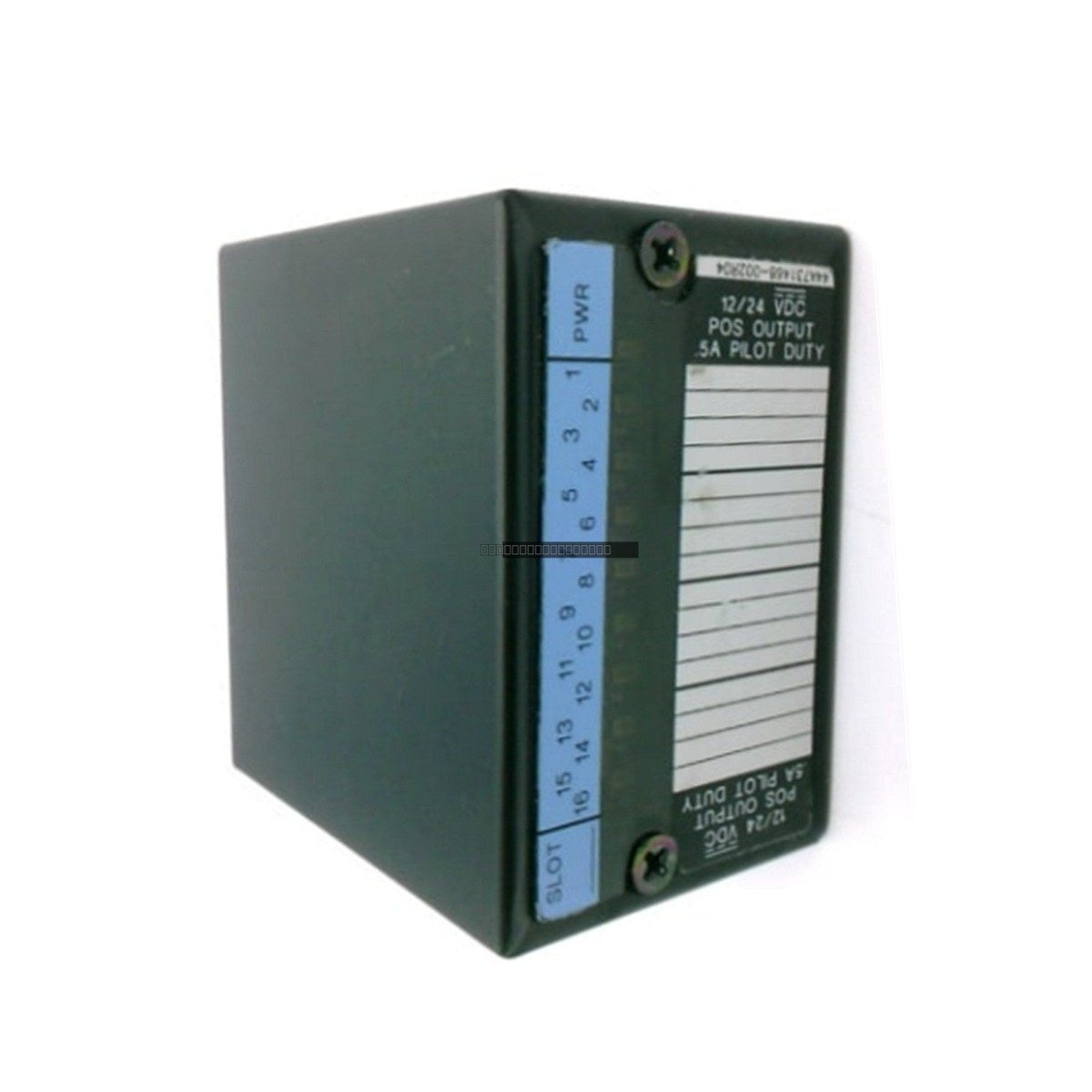

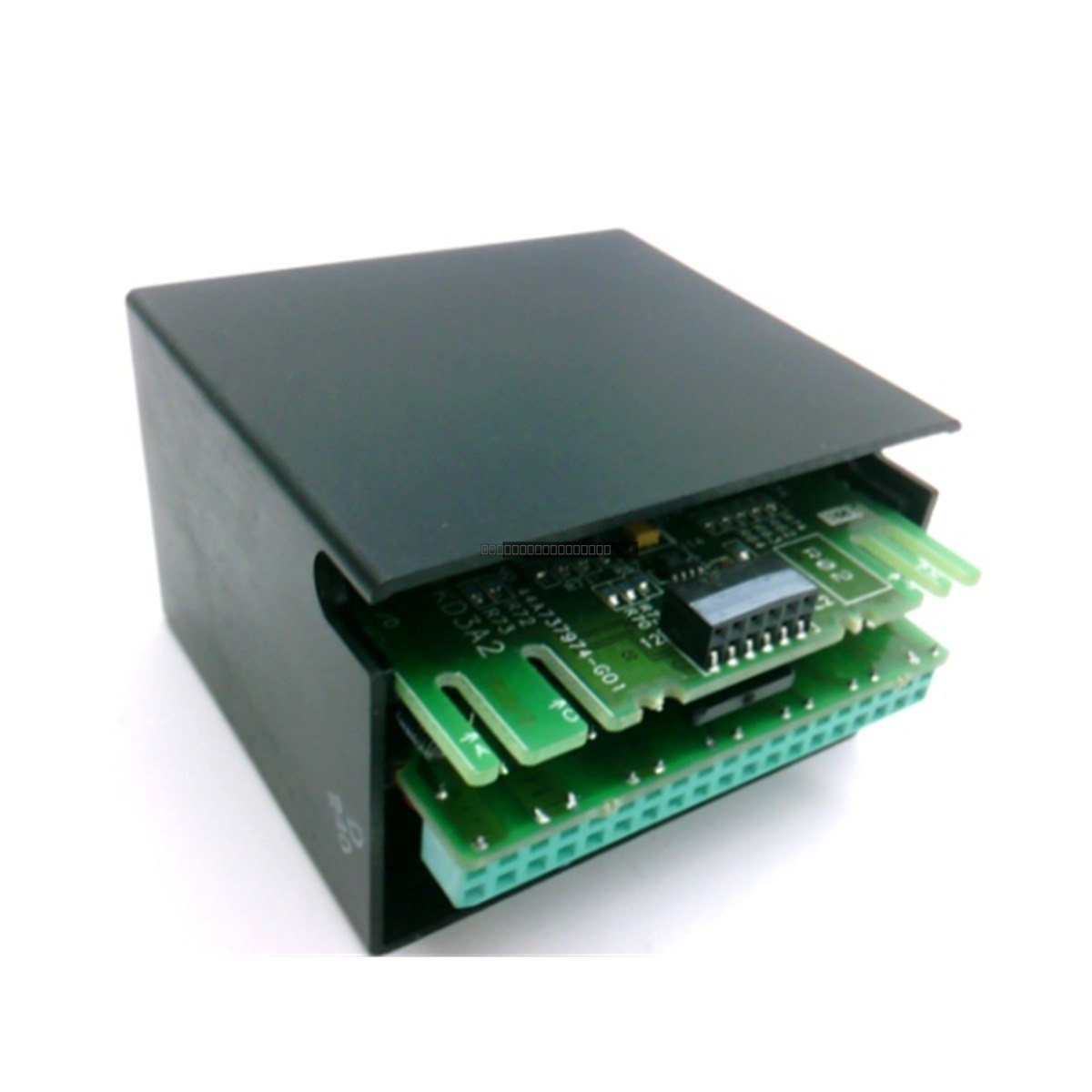

GE Fanuc IC670MDL740B Discrete Output Module

GE Fanuc IC670MDL740B Discrete Output Module

Description

The GE Fanuc IC670MDL740B is a high-performance discrete output module designed for the Field Control series. This module provides 16 output channels, facilitating reliable control of field devices within industrial...

18 people are viewing this right now

Availability: Low stock: 4 left

SKU: IC670MDL740B
Vendor: General Electric
Category: Discrete Output Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The GE Fanuc IC670MDL740B is a high-performance discrete output module designed for the Field Control series. This module provides 16 output channels, facilitating reliable control of field devices within industrial automation systems. It is engineered to operate with a nominal voltage range of 12/24 VDC, supporting robust integration into diverse control architectures.

Features

  • Sixteen (16) discrete output channels for high-density control
  • Supports a wide output voltage range of 9.2 to 29.5 VDC
  • Maximum output current capacity of 0.5 A per point, with a total module capacity of 4 A
  • Integrated fuse protection for the output group
  • Low power consumption with 111 mA current draw from the power supply
  • Compact design optimized for Field Control rack mounting

Technical Specifications

Model Number IC670MDL740B
Number of Outputs 16
Output Voltage Range 9.2 - 29.5 VDC
Output Current 0.5 A per point (4 A total)
Output Response Time 200 ms (at 0.5 A resistive load)
Output Leakage Current 0.5 mA at 30 VDC
Voltage Drop 0.5 V maximum
Isolation 1500 VAC (1 min) / 250 VAC (continuous)

Installation Guidelines

  • Ensure the power supply is disconnected before installing or removing the module from the Field Control station.
  • Mount the module securely in the designated slot to ensure proper backplane connection.
  • Use shielded cabling for output signals to minimize electromagnetic interference (EMI) in high-noise environments.
  • Verify that the load current does not exceed the 0.5 A per point or 4 A per module limit to prevent fuse activation.
  • Maintain adequate ventilation around the module to ensure optimal thermal performance.

FAQ

What is the primary function of the IC670MDL740B?

This module acts as a discrete output interface for the GE Field Control system, allowing the controller to drive 16 separate field devices using 12/24 VDC signals.

Does this module include group isolation?

The IC670MDL740B features a single output group design and does not provide group-to-group isolation.

What protection is provided for the outputs?

The module includes built-in fuse protection for the output group to safeguard against overcurrent conditions.
