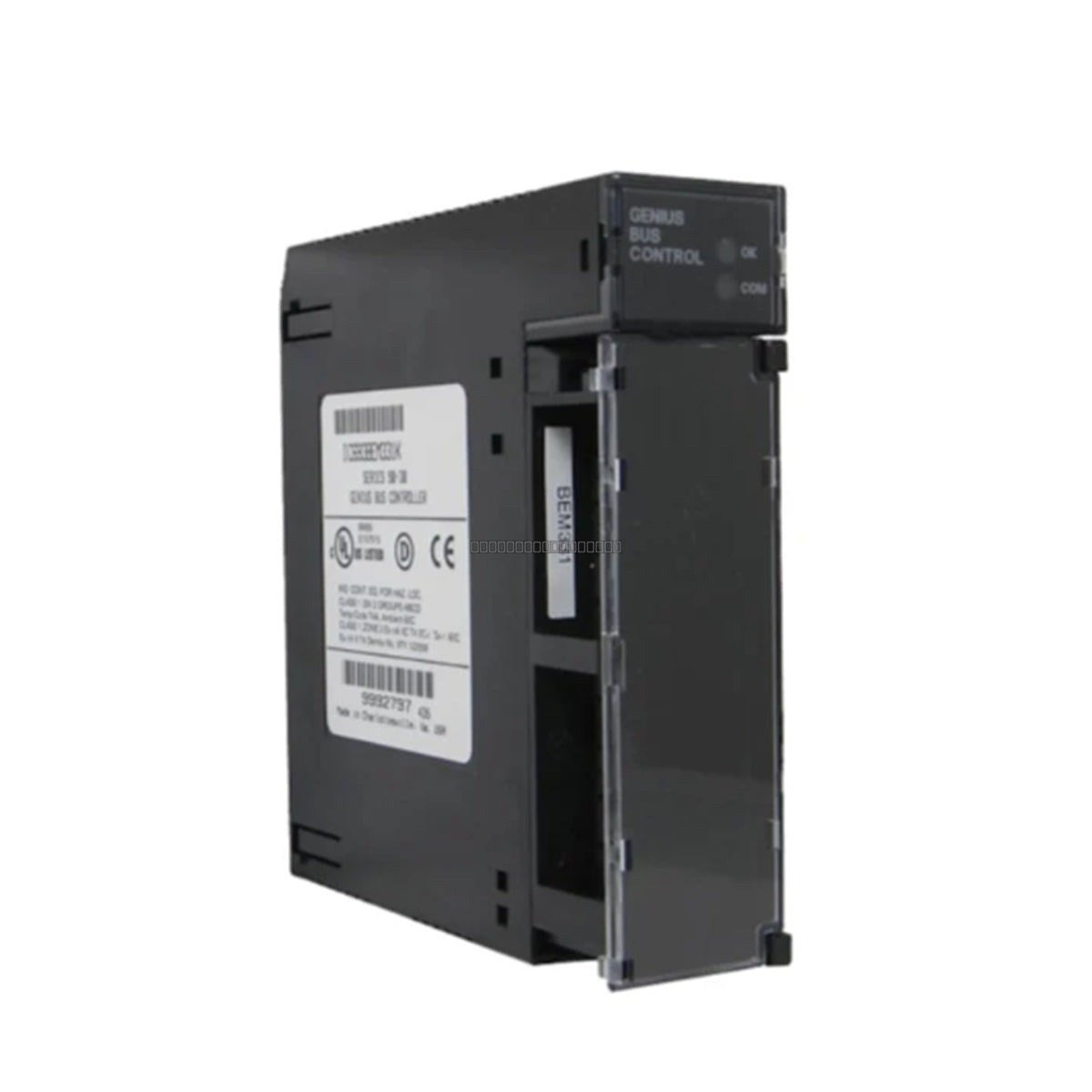

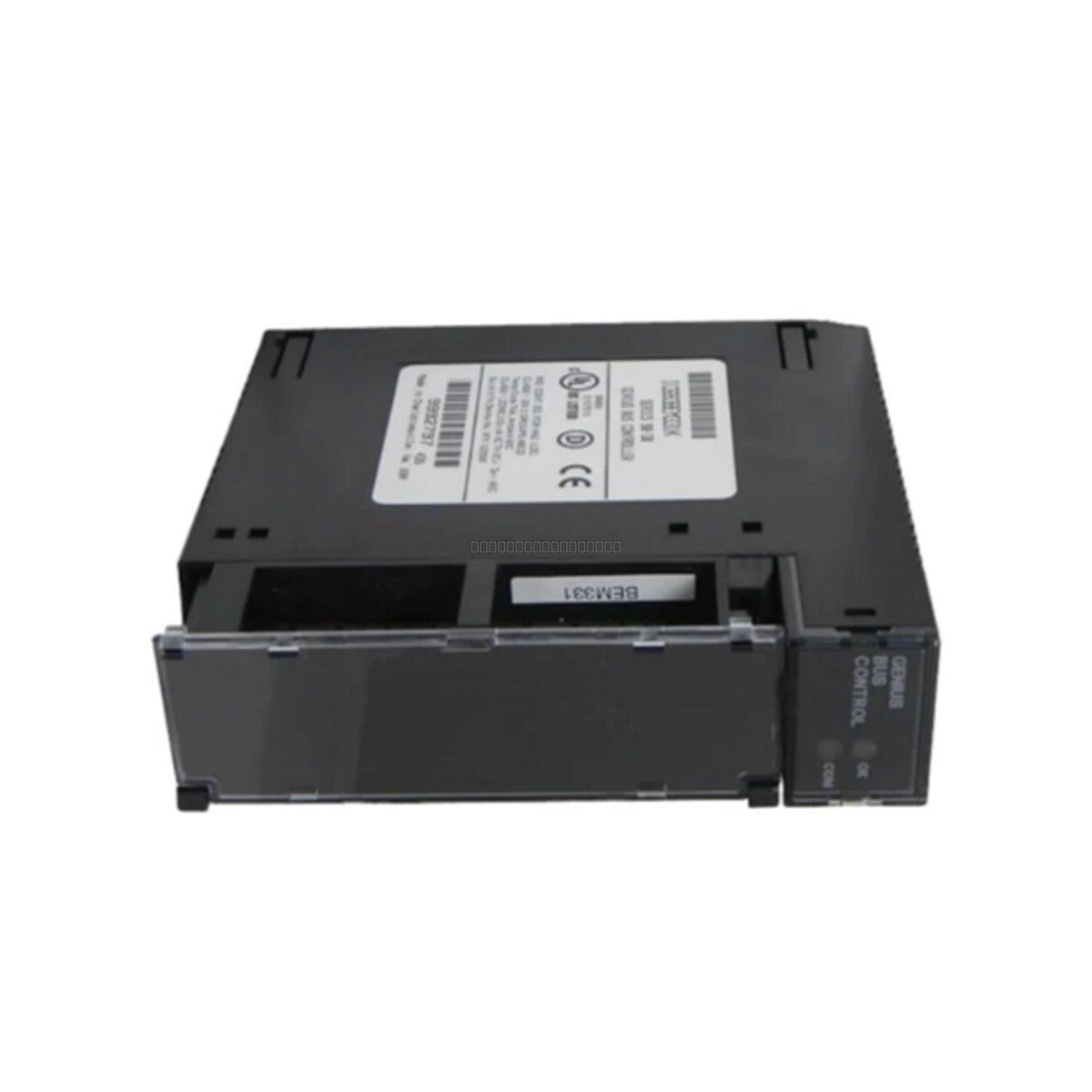

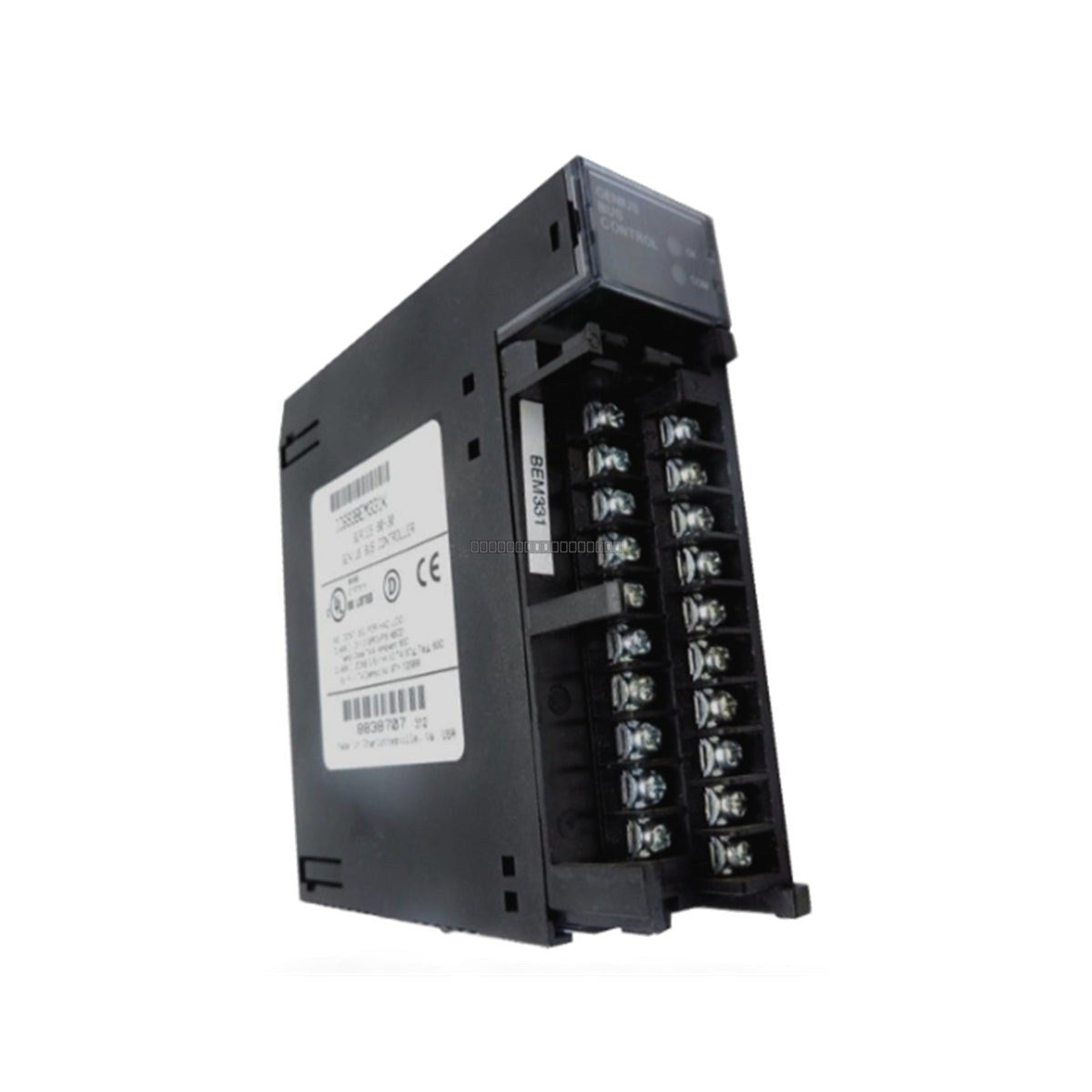

General Electric IC693BEM331E Series 90-30 Genius Bus Interface Module

General Electric IC693BEM331E Series 90-30 Genius Bus Interface Module

Description

The General Electric IC693BEM331E is a Genius Bus Interface module designed for the Series 90-30 Programmable Logic Controller (PLC) system. This module serves as a communication gateway, allowing the Series...

20 people are viewing this right now

Availability: Low stock: 3 left

SKU: IC693BEM331E
Vendor: General Electric
Category: PLC I/O Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The General Electric IC693BEM331E is a Genius Bus Interface module designed for the Series 90-30 Programmable Logic Controller (PLC) system. This module serves as a communication gateway, allowing the Series 90-30 controller to interface with the Genius I/O bus network. It facilitates robust data exchange between the PLC backplane and remote Genius I/O blocks, supporting complex distributed control architectures.

Features

  • Designed for seamless integration with the GE Series 90-30 PLC backplane.
  • Provides Genius Bus interface capabilities for distributed I/O management.
  • Equipped with two diagnostic LEDs (OK and COMM OK) for real-time status monitoring.
  • Supports up to 31 I/O devices on the Genius bus.
  • Maximum data throughput capacity of 128 bytes.
  • Compact module design with an IP20 ingress protection rating.

Technical Specifications

Product Model IC693BEM331E
Series Series 90-30
Module Type Genius Bus Interface
Power Supply 5V DC (sourced from backplane)
Current Consumption <300mA at 5V DC
Max I/O Devices 31
Max Data Rate 128 bytes
IP Rating IP20

Installation Guidelines

  • Ensure the PLC rack power is disconnected before installing or removing the module to prevent electrical damage.
  • Slide the module into the designated slot on the Series 90-30 backplane and secure it using the integrated mounting screws.
  • Ensure proper grounding of the PLC rack to minimize electromagnetic interference (EMI).
  • Verify that the Genius bus cabling is routed away from high-voltage lines or sources of electrical noise.
  • Check the status LEDs after power-up to confirm the module is communicating correctly with the bus.

FAQ

What is the primary function of the IC693BEM331E?

This module acts as a Genius Bus Controller, enabling a Series 90-30 PLC to communicate with and control remote Genius I/O blocks across a distributed network.

How is the module powered?

The module draws its required 5V DC power directly from the Series 90-30 PLC backplane upon which it is mounted.

What do the status LEDs indicate?

The module features two LEDs: 'OK' indicates the module is functioning correctly, and 'COMM OK' indicates successful communication over the Genius bus network.
