General Electric IC693CHS392C 10-Slot Expansion Baseplate

General Electric IC693CHS392C 10-Slot Expansion Baseplate

The General Electric IC693CHS392C is a 10-slot expansion baseplate designed for the Series 90-30 PLC platform. This unit provides additional I/O capacity for industrial control systems, allowing for the integration...

23 people are viewing this right now

Availability: Low stock: 10 left

SKU: IC693CHS392C
Vendor: General Electric
Category: PLC Expansion Base
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

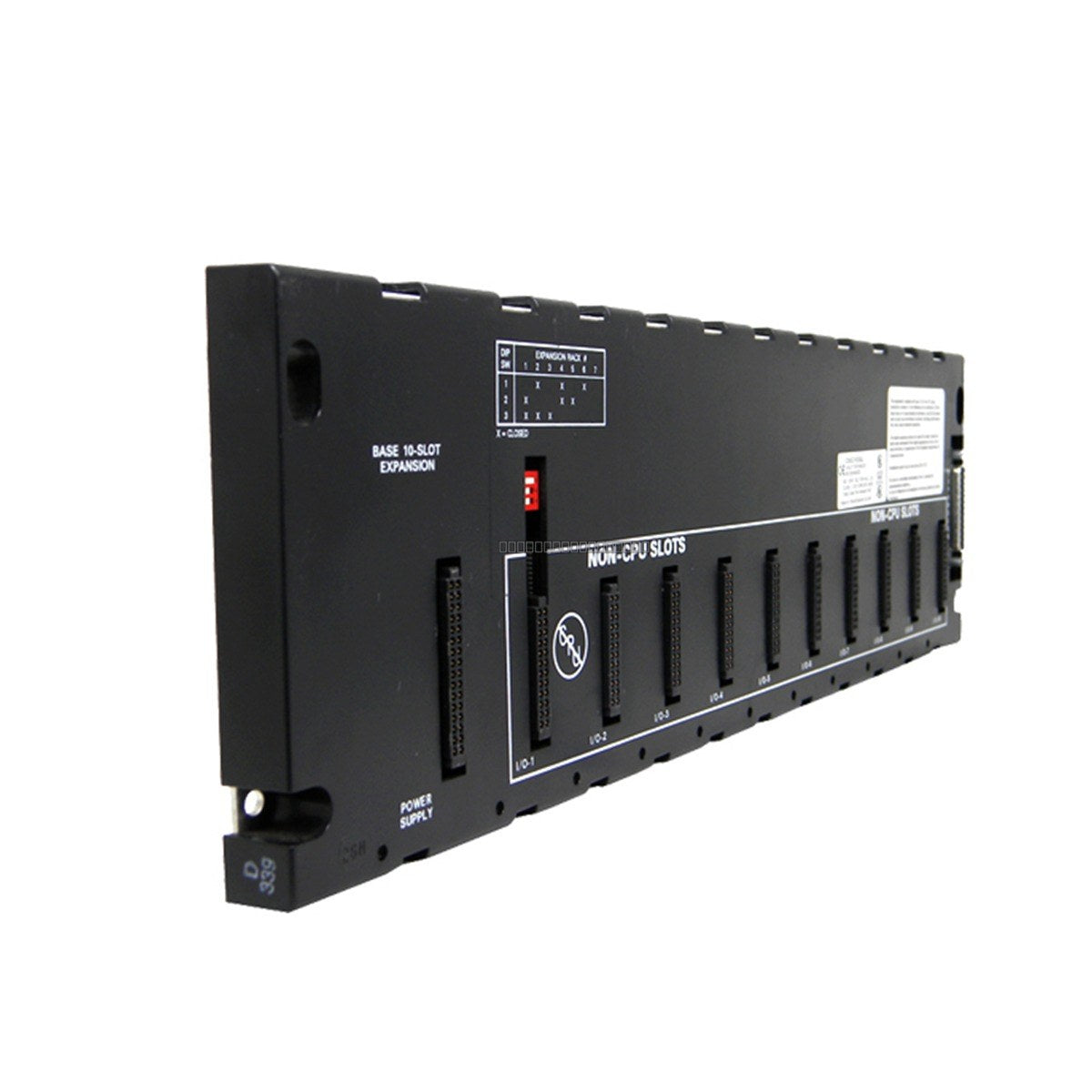

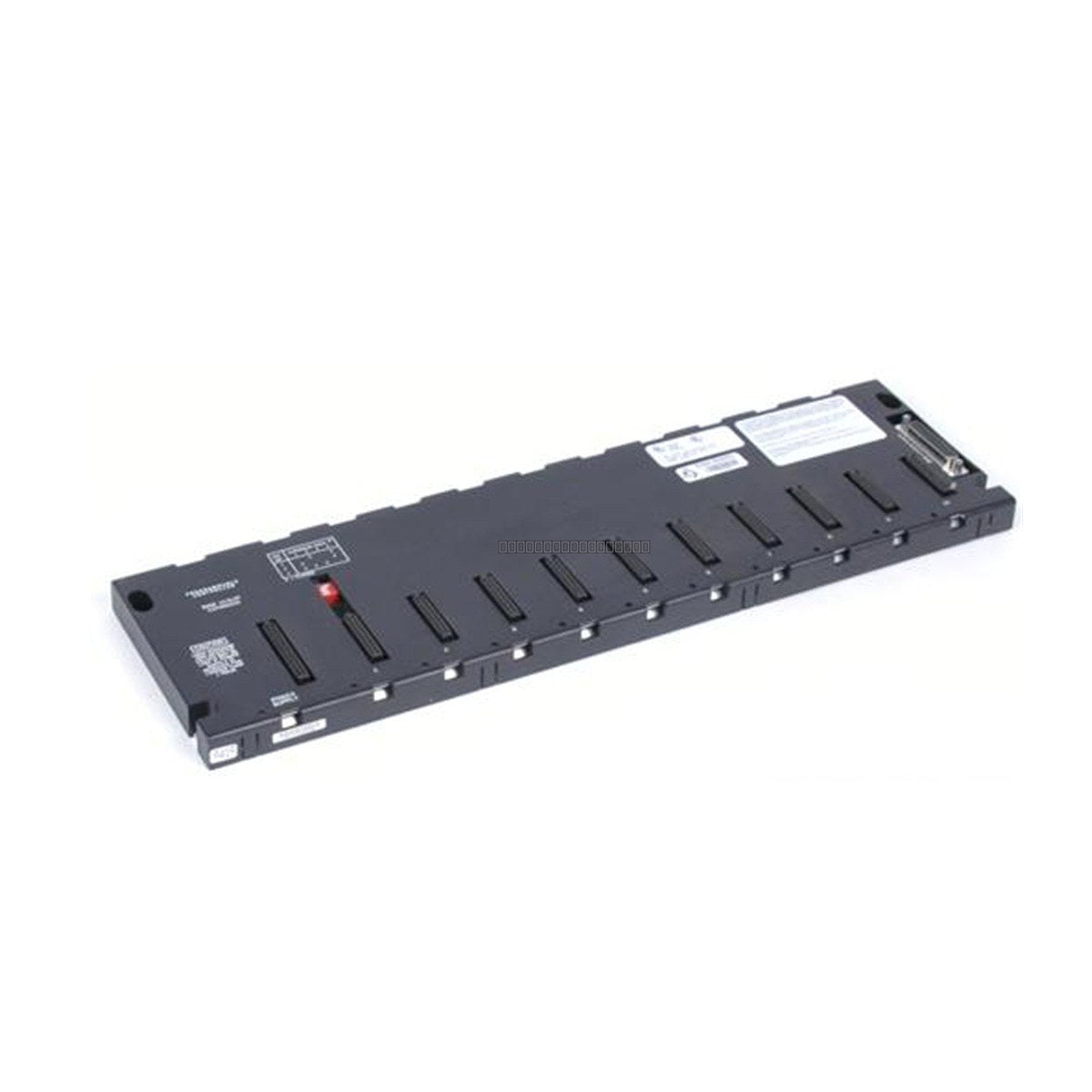

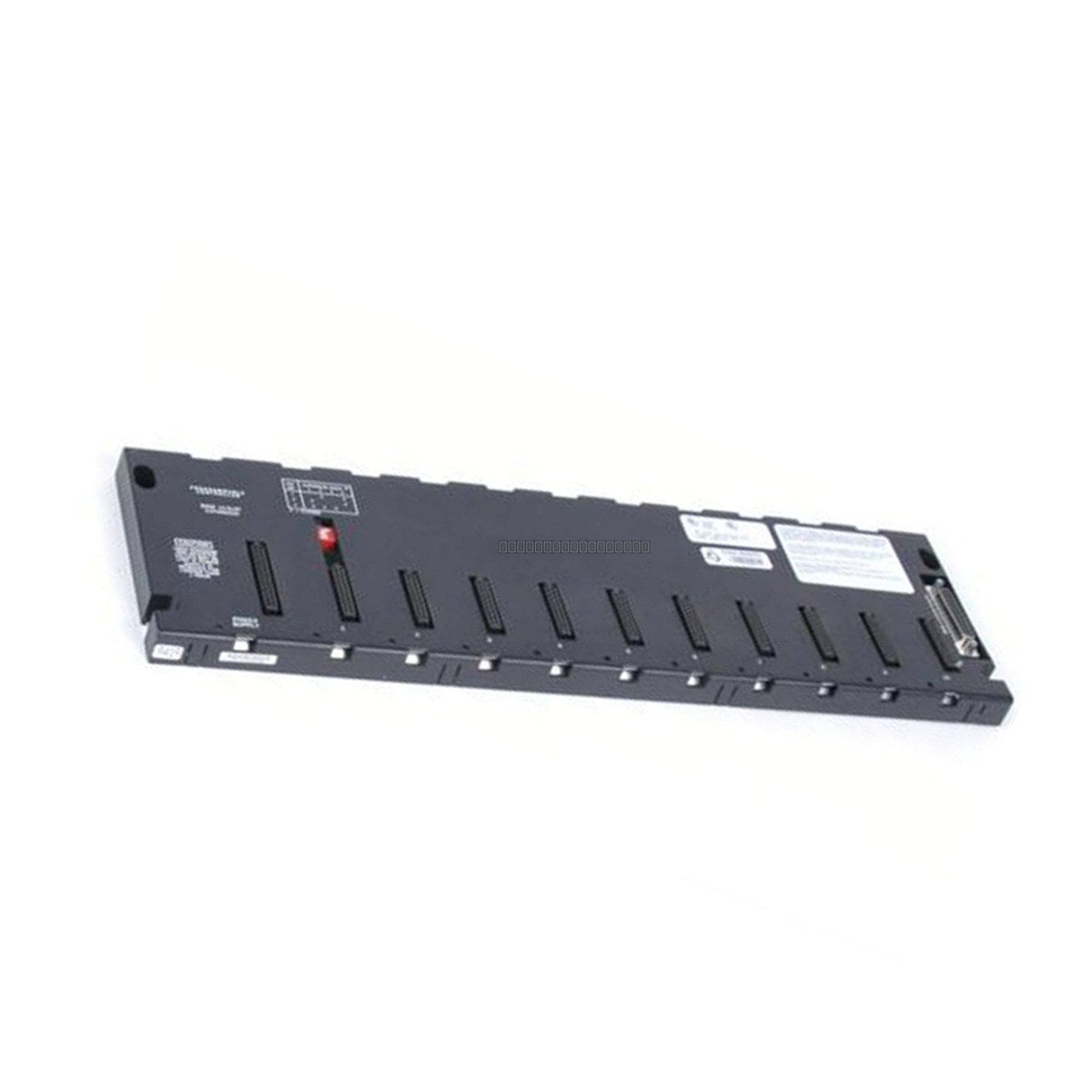

The General Electric IC693CHS392C is a 10-slot expansion baseplate designed for the Series 90-30 PLC platform. This unit provides additional I/O capacity for industrial control systems, allowing for the integration of up to ten I/O or option modules. It features a dedicated slot for a power supply module and utilizes a 25-pin D-shell female connector for expansion communication.

Features

  • 10-slot capacity for versatile I/O and option module configuration.
  • Dedicated slot for system power supply.
  • Compatible with Series 90-30 PLC architecture.
  • Robust panel-mounting design for secure installation.
  • Internal power consumption of 150 mA at 5 VDC.

Applications

This expansion base is typically utilized in GE Series 90-30 PLC systems where additional I/O density is required beyond the capacity of the main CPU rack. It is suitable for distributed control applications, machine automation, and process monitoring systems.

Technical Specifications

Product Model IC693CHS392C
Series Series 90-30
Slot Count 10 Slots
Power Requirements 5 VDC
Current Consumption 150 mA
Expansion Interface 25-pin D-shell female connector
Mounting Type Panel Mount
Weight 0.94 kg

Installation Guidelines

  • Ensure the installation environment is restricted to indoor use only, away from excessive moisture, dust, or corrosive gases.
  • Mount the baseplate securely to a flat, vibration-resistant panel surface.
  • Always disconnect all power sources before installing or removing modules from the baseplate to prevent electrical damage.
  • Ensure proper grounding of the baseplate chassis to the system common ground to minimize electromagnetic interference (EMI).
  • Verify that the 25-pin expansion cable is firmly seated and secured to ensure reliable communication between the CPU rack and the expansion base.
  • Maintain adequate clearance around the unit to allow for proper ventilation and heat dissipation.

FAQ

Can this baseplate hold a CPU module?
No, the IC693CHS392C is an expansion baseplate and does not support CPU modules. It is designed specifically for I/O and option modules.

What is the primary function of the 25-pin connector?
The 25-pin D-shell female connector is used to link the expansion base to the main CPU rack or another expansion base in the system chain.
