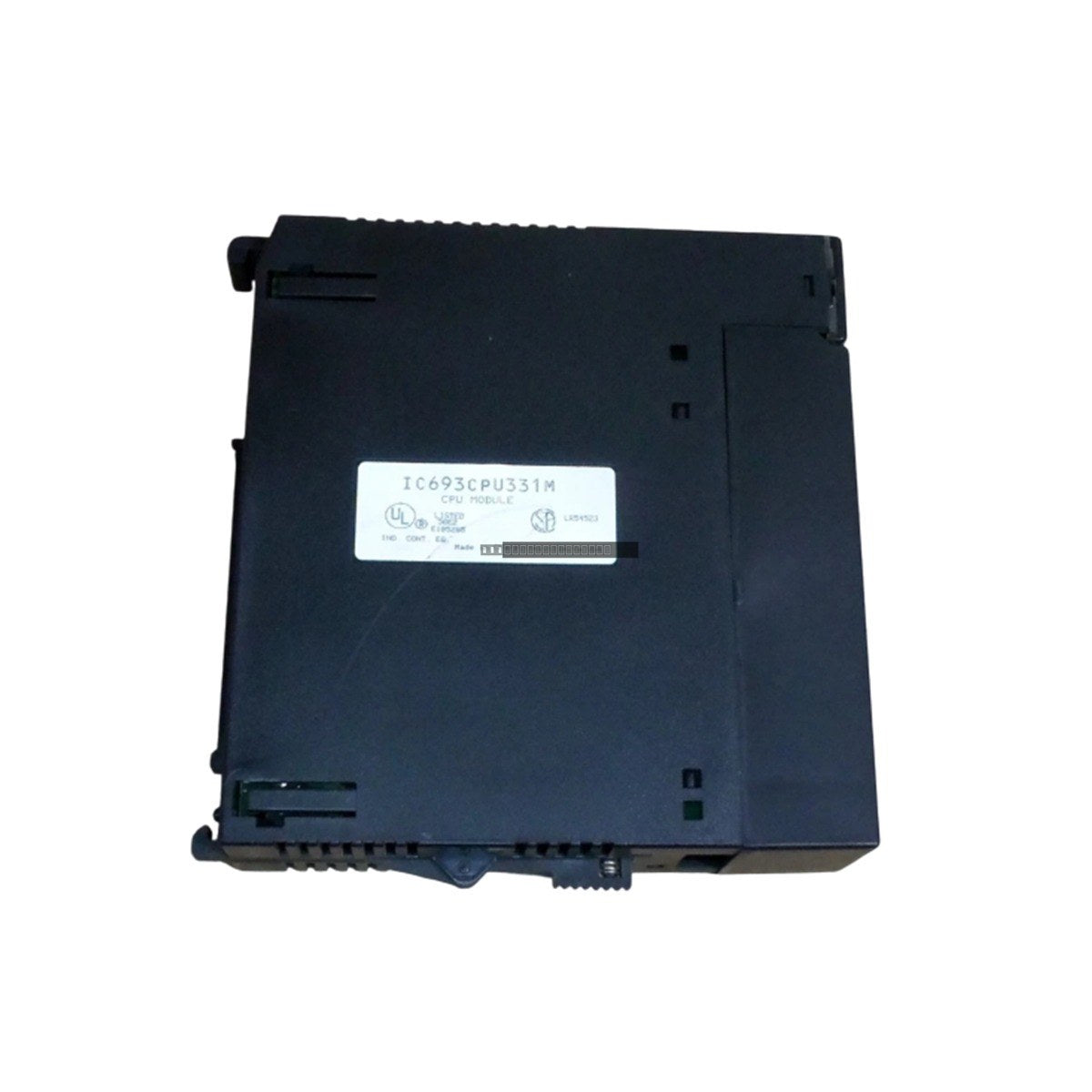

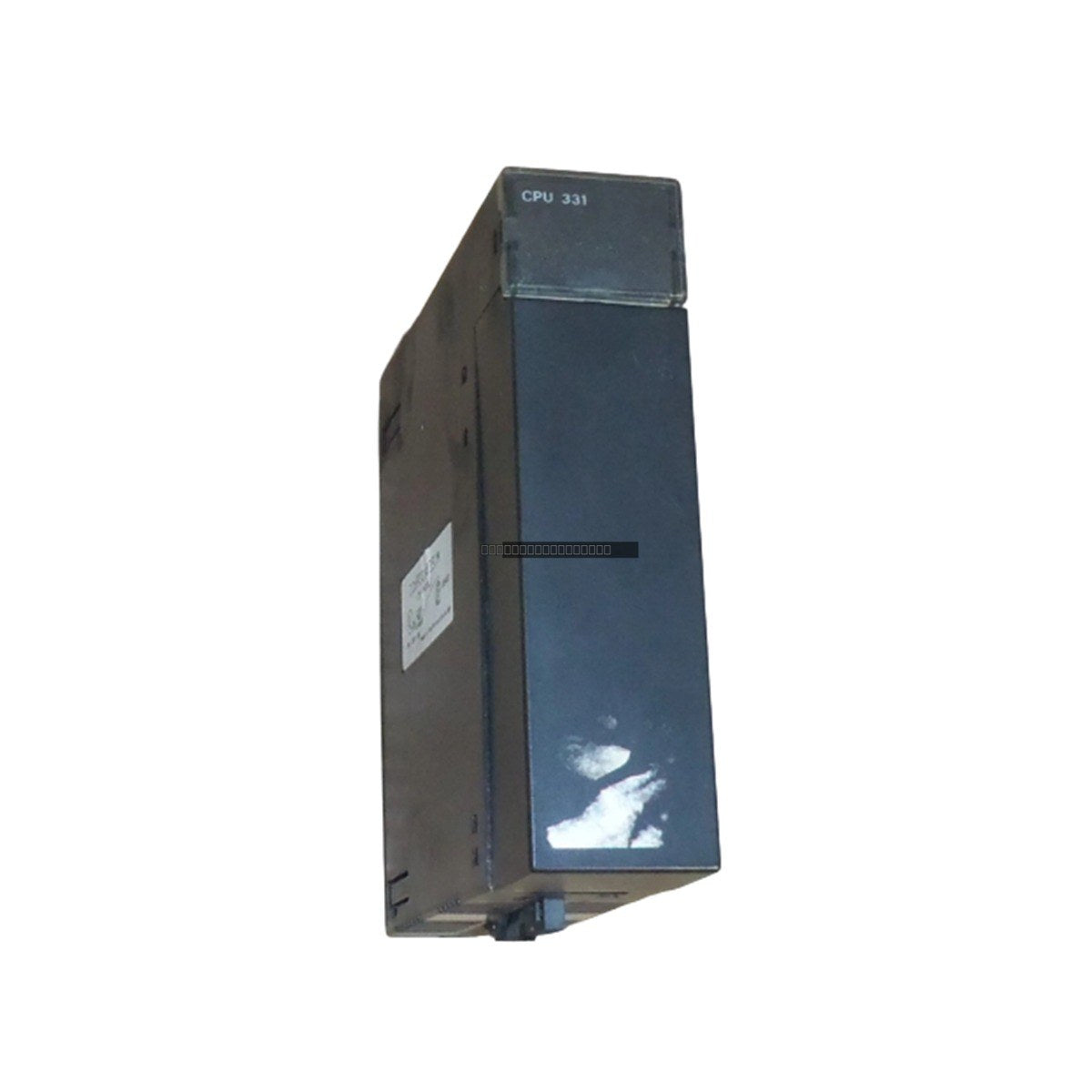

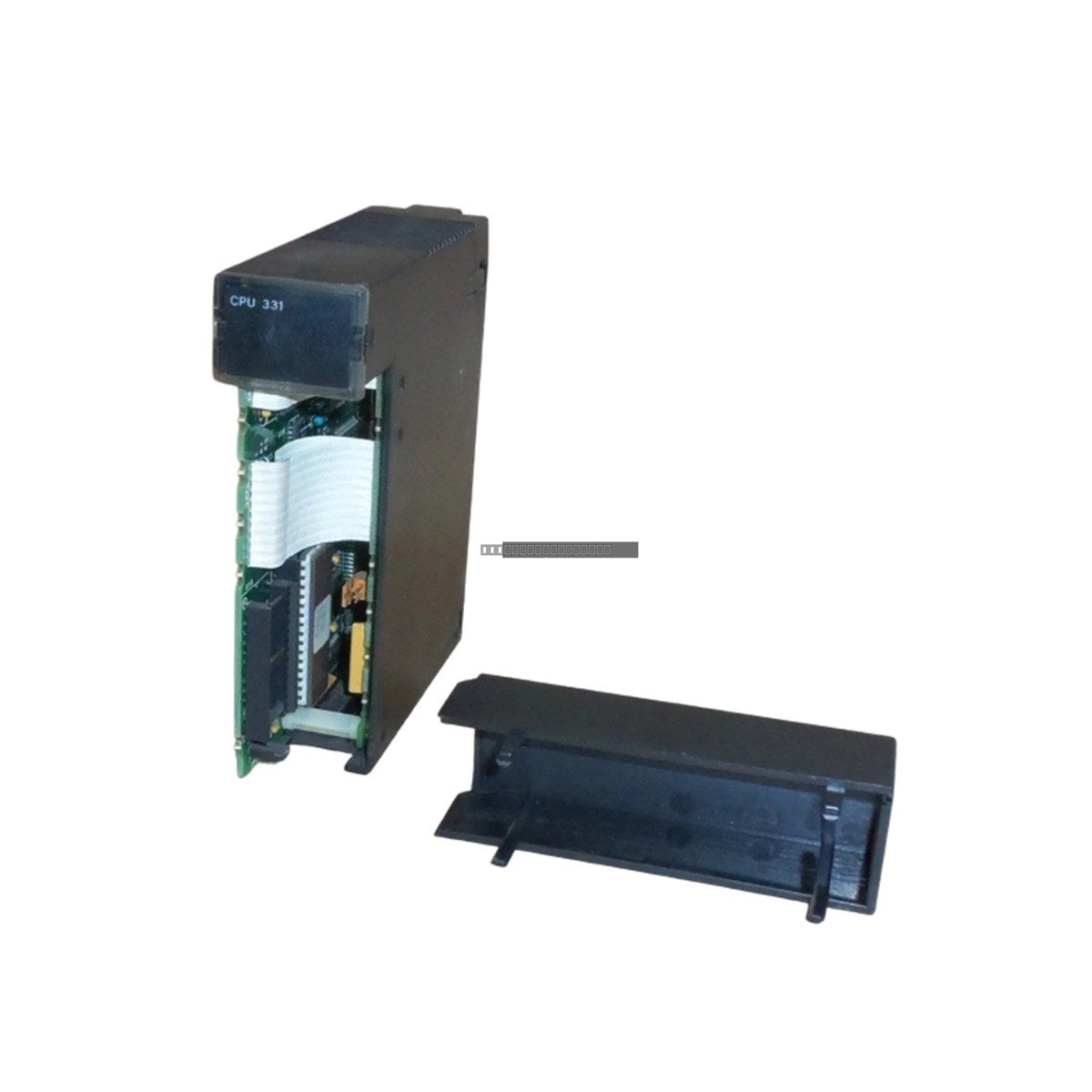

GE Fanuc IC693CPU331L Series 90-30 Modular CPU Module

GE Fanuc IC693CPU331L Series 90-30 Modular CPU Module

Description

The GE Fanuc IC693CPU331L is a high-performance modular CPU module designed for the Series 90-30 Programmable Logic Controller (PLC) platform. This unit serves as the central processing engine, utilizing an...

26 people are viewing this right now

Availability: Low stock: 3 left

SKU: IC693CPU331L
Vendor: General Electric
Category: CPU Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The GE Fanuc IC693CPU331L is a high-performance modular CPU module designed for the Series 90-30 Programmable Logic Controller (PLC) platform. This unit serves as the central processing engine, utilizing an 80188 processor architecture to manage complex control tasks, logic execution, and I/O communication within industrial automation environments.

Features

  • Processor: 80188 architecture operating at 10 MHz.
  • Scan Rate: Typical scan rate of 0.4 ms per 1K of Boolean logic.
  • Memory/Logic Capacity: Supports up to 680 timers and counters.
  • Expansion Capability: Supports up to four (4) expansion baseplates and four (4) remote I/O baseplates.
  • Power Requirements: Operates on a +5VDC bus voltage with a current load of 350mA.

Technical Specifications

Model IC693CPU331L
Series Series 90-30
Processor Type 80188
Clock Speed 10 MHz
Operating Temperature 0 to 60 degC (32 to 140 degF)
Current Load 350mA
Bus Voltage +5VDC

Installation Guidelines

  • Ensure the PLC rack is powered down before inserting or removing the CPU module to prevent electrical damage.
  • The module should be seated firmly into the designated CPU slot on the baseplate and secured using the provided mounting hardware.
  • Maintain proper ventilation within the control cabinet to ensure the ambient temperature remains within the specified 0 to 60 degC range.
  • Follow standard ESD (Electrostatic Discharge) precautions when handling the module to protect sensitive internal components.
  • Ensure all expansion baseplates are correctly addressed and connected via the appropriate I/O bus cables.

FAQ

What is the primary function of the IC693CPU331L?
This is a central processing unit for the GE Series 90-30 PLC system, responsible for executing user logic and managing system I/O.

How many expansion baseplates can this CPU support?
The IC693CPU331L supports up to four expansion baseplates and four remote I/O baseplates.

What is the operating temperature range for this module?
The module is rated for operation between 32 degF and 140 degF (0 degC to 60 degC).
