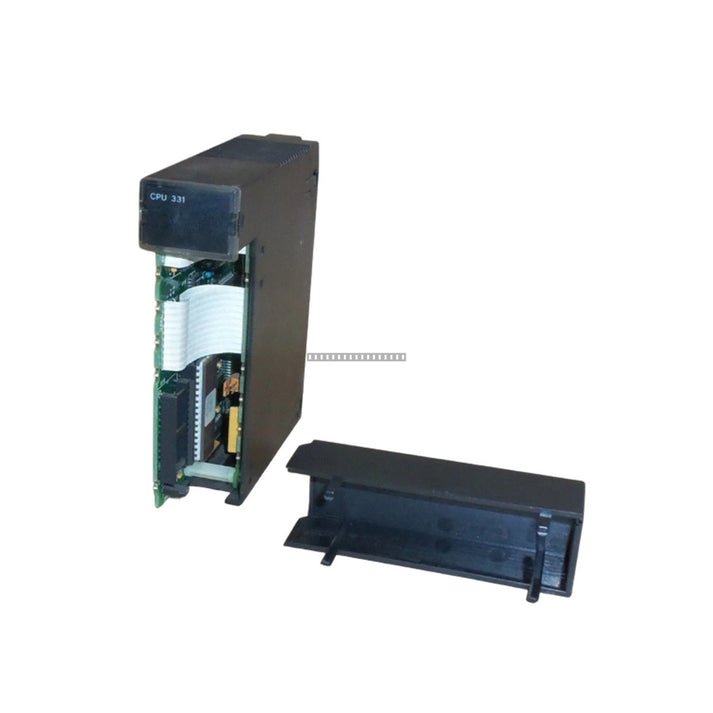

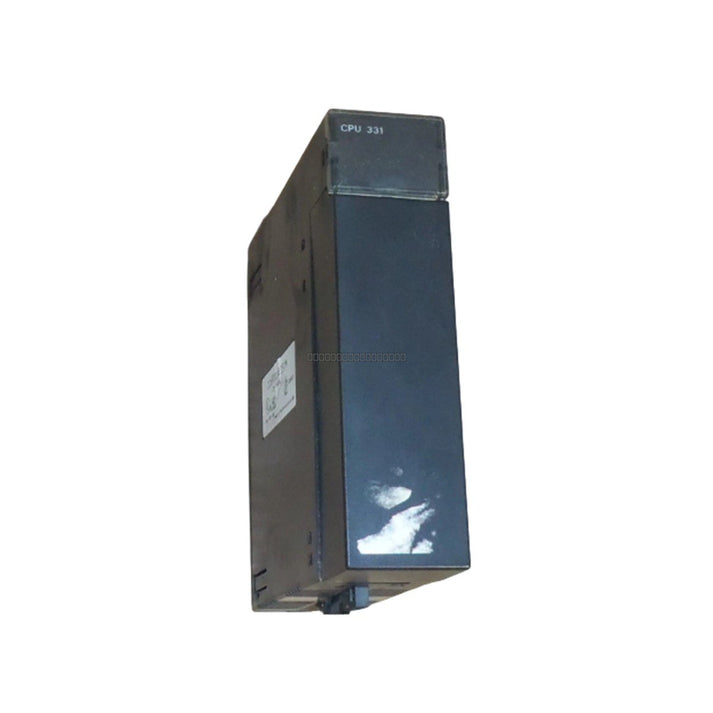

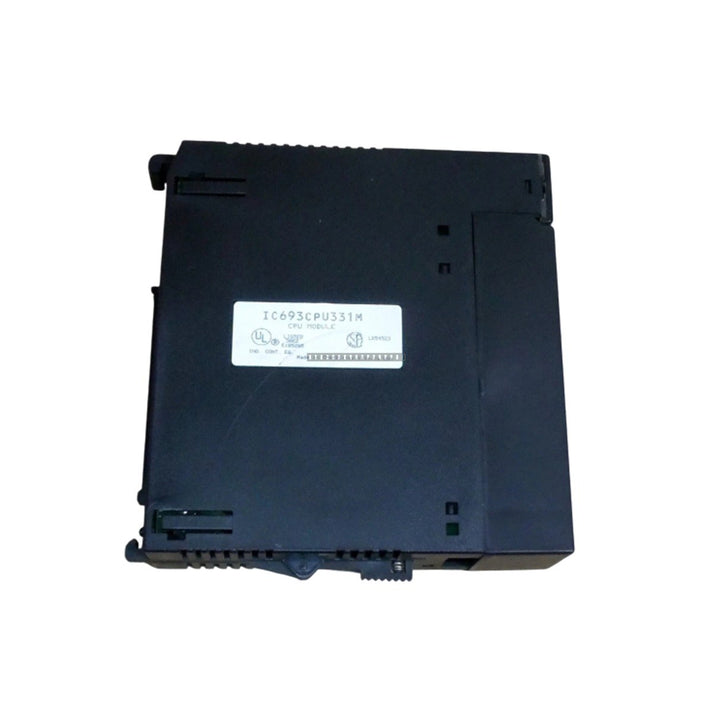

GE Fanuc IC693CPU331M Series 90-30 Modular CPU Module

GE Fanuc IC693CPU331M Series 90-30 Modular CPU Module

Description

The GE Fanuc IC693CPU331M is a high-performance modular CPU module designed for the Series 90-30 Programmable Logic Controller (PLC) family. This processor is engineered to handle complex control tasks in...

19 people are viewing this right now

Availability: Low stock: 9 left

SKU: IC693CPU331M
Vendor: General Electric
Category: PLC CPU Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The GE Fanuc IC693CPU331M is a high-performance modular CPU module designed for the Series 90-30 Programmable Logic Controller (PLC) family. This processor is engineered to handle complex control tasks in industrial automation environments, offering reliable execution of logic and efficient management of I/O operations.

Features

  • Processor Type: 80188 microprocessor.
  • Clock Speed: 10 MHz operation for consistent logic execution.
  • Scan Rate: Typical scan rate of 0.4 ms per 1K of Boolean logic.
  • Memory and Logic: Supports up to 680 timers and counters.
  • Expansion Capabilities: Supports up to four (4) expansion baseplates and four (4) remote I/O baseplates.
  • Power Requirements: Operates on a +5VDC bus voltage with a current load of 350mA.

Technical Specifications

Model IC693CPU331M
Series Series 90-30
Processor 80188
Clock Speed 10 MHz
Scan Rate 0.4 ms / 1K logic
Timers/Counters 680
Bus Voltage +5VDC
Current Load 350mA
Operating Temperature 0 to 60 degC (32 to 140 degF)

Installation Guidelines

  • Ensure the PLC rack is powered down before inserting or removing the CPU module to prevent electrical damage or data corruption.
  • The module must be seated firmly into the designated CPU slot of the Series 90-30 baseplate to ensure proper backplane connection.
  • Maintain adequate ventilation within the control cabinet to keep the operating temperature within the specified 0 to 60 degC range.
  • Use proper ESD (Electrostatic Discharge) handling procedures when touching the module circuitry.
  • Ensure that the backplane power supply is correctly sized to handle the 350mA current draw of the CPU in addition to other modules in the rack.

FAQ

What is the primary function of the IC693CPU331M?

The IC693CPU331M acts as the central processing unit for the GE Series 90-30 PLC system, responsible for executing user-programmed logic, managing I/O data, and coordinating communication between modules in the rack.

Can this module be used with remote I/O?

Yes, this CPU supports up to four expansion baseplates and four remote I/O baseplates, allowing for distributed control configurations.

What is the required operating environment?

The module is designed for industrial environments with an operating temperature range of 0 to 60 degC (32 to 140 degF).
