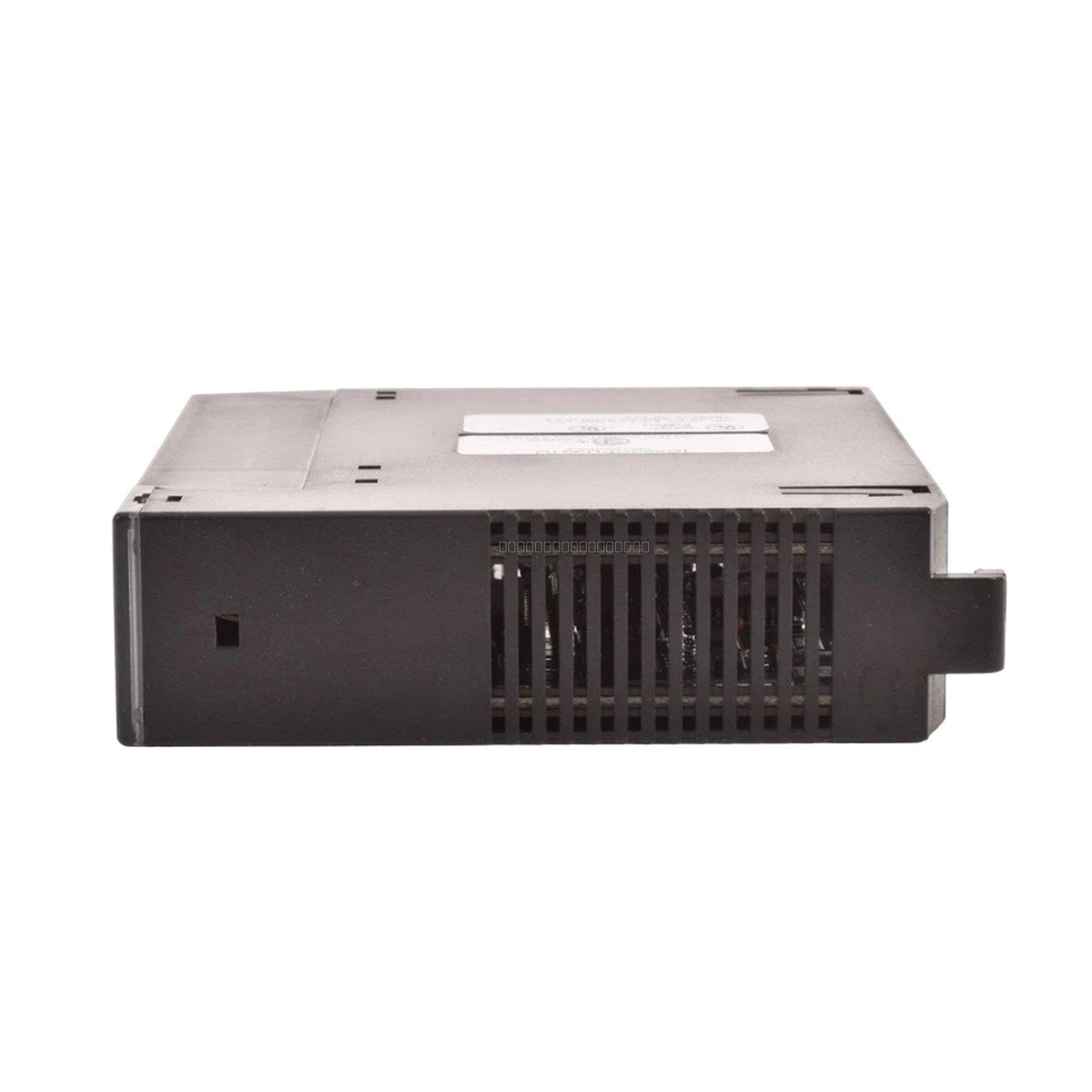

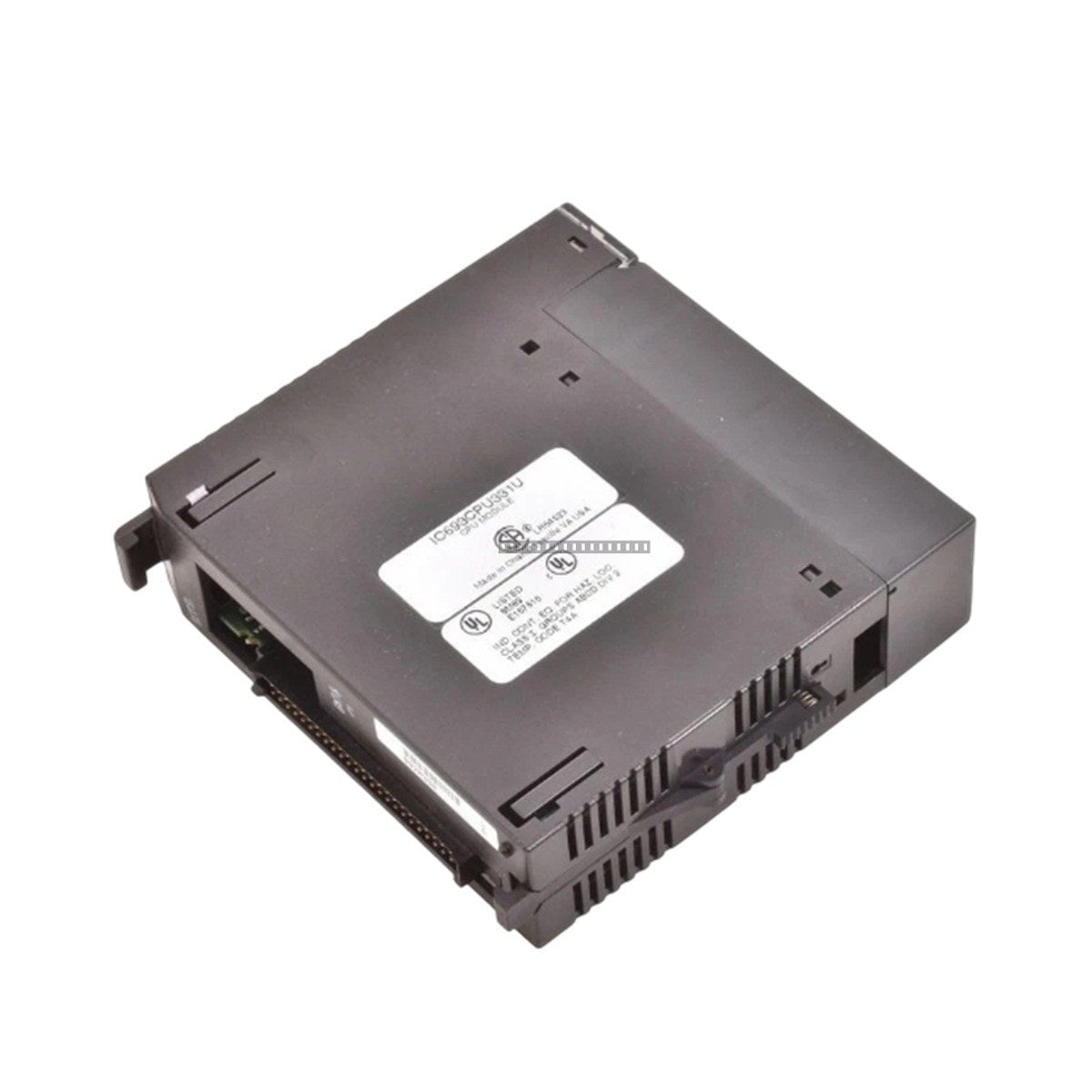

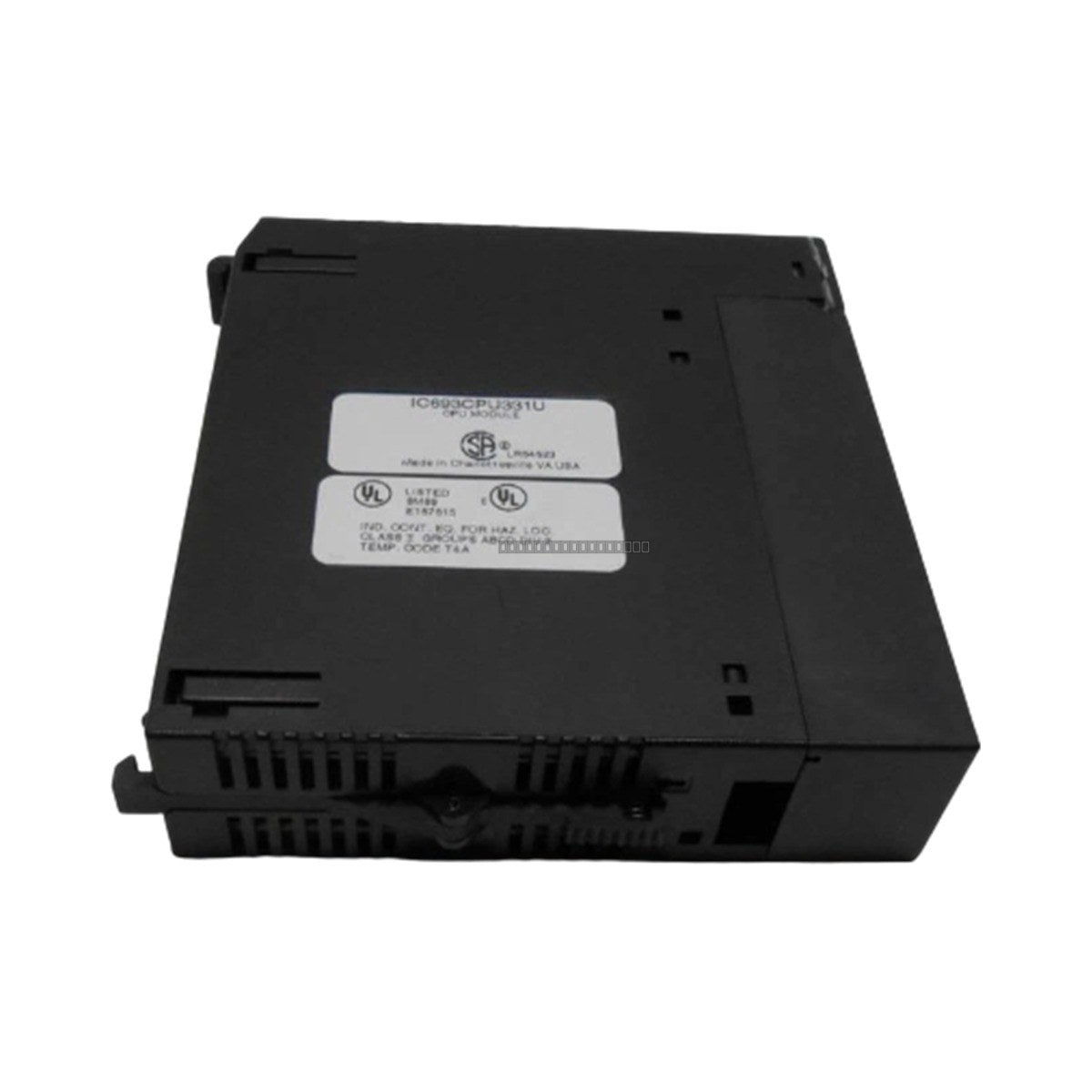

GE Fanuc IC693CPU331U Series 90-30 CPU 331 Module

GE Fanuc IC693CPU331U Series 90-30 CPU 331 Module

Description

The GE Fanuc IC693CPU331U is a high-performance modular CPU module designed for the Series 90-30 Programmable Logic Controller (PLC) system. This processor is built on the 80188 architecture, providing reliable...

27 people are viewing this right now

Availability: Low stock: 3 left

SKU: IC693CPU331U
Vendor: General Electric
Category: CPU Module
Related Series:

Shipping & Returns

Reliable Worldwide Delivery

  • Carriers: Shipped via DHL, FedEx, UPS, or USPS.
  • Dispatch: Orders processed in 1-2 business days and dispatched within 3-5 business days.
  • Tracking: Full tracking details provided via email upon shipment.

30-Day Money-Back Guarantee

  • Guarantee: 30-day return window for in-stock, factory-sealed products.
  • Condition: Items must be unopened, unused, and in original packaging.
  • Authenticity: We guarantee 100% original and authentic hardware.

Need more details? Read our fullShipping PolicyandRefund Policy.

Authenticity & Warranty

  • Genuine Guarantee: We supply only 100% original, brand-new, and factory-sealed industrial automation parts.
  • Full Coverage: Every component is backed by a 12-month comprehensive warranty from the date of purchase.
  • Traceability: All products come with original factory documentation and accessories for full industrial compliance.

Technical Support & Sourcing

  • Expert Assistance: Our technical team provides free consultation to help you verify compatibility for DCS and PLC systems.
  • Rare Part Sourcing: Specializing in obsolete and hard-to-find components from Allen-Bradley, Siemens, ABB, HIMA, and more.
  • Bulk Inquiries: Contact us at pambo@5gplc.com for volume pricing or customized project quotes.
View full product details

Description

The GE Fanuc IC693CPU331U is a high-performance modular CPU module designed for the Series 90-30 Programmable Logic Controller (PLC) system. This processor is built on the 80188 architecture, providing reliable control and logic execution for industrial automation applications. It is engineered to handle complex control tasks with a clock speed of 10 MHz and an efficient scan rate, making it suitable for various machine and process control environments.

Features

  • Processor Architecture: 80188 CPU
  • Clock Speed: 10 MHz
  • Scan Rate: 0.4 ms per 1K of Boolean logic
  • Memory and Logic: Supports 680 timers and counters
  • Expansion Capability: Supports up to four (4) expansion baseplates and four (4) remote I/O baseplates
  • Power Requirements: Operates on +5VDC bus voltage with a current load of 350mA

Technical Specifications

Model IC693CPU331U
Manufacturer General Electric (GE Fanuc)
Series Series 90-30
Processor Type 80188
Clock Speed 10 MHz
Scan Rate 0.4 ms / 1K logic
Timers/Counters 680
Bus Voltage +5VDC
Current Load 350mA
Operating Temperature 0 to 60 degC (32 to 140 degF)

Installation Guidelines

  • Ensure the PLC system is powered down before installing or removing the CPU module from the baseplate.
  • The module is designed for slot-based mounting within a Series 90-30 rack system; ensure the module is fully seated and the locking tabs are engaged.
  • Maintain proper ventilation within the control cabinet to keep the ambient temperature within the specified 0 to 60 degC range.
  • Follow standard ESD (Electrostatic Discharge) protection procedures when handling the module to prevent damage to internal circuitry.
  • Ensure all expansion and remote I/O baseplates are correctly addressed and connected according to the system configuration requirements.

FAQ

What is the primary function of the IC693CPU331U?

The IC693CPU331U serves as the central processing unit for the GE Fanuc Series 90-30 PLC, responsible for executing the user program, managing I/O data, and coordinating communication across the backplane.

Can this module support remote I/O?

Yes, this CPU model supports up to four remote I/O baseplates in addition to four local expansion baseplates, allowing for distributed control architectures.
