Description

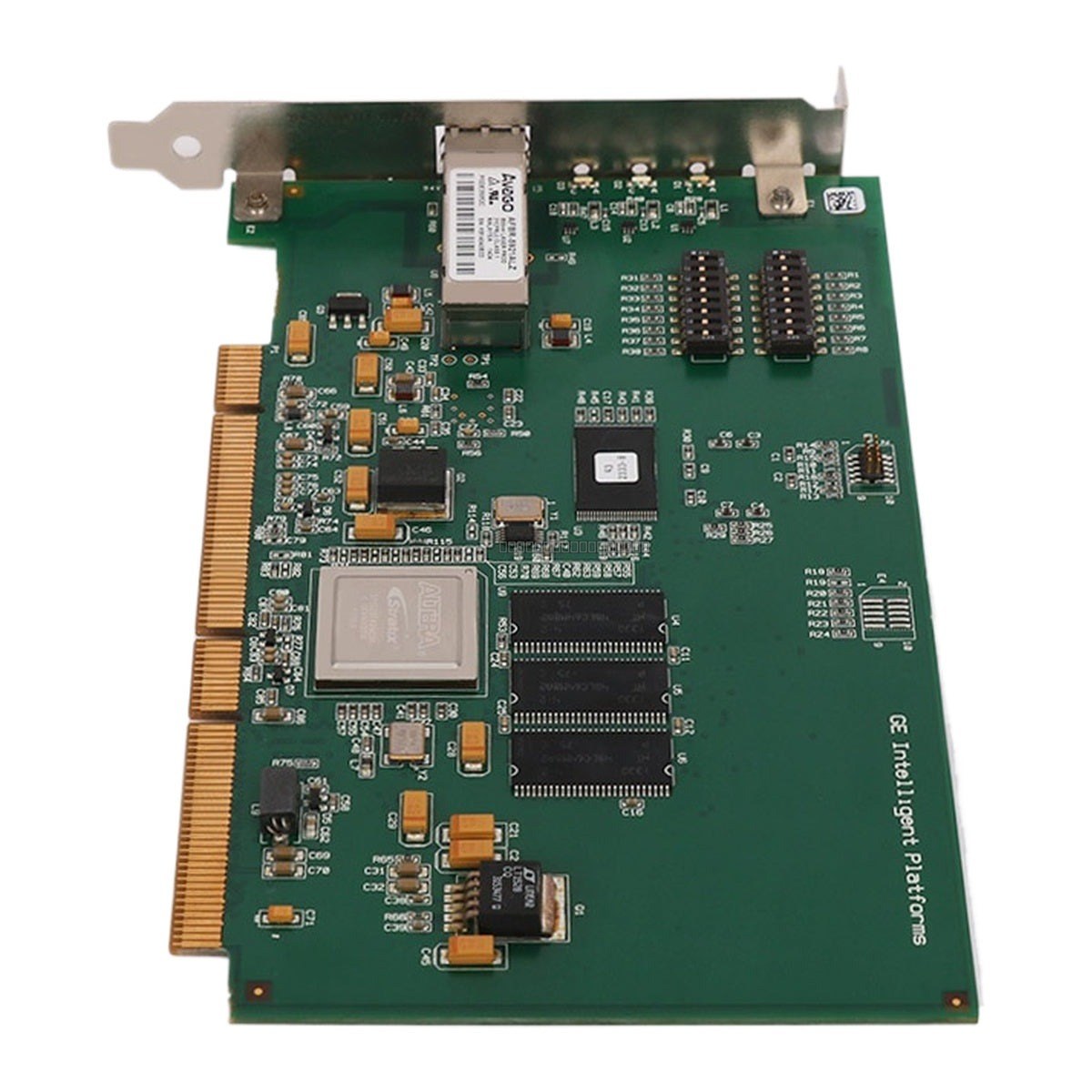

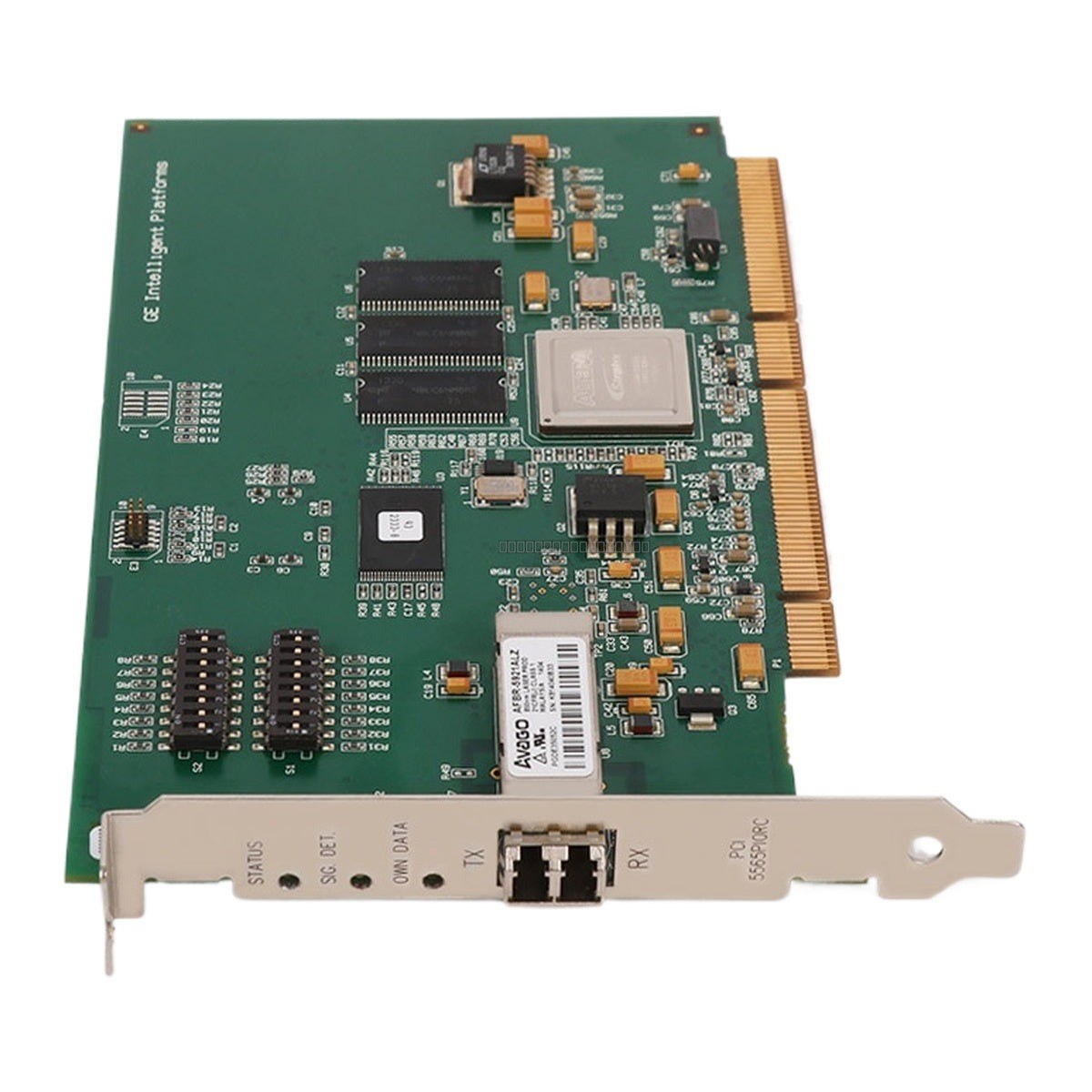

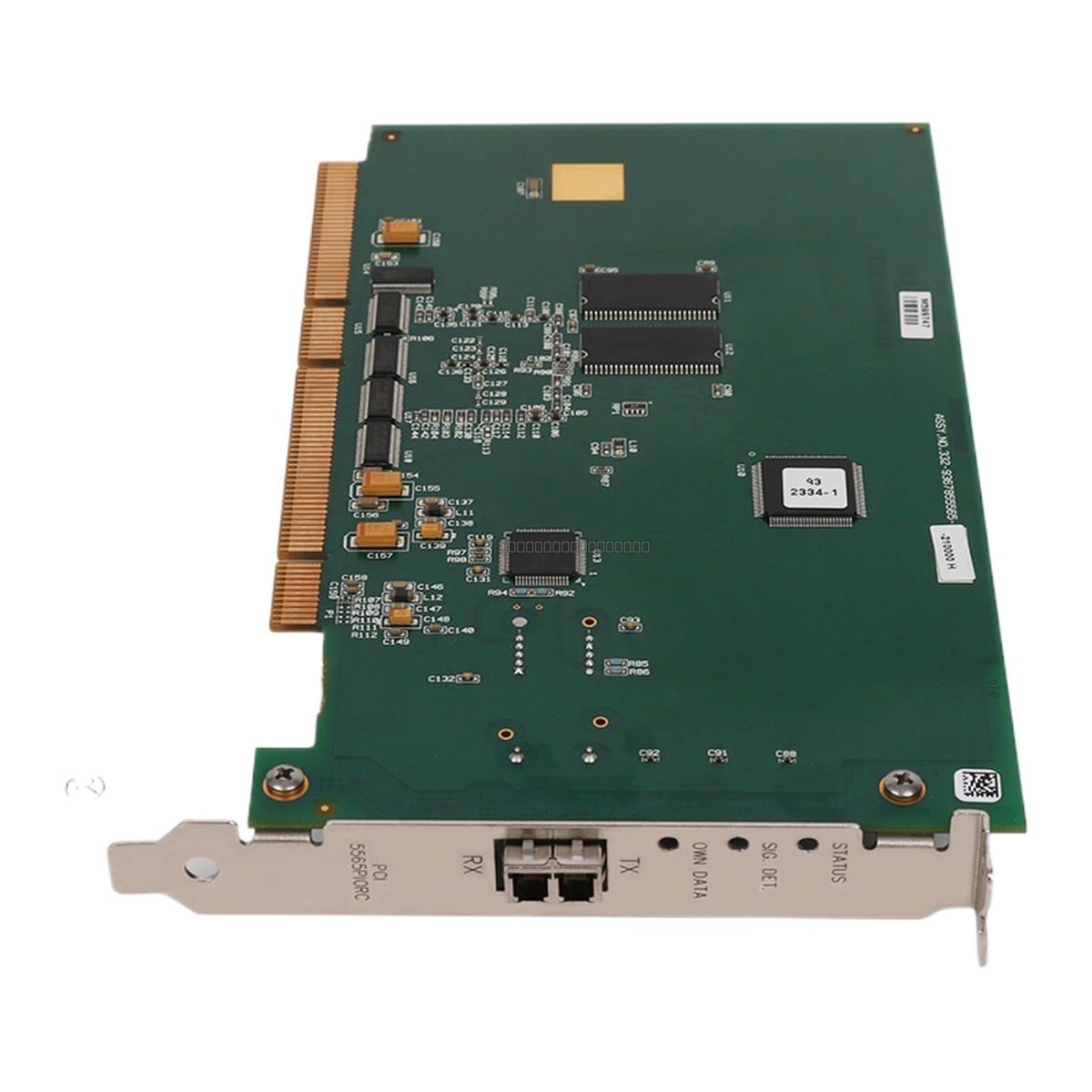

The General Electric PCI-5565PIORC-110000 is a high-performance Reflective Memory PCI node card designed for real-time industrial applications. This module provides a deterministic, low-latency communication interface, allowing multiple nodes to share memory across a high-speed fiber-optic network. It is engineered to maintain data consistency across distributed systems, ensuring that all nodes in the network have access to the same information simultaneously.

Features

• 128 MB of onboard reflective memory for high-speed data buffering.
• Multimode fiber-optic transmission for reliable data transfer over distance.
• Deterministic, low-latency performance suitable for time-critical control loops.
• Operating system and bus structure independence for flexible integration.
• Sustained data transfer rates of up to 174 Mbytes/s.

Applications

This node card is widely utilized in industrial automation environments requiring synchronized data across multiple controllers or workstations, including:

• High-speed motion control systems.
• Distributed control systems (DCS) requiring real-time data mirroring.
• Simulation and testing rigs where deterministic timing is critical.
• Large-scale industrial process monitoring.

Technical Specifications

Installation Guidelines

• Ensure the host system is powered down before installing or removing the PCI card.
• Handle the module using ESD-safe practices to prevent damage to sensitive electronic components.
• Ensure the PCI slot is clean and free of debris before seating the card.
• Verify that the fiber-optic cables are correctly seated and protected from sharp bends or excessive tension.
• Maintain adequate ventilation within the host chassis to ensure the card operates within the specified temperature range.

FAQ

What is the primary function of the PCI-5565PIORC-110000?
This card acts as a node in a reflective memory network, allowing real-time, deterministic data sharing between multiple computers or controllers by mirroring memory contents across the network.

Does this card require specific drivers?
Yes, integration typically requires the appropriate reflective memory software drivers compatible with your host operating system to manage the memory mapping and network communication.
